Cannondale Topstone Carbon 2 AXS – 1x 2025
2025 Road
Estimate price |
5,001$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GX Eagle Transmission, Apex AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Apex Hydraulic Disc
Sizing
Recommended size guide.
47cm
149cm - 167cm
51cm
165cm - 175cm
54cm
172cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
Suspension Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Drivetrain

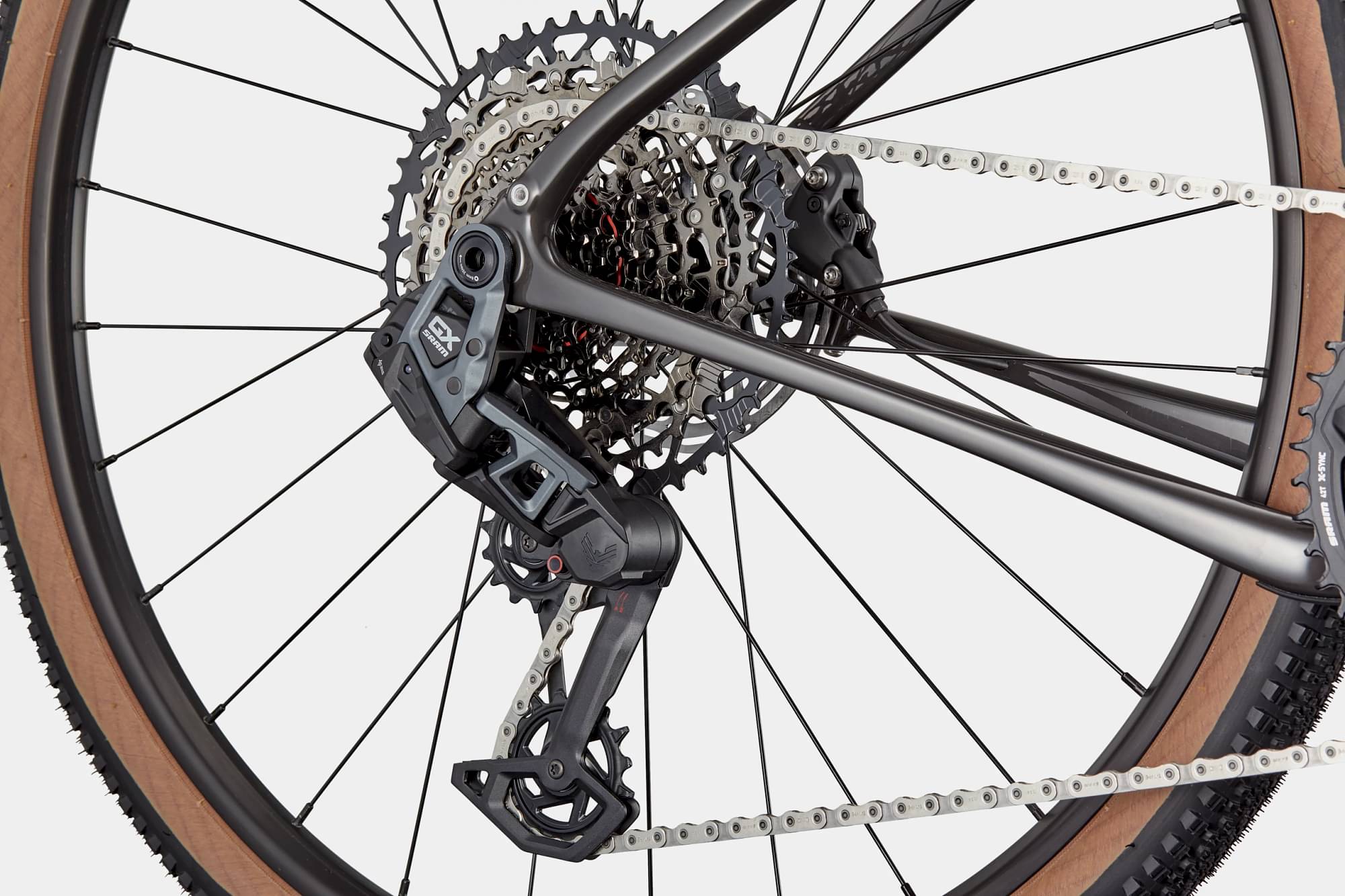

Rear Derailleur
SRAM GX Eagle AXS, T-Type
Shift Levers
SRAM Apex AXS, 12-speed
Cassette
SRAM XS-1270, 10-52, T-Type, 12-speed

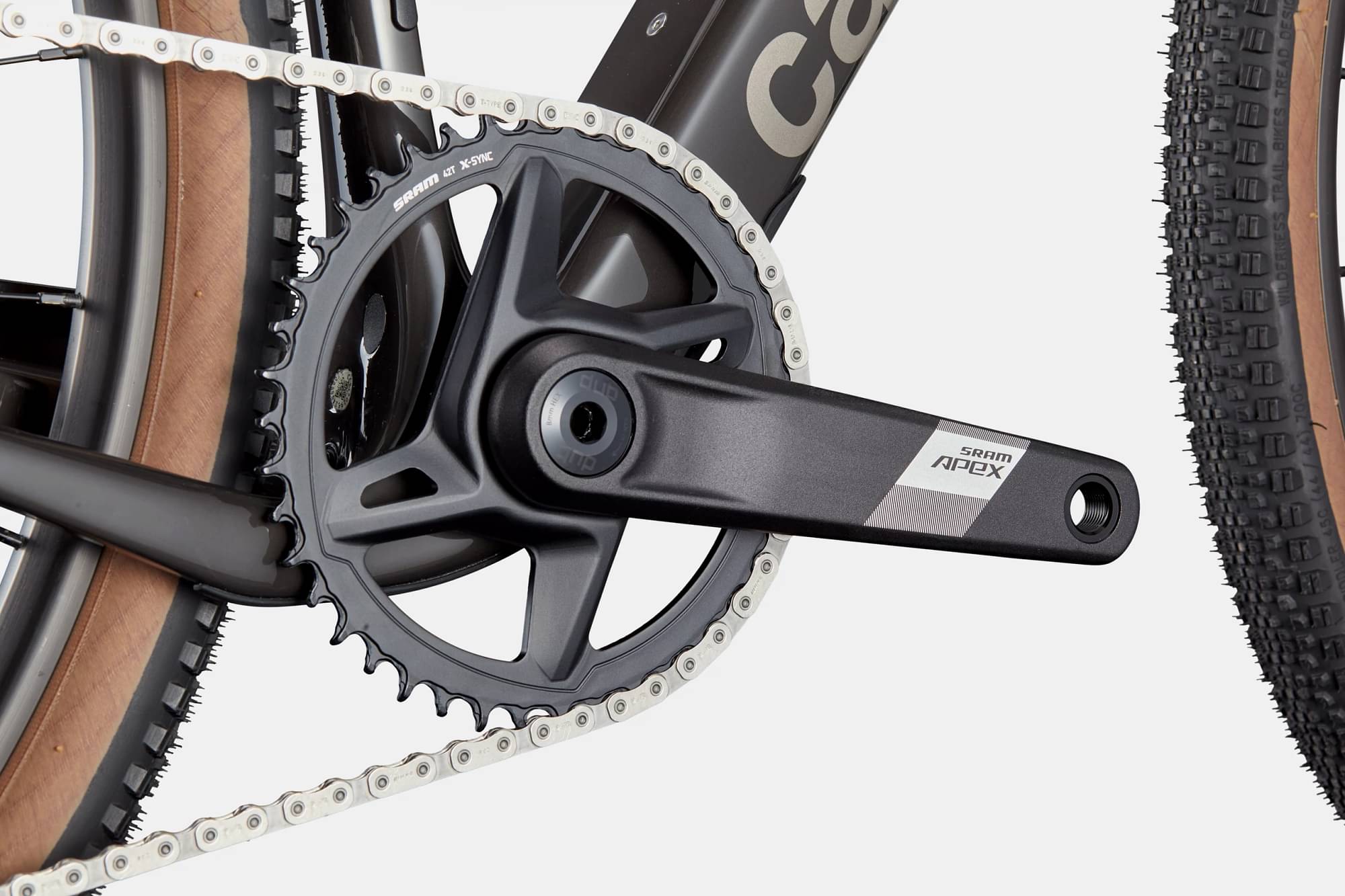

Crank
SRAM Apex DUB Wide, 42T
Bottom Bracket
SRAM DUB BSA Road 68 Wide
Chain
SRAM GX Eagle Transmission, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Shimano TC500, 12x100mm centerlock / (R) Shimano TC500, 12x142mm centerlock
Rear Hub
(F) Shimano TC500, 12x100mm centerlock / (R) Shimano TC500, 12x142mm centerlock
Rims
WTB KOM Team i25 TCS, 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Riddler TCS Light, 700x45c, tubeless ready
Brakes
Brakes
SRAM Apex hydraulic disc, 160/160mm CenterLine centerlock rotors
Brake Levers
SRAM Apex AXS hydraulic disc

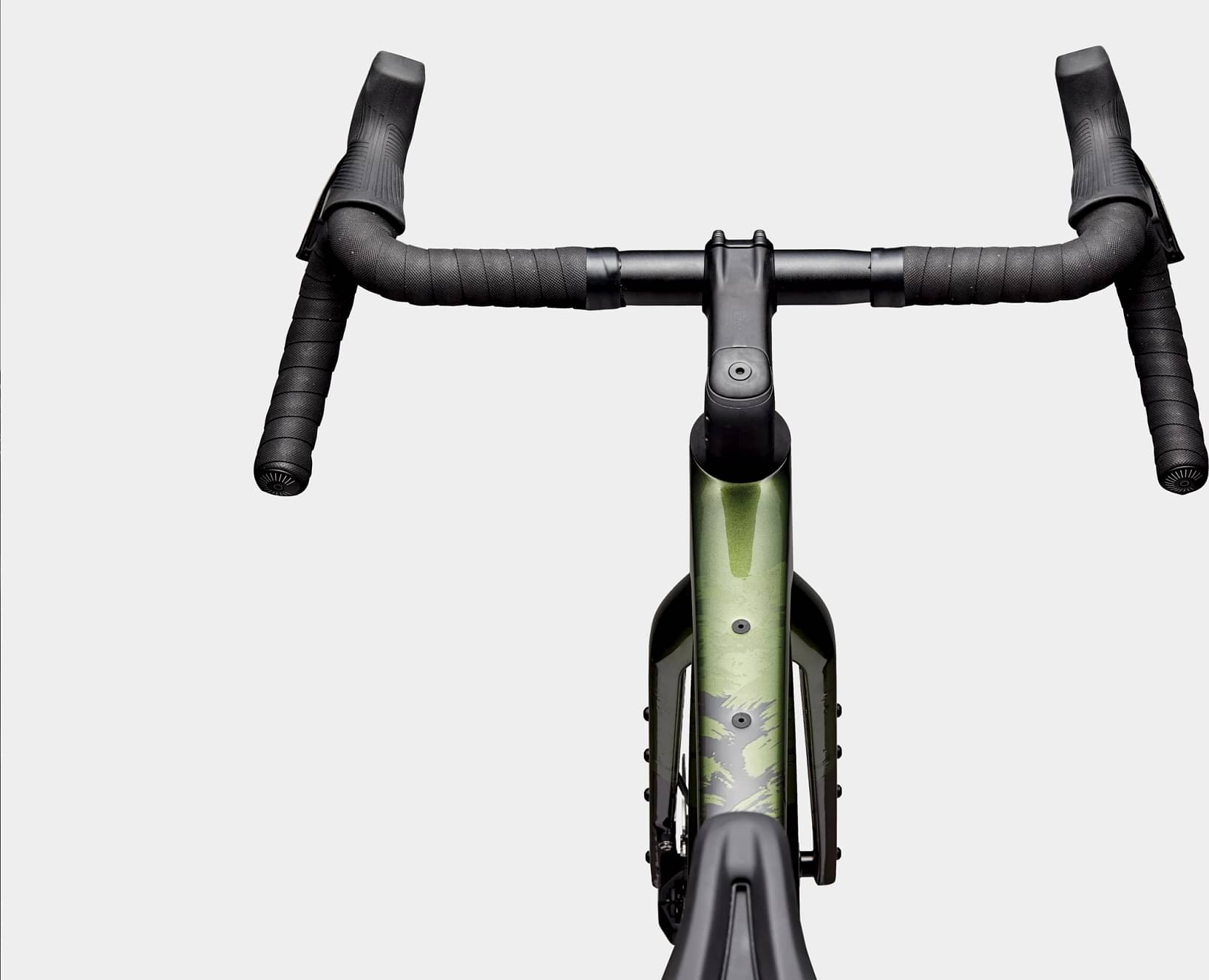

Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Handlebar
Cannondale 2 ShortDrop, 7050 alloy, 12 deg flare drop
Grips
Cannondale KnurlCork, 2.7mm
Headset
Acros IS52/40 ICR
Seat
Saddle
Fizik Terra Argo X7
Seatpost
Cannondale 2 Carbon, 27.2x350mm (47-58), 400mm (61)
Fit data

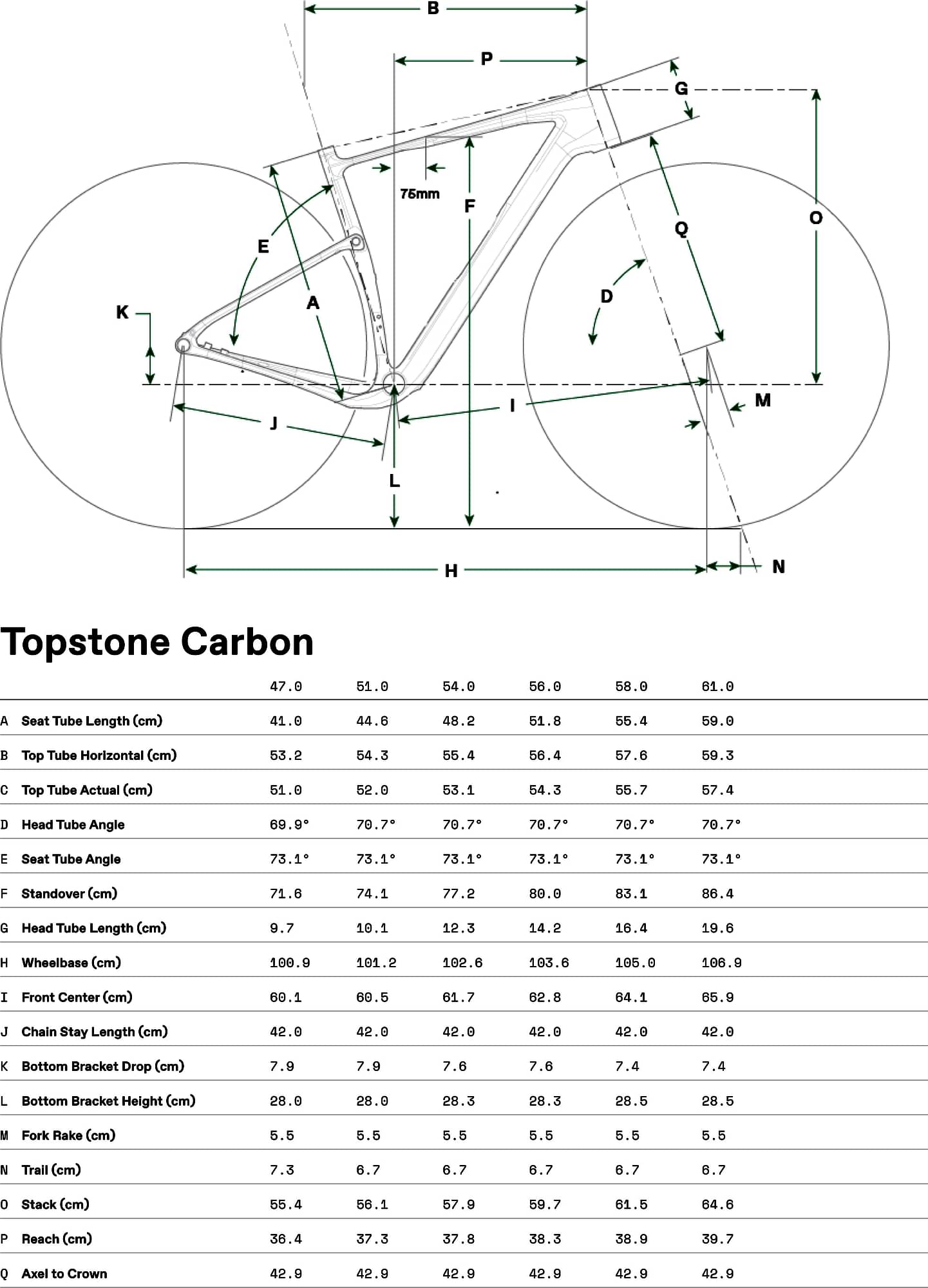

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 165 cm | 172 cm | 177 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 200 cm |
