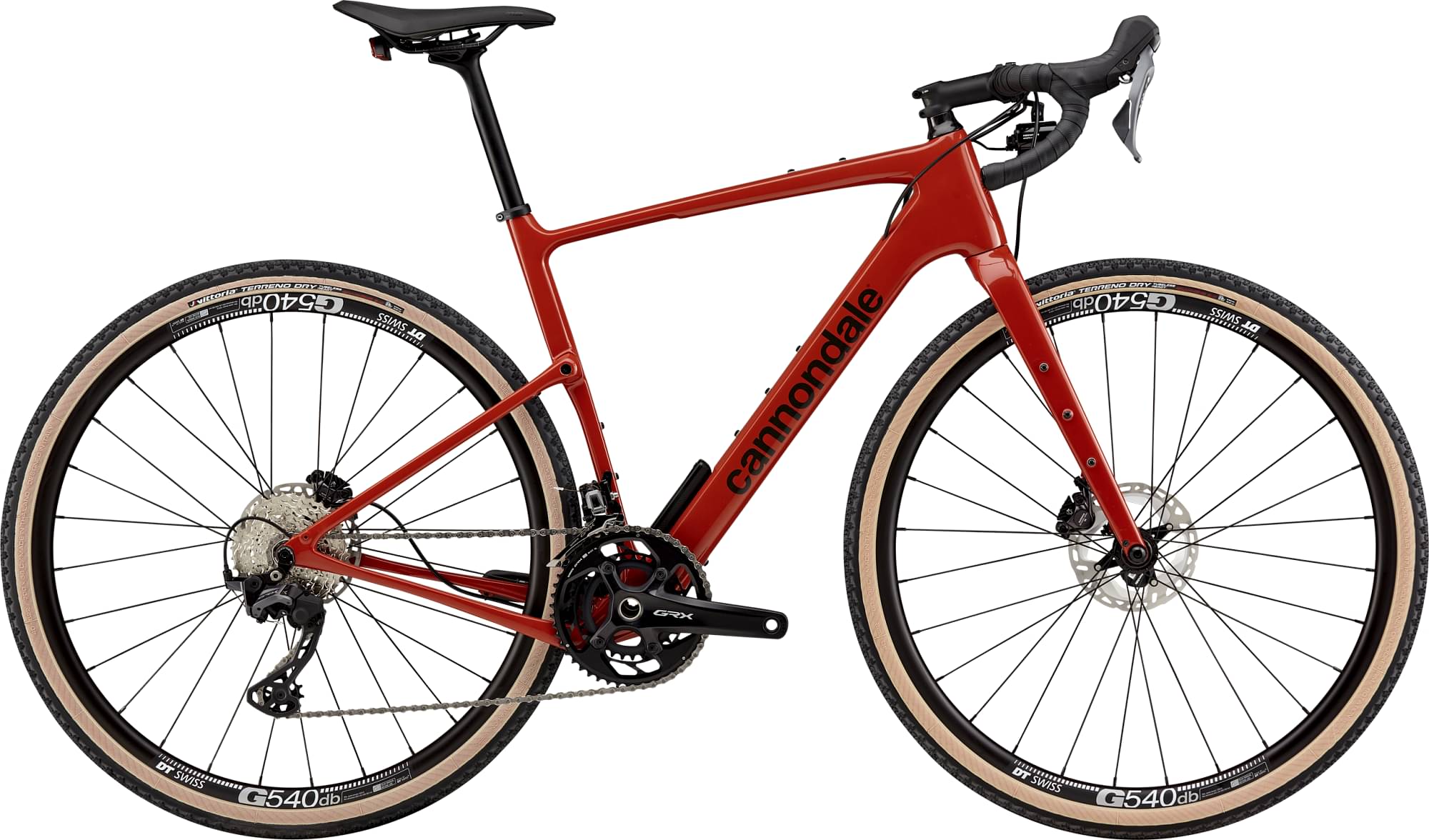

Cannondale Topstone Carbon 2 L 2024
2024 Road
Estimate price |
5,234$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 165cm
SM
160cm - 175cm
MD
170cm - 185cm
LG
177cm - 193cm
XL
182cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Topstone Carbon, Kingpin suspension system, SmartSense equipped, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
Suspension Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Drivetrain
Rear Derailleur
Shimano GRX 820, Shadow RD+
Front Derailleur
Shimano GRX 820, braze-on
Shift Levers
Shimano GRX 820, 12-speed
Cassette
Shimano HG 710, 11-36, 12-speed
Crank
Shimano GRX 820, 48/31
Bottom Bracket
Shimano BSA 68
Chain
Shimano HG M7100, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
Rear Hub
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
Rims
DT Swiss G540, 700c, 28h, 24mm inner width, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Vittoria Terreno Dry 40, 700x38c, tanwall, tubeless ready
Brakes
Brakes
Shimano GRX 800 hydraulic disc, 160/160mm MT800 centerlock rotors
Brake Levers
Shimano GRX 800 hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 2 ShortDrop, 7050 alloy, 12 deg flare drop
Grips
Fizik Solocush Soft, 3mm
Headset
Integrated, Carbon, 1-1/8" - 1-1/2"
Seat
Saddle
Fizik Terra Argo X5, S-alloy rails
Seatpost
SAVE Carbon SmartSense, 27.2, 350mm (XS-L), 400mm (XL)

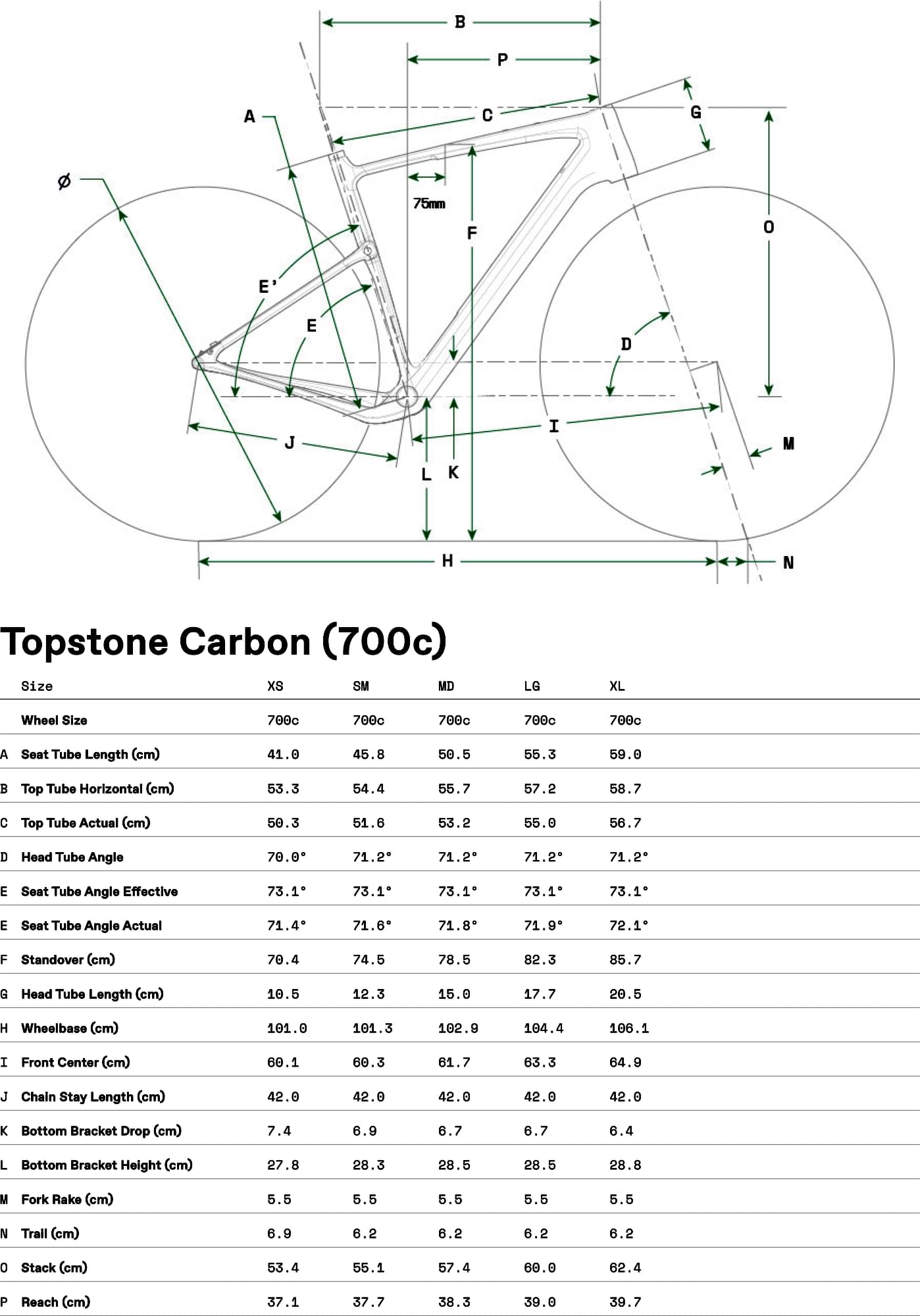

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 160 cm | 170 cm | 177 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
