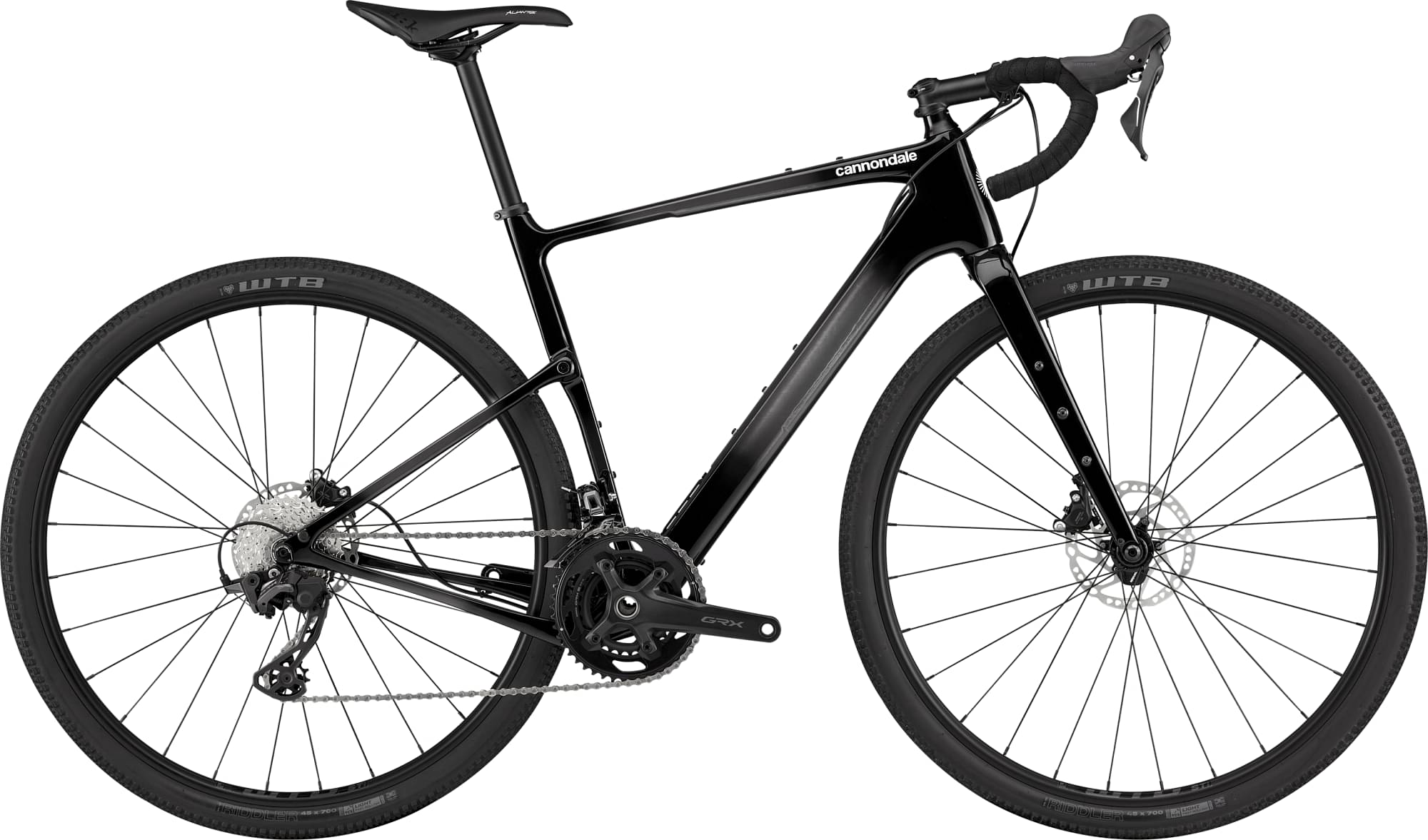

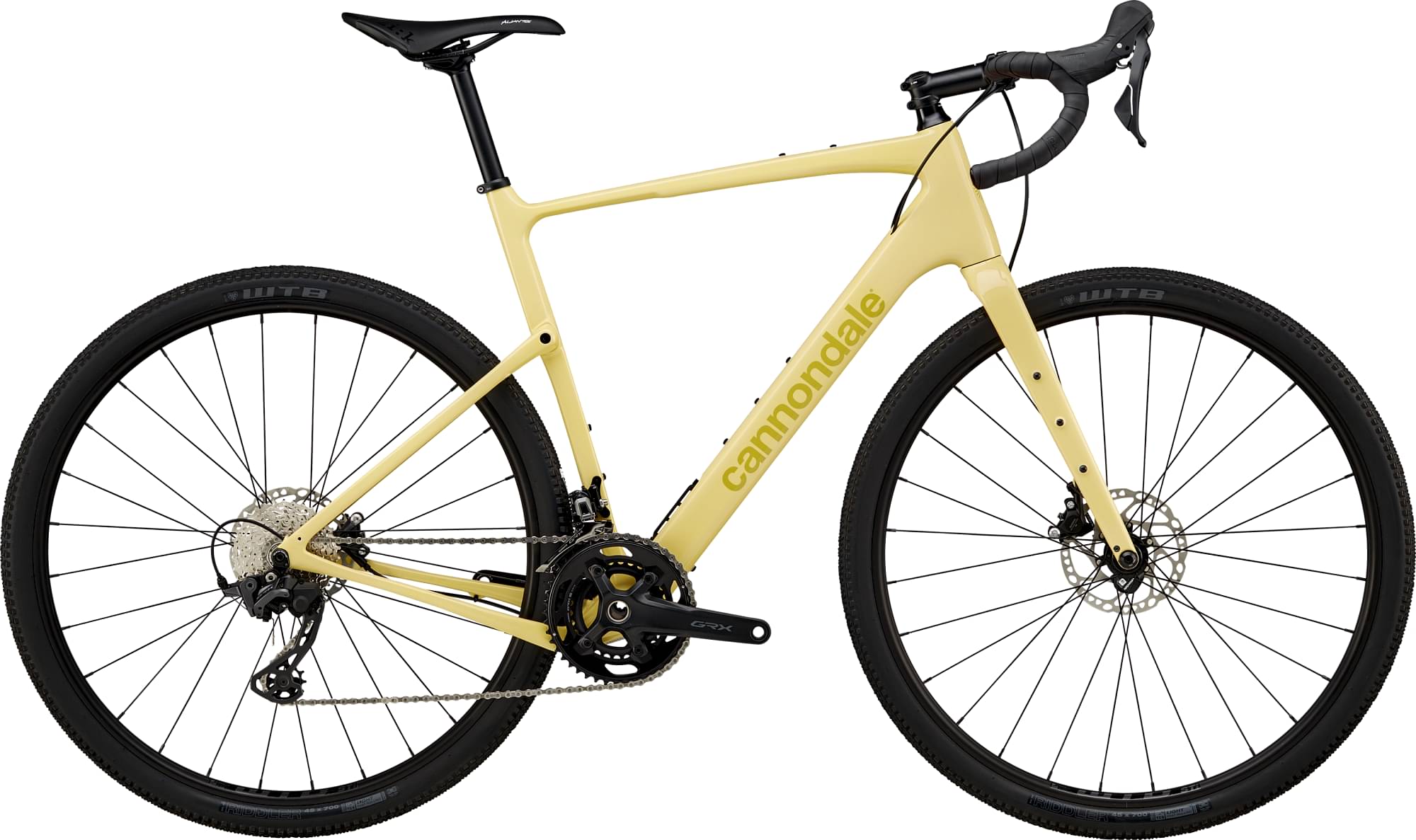

Cannondale Topstone Carbon 3 2024
2024 Road
Estimate price |
4,013$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 165cm
SM
160cm - 175cm
MD
170cm - 185cm
LG
177cm - 193cm
XL
182cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Topstone Carbon, Kingpin suspension system, SmartSense compatible, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
Suspension Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Drivetrain
Rear Derailleur
Shimano GRX 820, Shadow RD+
Front Derailleur
Shimano GRX 820, braze-on
Shift Levers
Shimano GRX 600, 12-speed
Cassette
Shimano HG R7100, 11-34, 12-speed
Crank
Shimano GRX 600, 46/30
Bottom Bracket
Shimano BSA 68
Chain
Shimano HG M7100, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula cartridge bearing, 12x100mm, centerlock / (R) Formula cartridge bearing, 12x142mm, centerlock
Rear Hub
(F) Formula cartridge bearing, 12x100mm, centerlock / (R) Formula cartridge bearing, 12x142mm, centerlock
Rims
WTB ST i23 TCS, 700c, 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Riddler TCS Light, 700 x 45c, tubeless ready
Brakes
Brakes
Shimano GRX 600 hydraulic disc, 160/160mm RT64 rotors
Brake Levers
Shimano GRX 600 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 Alloy, 16 deg flare drop
Grips
Fizik Solocush Soft, 3mm
Headset
Integrated, 1-1/8" - 1-1/2"
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2 x 350mm
Fit data

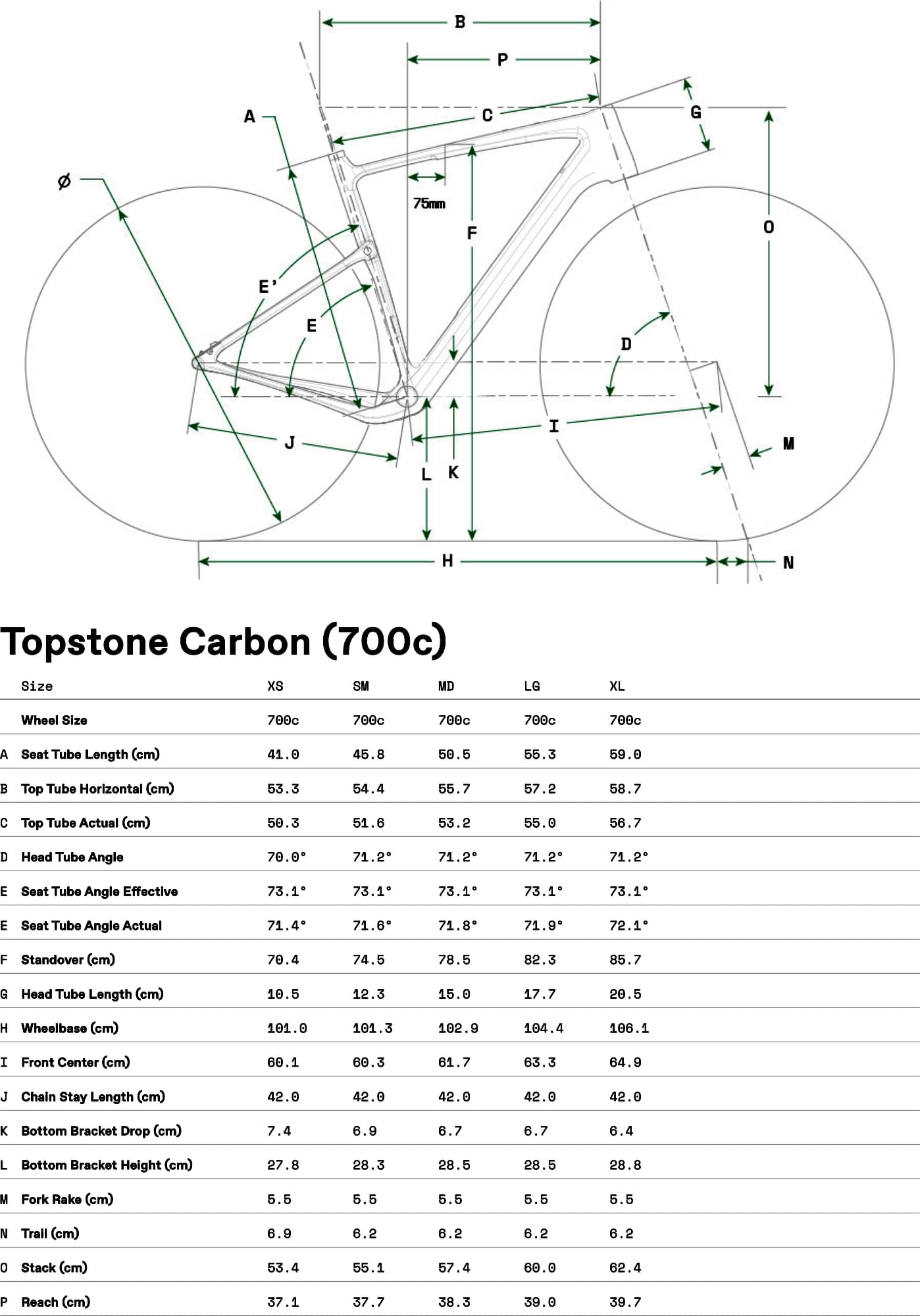

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 160 cm | 170 cm | 177 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
