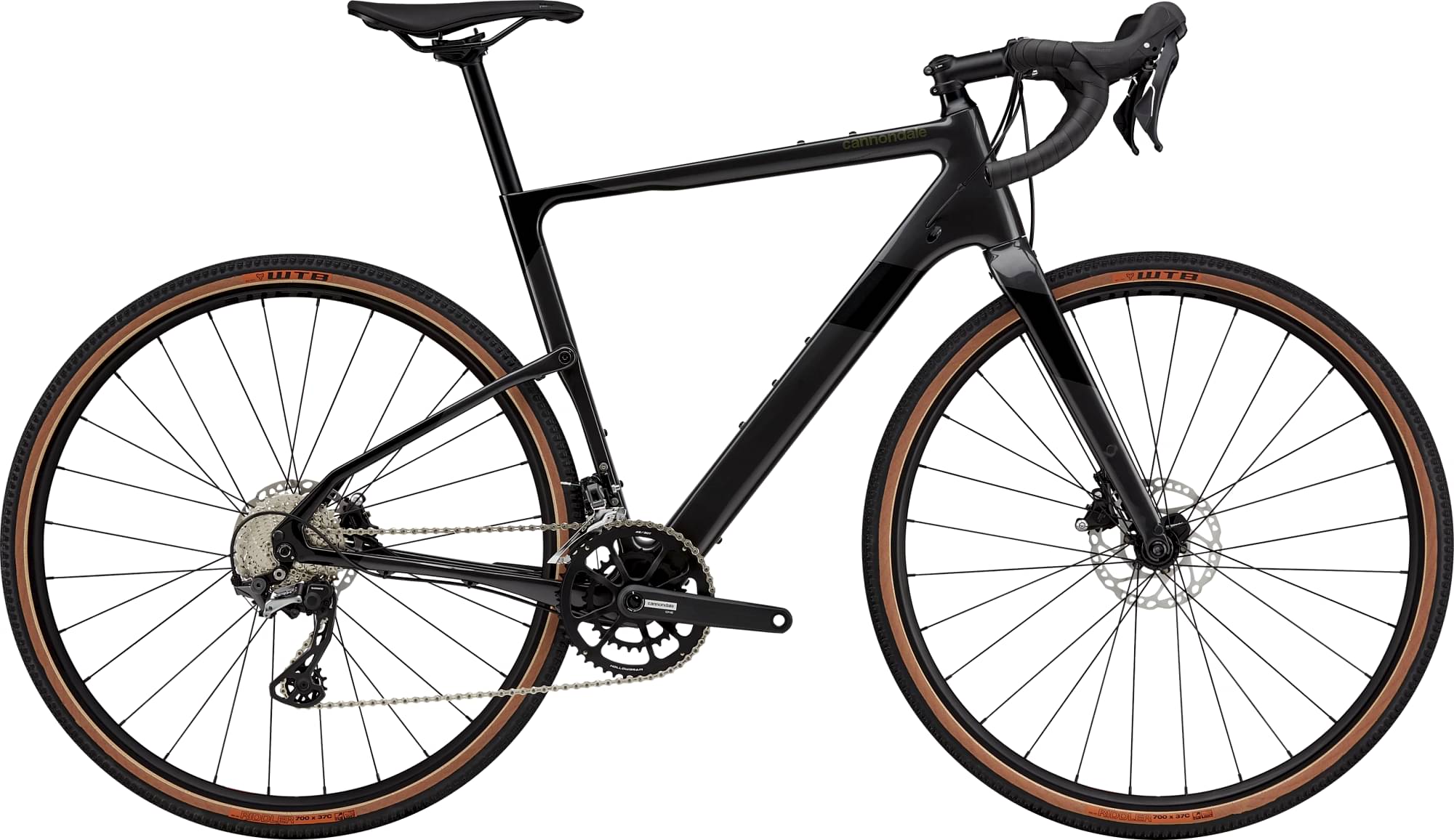

Cannondale Topstone Carbon 5 2024
2024 Road
Estimate price |
3,275$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Carbon Frame, Kingpin suspension system, 12x142 Speed Release Thru-axle, dropper post compatible, direct line cable routing
Suspension Fork
BallisTec Full Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 speed release thru axle
Drivetrain
Rear Derailleur
Shimano GRX 812, Shadow RD+
Front Derailleur
Shimano GRX 800, braze-on
Shift Levers
Shimano GRX 600, 11-speed
Cassette
Shimano 105, 11-34, 11-speed
Crank
Cannondale, BB30a, OPI SpideRing, 46/30
Bottom Bracket
Cannondale BB30
Chain
KMC X11, 11-speed
Pedals
Not included
Wheels
Front Hub
Formula cartridge bearing, 12x100mm centerlock
Rear Hub
Formula cartridge bearing, 12x142mm centerlock
Rims
WTB ST i23 TCS, 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Riddler TCS Light, 700x37c, tubeless ready
Brakes
Brakes
Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotors
Brake Levers
Shimano GRX 600 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1.5"
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm

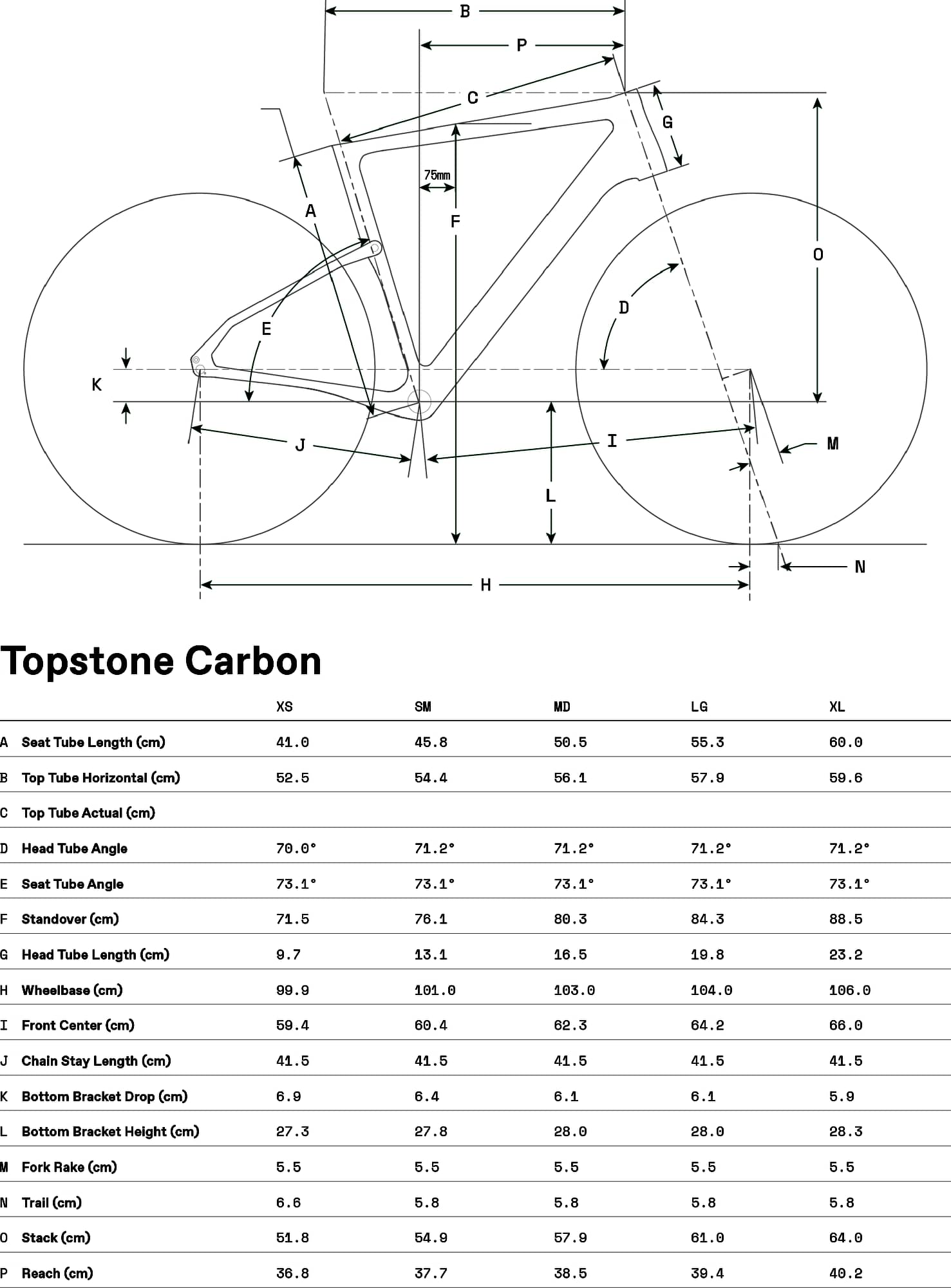

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.456 mm | 1.504 mm | 1.548 mm | 1.592 mm |
| Bottom Bracket Height | 273 mm | 278 mm | 280 mm | 280 mm | 283 mm |
| Front Center | 594 mm | 604 mm | 623 mm | 642 mm | 660 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 518 mm | 549 mm | 579 mm | 610 mm | 640 mm |
| Reach | 368 mm | 377 mm | 385 mm | 394 mm | 402 mm |
| Top Tube Length | 525 mm | 544 mm | 561 mm | 579 mm | 596 mm |
| Seat Tube Angle | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Head Tube Angle | 70 ° | 71.2 ° | 71.2 ° | 71.2 ° | 71.2 ° |
| Head Tube Length | 97 mm | 131 mm | 165 mm | 198 mm | 232 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 999 mm | 1010 mm | 1030 mm | 1040 mm | 1060 mm |
| Bottom Bracket Drop | 69 mm | 64 mm | 61 mm | 61 mm | 59 mm |
| Standover Height | 715 mm | 761 mm | 803 mm | 843 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
