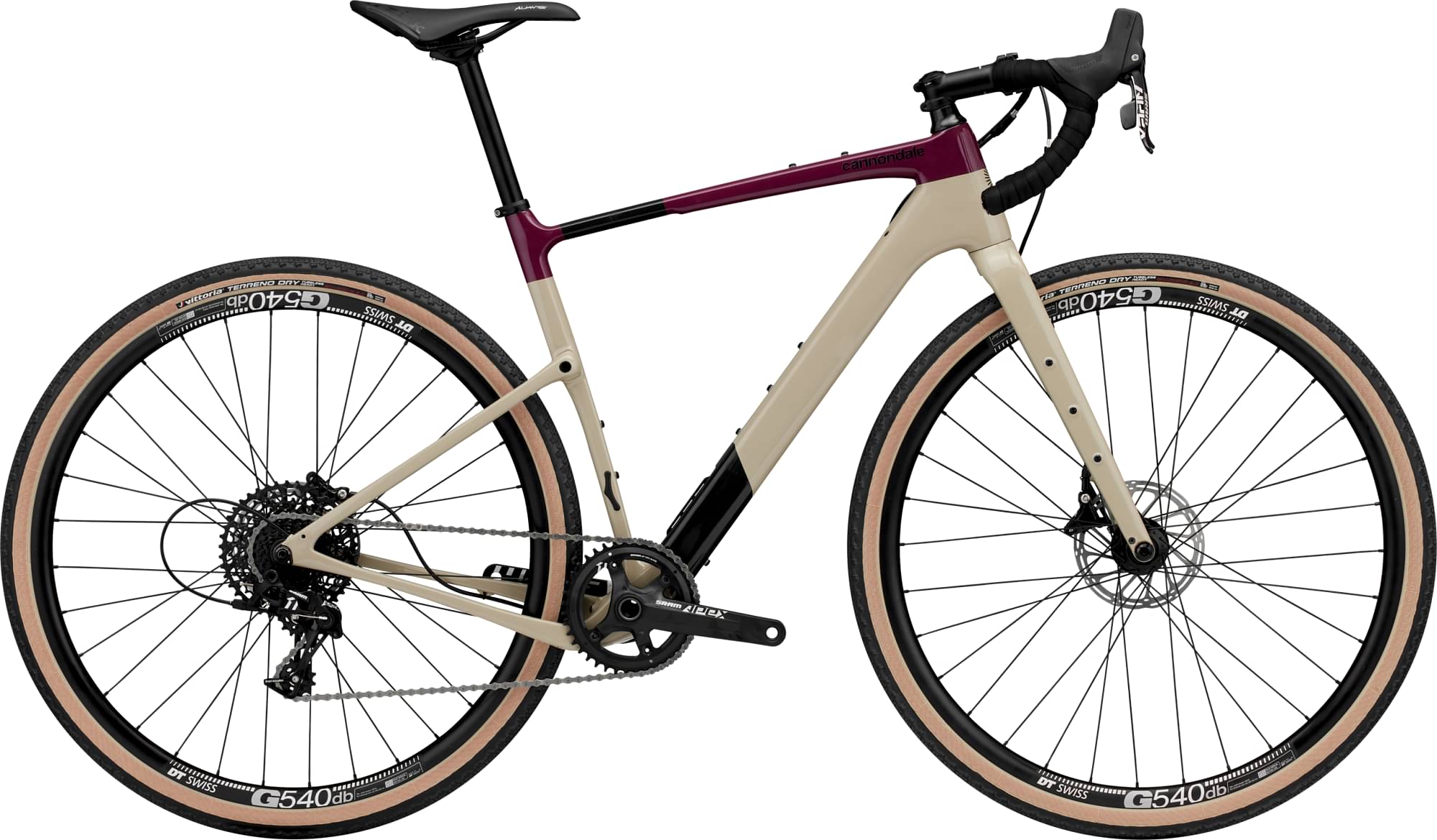

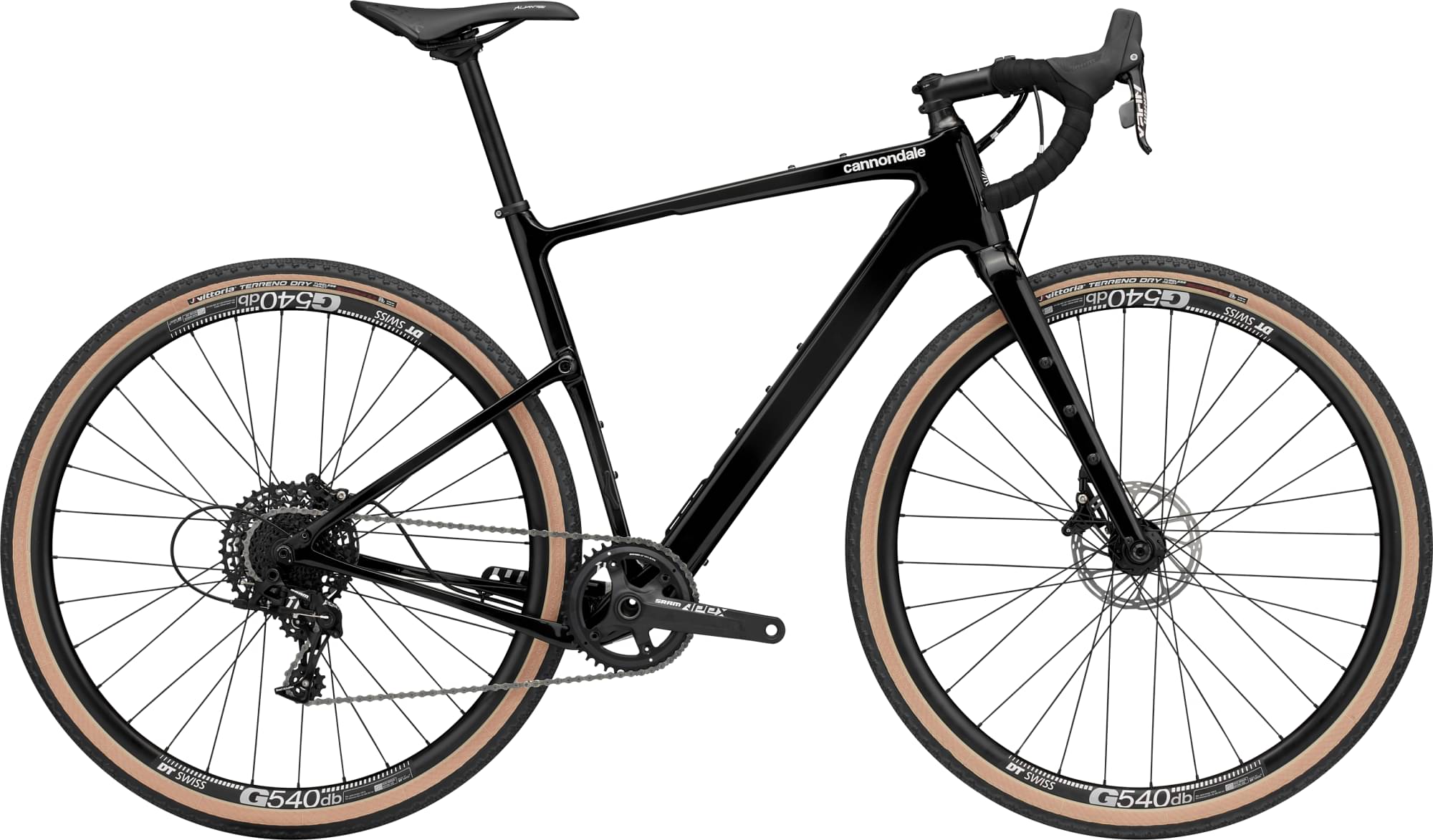

Cannondale Topstone Carbon Apex 2024
2024 Road
Estimate price |
3,554$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 165cm
SM
160cm - 175cm
MD
170cm - 185cm
LG
177cm - 193cm
XL
182cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
Suspension Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Drivetrain
Rear Derailleur
SRAM Apex 1, Long Cage
Shift Levers
SRAM Apex 1, 11-speed
Cassette
SRAM PG-1130, 11-42, 11-speed
Crank
SRAM Apex 1, 40T
Bottom Bracket
SRAM GXP
Chain
SRAM Apex, 11-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
Rear Hub
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
Rims
DT Swiss G540, 28h, 24mm inner width
Spokes
Stainless Steel, 14g
Tires
Vittoria Terreno Dry, 700x38c, tubeless ready
Brakes
Brakes
SRAM Apex Hydraulic Disc, 160/160 Centerline Rotors
Brake Levers
SRAM Apex hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 Alloy, 16 deg flare drop
Grips
Fizik Solocush Soft, 3mm
Headset
Integrated, 1-1/8" - 1.5"
Seat
Saddle
Fizik New Aliante R5, S-alloy rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm
Fit data

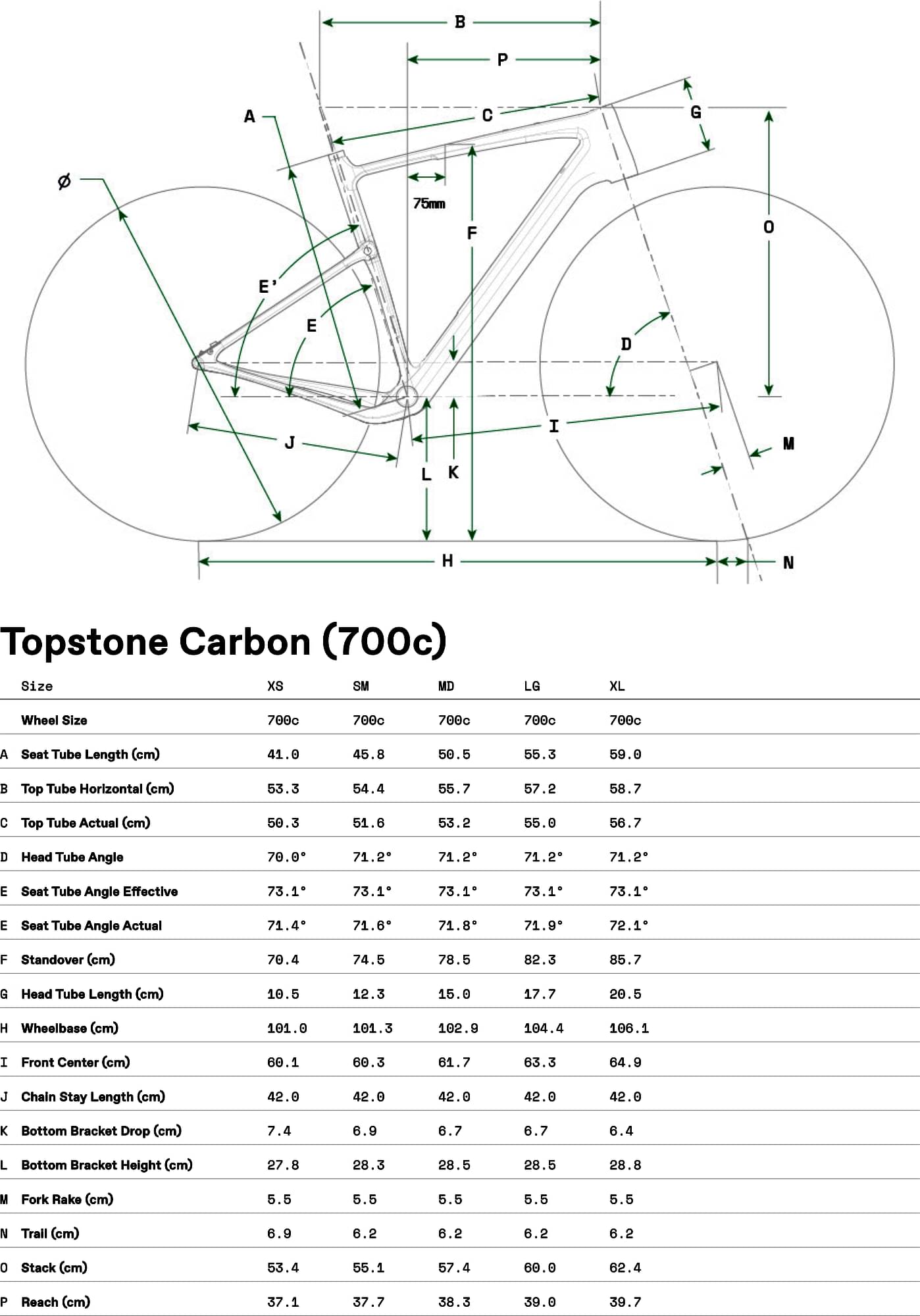

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 160 cm | 170 cm | 177 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
