Cannondale Topstone Carbon LTD Di2 2025
2025 Road
Estimate price |
8,724$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800, GRX Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano GRX 800 Hydraulic Disc
Sizing
Recommended size guide.
47cm
149cm - 167cm
51cm
165cm - 175cm
54cm
172cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
Suspension Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Drivetrain

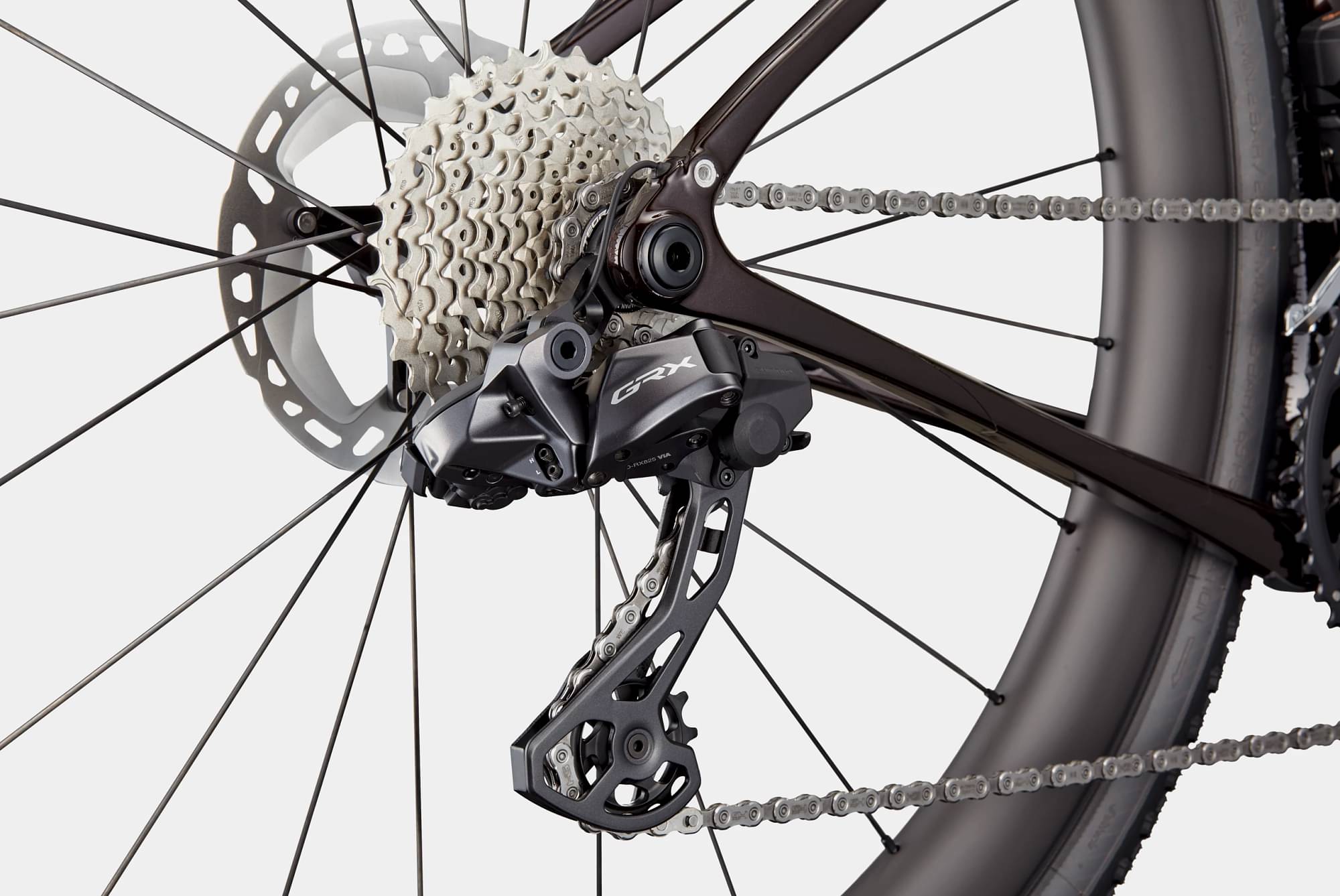

Rear Derailleur
Shimano GRX 825, Di2, Shadow RD+
Front Derailleur
Shimano GRX 825, Di2
Shift Levers
Shimano GRX 825, Di2, 12-speed
Cassette
Shimano Ultegra R8100, 11-34, 12-speed

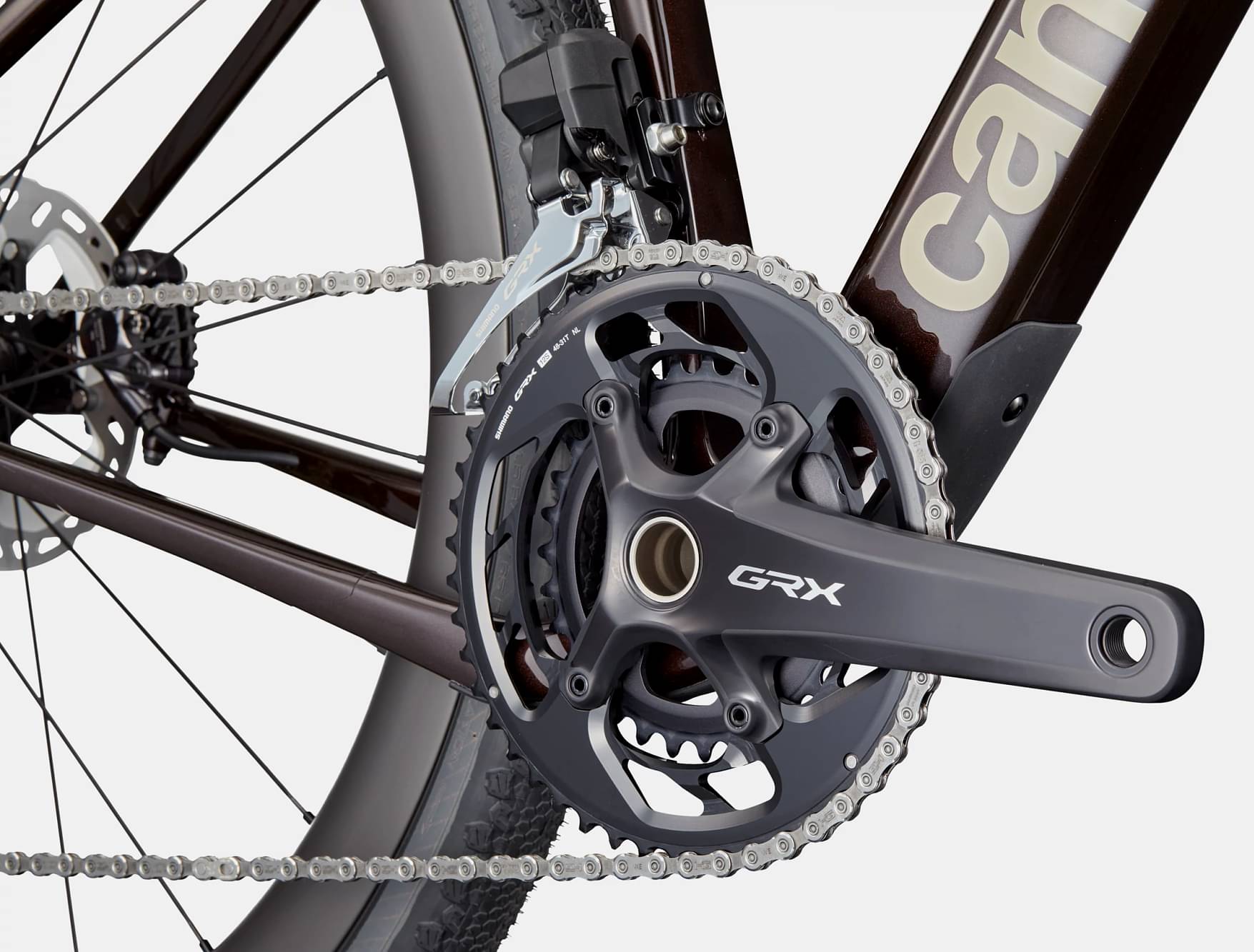

Crank
Shimano GRX 820, 48/31
Bottom Bracket
Shimano BSA 68
Chain
Shimano M8100, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) DT Swiss 240, 12x100mm centerlock / (R) DT Swiss 240, 12x142mm centerlock
Rear Hub
(F) DT Swiss 240, 12x100mm centerlock / (R) DT Swiss 240, 12x142mm centerlock
Rims
Reserve 40 I 44 GR Carbon, Turbulent Aero Tech, 24h, tubeless ready
Spokes
Sapim CX-Ray Aero straight pull
Tires
Vittoria Terreno T30, 700x45c, tubeless ready
Brakes
Brakes
Shimano GRX RX820, 160/160mm MT800 centerlock rotors
Brake Levers
Shimano GRX 825 hydraulic disc

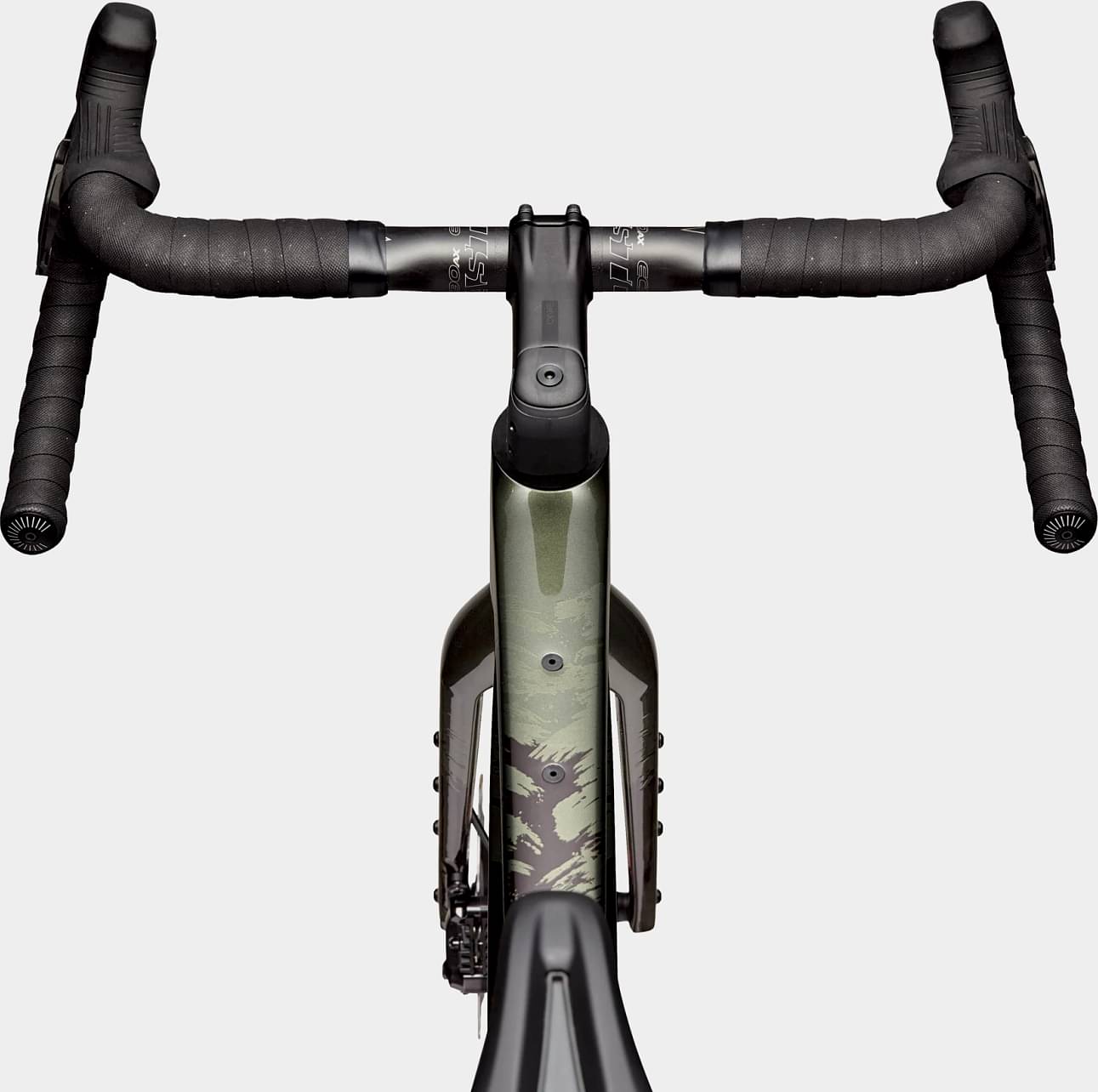

Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Handlebar
Easton EC90 AX Carbon
Grips
Cannondale KnurlCork, 2.7mm
Headset
Acros IS52/40 ICR
Seat
Saddle
Fizik Terra Argo X3, Kium rails
Seatpost
Cannondale SAVE Carbon, 27.2x350mm (47-58), 400mm (61)

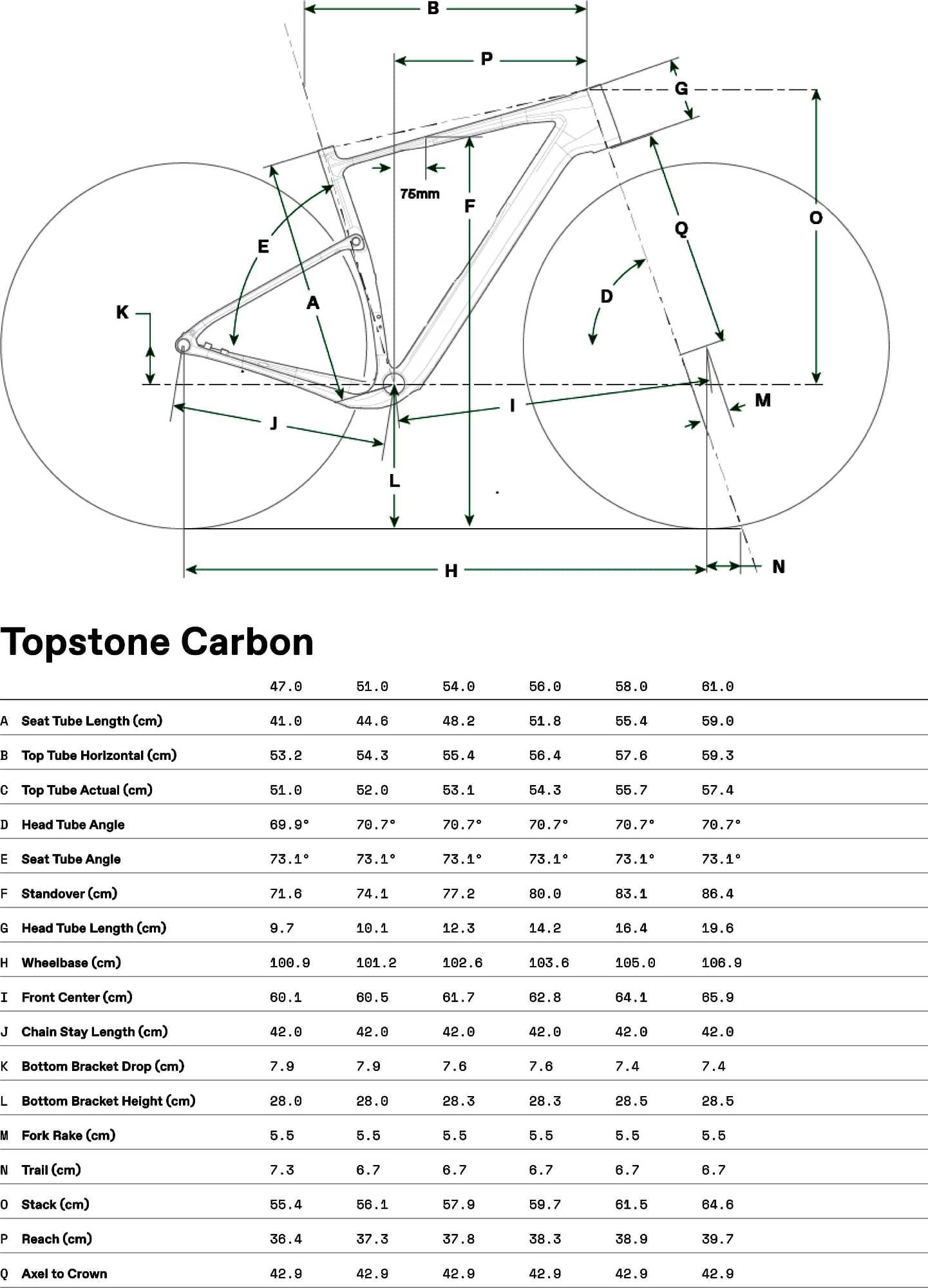

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 165 cm | 172 cm | 177 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 200 cm |
