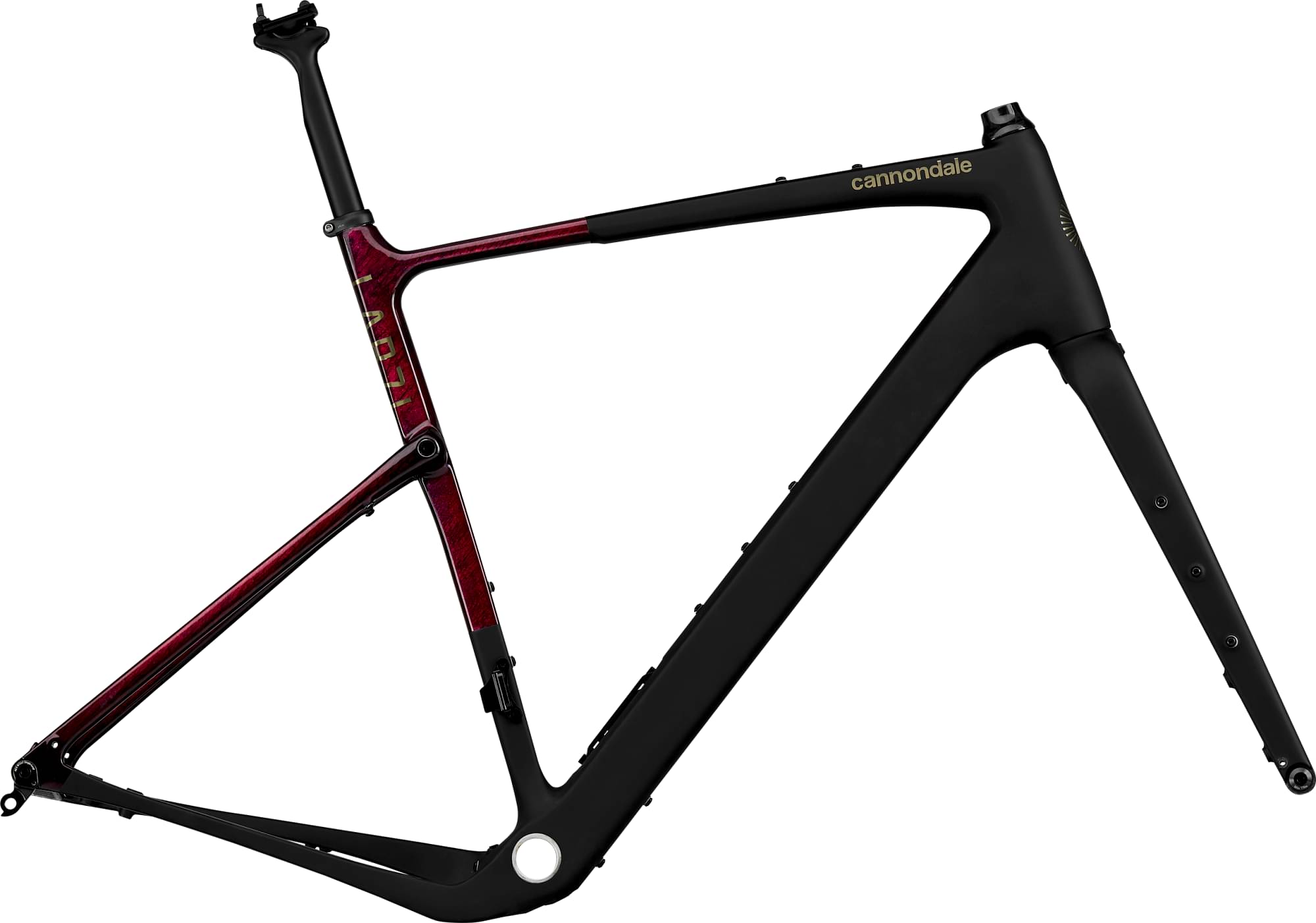

Cannondale Topstone LAB71 Frameset 2024
2024 Road
Estimate price |
4,885$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
147cm - 165cm
SM
160cm - 175cm
MD
170cm - 185cm
LG
177cm - 193cm
XL
182cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LAB71 Topstone, Superlight Series 0 Carbon Construction, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
Suspension Fork
LAB71 Topstone, Superlight Series 0 Carbon Construction, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Drivetrain
Bottom Bracket
BSA, 68mm, threaded
Pedals
Not included
Cockpit
Headset
Integrated, 1-1/8" - 1-1/2"
Seat
Seatpost
SAVE Carbon SmartSense, 27.2, 350mm (XS-L), 400mm (XL)
Fit data

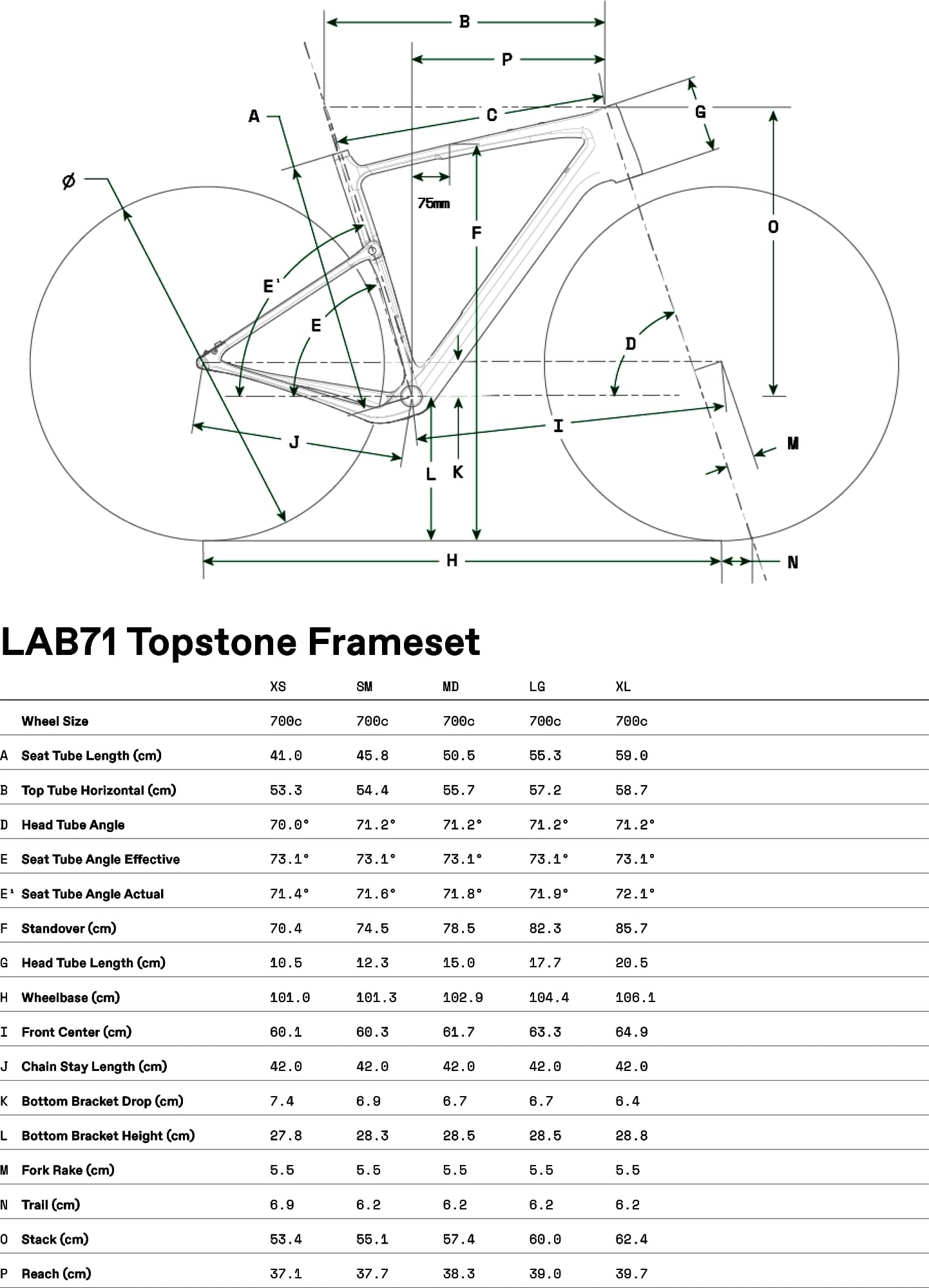

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 160 cm | 170 cm | 177 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
