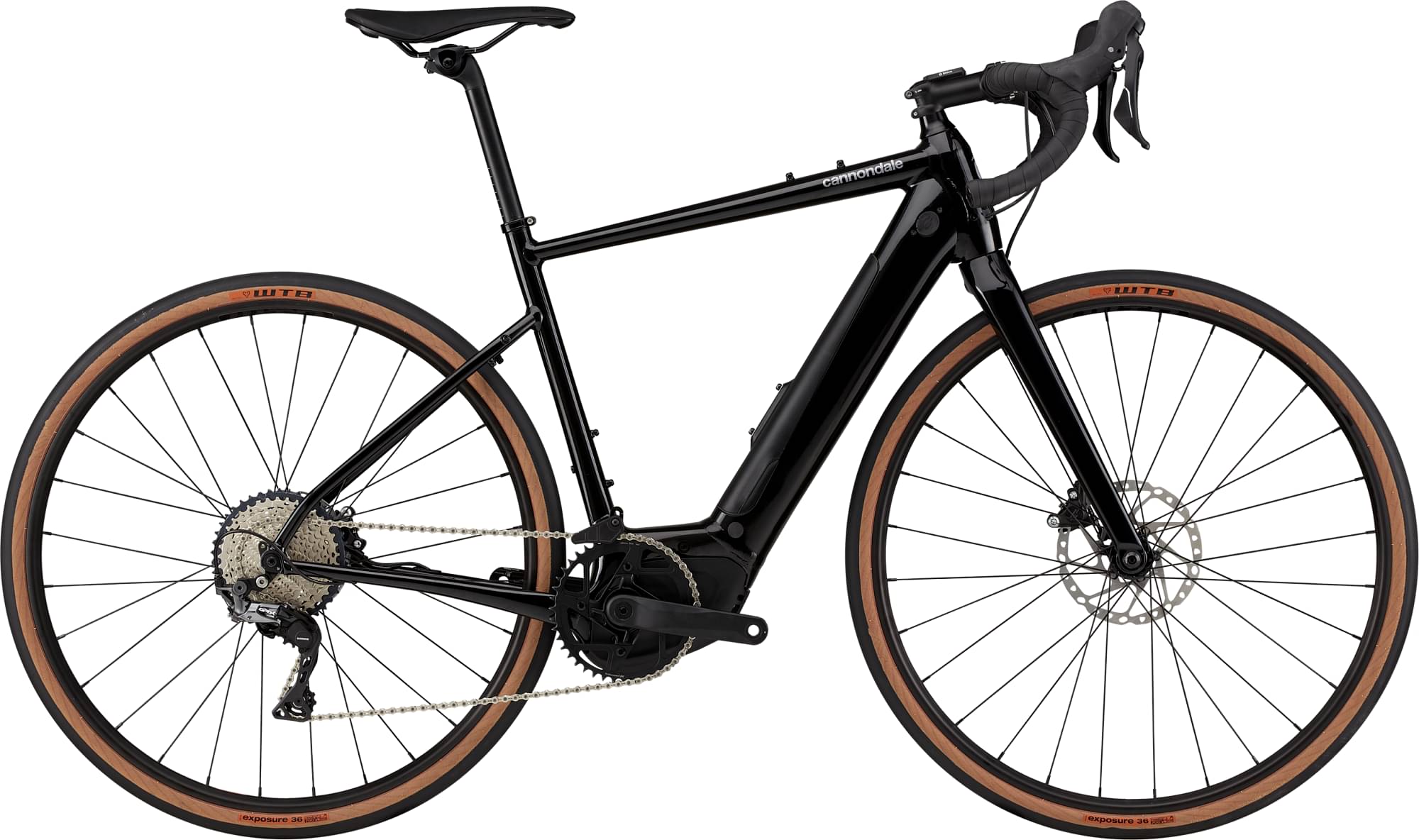

Cannondale Topstone Neo 5 2024
2024 E-bike
Estimate price |
5,550$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 600, GRX 400 -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy Frame, 12x142 thru-axle, removable downtube battery, SAVE, Ai, Si kickstand mount, rack/fender mounts
Suspension Fork
Topstone Neo Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x110 thru axle
Drivetrain
Rear Derailleur
Shimano GRX 400, Shadow RD+
Front Derailleur
Shimano GRX 400, braze-on
Shift Levers
Shimano GRX 600, 1x11
Cassette
Shimano SLX, 11-42, 11-speed
Crank
FSA Bosch E-Bike, FSA Megatooth, 42T
Bottom Bracket
Bosch, press-fit
Chain
KMC X10EL, 10-speed
Pedals
Not included
Wheels
Front Hub
Formula cartridge bearing, centerlock, 12x110mm thru-axle
Rear Hub
Formula cartridge bearing, centerlock, 12x142mm thru-axle
Rims
WTB ST TCS i23 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Exposure, 700x36c, tubeless ready
Brakes
Brakes
Shimano GRX hydraulic disc, 180/160mm RT54 rotors
Brake Levers
Shimano GRX hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper, 25mm Alloy top cap
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Promax SP-2032, Alloy, 27.2
Motor & Battery
Motor
Bosch Performance Line Speed 250W (28mph)
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 4A
Fit data

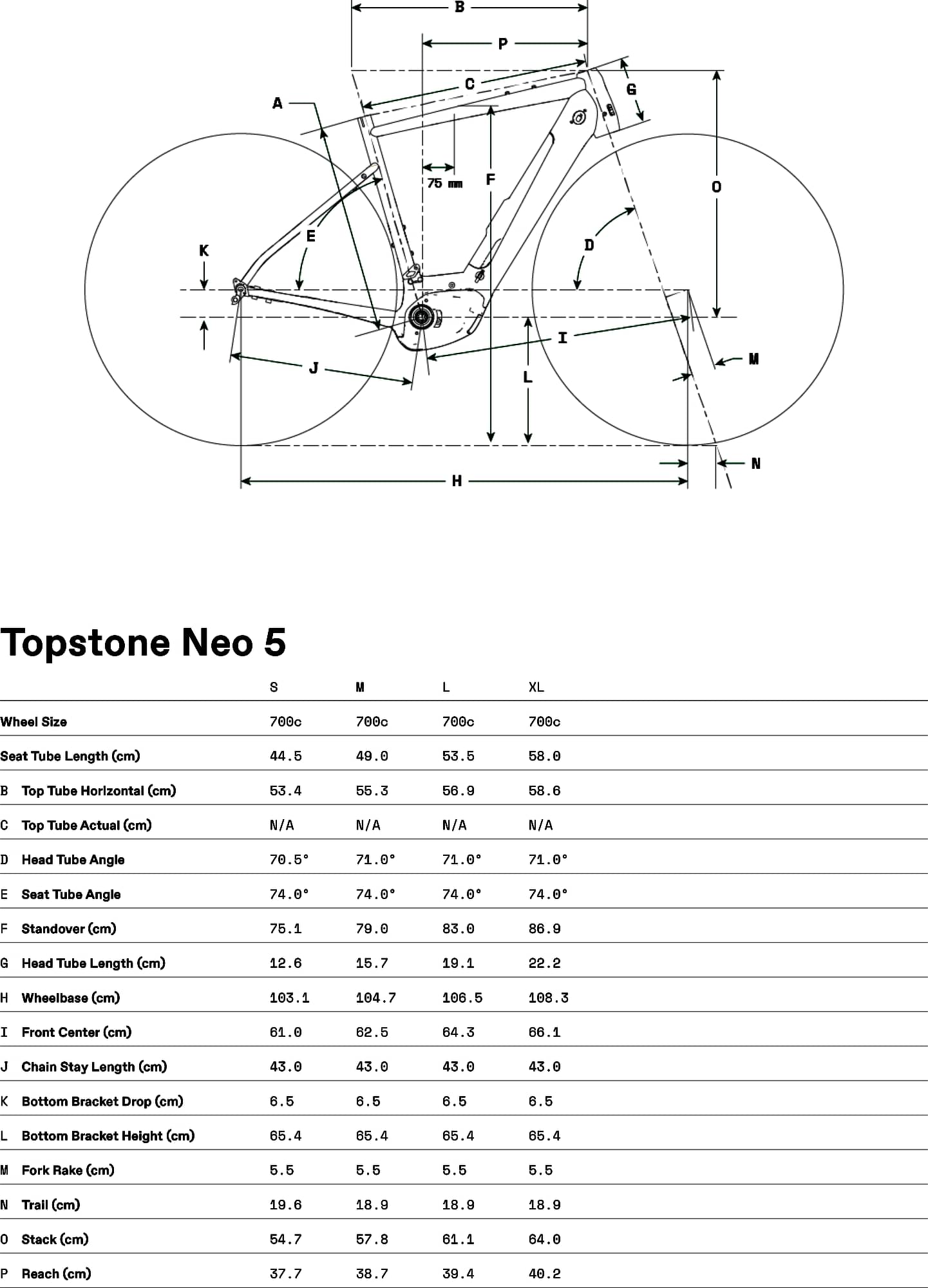

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 175 cm | 185 cm | 193 cm | 203 cm |
