Cannondale Topstone Neo SL 1 2024
2024 E-bike
Estimate price |
4,128$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Mahle X35, 250Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, 135mm bolt-on, tapered headtube, flat mount disc, multiple gear/bottle mounts
Suspension Fork
Full Carbon, 1-1/8" to 1-1/4" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru axle
Drivetrain
Rear Derailleur
Shimano GRX 812, Shadow RD+
Shift Levers
Shimano GRX 600, 1x11
Cassette
Shimano SLX, 11-42, 11-speed
Crank
Shimano GRX 600, 40T
Bottom Bracket
Shimano BSA Sealed
Chain
Shimano HG601, 11-speed
Pedals
Not included
Wheels
Front Hub
Formula CRX-512, 12x100mm thru-axle
Rear Hub
Mahle X35
Rims
Cannondale Disc, double wall, tubeless ready 32h (R) / 28h (F)
Spokes
Stainless Steel, 14g
Tires
WTB Resolute TCS, 700x42c, tubeless ready
Brakes
Brakes
Shimano GRX hydraulic disc, 160mm RT56 rotors
Brake Levers
Shimano GRX hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper, 25mm Alloy top cap
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Promax SP-2032, Alloy, 27.2
Motor & Battery
Motor
Mahle X35+ 250W
Battery
Mahle X35, 250Wh
Charger
Mahle X35
Fit data

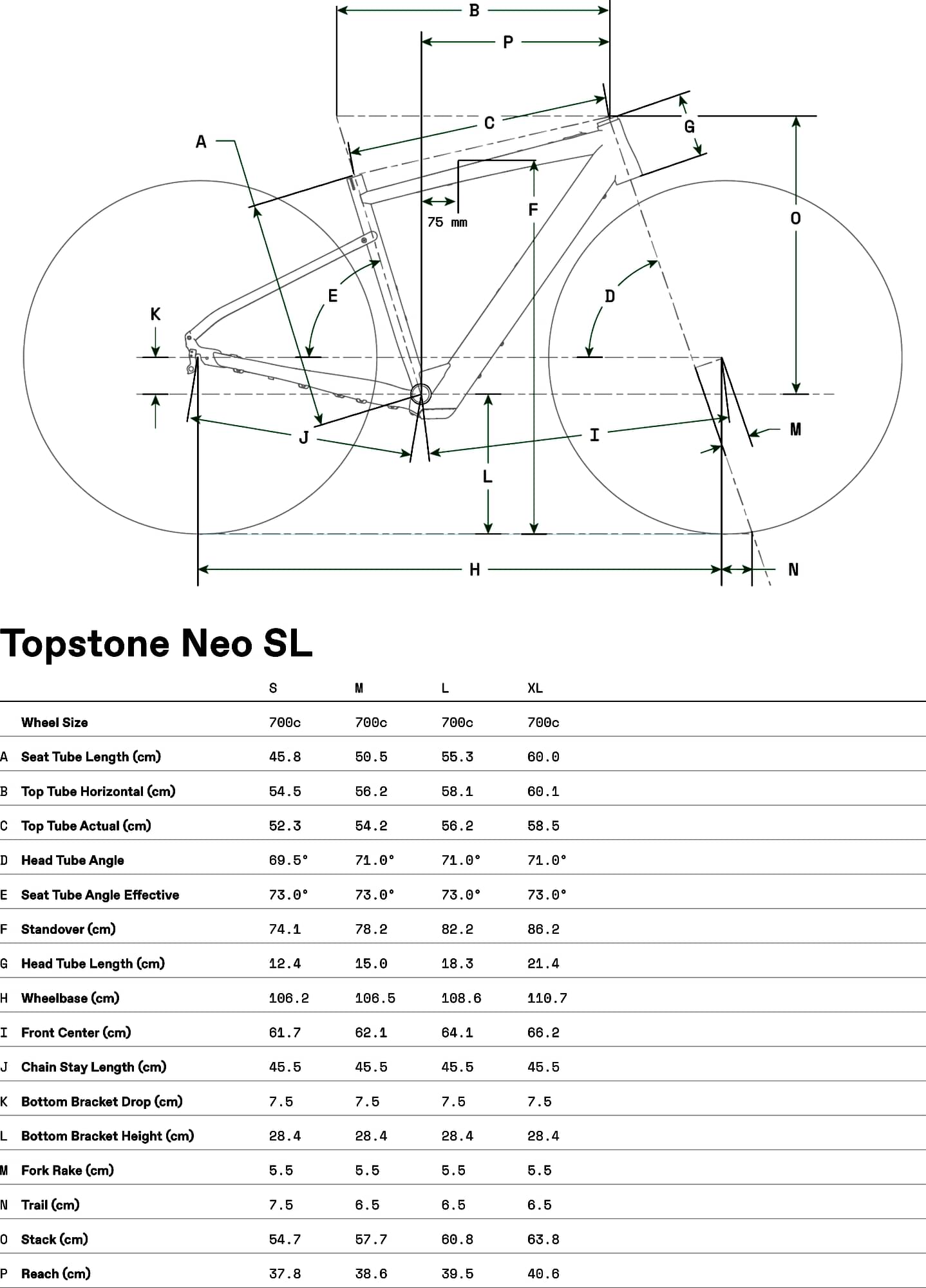

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 175 cm | 185 cm | 193 cm | 203 cm |
