Cannondale Topstone Neo SL 2 2024
2024 E-bike
Estimate price |
3,605$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 600, GRX 400 -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Mahle X35, 250Wh -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, 135mm bolt-on drop out, tapered headtube, flat mount disc, multiple gear/bottle mounts
Suspension Fork
Full Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 speed release thru axle
Drivetrain
Rear Derailleur
Shimano GRX 400, Shadow RD+
Front Derailleur
Shimano GRX 400, braze-on w/ band clamp adapter
Shift Levers
Shimano GRX 400, 10-speed
Cassette
Shimano HG500, 11-34, 10-speed
Crank
Shimano GRX 600, 46/30
Bottom Bracket
Shimano BSA Sealed
Chain
Shimano Deore, 10-speed
Pedals
Not included
Wheels
Front Hub
Formula CL-712, 12x100mm disc
Rear Hub
Mahle X35
Rims
Cannondale Disc, double wall, tubeless ready 32h (R) / 28h (F)
Spokes
Stainless Steel, 13g
Tires
WTB Resolute Comp, 700x42c, tubeless ready
Brakes
Brakes
Shimano GRX 400 hydraulic disc, 160/160mm RT56 rotors
Brake Levers
Shimano GRX 400 hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper, 25mm Alloy top cap
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Promax SP-9032, Alloy, 27.2
Motor & Battery
Motor
Mahle X35+ 250W
Battery
Mahle X35, 250Wh
Charger
Mahle X35
Fit data

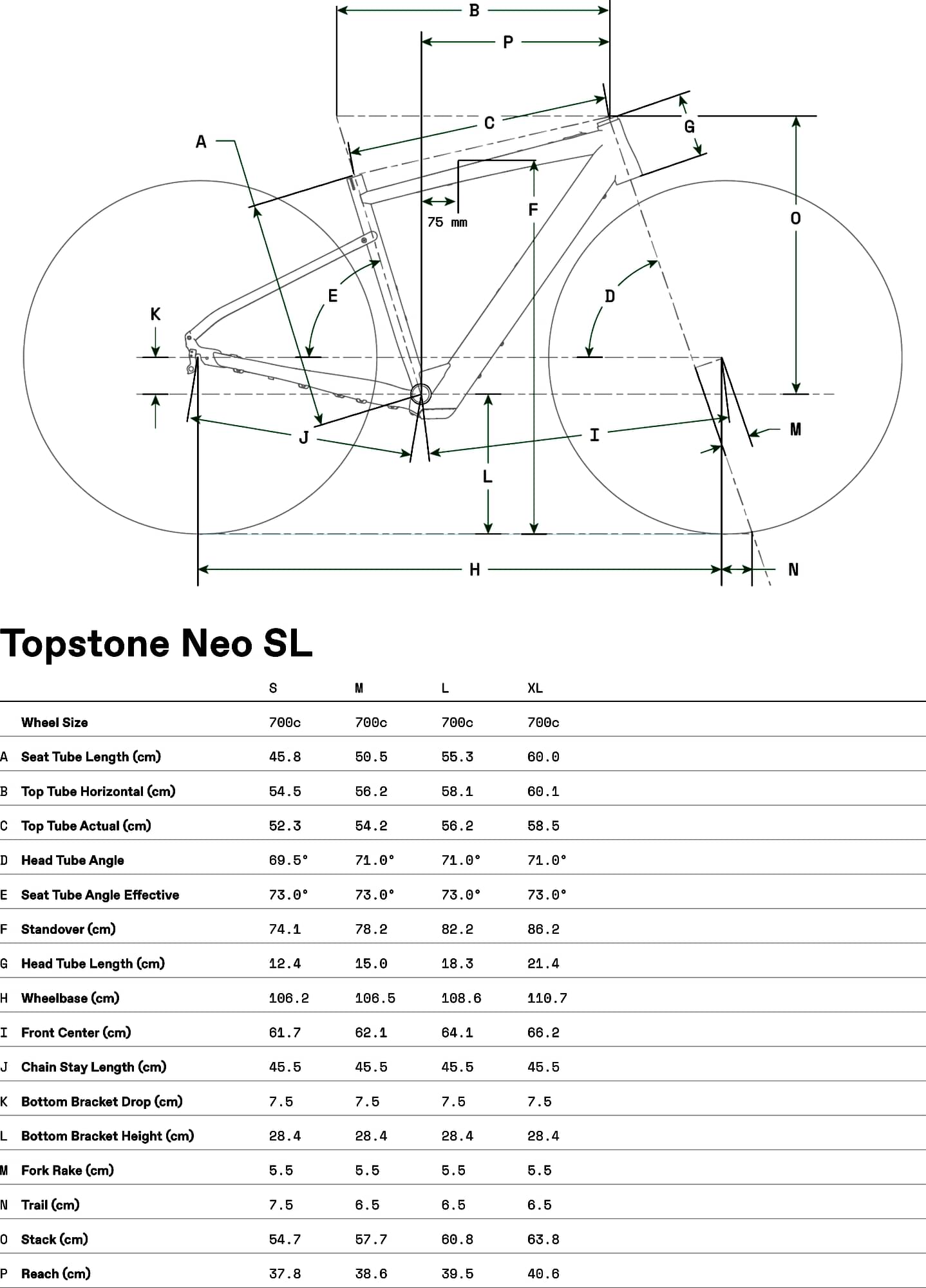

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 175 cm | 185 cm | 193 cm | 203 cm |
