Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
XS
137cm - 157cm
SM
154cm - 164cm
MD
161cm - 172cm
LG
170cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
Suspension Fork

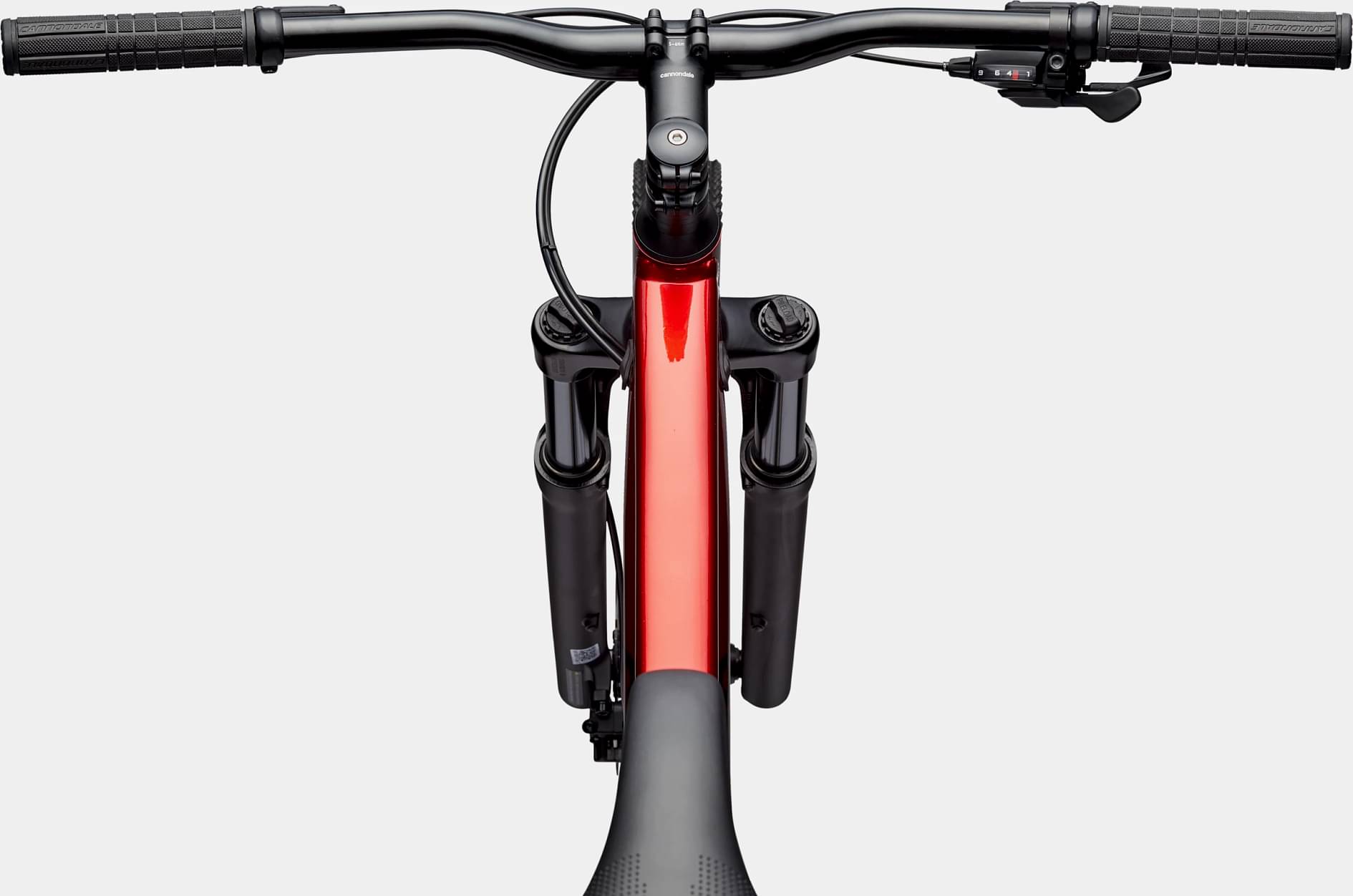

SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
Drivetrain

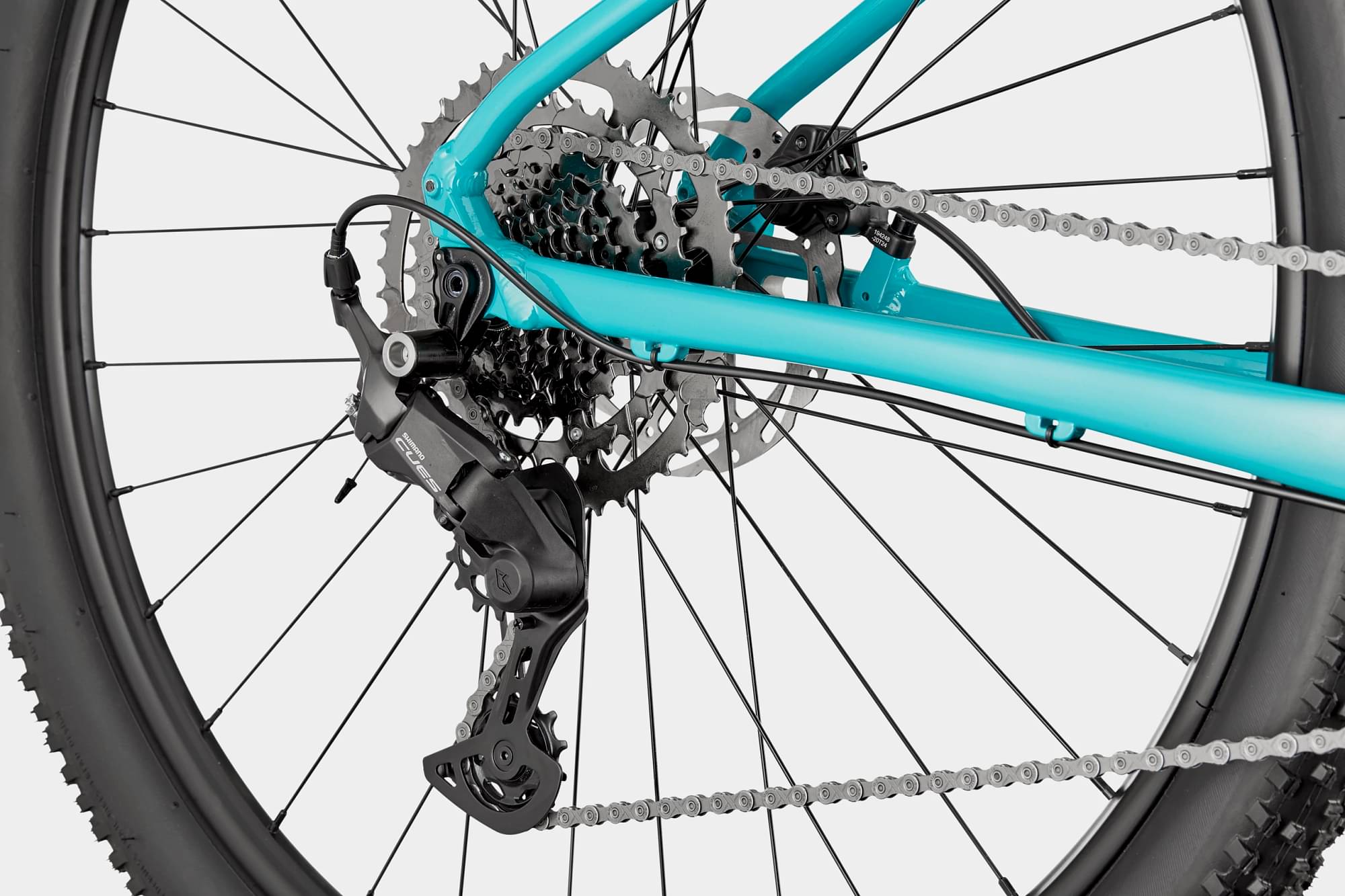

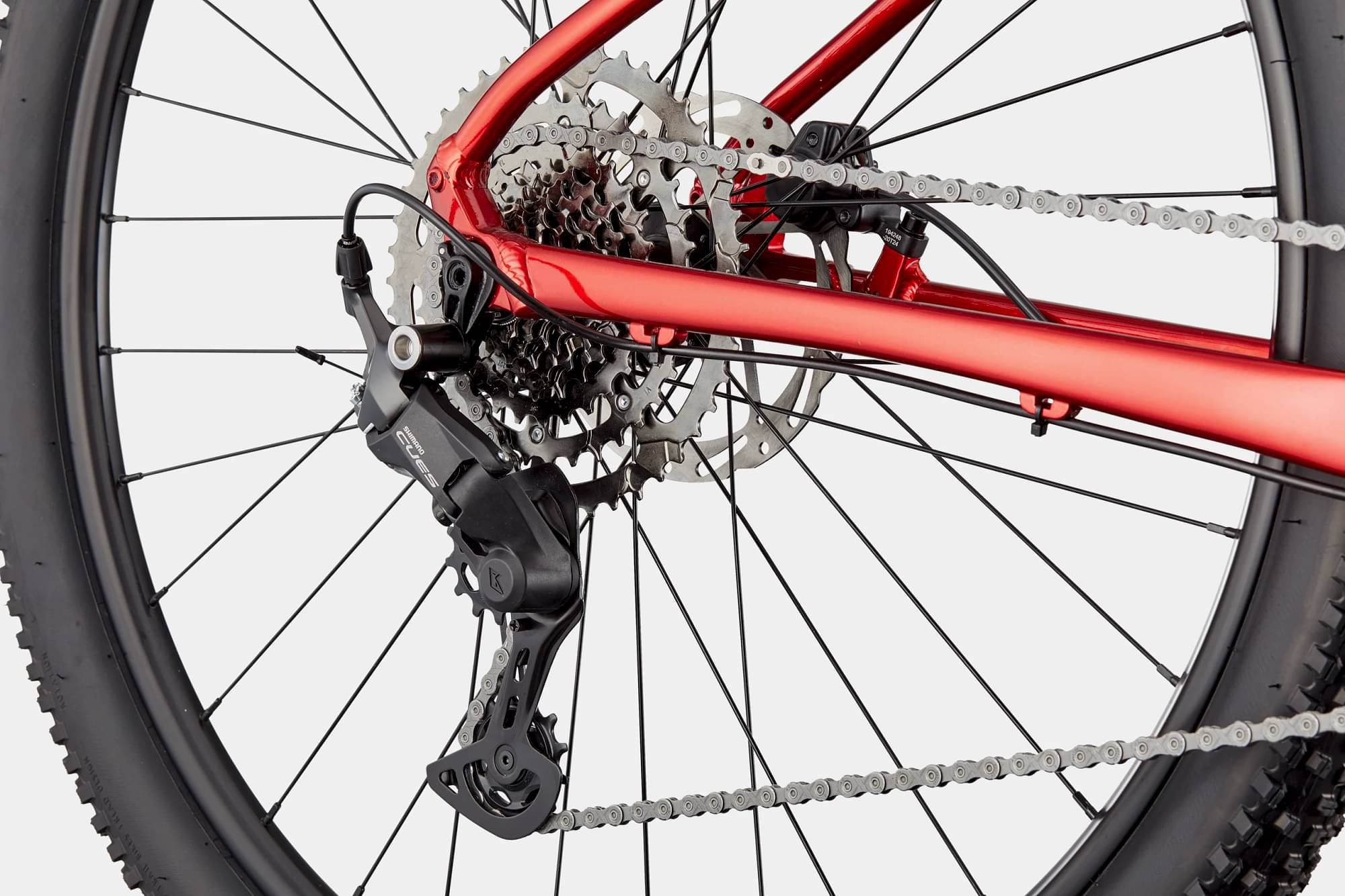

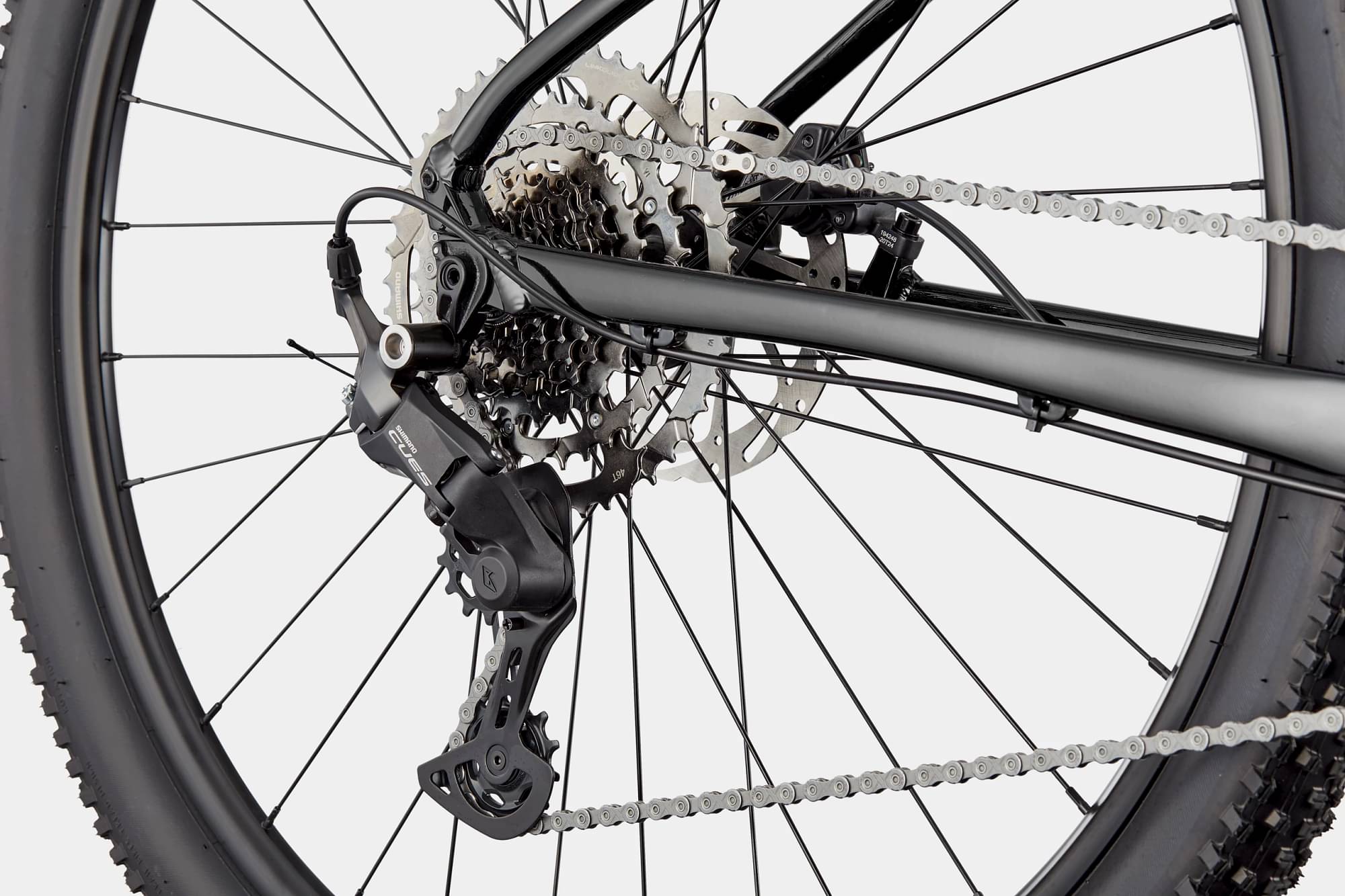

Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano CUES U4000, 9-speed
Cassette
Shimano CUES, 11-46, 9-speed

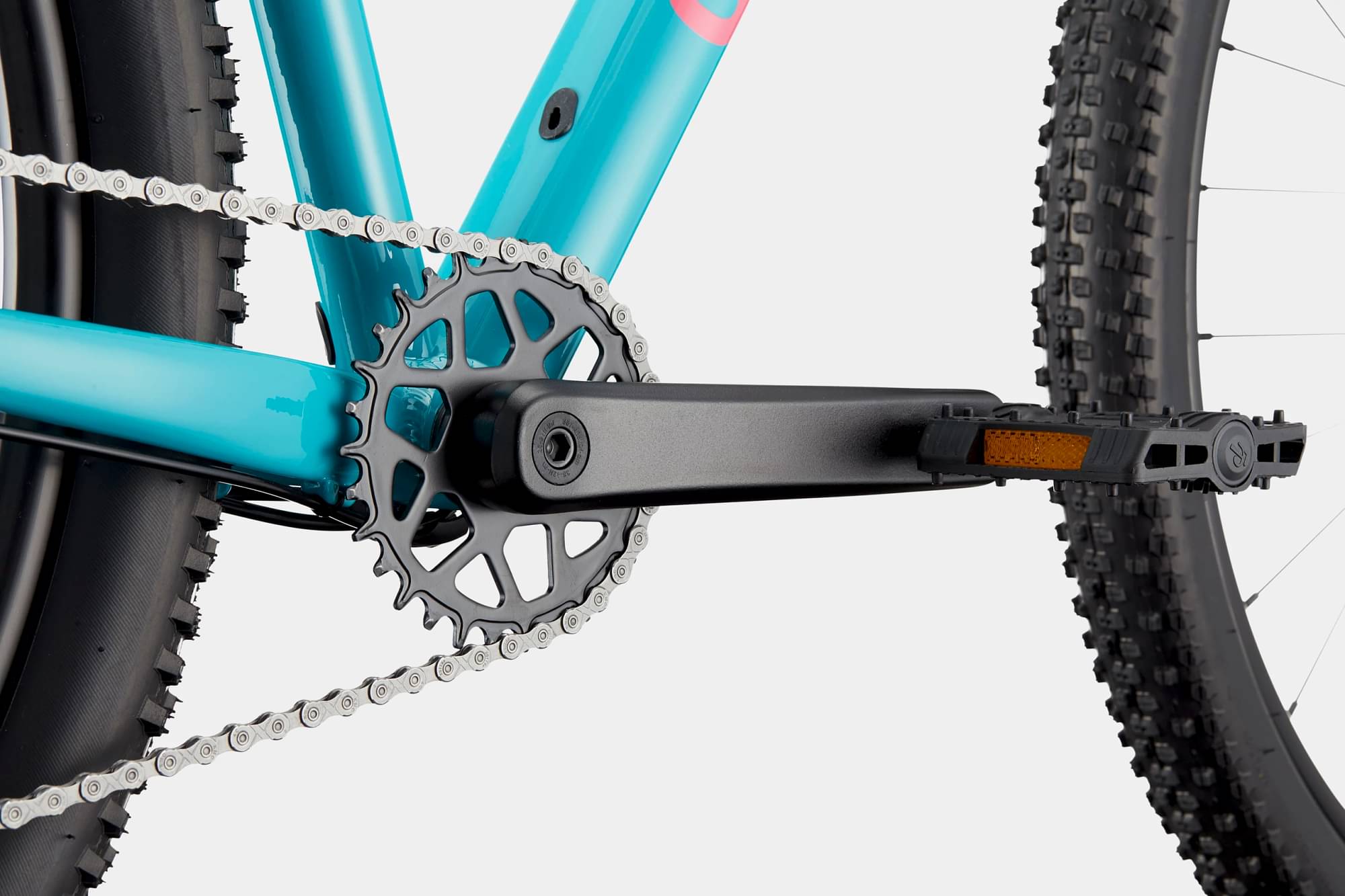

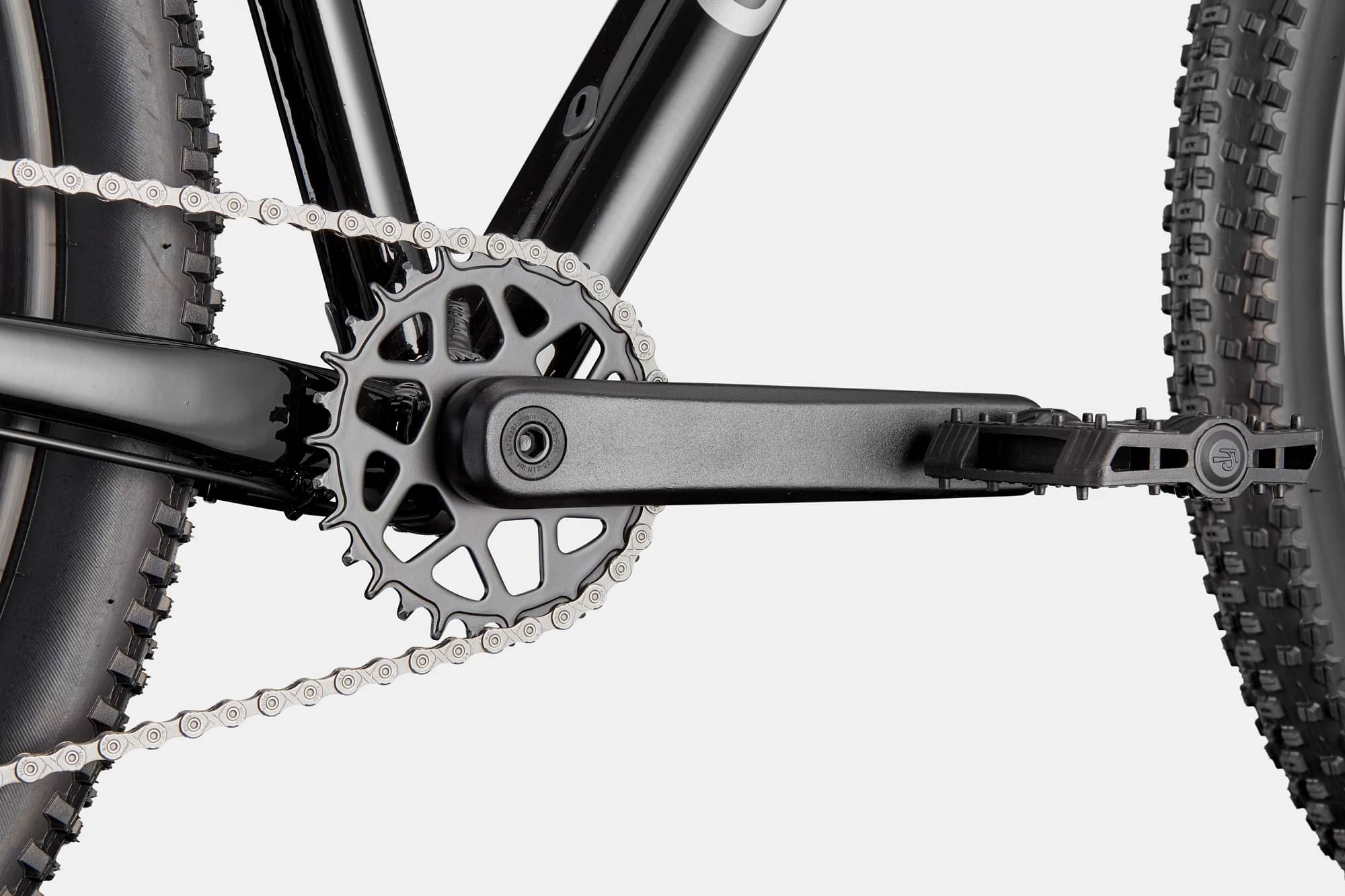

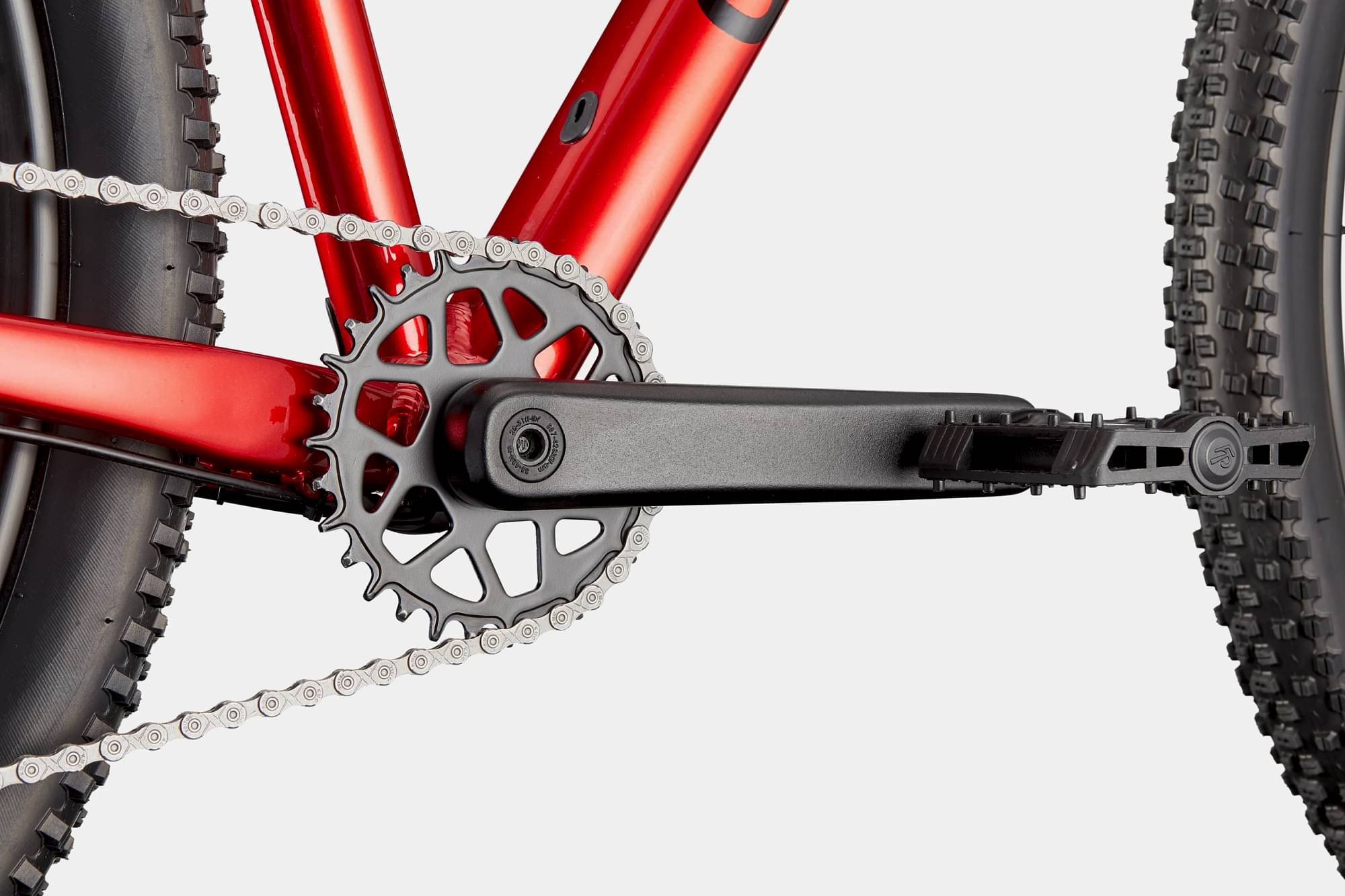

Crank
Prowheel, Charm 30T
Bottom Bracket
ProWheel, square taper
Chain
KMC X9, 9-speed
Pedals
Not Included
Wheels
Front Hub
Formula DC-51, 15x100mm
Rear Hub
Formula DC-1422, 12x142mm
Rims
WTB SX19, 32h
Spokes
Stainless Steel, 14g
Tires
Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI

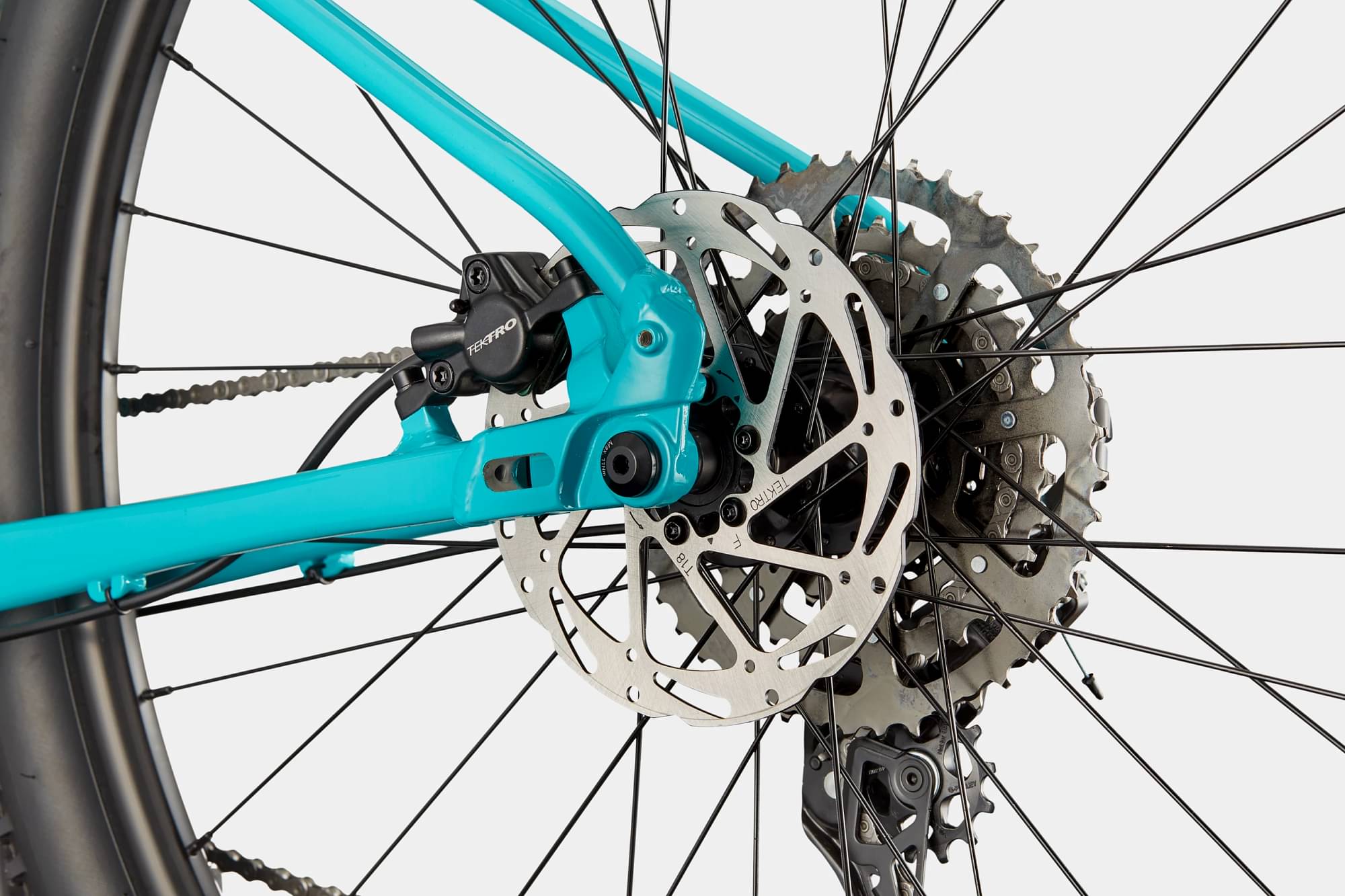

Brakes
Brakes

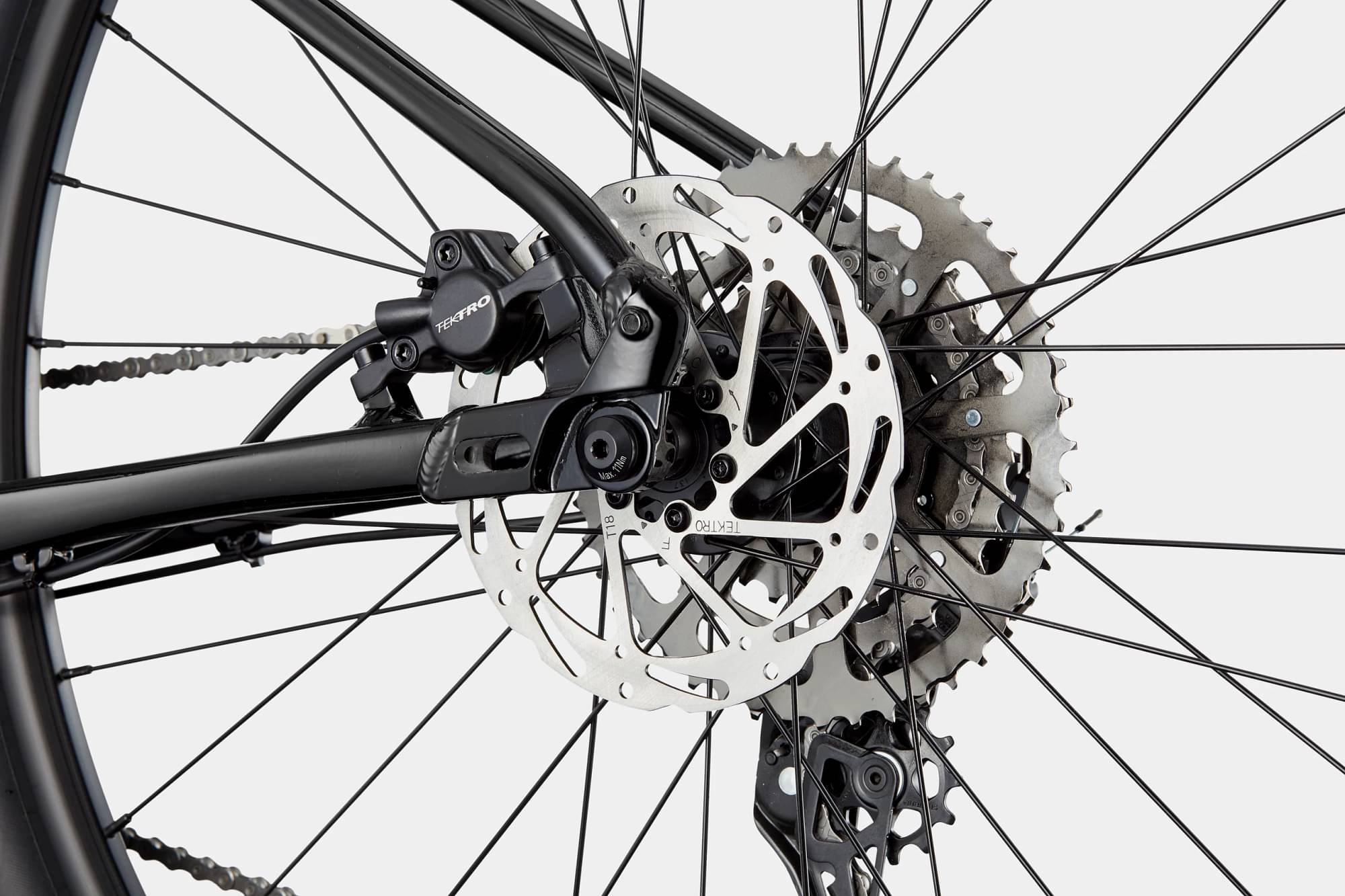

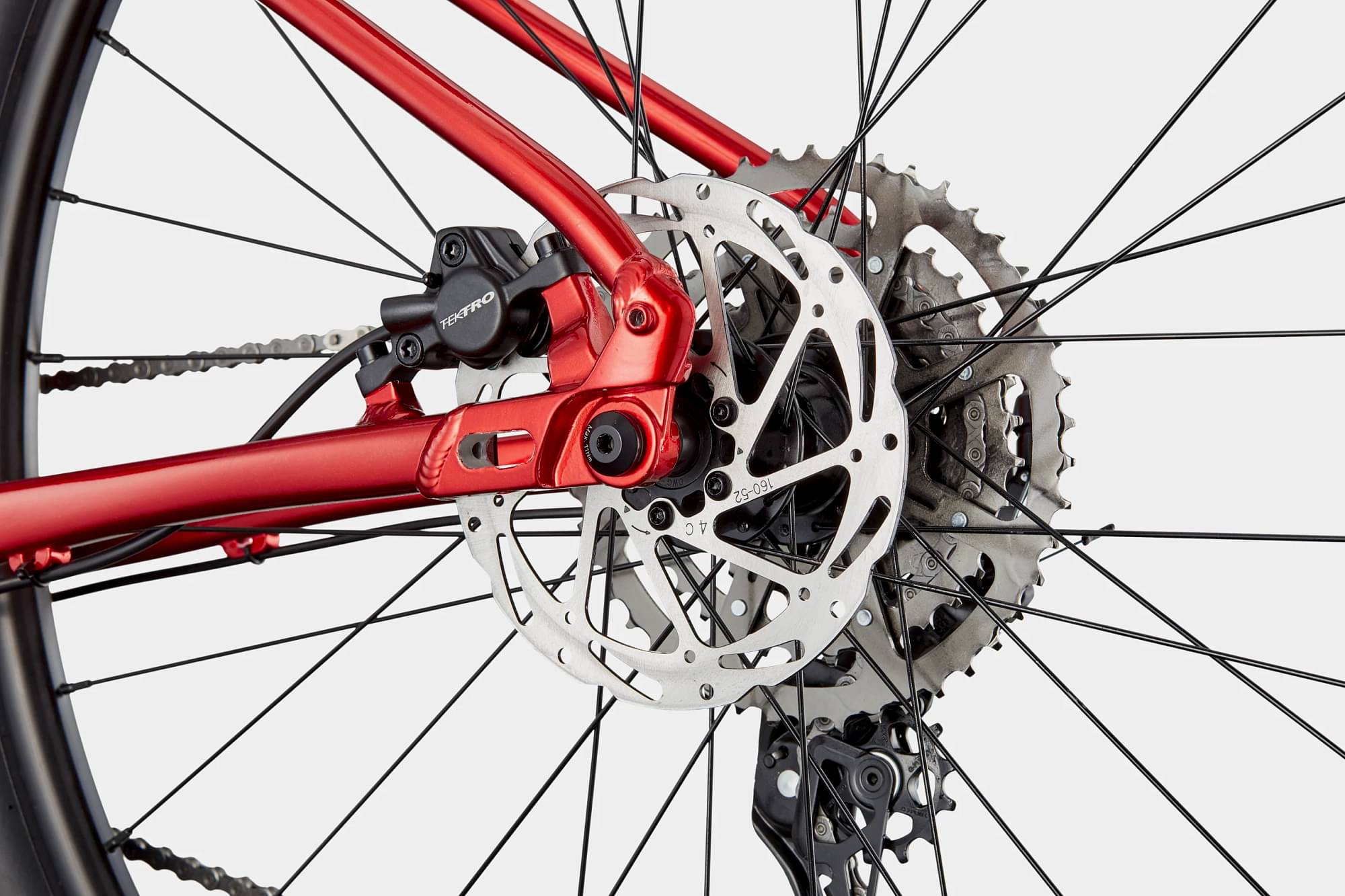

Tektro M275 hydraulic disc, 160/160mm rotors
Brake Levers
Tektro hydraulic disc

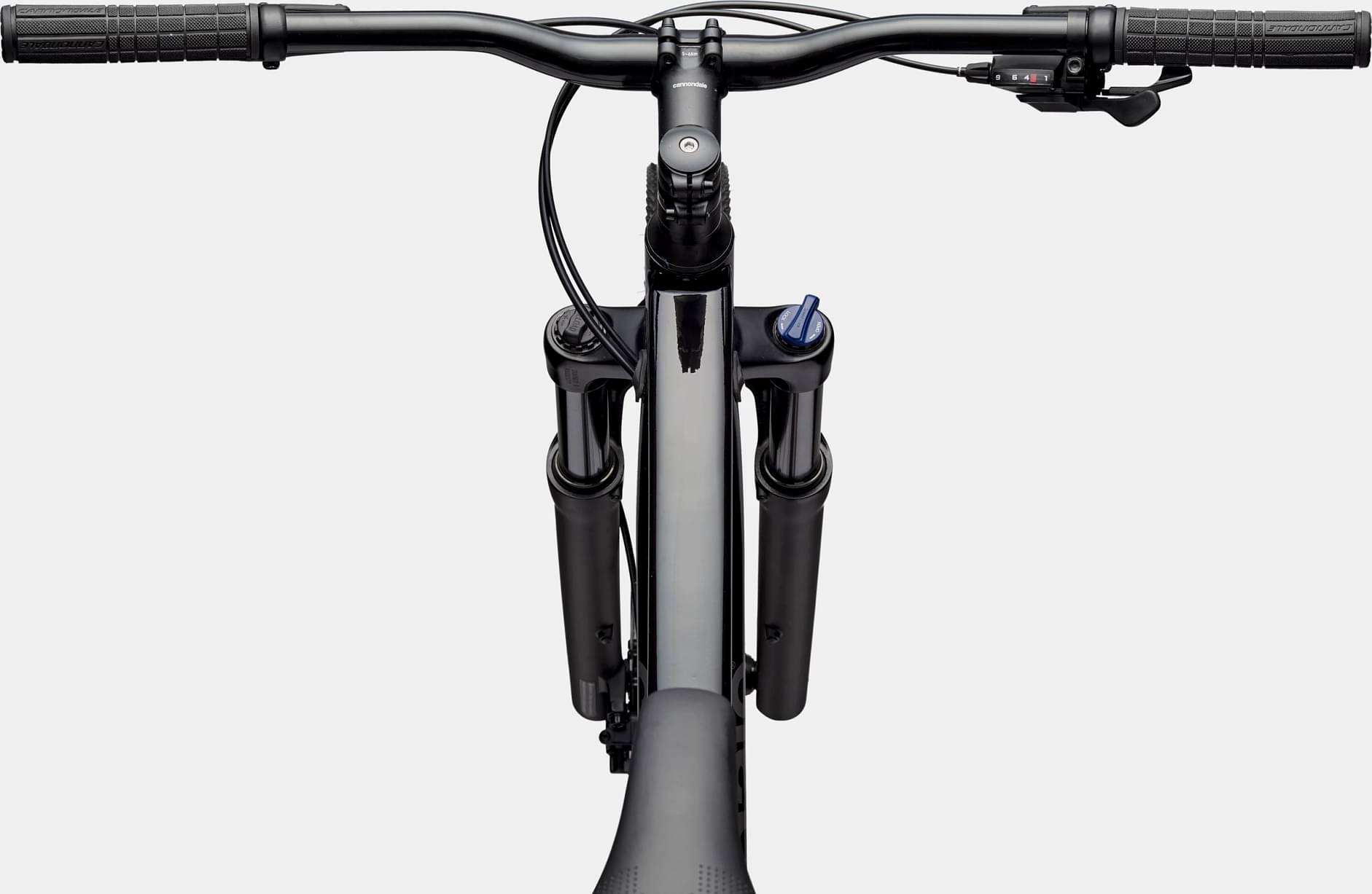

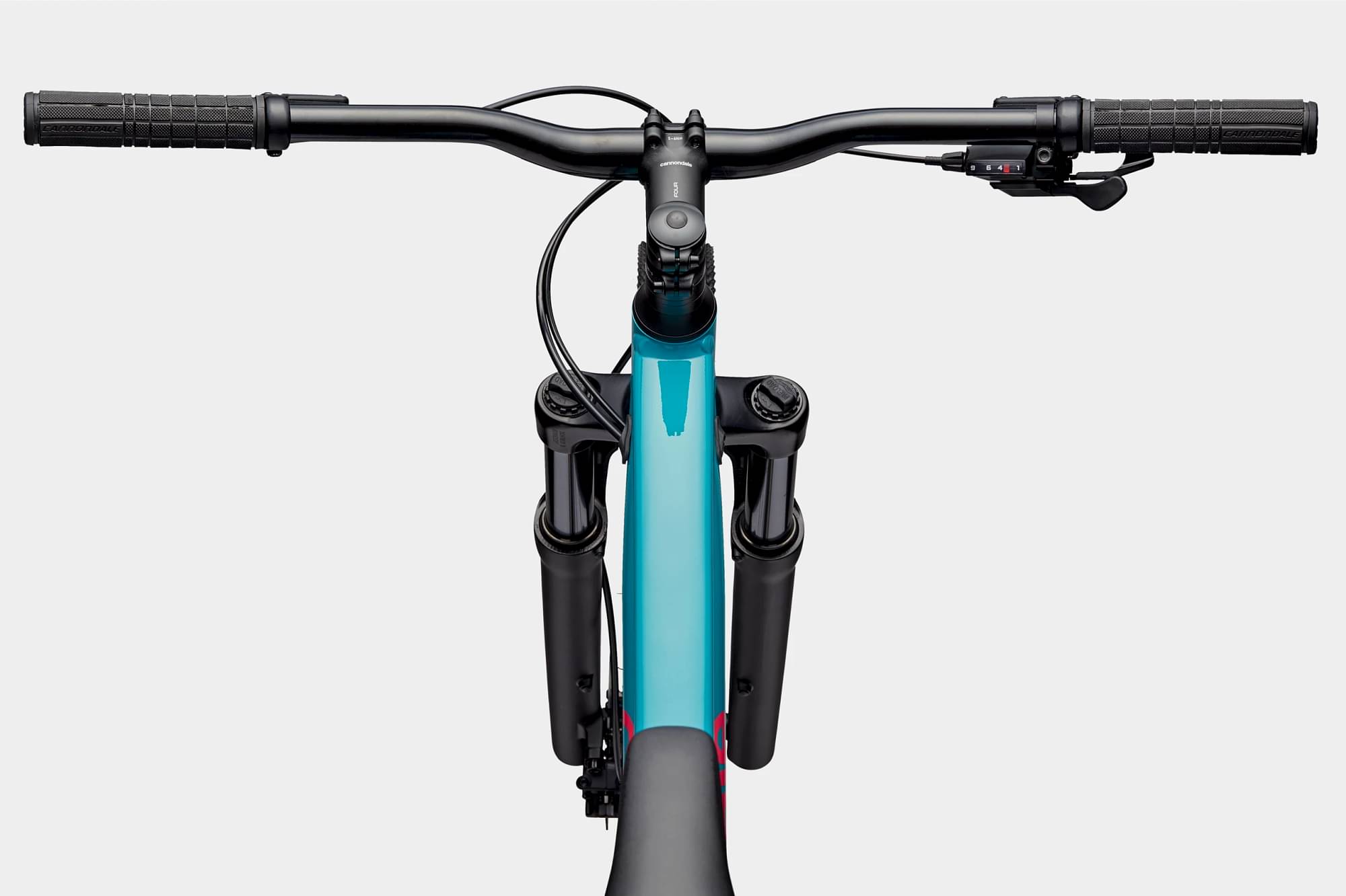

Cockpit
Stem
Cannondale 4, 6061 Alloy, 31.8, 6°
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Grips
Cannondale
Headset
Semi-Integrated, 1-1/8"
Seat
Saddle
Cannondale Trail
Seatpost
Cannondale 4, 6061 Alloy, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 137 cm | 154 cm | 161 cm | 170 cm | 181 cm |
| Rider Max Height | 157 cm | 164 cm | 172 cm | 184 cm | 190 cm |
