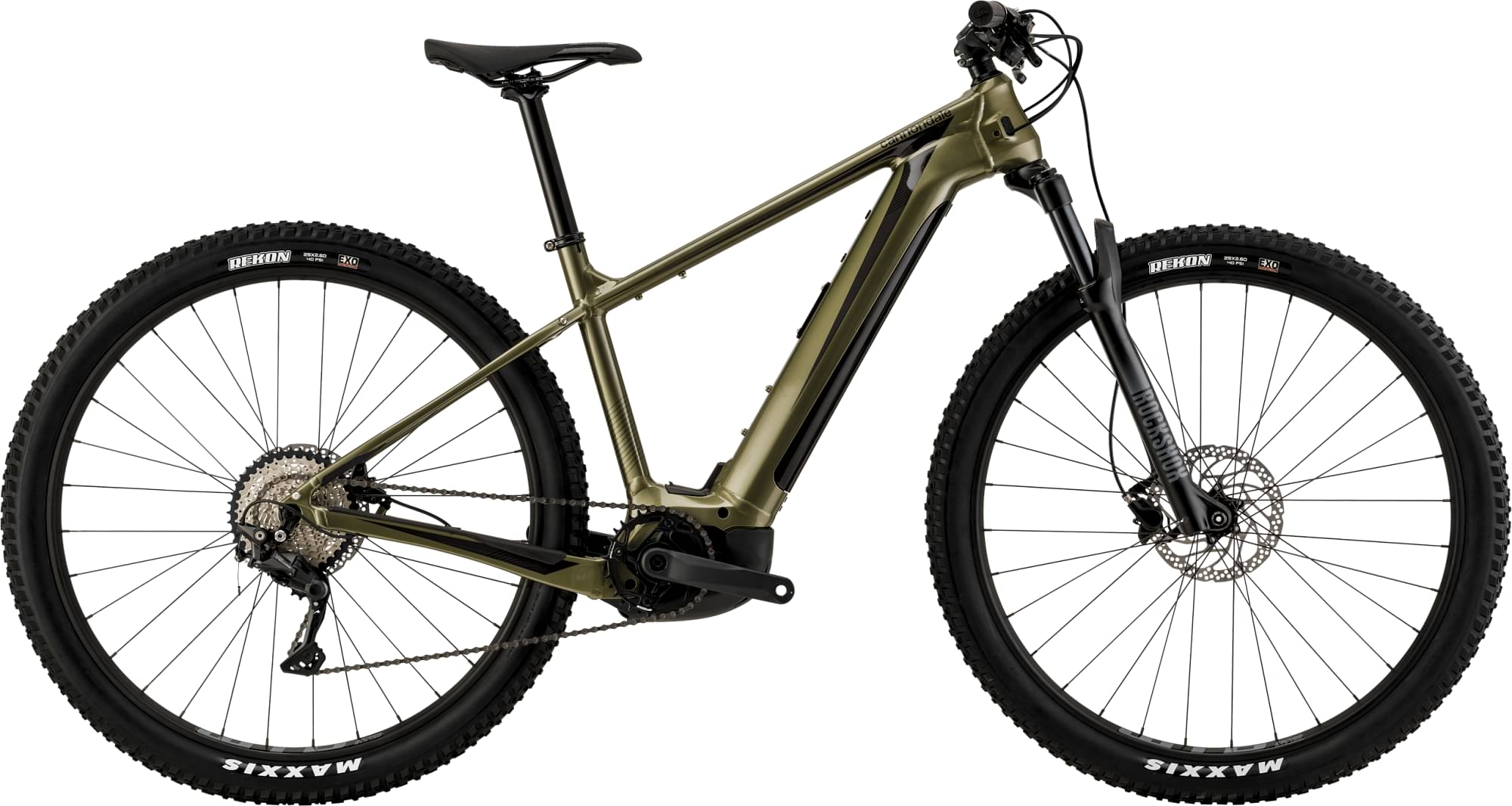

Cannondale Trail Neo 2 2024
2024 E-bike
Estimate price |
4,931$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 625Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 184cm
LG
181cm - 190cm
XL
193cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts
Suspension Fork
RockShox Judy Gold, 100mm, 51mm offset, 110x15
Drivetrain
Rear Derailleur
Shimano Deore, 11-speed
Shift Levers
Shimano Deore, 11-speed
Cassette
Shimano Deore, 11-51, 11-speed
Crank
FSA Bosch E-Bike w/ custom Ai offset, 34T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
Shimano Deore, 11-Speed
Pedals
Not included
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Shimano MT400, 12x148mm thru-axle
Rims
WTB STX i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
Maxxis Rekon, 27.5/29x2.6", Wire 60TPI Exo
Brakes
Brakes
Shimano MT400 hydraulic disc, 180mm RT30 rotors
Brake Levers
Shimano MT400 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Fabric Funguy
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo XC
Seatpost
Cannondale 4, 6061 Alloy, 31.6x350mm
Motor & Battery
Motor
Bosch Performance Line Sport 250W (28mph)
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 181 cm | 193 cm |
| Rider Max Height | 172 cm | 184 cm | 190 cm | 203 cm |
