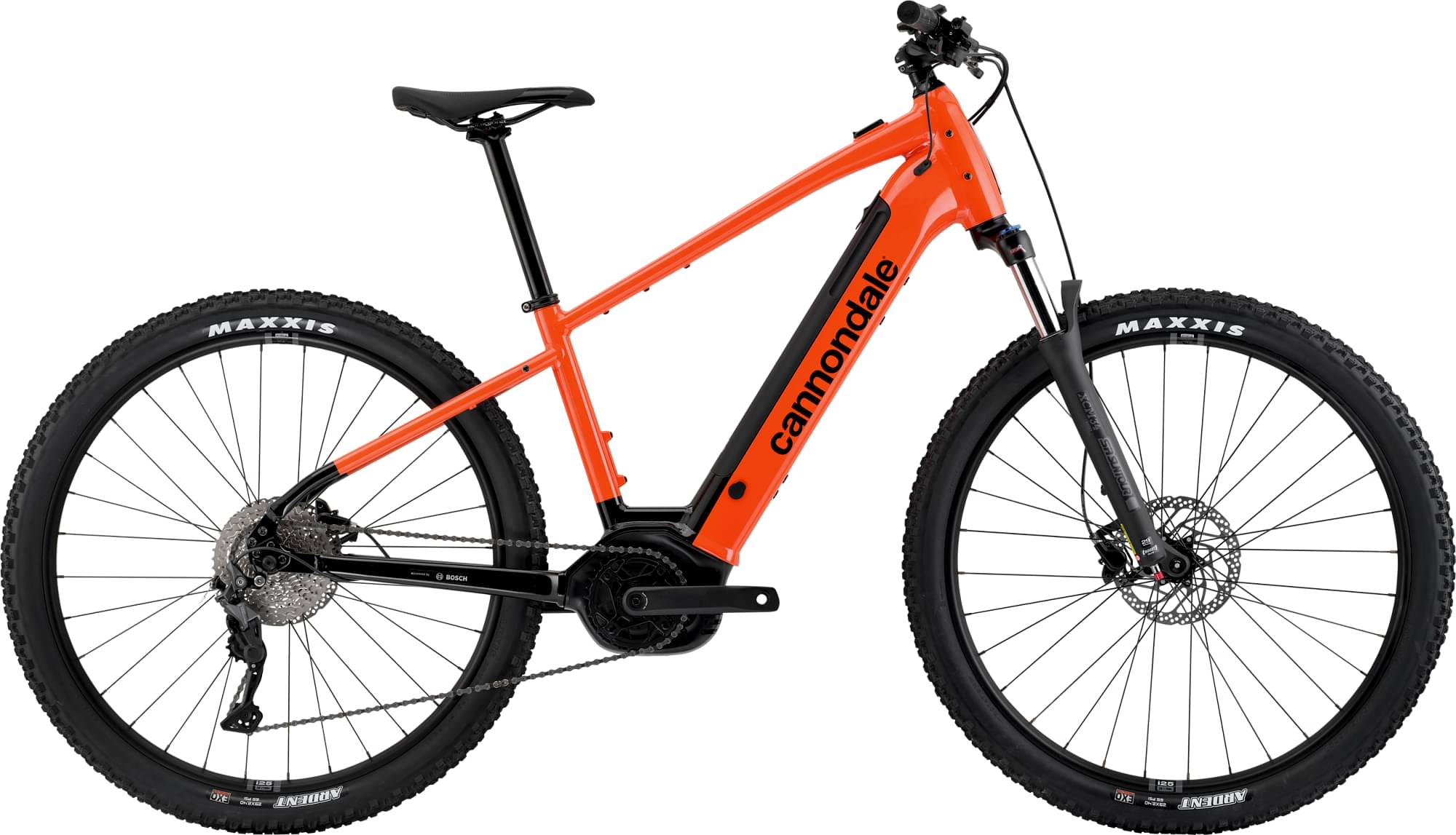

Cannondale Trail Neo 3 2024
2024 E-bike
Estimate price |
4,243$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Travel Rear 40mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Full -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerTube, 625Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 184cm
LG
181cm - 190cm
XL
193cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts
Suspension Fork
SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset
Drivetrain
Rear Derailleur
Shimano CUES U6000
Shift Levers
Shimano CUES U6000, 10-speed
Cassette
Shimano CUES LG400, 11-48, 10-speed
Crank
FSA Bosch Gen3, 170mm, 38T
Bottom Bracket
Bosch, press-fit
Chain
KMC E500
Pedals
Not included
Wheels
Front Hub
(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano UR600, 12x148mm thru-axle
Rear Hub
(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano UR600, 12x148mm thru-axle
Rims
WTB STX i25 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion 2.0
Tires
Maxxis Ardent, 29x2.4" (M, L, XL) 27.5x2.4" (S), EXO Protection
Brakes
Brakes
Shimano MT200 hydraulic disc, 180/180mm RT30/RT-EM300 rotors
Brake Levers
Shimano MT200 hydraulic disc
Cockpit
Stem
Cannondale 3, 3D Forged 6061 alloy, 1-1/8", 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm, 31.8mm
Grips
Fabric Funguy
Headset
Integrated, 1-1/8 to 1.5", sealed bearings
Seat
Saddle
Cannondale Ergo XC
Seatpost
Cannondale 3, 6061 Alloy, 31.6x350mm
Motor & Battery
Motor
Bosch Performance Line
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 181 cm | 193 cm |
| Rider Max Height | 172 cm | 184 cm | 190 cm | 203 cm |
