Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 164cm
MD
161cm - 172cm
LG
170cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smartform C2 Alloy, SAVE dropped seatstays, tapered headtube, post mount disc, StraightShot internal cable routing, dropper post compatible BSA 73, 12mm thru axle, Boost 148
Suspension Fork
RockShox Judy Silver TK, 120mm, Solo Air, 15x110 thru-axle, 51mm offset
Drivetrain
Rear Derailleur
Shimano Deore M5100
Shift Levers
Shimano Deore M5100, 11-speed
Cassette
Shimano Deore M5100, 11-51, 11-speed
Crank
FSA Alpha Drive, 30T
Bottom Bracket
Sealed cartridge bearing, square taper
Chain
KMC X11, 11-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Shimano MT400, 12x148mm thru-axle
Rims
WTB STX i25 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
(F) WTB Breakout, 29x2.3" / (R) WTB Trail Boss, 29x2.25"
Brakes
Brakes
Tektro M275 hydraulic disc, 180/160mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale, 6061 Alloy, 31.8, 7°
Handlebar
FSA Alloy Riser, 15mm rise, 760mm
Grips
Cannondale Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo XC
Seatpost
TranzX Dropper, 31.6, Internal Routing, 100mm (S), 120mm (M-XL)
Fit data

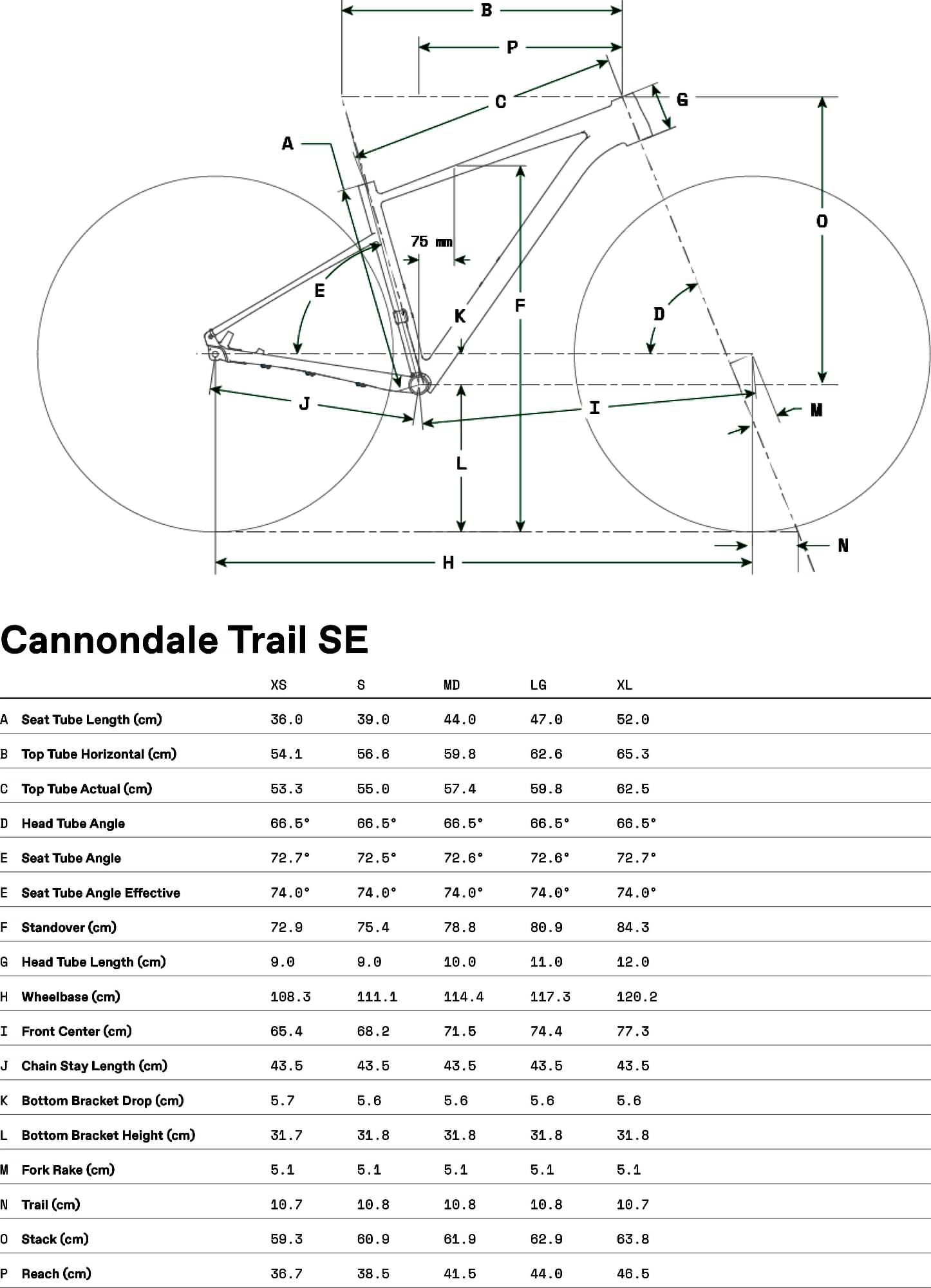

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 161 cm | 170 cm | 181 cm |
| Rider Max Height | 164 cm | 172 cm | 184 cm | 190 cm |
