Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy Gold RL
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 164cm
MD
161cm - 172cm
LG
170cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail SL, Smartform C2 Alloy, SAVE dropped seatstays, tapered headtube, post mount disc, StraightShot internal cable routing, dropper post compatible BSA 73, 12mm thru axle, Boost 148
Suspension Fork
RockShox Judy Gold RL, 100mm, Solo Air, 15x110 thru-axle, remote lockout, tapered steerer, 51mm offset
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 10-51, 12-speed
Crank
Shimano M6100, 30T
Bottom Bracket
Shimano Hollowtech II
Chain
KMC X12, 12-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
New Shimano TBA
Rims
WTB STX i23 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Schwalbe Rocket Rick, 29x2.25"
Brakes
Brakes
Shimano MT400 hydraulic disc, 180/160mm RT10 rotors
Brake Levers
Shimano MT400 hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
FSA Alloy Riser, 15mm rise, 760mm
Grips
Cannondale Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo XC
Seatpost
Cannondale 3, 6061 Alloy, 31.6x350mm (S), 400mm (M-XL)
Fit data

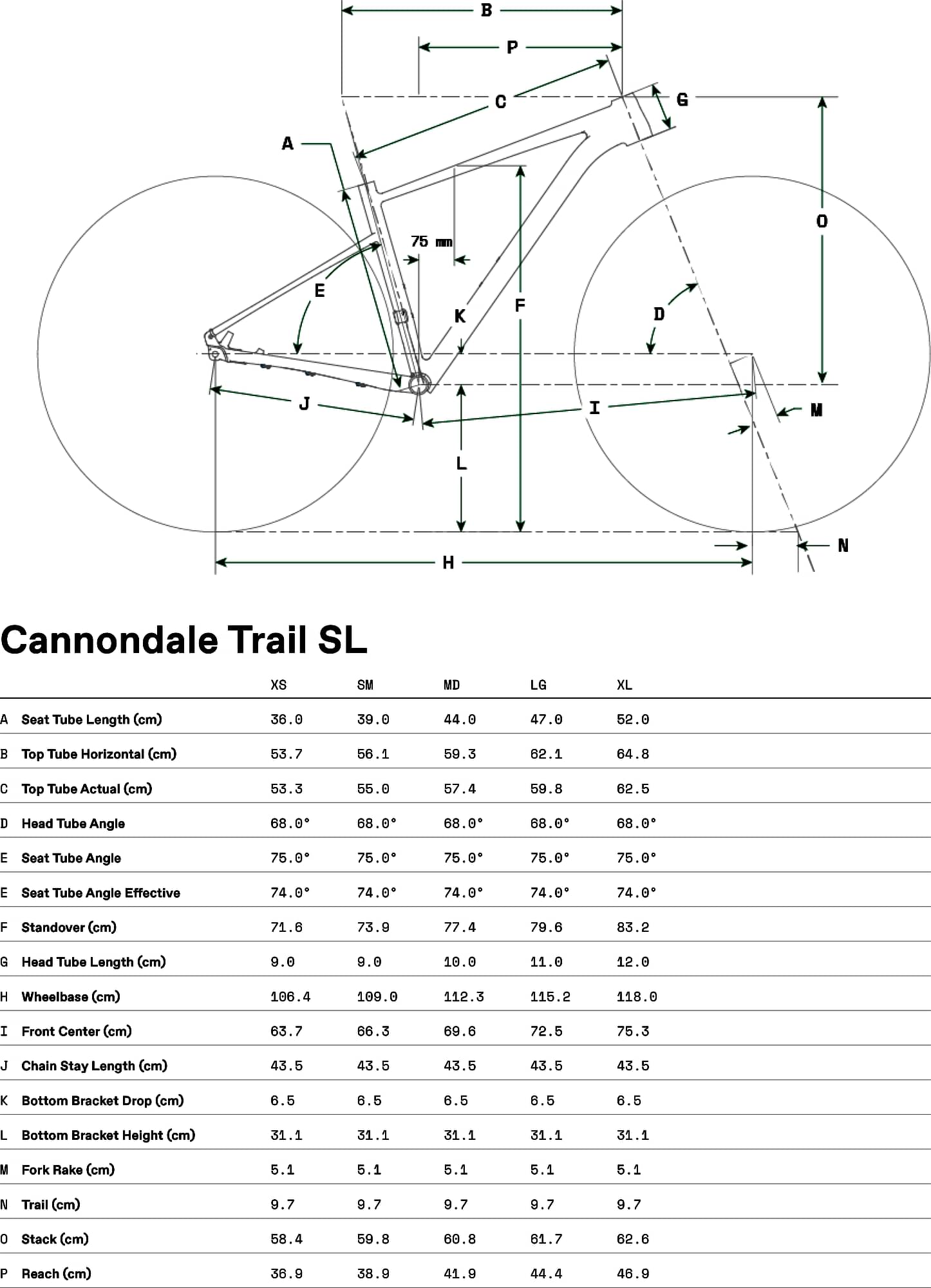

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 161 cm | 170 cm | 181 cm |
| Rider Max Height | 164 cm | 172 cm | 184 cm | 190 cm |
