Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR
-
Groupset microSHIFT Advent X -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 162cm
MD
160cm - 172cm
LG
170cm - 182cm
XL
180cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail SL, Smartform C2 Alloy, SAVE dropped seatstays, tapered headtube, post mount disc, StraightShot internal cable routing, dropper post compatible BSA 73, 12mm thru axle, Boost 148
Suspension Fork
SR Suntour XCR LO Boost 29, 100mm travel, 15mm thru axle, tapered alloy steerer, Remote Lockout
Drivetrain
Rear Derailleur
microSHIFT Advent X
Shift Levers
microSHIFT Advent X, 10-Speed
Cassette
microSHIFT Advent X, 11-48, 10-speed
Crank
Prowheel, 30T
Bottom Bracket
Sealed Bearing Cartridge
Chain
KMC X10, 10-speed
Pedals
Not included
Wheels
Front Hub
(F) Shimano MT200, QR / (R) Shimano MT400, 12x148mm thru-axle
Rear Hub
(F) Shimano MT200, QR / (R) Shimano MT400, 12x148mm thru-axle
Rims
WTB STX i23 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Schwalbe Rocket Rick, 29x2.25"
Brakes
Brakes
Shimano MT200 hydraulic disc, 160/160mm RT10 rotors
Brake Levers
Shimano MT200 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo XC
Seatpost
Cannondale 3, 6061 Alloy, 31.6x350mm (S), 400mm (M-XL)
Fit data

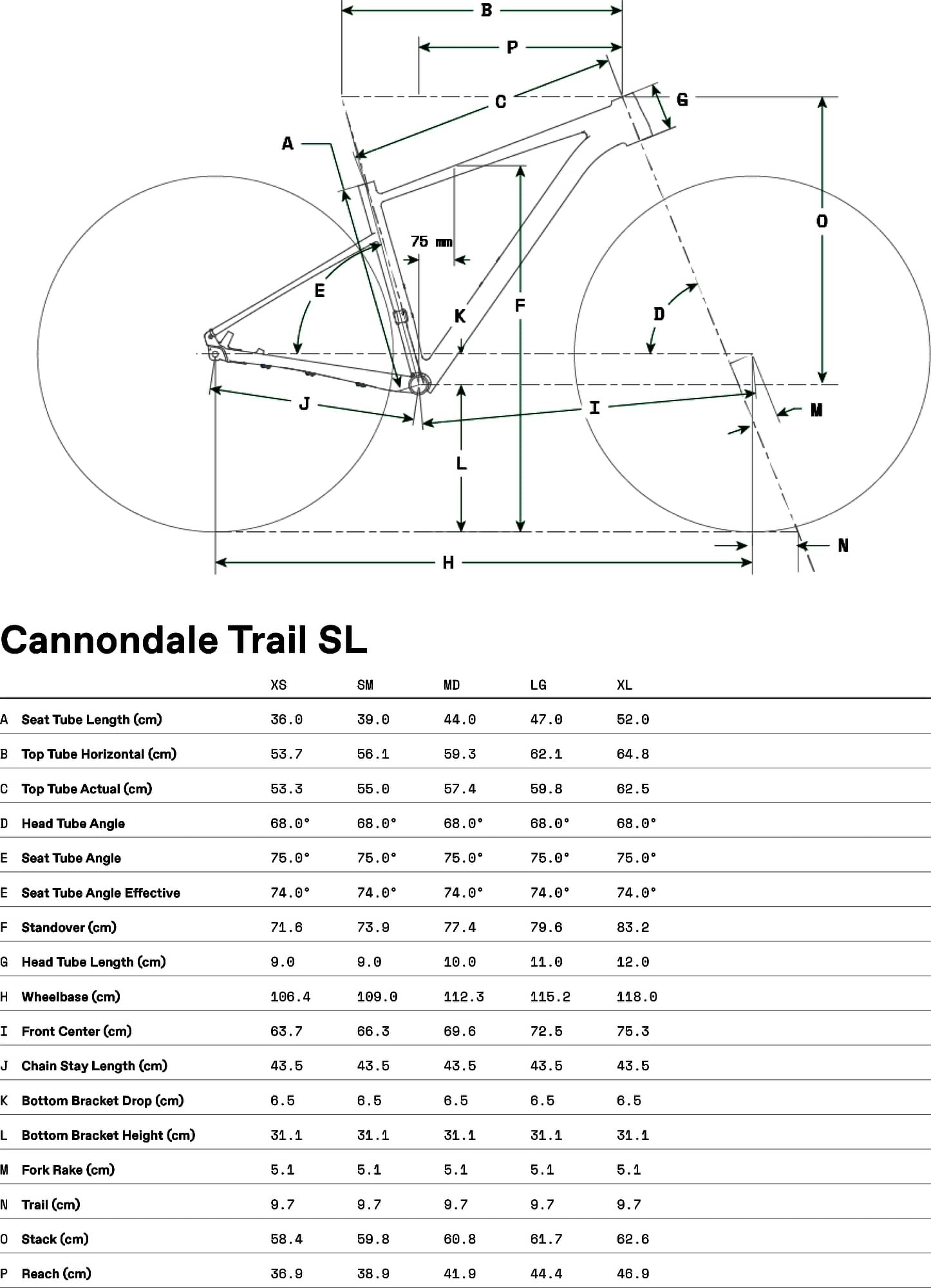

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 162 cm | 172 cm | 182 cm | 190 cm |
