Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 167cm
MD
162cm - 182cm
LG
177cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, Ride-Easy low-standover geometry, Straightshot hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts
Suspension Fork
SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
Drivetrain
Rear Derailleur
microSHIFT Advent
Shift Levers
microSHIFT Advent, 9-speed
Cassette
microSHIFT, 11-42, 9-speed
Crank
Prowheel, 38T
Bottom Bracket
Cartridge, square taper
Chain
KMC X9, 9-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
Sealed Alloy Disc, 5mm Hex Security QR
Rear Hub
Sealed Alloy Disc, 5mm Hex Security QR
Rims
Cannondale, double wall, 32h
Spokes
Stainless Steel, 14g
Tires
Maxxis DTR-1, 650bx47c
Brakes
Brakes
Tektro HD-R280 hydraulic disc, 160/160mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm
Grips
Cannondale Comfort
Headset
Semi-Integrated
Seat
Saddle
Cannondale Treadwell, 170mm, steel rails
Seatpost
6061 Alloy, 31.6x350mm
Fit data

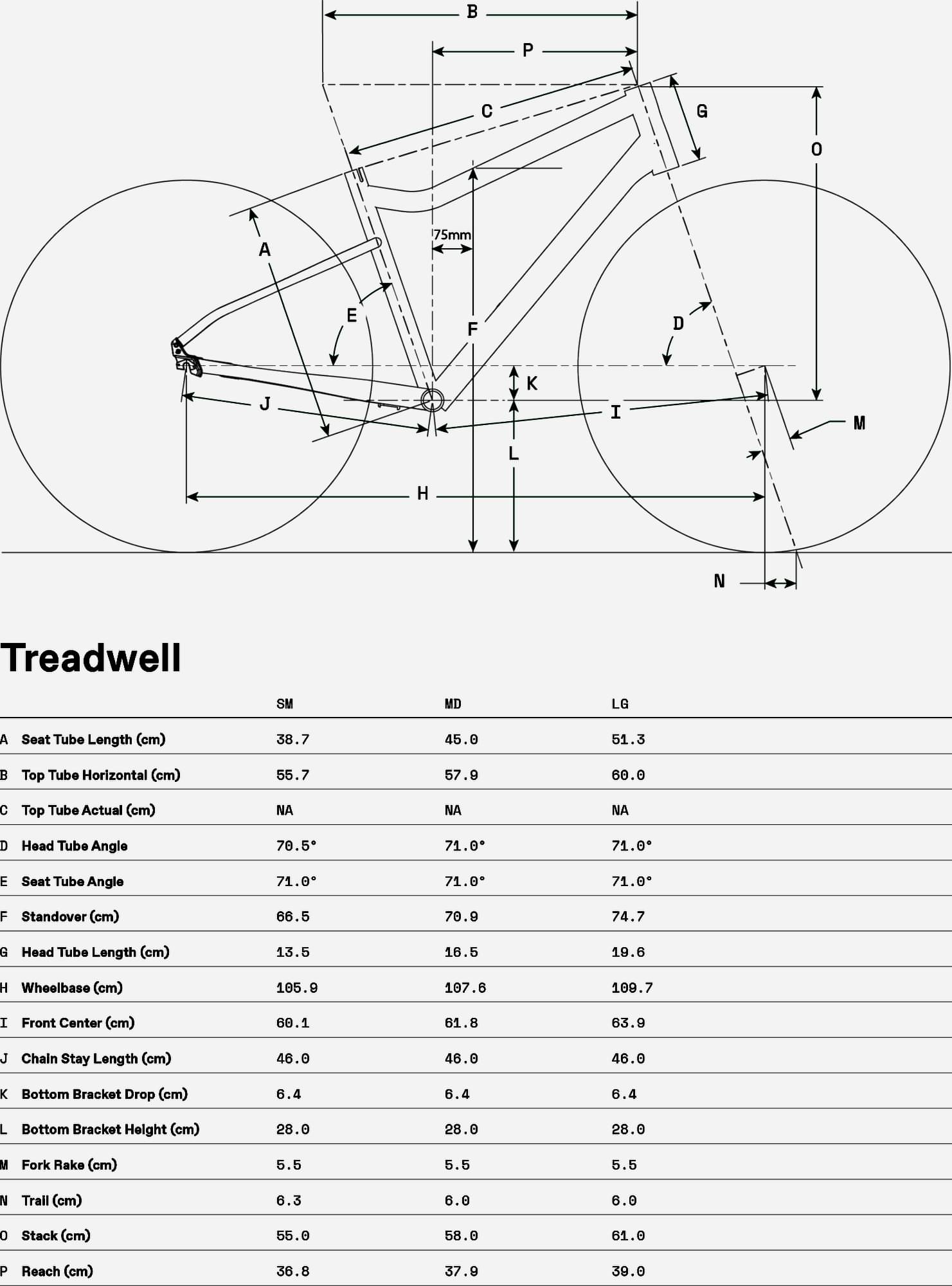

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.53 mm | 1.564 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 601 mm | 618 mm | 639 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 63 mm | 60 mm | 60 mm |
| Stack | 550 mm | 580 mm | 610 mm |
| Reach | 368 mm | 379 mm | 390 mm |
| Top Tube Length | 557 mm | 579 mm | 600 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 387 mm | 450 mm | 513 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 165 mm | 196 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1059 mm | 1076 mm | 1097 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Standover Height | 665 mm | 709 mm | 747 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 162 cm | 177 cm |
| Rider Max Height | 167 cm | 182 cm | 195 cm |
