Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 167cm
MD
162cm - 182cm
LG
177cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, Ride-Easy low-standover geometry, Straightshot hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts
Suspension Fork
SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
Drivetrain
Rear Derailleur
microSHIFT Advent
Shift Levers
microSHIFT Advent, 9-speed
Cassette
microSHIFT, 11-42, 9-speed
Crank
Prowheel, 38T
Bottom Bracket
Cartridge, square taper
Chain
KMC X9, 9-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
Sealed Alloy Disc, 5mm Hex Security QR
Rear Hub
Sealed Alloy Disc, 5mm Hex Security QR
Rims
Cannondale, double wall, 32h
Spokes
Stainless Steel, 14g
Tires
Maxxis DTR-1, 650bx47c
Brakes
Brakes
Tektro HD-R28 hydraulic disc, 160/140mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm
Grips
Cannondale Comfort
Headset
Semi-Integrated
Seat
Saddle
Cannondale Treadwell, 170mm, steel rails
Seatpost
6061 Alloy, 31.6x350mm
Fit data

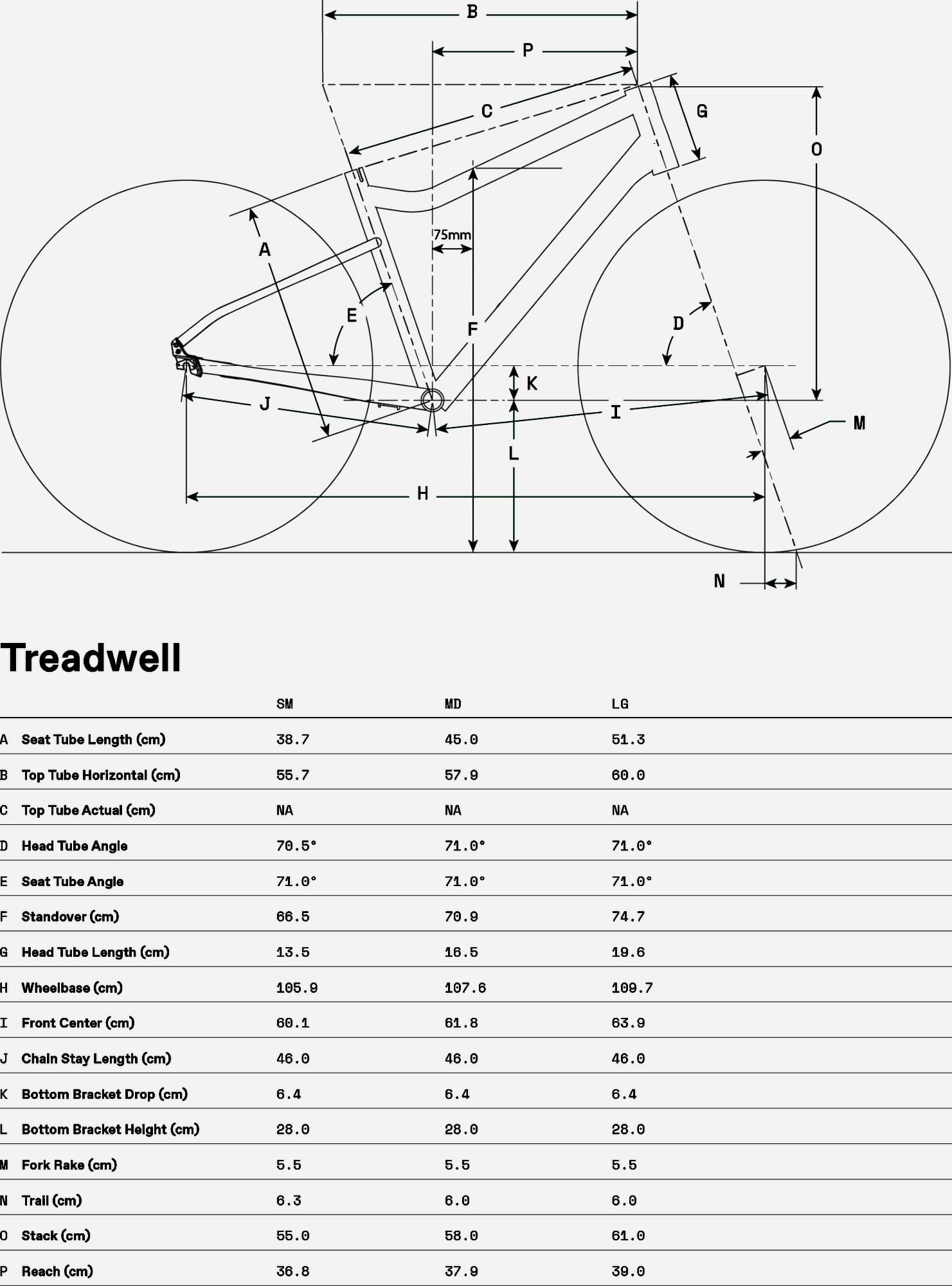

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 162 cm | 177 cm |
| Rider Max Height | 167 cm | 182 cm | 195 cm |
