Cannondale Treadwell 2 Remixte Ltd 2024
2024 Urban
Estimate price |
1,162$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 167cm
LG
162cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, Low-step Ride-Easy geometry, Straightshot hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts
Suspension Fork
SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
Drivetrain
Rear Derailleur
microSHIFT Advent
Shift Levers
microSHIFT Advent, 9-speed
Cassette
microSHIFT, 11-42, 9-speed
Crank
Prowheel, 38T
Bottom Bracket
Cartridge, square taper
Chain
KMC X9, 9-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
Sealed Alloy Disc, 5mm Hex Security QR
Rear Hub
Sealed Alloy Disc, 5mm Hex Security QR
Rims
Cannondale, double wall, 32h
Spokes
Stainless Steel, 14g
Tires
Maxxis DTR-1, 650bx47c
Brakes
Brakes
Tektro HD-R280 hydraulic disc, 160/140mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm
Grips
Cannondale Comfort
Headset
Semi-Integrated
Seat
Saddle
Cannondale Treadwell, 170mm, steel rails
Seatpost
6061 Alloy, 31.6x350mm
Fit data

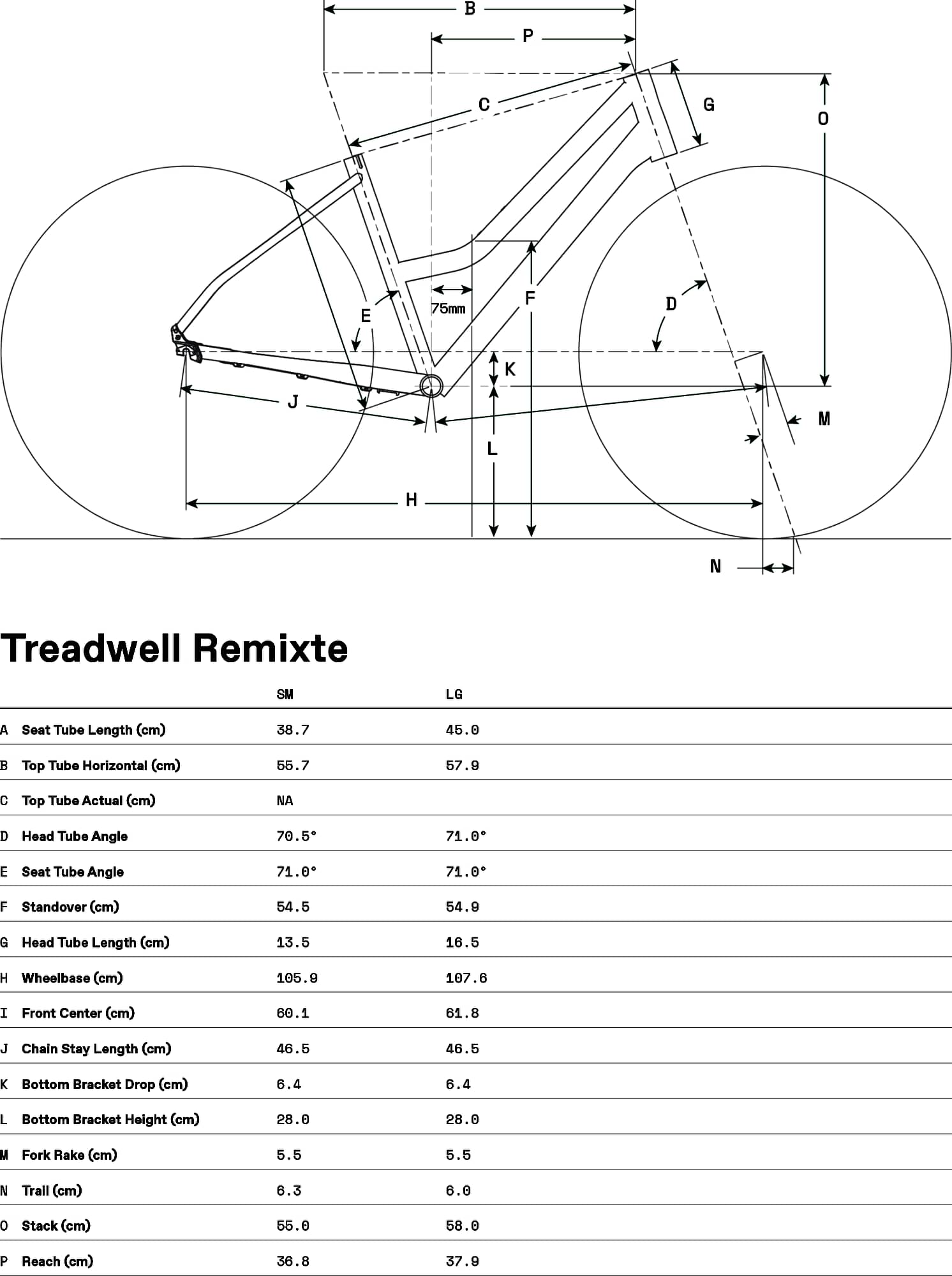

Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.53 mm |
| Bottom Bracket Height | 280 mm | 280 mm |
| Front Center | 601 mm | 618 mm |
| Rake | 55 mm | 55 mm |
| Trail | 63 mm | 60 mm |
| Stack | 550 mm | 580 mm |
| Reach | 368 mm | 379 mm |
| Top Tube Length | 557 mm | 579 mm |
| Seat Tube Angle | 71 ° | 71 ° |
| Seat Tube Length | 387 mm | 450 mm |
| Head Tube Angle | 70.5 ° | 71 ° |
| Head Tube Length | 135 mm | 165 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1059 mm | 1076 mm |
| Bottom Bracket Drop | 64 mm | 64 mm |
| Standover Height | 545 mm | 549 mm |
| Wheels | 650 | 650 |
| Rider Min Height | 149 cm | 162 cm |
| Rider Max Height | 167 cm | 182 cm |
