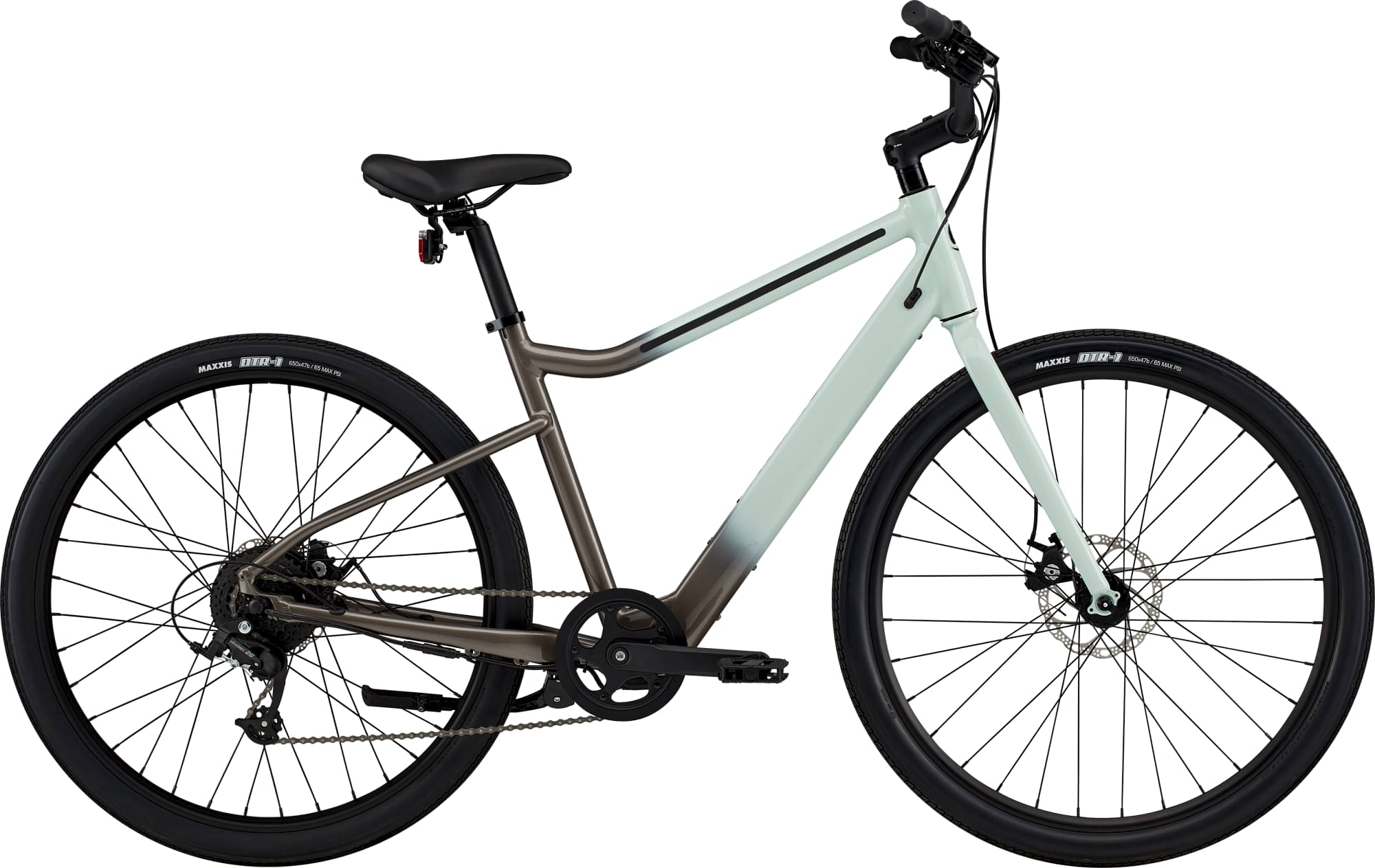

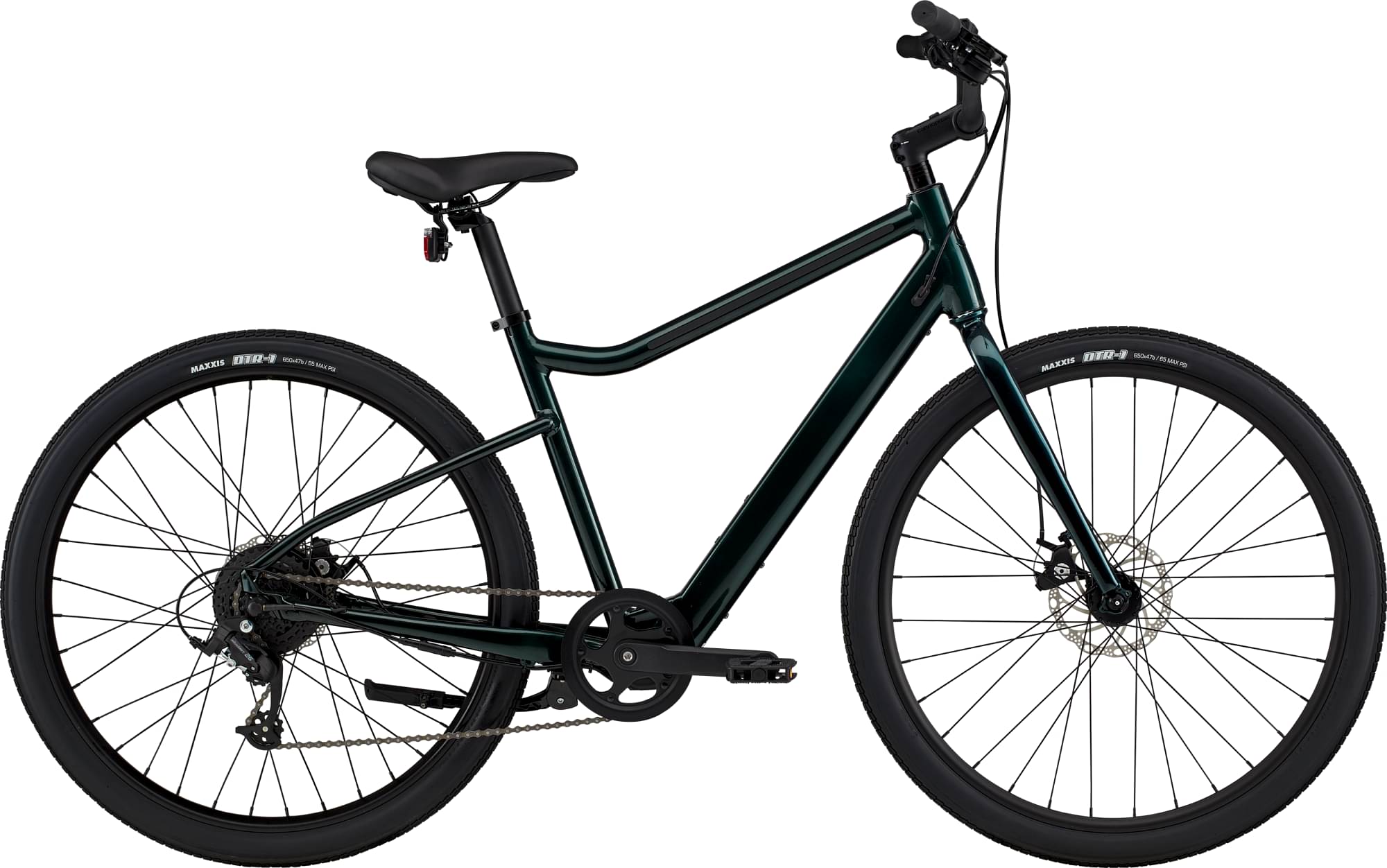

Cannondale Treadwell Neo 2 2024
2024 E-bike
Estimate price |
2,093$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT M26 -
Suspension Rigid -
Motor 250W hub-drive -
Battery Hyena, 250Wh internal downtube battery -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
149cm - 167cm
MD
162cm - 182cm
LG
177cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, low standover Ride-Easy geometry, internal downtube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount
Suspension Fork
Chromoly, 1-1/8" steerer, OutFront offset, mid-blade mounts
Drivetrain
Rear Derailleur
microSHIFT M26S
Shift Levers
microSHIFT, 7-speed
Cassette
Sunrace, 11-34, 7-speed
Crank
Samox, 38T
Bottom Bracket
Hyena torque sensor
Chain
KMC Z7, 7-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
(F) Sealed Alloy Disc, QR / (R) Hyena MRC-250 250W
Rear Hub
(F) Sealed Alloy Disc, QR / (R) Hyena MRC-250 250W
Rims
Cannondale Disc, double wall w/eyelet, 32h
Spokes
Stainless Steel, 13g
Tires
Maxxis DTR-1, 650bx47c
Brakes
Brakes
Tektro Mechanical Disc, 160/160mm rotors
Brake Levers
Tektro
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm
Grips
Cannondale Comfort
Headset
FSA, Alloy, 1-1/8" Ahead, semi-integrated
Seat
Saddle
Cannondale Treadwell, 170mm, steel rails
Seatpost
Cannondale, 6061 Alloy, 31.6x400mm
Motor & Battery
Motor
Hyena MRC-250, 250W rear hub motor
Battery
Hyena, 250Wh internal downtube battery
Charger
Hyena 2A
Fit data

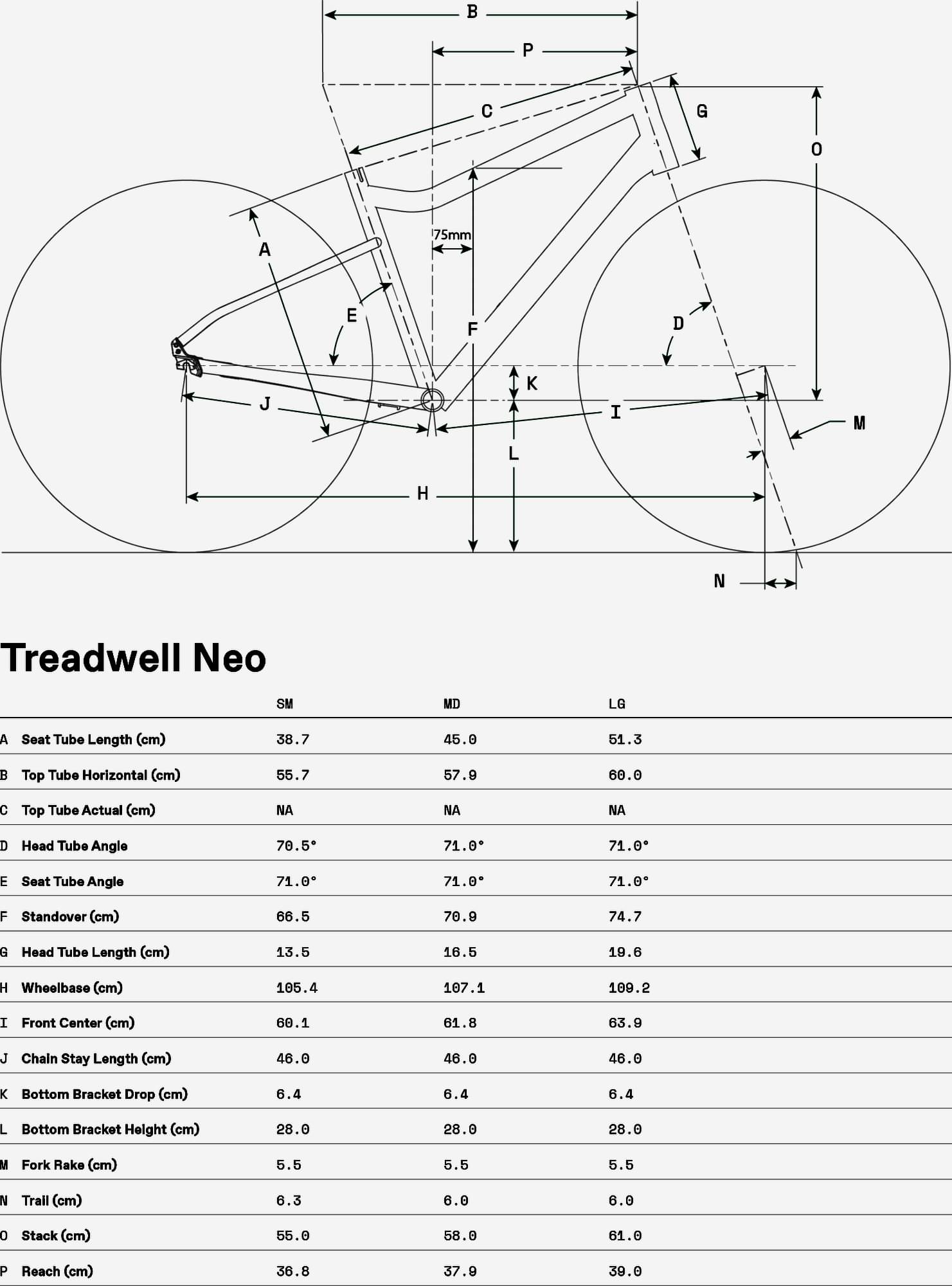

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.53 mm | 1.564 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 601 mm | 618 mm | 639 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 63 mm | 60 mm | 60 mm |
| Stack | 550 mm | 580 mm | 610 mm |
| Reach | 368 mm | 379 mm | 390 mm |
| Top Tube Length | 557 mm | 579 mm | 600 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 387 mm | 450 mm | 513 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 165 mm | 196 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1054 mm | 1071 mm | 1092 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Standover Height | 665 mm | 709 mm | 747 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 162 cm | 177 cm |
| Rider Max Height | 167 cm | 182 cm | 195 cm |
