Cannondale Treadwell Neo EQ 2024
2024 E-bike
Estimate price |
3,212$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Marvo -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Mahle X35, 250Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 167cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, low standover Ride-Easy geometry, internal downtube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount
Suspension Fork
SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
Drivetrain
Rear Derailleur
microSHIFT M45S
Shift Levers
microSHIFT M859, 9-speed
Cassette
microSHIFT, 11-36, 9-speed
Crank
Prowheel, 38T
Bottom Bracket
Cartridge, sealed
Chain
KMC E9T, 9-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
Sealed Alloy Disc, 12x100mm
Rear Hub
Mahle X35 250W
Rims
Cannondale Disc, double wall w/eyelet, 32h
Spokes
Stainless Steel, 14g
Tires
Maxxis DTR-1, 650bx47c
Brakes
Brakes
Tektro HD-R280 hydraulic disc, 160/140mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount with high direct light mount, Alloy, 31.8mm clamp
Handlebar
Cannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm
Grips
Cannondale Comfort
Headset
FSA, Alloy, 1-1/8" Ahead, semi-integrated
Seat
Saddle
Cannondale Treadwell, 170mm, steel rails
Seatpost
Promax Suspension Seatpost, 31.6, 40mm
Motor & Battery
Motor
Mahle X35 250W
Battery
Mahle X35, 250Wh
Charger
Mahle X35
Fit data

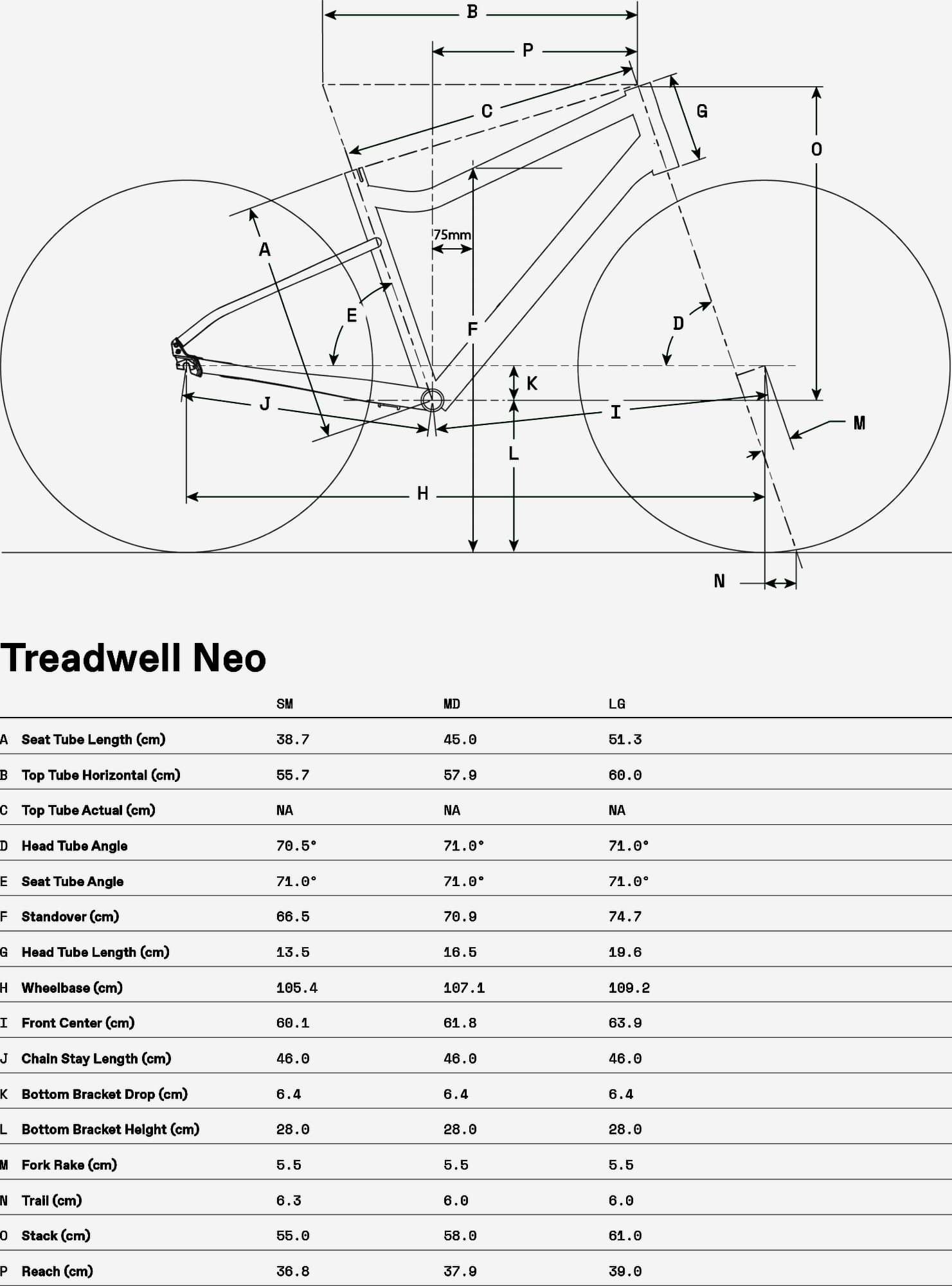

Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Stack Reach Ratio | 1.495 mm |
| Bottom Bracket Height | 280 mm |
| Front Center | 601 mm |
| Rake | 55 mm |
| Trail | 63 mm |
| Stack | 550 mm |
| Reach | 368 mm |
| Top Tube Length | 557 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 387 mm |
| Head Tube Angle | 70.5 ° |
| Head Tube Length | 135 mm |
| Chainstay Length | 460 mm |
| Wheelbase | 1054 mm |
| Bottom Bracket Drop | 64 mm |
| Standover Height | 665 mm |
| Wheels | 650 |
| Rider Min Height | 149 cm |
| Rider Max Height | 167 cm |
