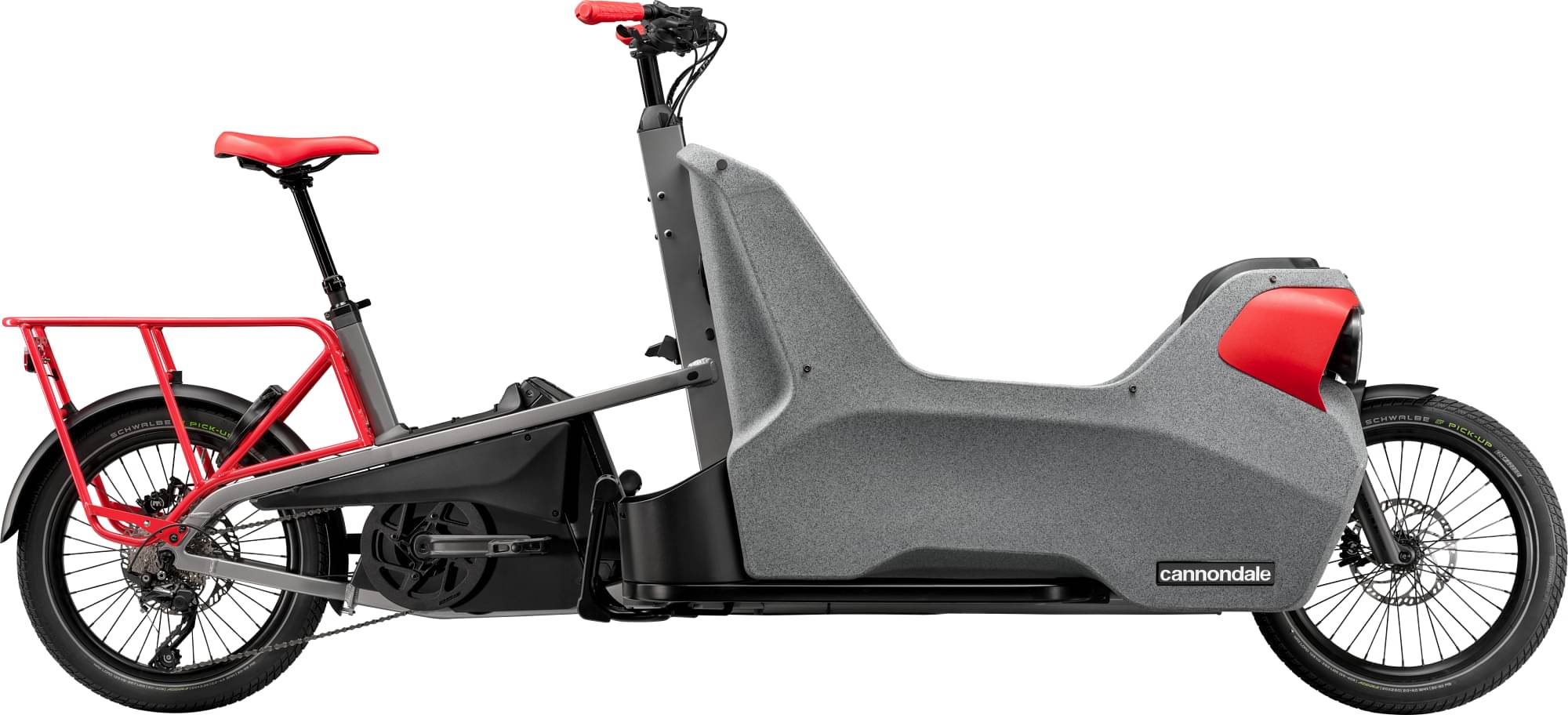

Cannondale Wonderwagen Neo 2 2024
2024 E-bike
Estimate price |
7,561$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch mid-drive -
Battery Bosch PowerPack, 545 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
OS
160cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy low step cargo frame, cable steering, weatherproof double kid cabin, semi-integrated cable routing, external dual battery compatible, integrated kickstand, integrated utility compartment, kids seat compatible rear rack with Racktme SnapIt 2.0 & trailer hitch mount, dual LED front lights, triple bottle cage mount
Suspension Fork
SR Suntour Mobie 34 Cargo, BOOST DS, tapered, 80mm travel
Drivetrain
Rear Derailleur
Shimano Deore M6000
Shift Levers
Shimano Deore M6000, 10-speed
Cassette
Shimano HG50, 11-36, 10-speed
Crank
FSA CK-320 for Bosch Gen4, 165mm, 48T
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG54 10-speed
Pedals
Cannondale Urban
Wheels
Front Hub
(F) Shimano HB-TC500-B, cartridge sealed bearings, 15x110mm / (R) Shimano FH-TC600-B, cartridge sealed bearings, 12x148mm thru-axle
Rear Hub
(F) Shimano HB-TC500-B, cartridge sealed bearings, 15x110mm / (R) Shimano FH-TC600-B, cartridge sealed bearings, 12x148mm thru-axle
Rims
Heavy Duty, Alloy, double wall, 36 hole, 35mm internal width, disc-specific
Spokes
DT Swiss Champion, 13g
Tires
(F) Schwalbe Pick-Up, 20x2.6" (65-406) / (R) Schwalbe Pick-Up Performance Super Defense, 20x2.35" (60-406)
Brakes
Brakes
Magura MT C, 4-piston hydraulic disc, 180mm front rotor, 203mm rear rotor
Brake Levers
Magura MT C hydraulic disc
Cockpit
Stem
Cannondale 3, Alloy, 31.8mm clamp
Handlebar
Cannondale E-Series Alloy, ergo backsweep, 680mm
Grips
Cannondale Ergo Performance, Lock-On
Headset
Acros double sealed & tapered industrial bearings, internal cable routing
Seat
Saddle
Selle Royal Wave
Seatpost
Cannondale DownLow dropper, internal routing, 31.6, 150mm
Motor & Battery
Motor
Bosch Cargo Line, 25 km/h
Battery
Bosch PowerPack, 545 Wh
Charger
Bosch 4A
Fit data

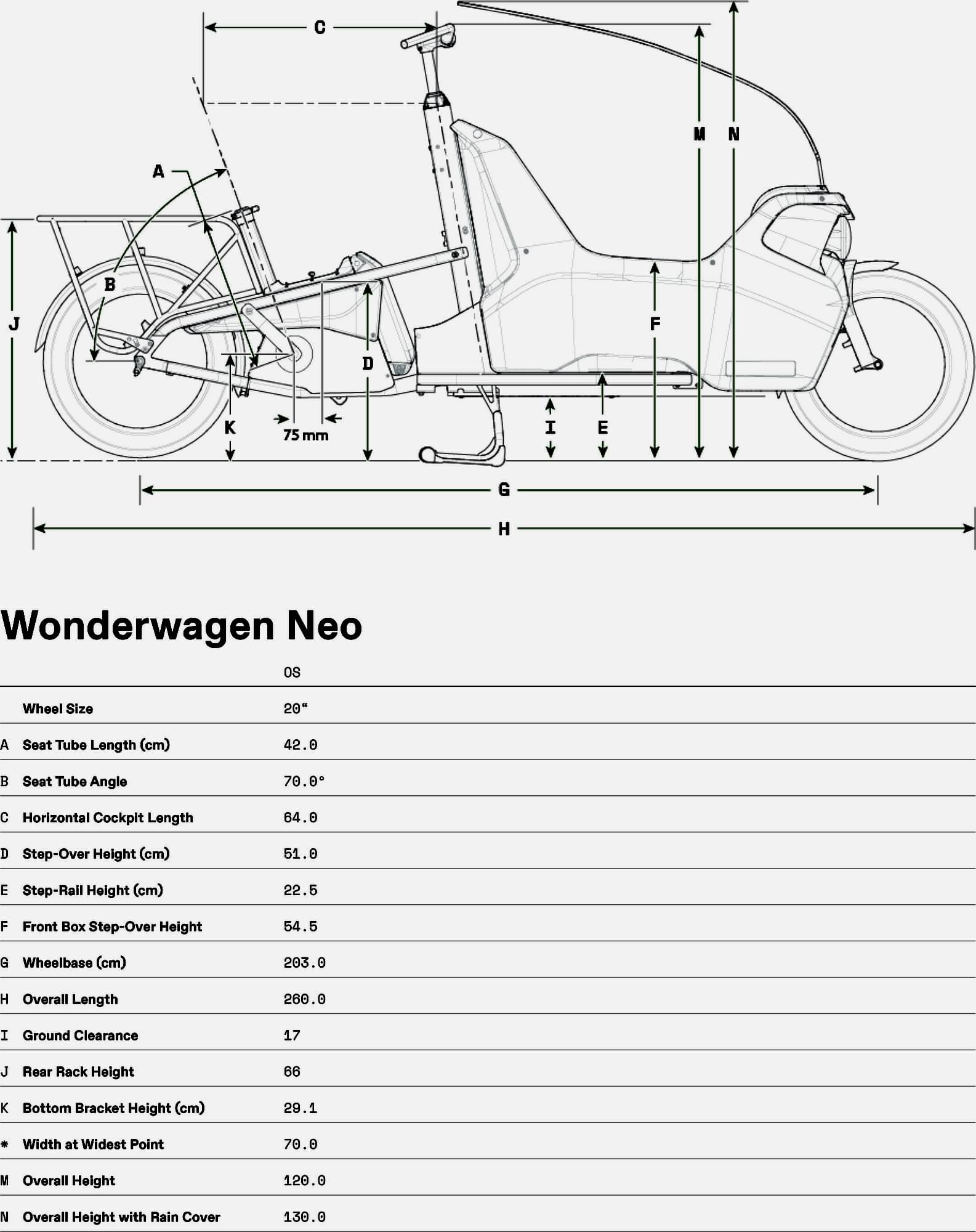

Geometry
Numbers for sizing and ride feel.
| Size | OS |
|---|---|
| Wheels | 20" |
| Rider Min Height | 160 cm |
| Rider Max Height | 198 cm |
