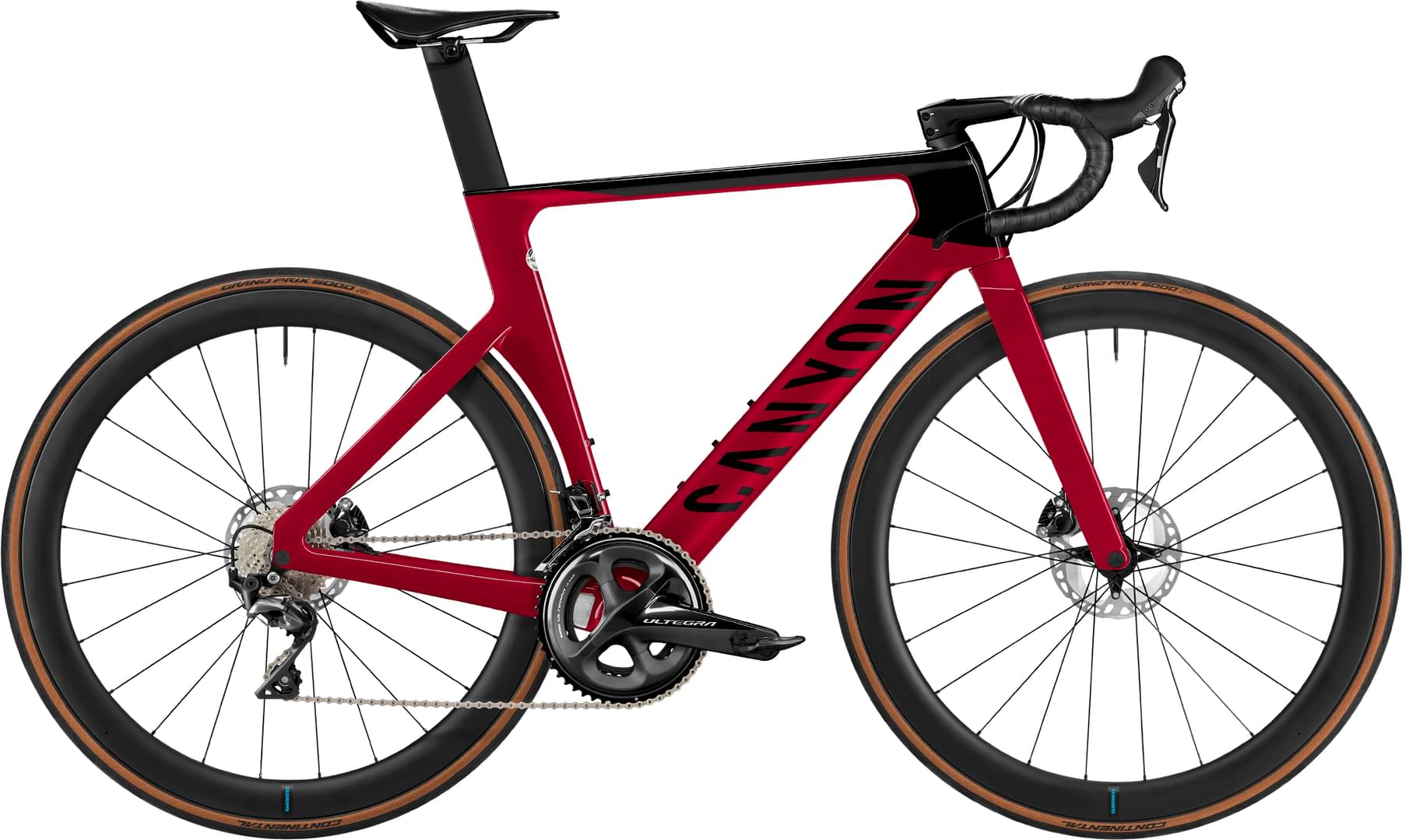

Canyon Aeroad CF SL 8 105 2024
2024 Road
Estimate price |
4,587$
Weight | 7.76 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

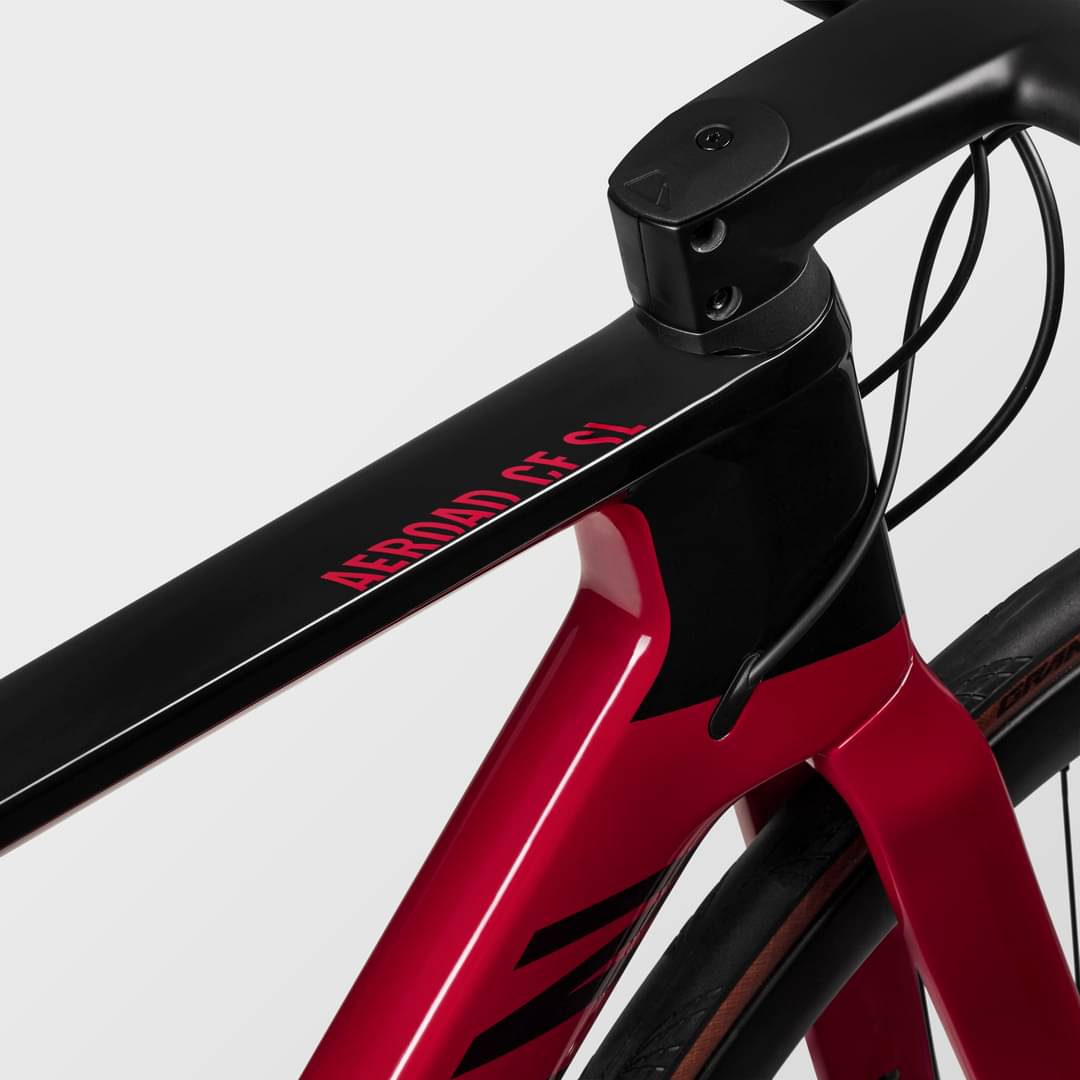

Canyon Aeroad CF SL Disc, Aero frame with the tube forms and geometry as the flagship Aeroad CFR. Shaped by extensive supercomputer analysis, validated in the wind tunnel., Axle dimension: 12x142 mm, Tyre Clearance: 31 mm, Material: Carbon (CF), Weight: 1.01 kg
Suspension Fork

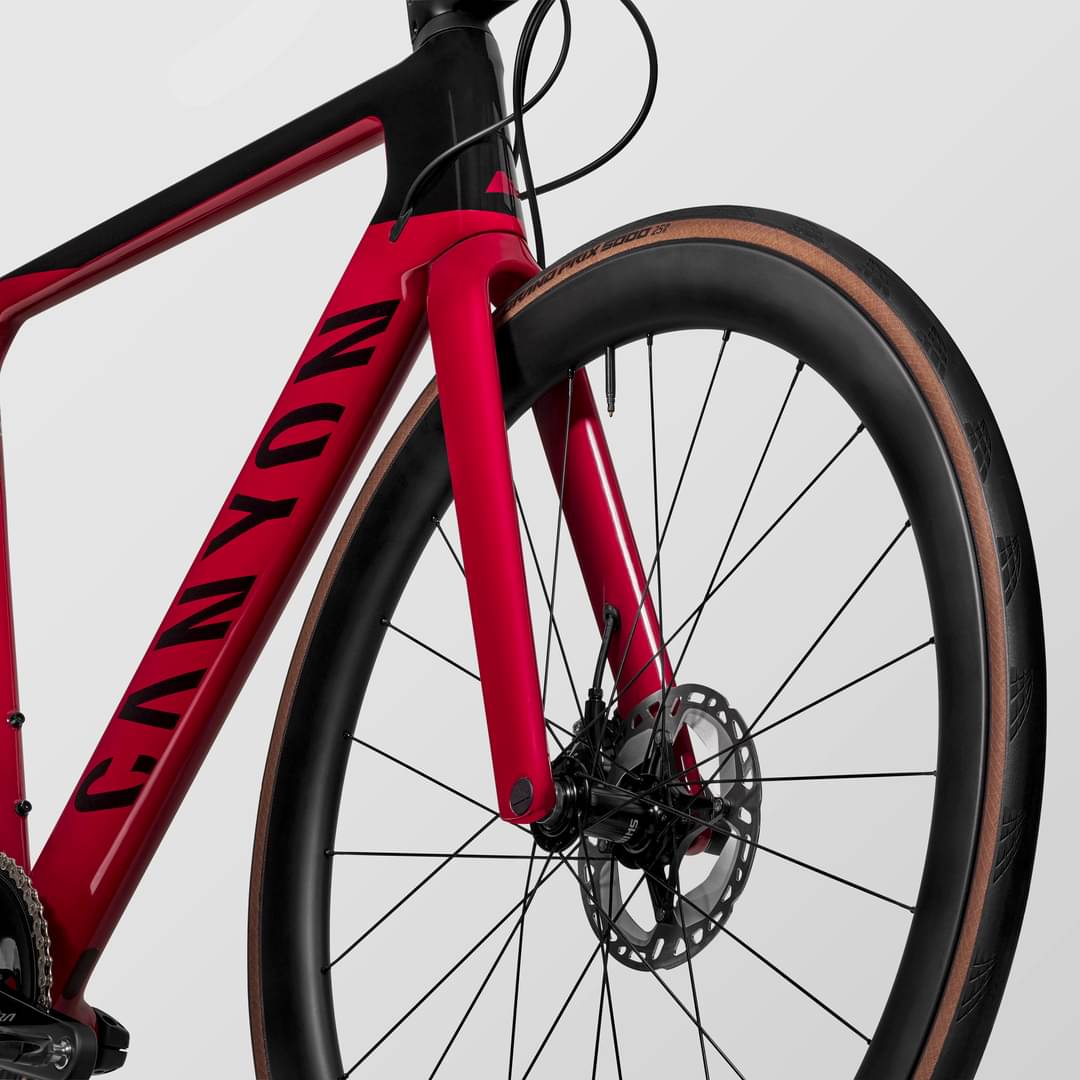

Fork for R082 Aeroad 700c, Aerodynamic fork. Shaped and tested by our partner Swiss Side with use of extensive computational fluid dynamics analysis., Fork steer tube diameter: 1 1/4", Tyre Clearance: 31 mm, Material: Carbon (CF), Weight: 750 g
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 SS, Cage length: short, Weight: 210 g
Front Derailleur
Shimano Ultegra R8000, Weight: 90 g
Shift Levers
Shimano Ultegra R8020 2s, Weight: 218 g | Shimano Ultegra R8020 11s, Weight: 220 g
Cassette
Shimano Ultegra R8000 11-30 11s, Number of sprockets: 11, Range: 11-30
Crank
Shimano Ultegra R8000, Number of chainrings: 2
Bottom Bracket
Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5, Weight: 85 g
Chain
Shimano CN-HG701 11s
Pedals
None included
Wheels
Rims
Shimano RS710, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 46 mm, Inner width: 21 mm, Rim material: Carbon, Weight: 880 g | Shimano 105 RS 710 C46 TL, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 46 mm, Free hub: Shimano Hyperglide HG, Inner width: 21 mm, Rim material: Carbon, Weight: 930 g
Tires
Continental Grand Prix 5000 25mm, Width: 25mm, Weight: 245 g | Continental Grand Prix 5000, 28 mm, Width: 28mm, Weight: 245 g
Brakes
Brakes
Shimano Ultegra R8020 2s, Weight: 218 g | Shimano Ultegra R8020 11s, Weight: 220 g
Brake Levers
Shimano Ultegra R8020 2s, Weight: 218 g | Shimano Ultegra R8020 11s, Weight: 220 g
Seat
Saddle
Selle Italia Model X, Gender: Unisex, Weight: 315 g
Seatpost
Canyon SP0079 Aero Seatpost, Super-stiff, superlight carbon seatpost with unique blade form. Sculpted in the wind tunnel using advanced CFD technology., Material: Carbon (CF)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.378 mm | 1.382 mm | 1.425 mm | 1.446 mm | 1.446 mm | 1.455 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 578 mm | 584 mm | 589 mm | 602 mm | 625 mm | 638 mm |
| Rake | 43 mm | 42 mm | 43 mm | 42 mm | 41 mm | 42 mm |
| Trail | 67 mm | 60 mm | 56 mm | 57 mm | 57 mm | 54 mm |
| Stack | 521 mm | 539 mm | 560 mm | 580 mm | 606 mm | 624 mm |
| Reach | 378 mm | 390 mm | 393 mm | 401 mm | 419 mm | 429 mm |
| Top Tube Length | 533 mm | 549 mm | 559 mm | 572 mm | 598 mm | 613 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 71.5 ° | 72.75 ° | 73.25 ° | 73.25 ° | 73.5 ° | 73.75 ° |
| Head Tube Length | 109 mm | 126 mm | 147 mm | 167 mm | 193 mm | 211 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 977 mm | 984 mm | 989 mm | 1002 mm | 1025 mm | 1038 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 759 mm | 785 mm | 810 mm | 834 mm | 860 mm | 884 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
