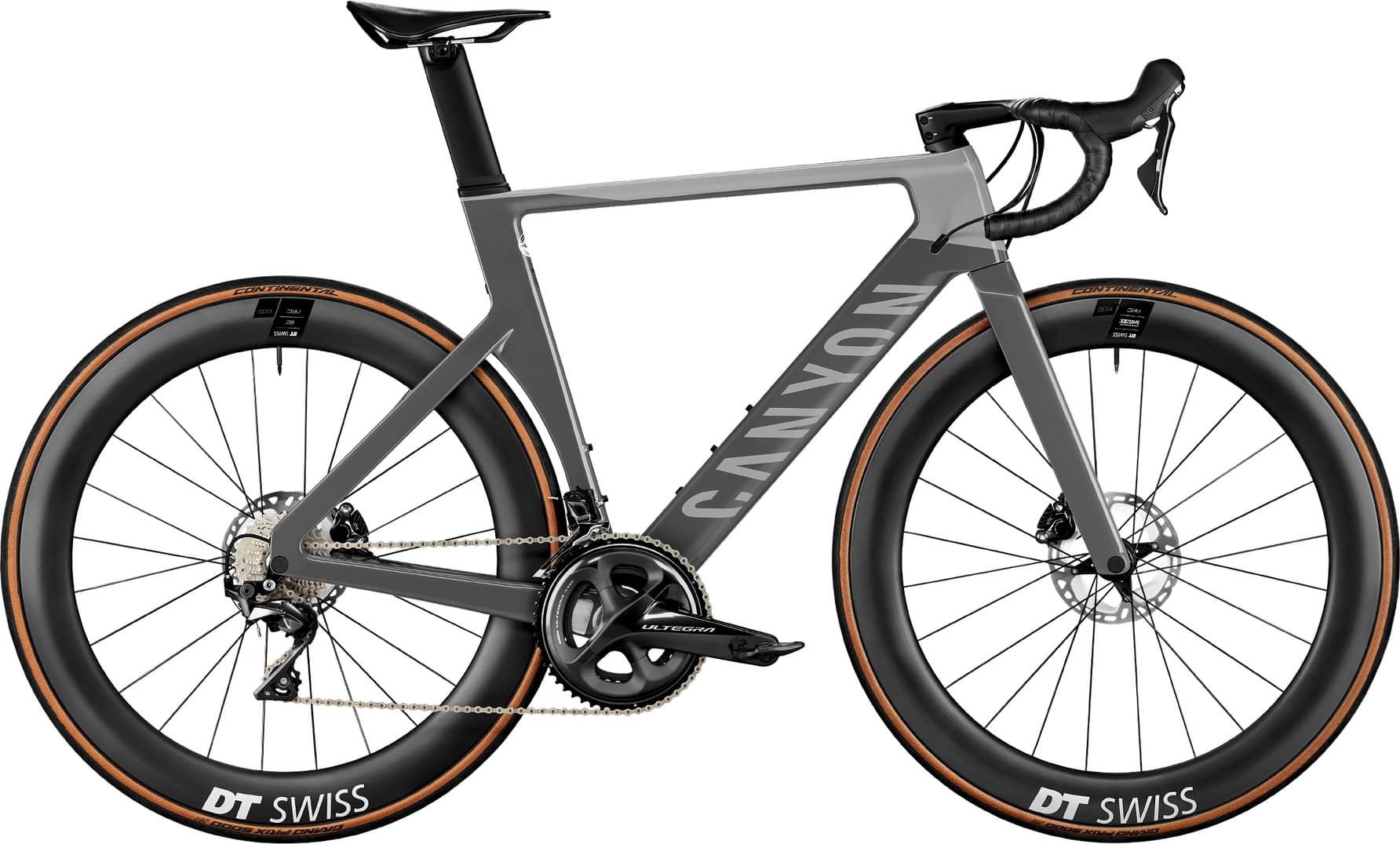

Canyon Aeroad CF SL 8 Disc 2024
2024 Road
Estimate price |
3,999$
Weight | 7.82 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

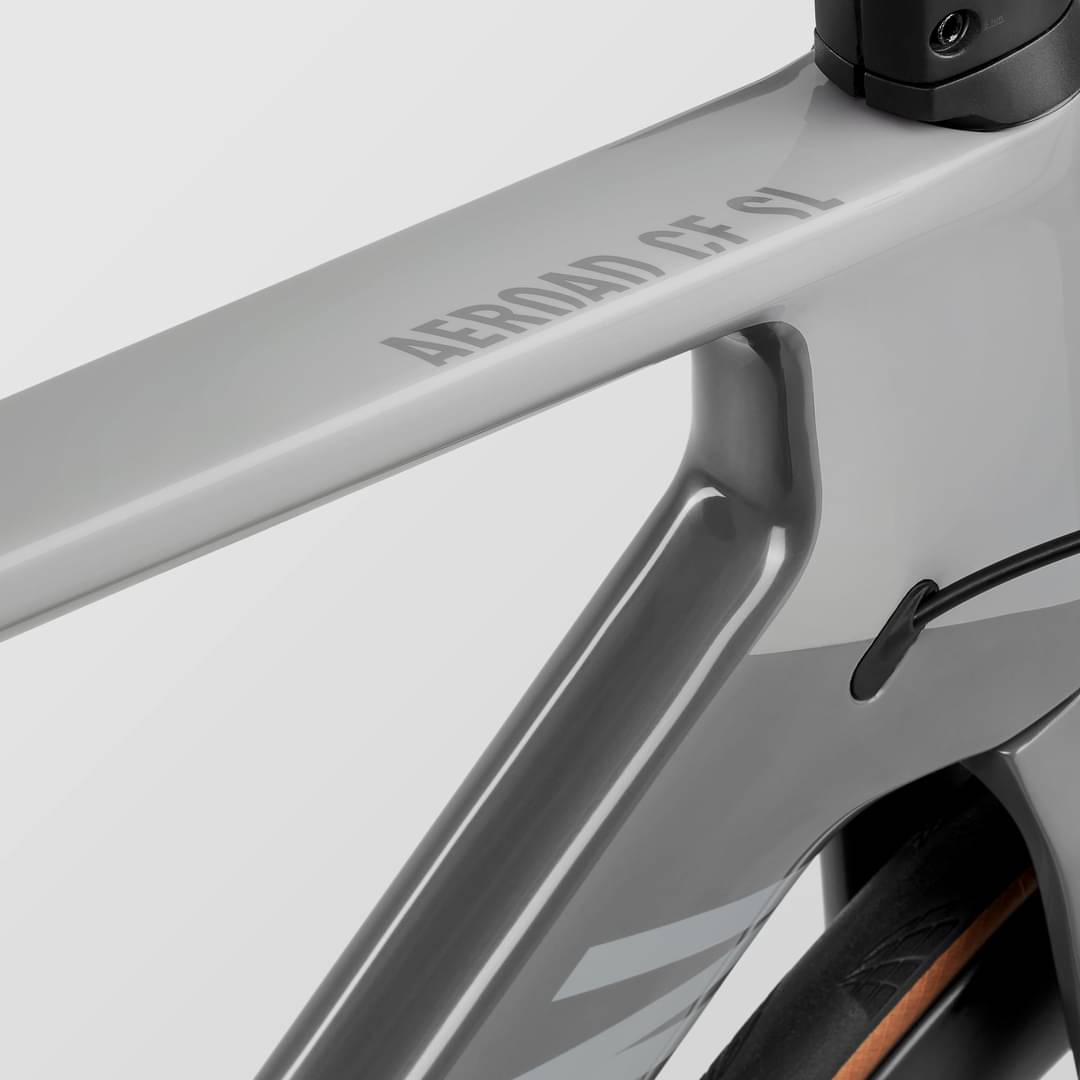

Aeroad CF SL, Aero frame with the same design as the flagship Aeroad CFR. Shaped by extensive supercomputer analysis, validated in the wind tunnel., Axle dimension: 12x142 mm, Tyre Clearance: 31 mm, Material: Carbon (CF)
Suspension Fork
Fork for R082 Aeroad 700c, Aerodynamically optimised design, compatible with conventional aero cockpits. Tested and approved with computer tomography scanning., Fork steer tube diameter: 1 1/4", Tyre Clearance: 31 mm, Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 SS, Cage length: short, Weight: 0.46 lbs
Front Derailleur
Shimano Ultegra R8000, Weight: 0.20 lbs
Shift Levers
Shimano Ultegra R8020 2s, Weight: 0.48 lbs | Shimano Ultegra R8020 11s, Weight: 0.49 lbs
Cassette
Shimano Ultegra R8000 11-30 11s, Number of sprockets: 11, Range: 11-30
Crank
Shimano Ultegra R8000, Number of chainrings: 2
Bottom Bracket
Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5, Weight: 0.19 lbs
Chain
Shimano HG701 11-speed, High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.
Pedals
None included
Wheels
Rims
DT Swiss ARC 1600, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 62 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.85 lbs | DT Swiss ARC 1600 Dicut, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 62 mm, Weight: 2.16 lbs
Tires
Continental Grand Prix 5000 25mm, Width: 25mm, Weight: 0.54 lbs | Continental Grand Prix 5000, 28 mm, Width: 28mm, Weight: 0.54 lbs
Brakes
Brakes
Shimano Ultegra R8020 2s, Weight: 0.48 lbs | Shimano Ultegra R8020 11s, Weight: 0.49 lbs
Brake Levers
Shimano Ultegra R8020 2s, Weight: 0.48 lbs | Shimano Ultegra R8020 11s, Weight: 0.49 lbs
Seat
Saddle
Selle Italia Model X, Gender: Unisex, Weight: 0.69 lbs
Seatpost
Canyon SP0046 Aero Seatpost, Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering., Clamp diameter: 27,2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.349 mm | 1.339 mm | 1.378 mm | 1.382 mm | 1.425 mm | 1.446 mm | 1.446 mm | 1.455 mm |
| Front Center | 553 mm | 569 mm | 578 mm | 584 mm | 589 mm | 602 mm | 625 mm | 638 mm |
| Rake | 43 mm | 44 mm | 43 mm | 42 mm | 43 mm | 42 mm | 41 mm | 42 mm |
| Trail | 64 mm | 60 mm | 67 mm | 60 mm | 56 mm | 57 mm | 57 mm | 54 mm |
| Stack | 483 mm | 498 mm | 521 mm | 539 mm | 560 mm | 580 mm | 606 mm | 624 mm |
| Reach | 358 mm | 372 mm | 378 mm | 390 mm | 393 mm | 401 mm | 419 mm | 429 mm |
| Top Tube Length | 501 mm | 520 mm | 533 mm | 549 mm | 559 mm | 572 mm | 598 mm | 613 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 413 mm | 443 mm | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72.75 ° | 73.25 ° | 73.25 ° | 73.5 ° | 73.75 ° |
| Head Tube Length | 103 mm | 121 mm | 109 mm | 126 mm | 147 mm | 167 mm | 193 mm | 211 mm |
| Chainstay Length | 405 mm | 405 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 951 mm | 967 mm | 977 mm | 984 mm | 989 mm | 1002 mm | 1025 mm | 1038 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 708 mm | 729 mm | 759 mm | 785 mm | 810 mm | 834 mm | 860 mm | 884 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 159 cm | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
