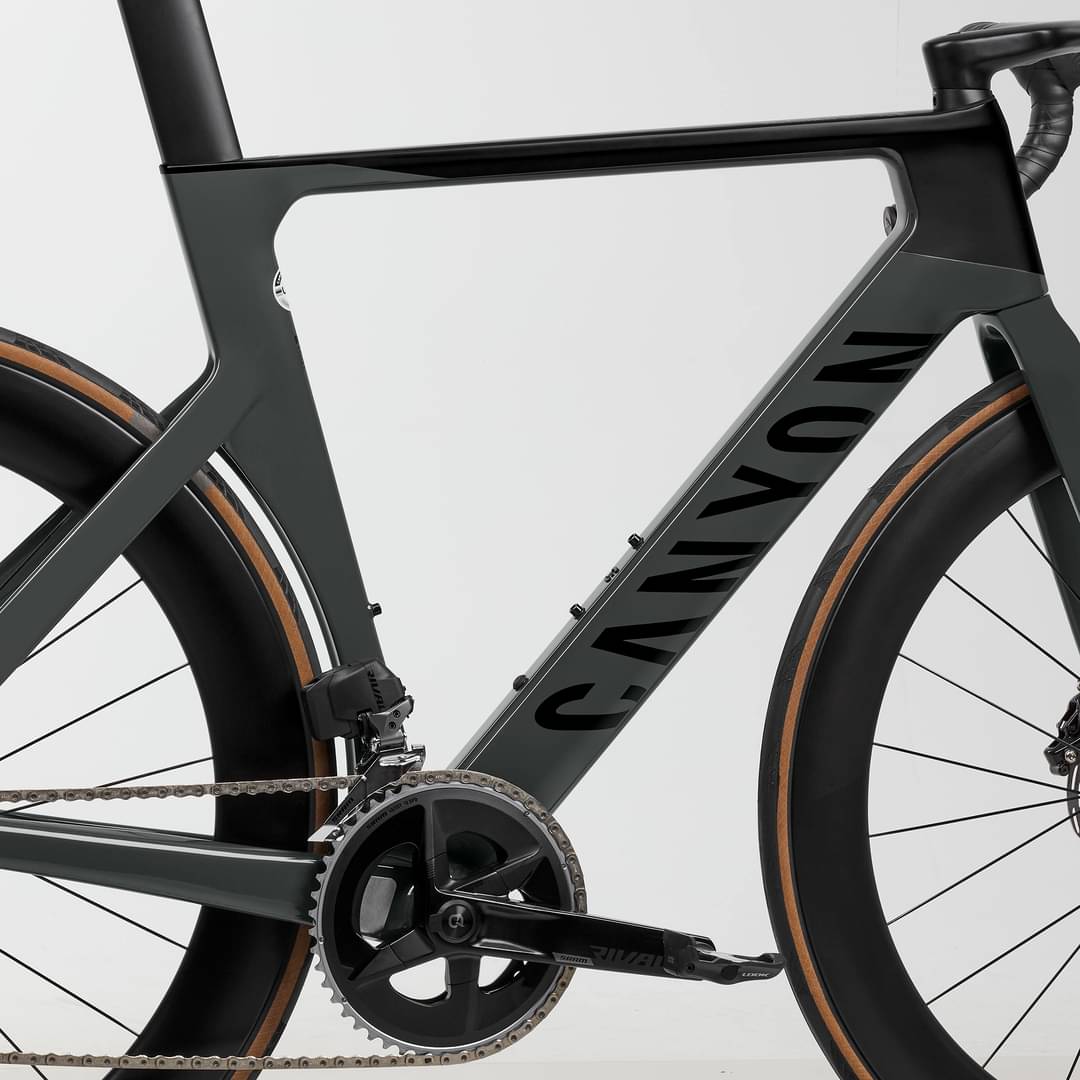

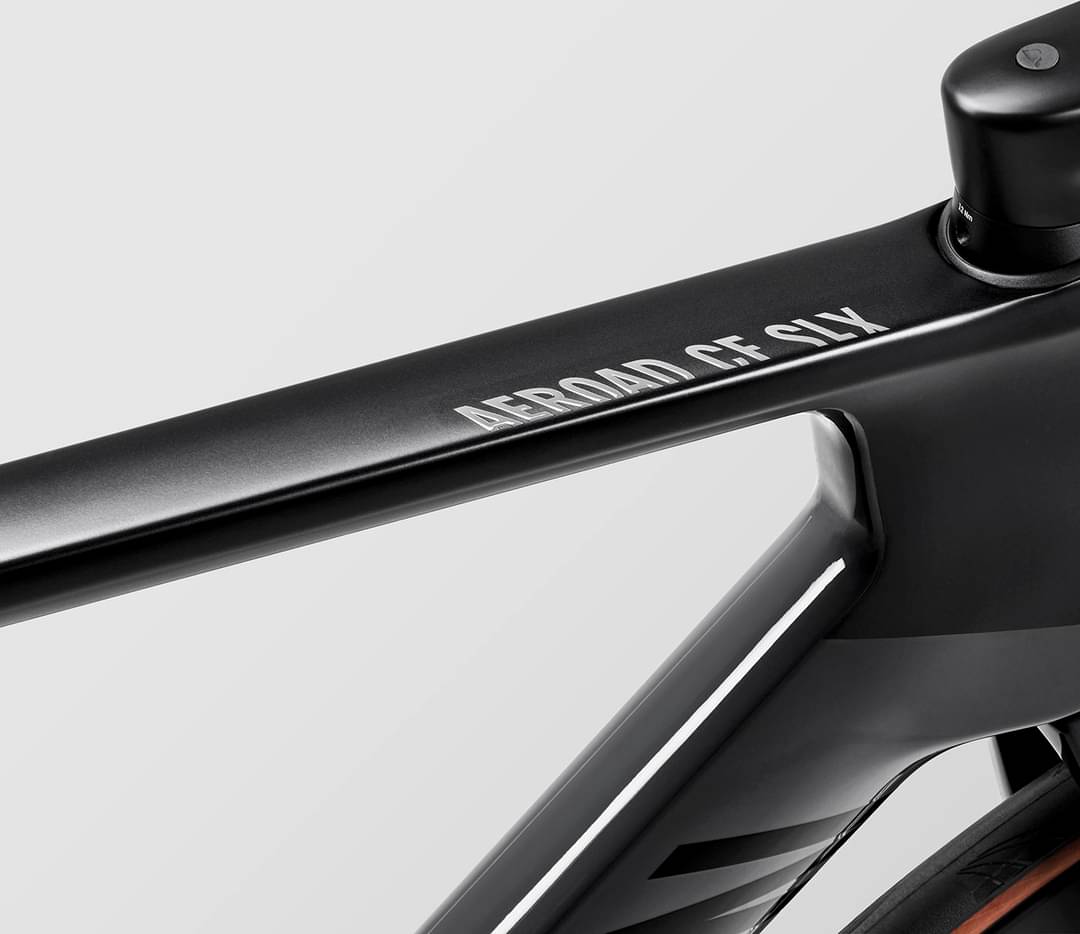

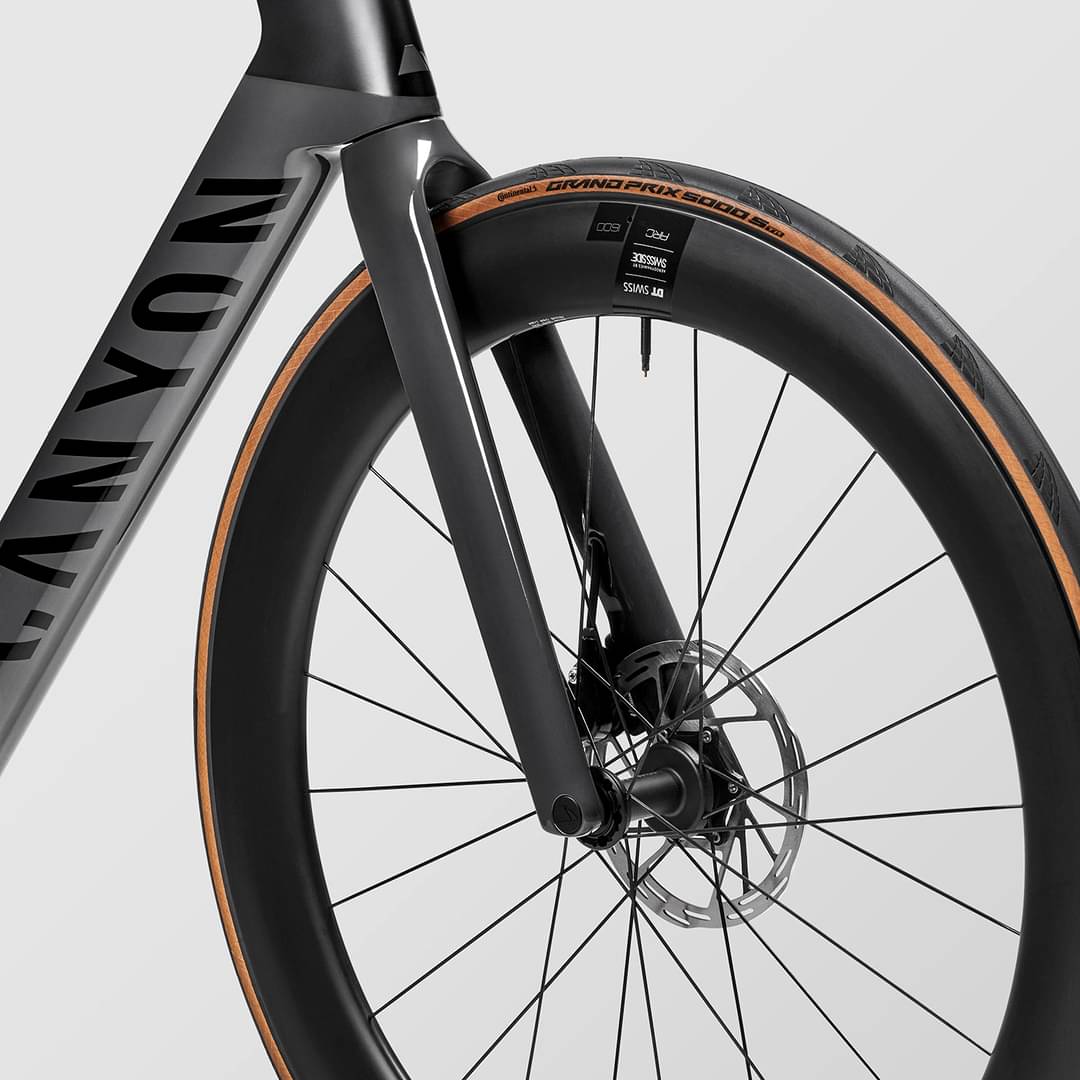

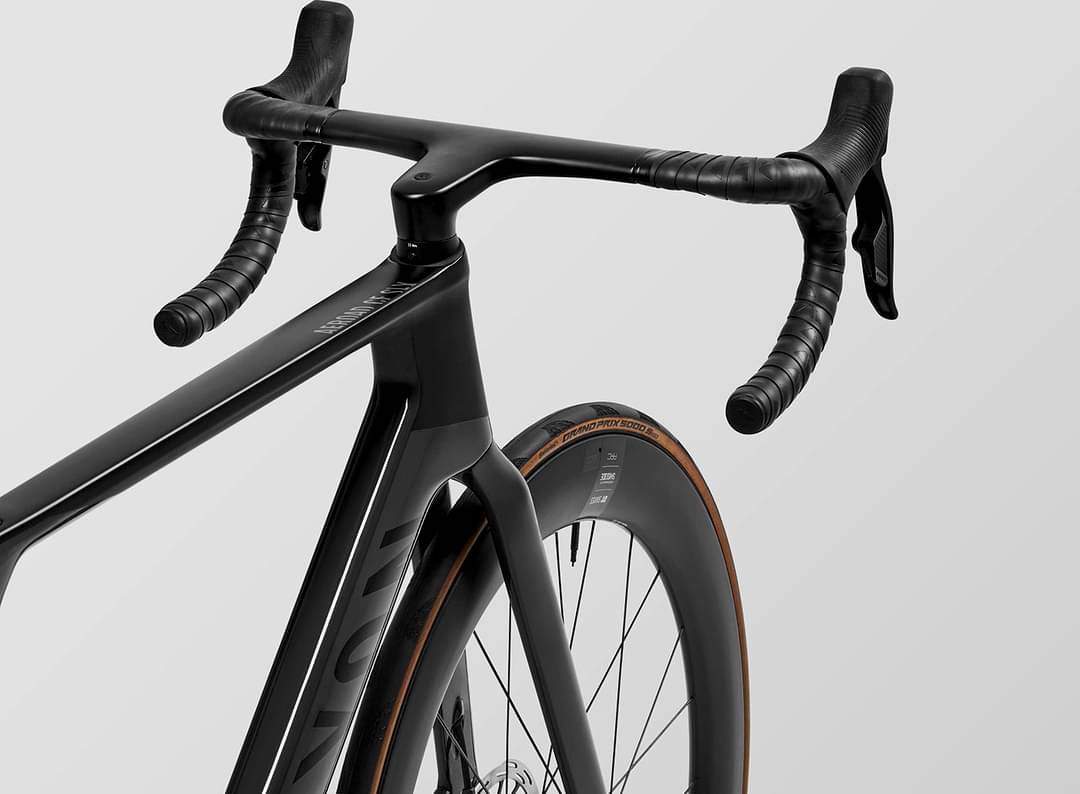

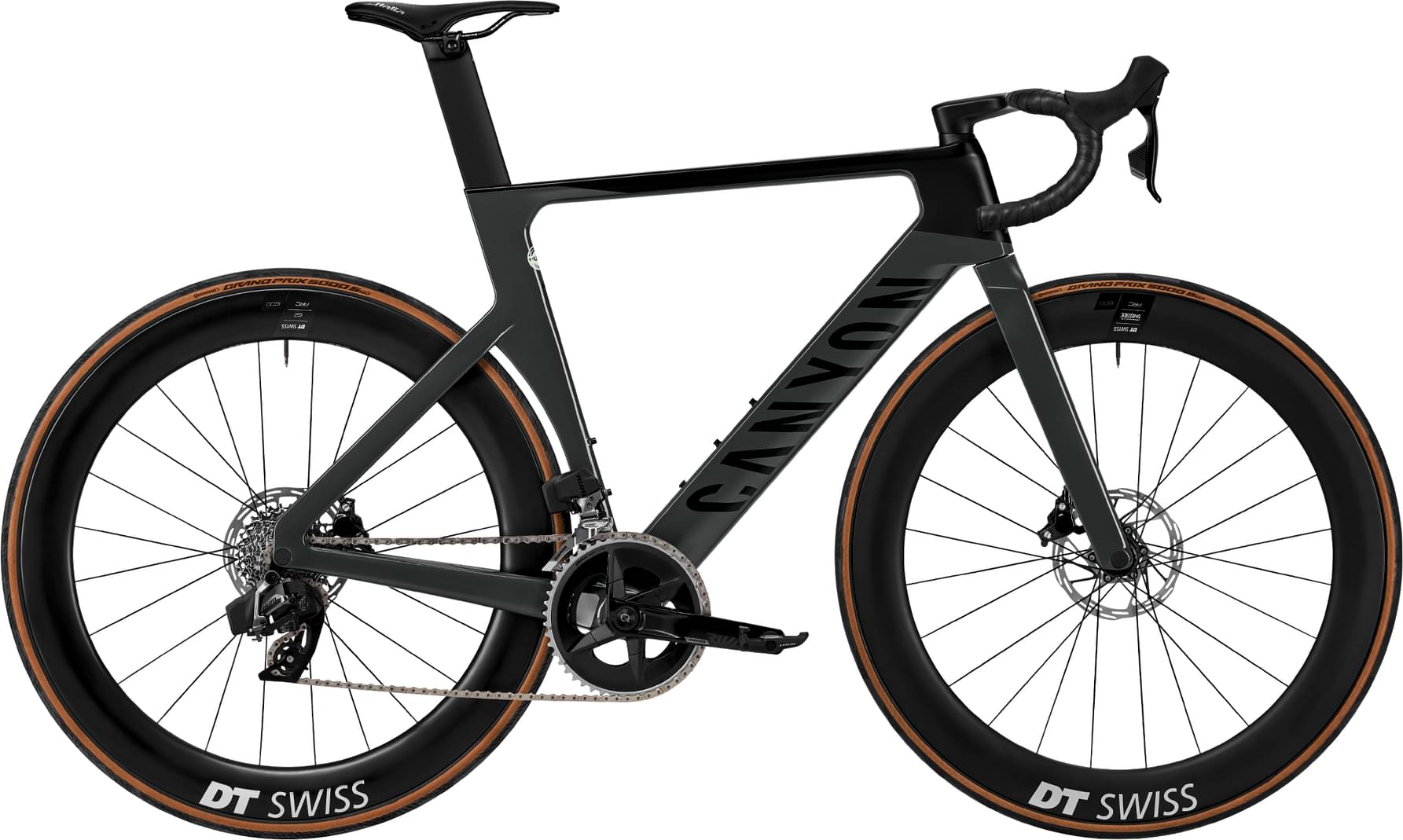

Canyon Aeroad CF SLX 7 AXS 2024
2024 Road
Estimate price |
5,390$
Weight | 8.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Aeroad CF SLX, Lightweight carbon aero road racing frame. Shaped by extensive supercomputer analysis, validated in the wind tunnel., Axle dimension: 12x142 mm, Tyre Clearance: 31 mm, Material: Carbon (CF), Weight: 1.15 kg
Suspension Fork
Canyon FK0060 CF Disc, Fork with aero design shaped using advanced CFD technology. Disc flat-mount disc standard. CT scanner tested and approved., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/8", Tyre Clearance: 31 mm, Material: Carbon (CF), Weight: 430 g
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS, Weight: 340 g
Front Derailleur
SRAM Rival eTap AXS, Mounting type: braze-on, Weight: 221 g
Shift Levers
SRAM Rival eTap AXS 2s, Weight: 413 g | SRAM Rival eTap AXS 12s, Weight: 413 g
Cassette
SRAM Rival, 12-speed, 10-30T, Number of sprockets: 12 | SRAM Rival XG-1250 12-speed Cassette
Crank
SRAM Rival AXS Powermeter, Number of chainrings: 2
Bottom Bracket
SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 78 g | Ceramicspeed BB86 SRAM GXP Bottom Bracket
Chain
SRAM Rival D1 12s | SRAM Rival AXS 12-speed Chain 120 Links | SRAM RED AXS 12-speed Chain Lock
Pedals
None included
Wheels
Rims
DT Swiss ARC 1600, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 62 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 837 g | DT Swiss ARC 1600 Dicut, XDR, Rotor mount: Center Lock, Rim height: 62 mm, Weight: 956 g
Tires
Continental GP5000 S TR, Width: 25mm, Weight: 250 g | Continental GP 5000 S TR, 28 mm, Width: 28mm, Weight: 275 g | Continental GP 5000S TR TL 28" Road Tyre 28mm | Continental GP 5000S TR TL 28" Road Tyre 25mm
Brakes
Brakes
Hydraulic Disc
Brake Levers
SRAM Rival eTap AXS 2s, Weight: 413 g | SRAM Rival eTap AXS 12s, Weight: 413 g
Seat
Saddle
Selle Italia SLR Boost Superflow S manganese, Gender: Unisex, Weight: 208 g
Seatpost
Canyon SP0079 Aero Seatpost, Super-stiff, superlight carbon seatpost with unique blade form. Sculpted in the wind tunnel using advanced CFD technology., Material: Carbon (CF)
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.339 mm | 1.378 mm | 1.382 mm | 1.425 mm | 1.446 mm | 1.446 mm | 1.455 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 572 mm | 577 mm | 583 mm | 588 mm | 601 mm | 624 mm | 637 mm |
| Rake | 42 mm | 42 mm | 41 mm | 42 mm | 41 mm | 41 mm | 41 mm |
| Trail | 74 mm | 68 mm | 61 mm | 57 mm | 58 mm | 57 mm | 55 mm |
| Stack | 498 mm | 521 mm | 539 mm | 560 mm | 580 mm | 606 mm | 624 mm |
| Reach | 372 mm | 378 mm | 390 mm | 393 mm | 401 mm | 419 mm | 429 mm |
| Top Tube Length | 520 mm | 533 mm | 549 mm | 559 mm | 572 mm | 598 mm | 613 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 443 mm | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72.75 ° | 73.25 ° | 73.25 ° | 73.5 ° | 73.75 ° |
| Head Tube Length | 86 mm | 109 mm | 126 mm | 147 mm | 167 mm | 193 mm | 211 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 971 mm | 976 mm | 983 mm | 988 mm | 1001 mm | 1024 mm | 1037 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 733 mm | 759 mm | 785 mm | 810 mm | 834 mm | 860 mm | 884 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
