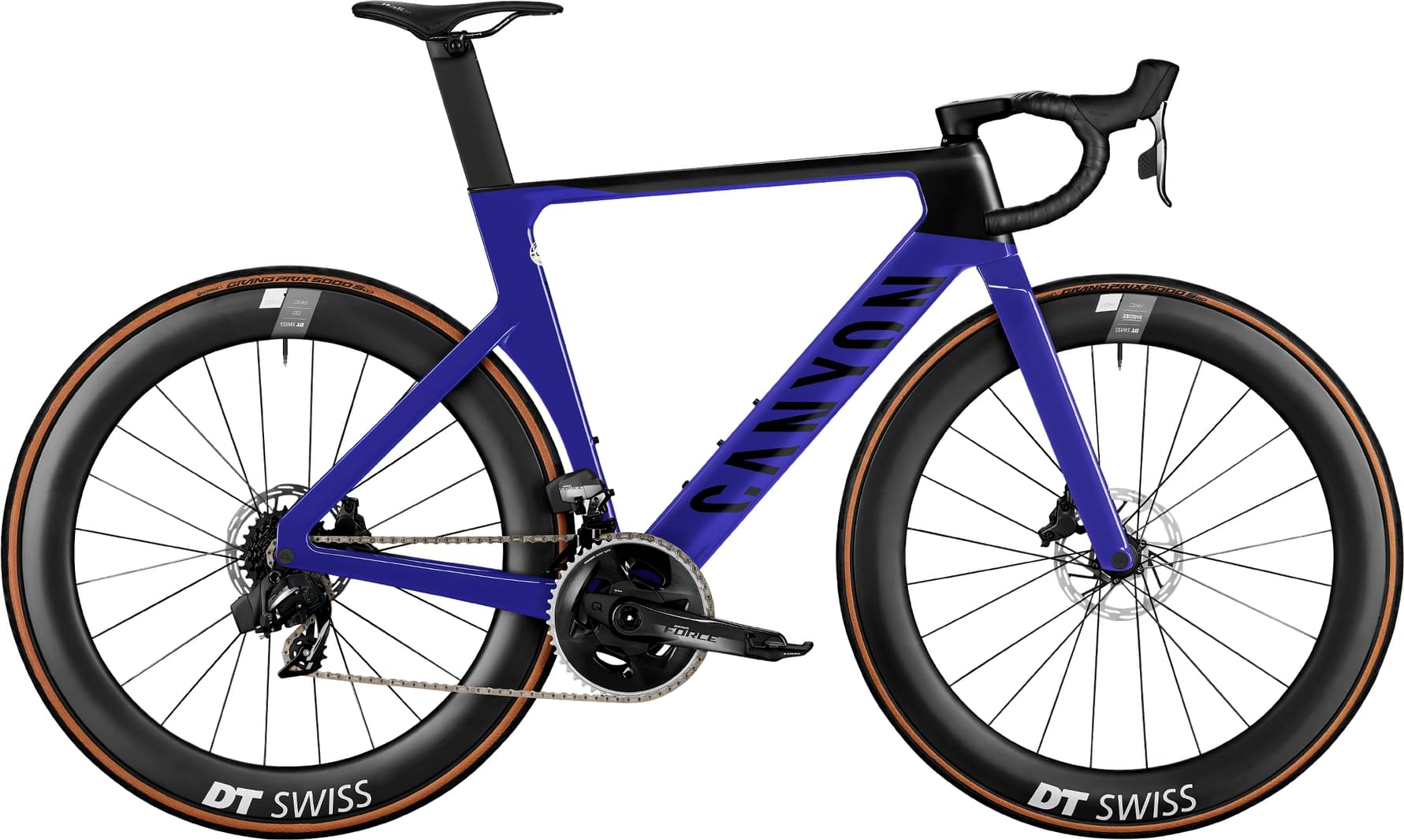

Canyon Aeroad CF SLX 8 eTap 2024
2024 Road
Estimate price |
6,199$
Weight | 8.14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force eTap -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

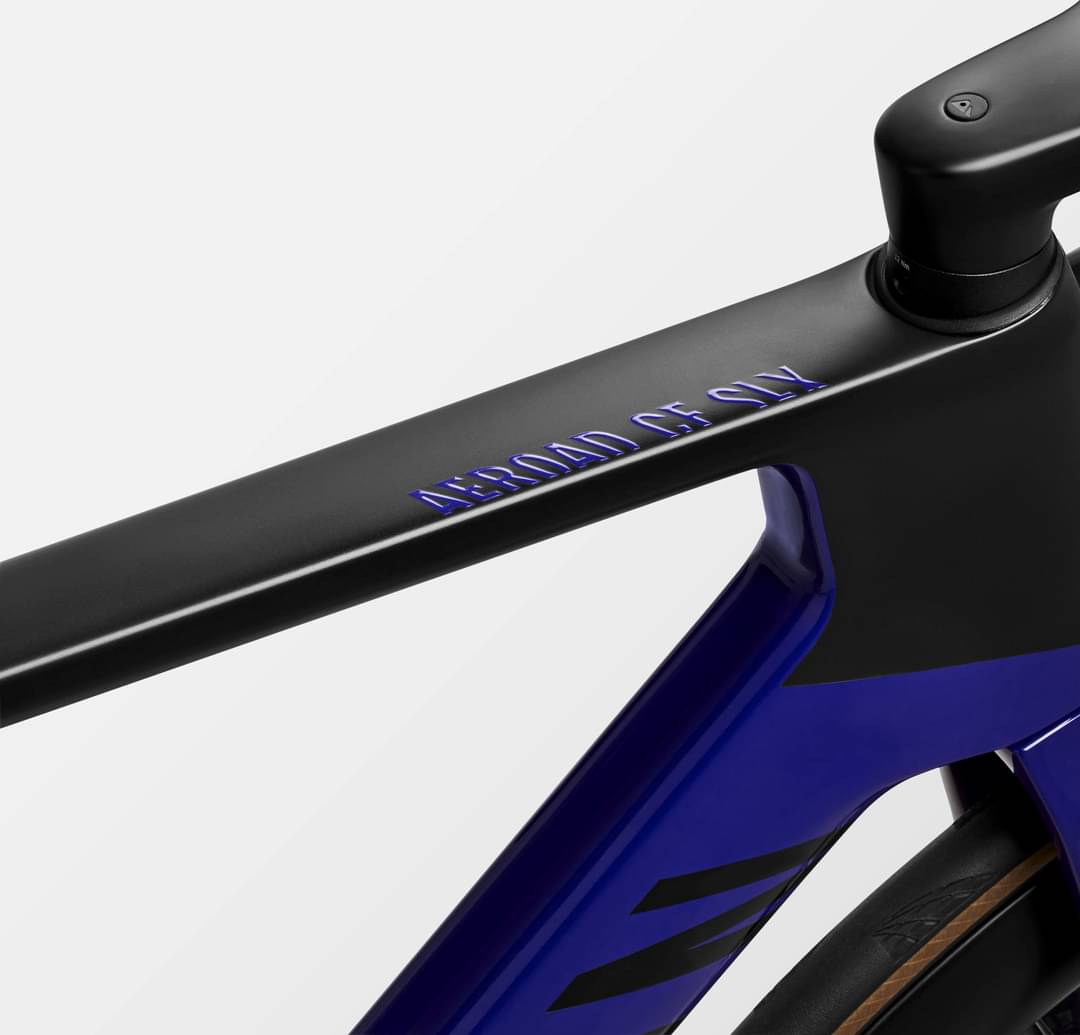

Canyon Aeroad CF SLX Disc, Lightweight carbon aero road racing frame. Shaped by extensive supercomputer analysis, validated in the wind tunnel., Axle dimension: 12x142 mm, Tyre Clearance: 31 mm, Material: Carbon (CF)
Suspension Fork

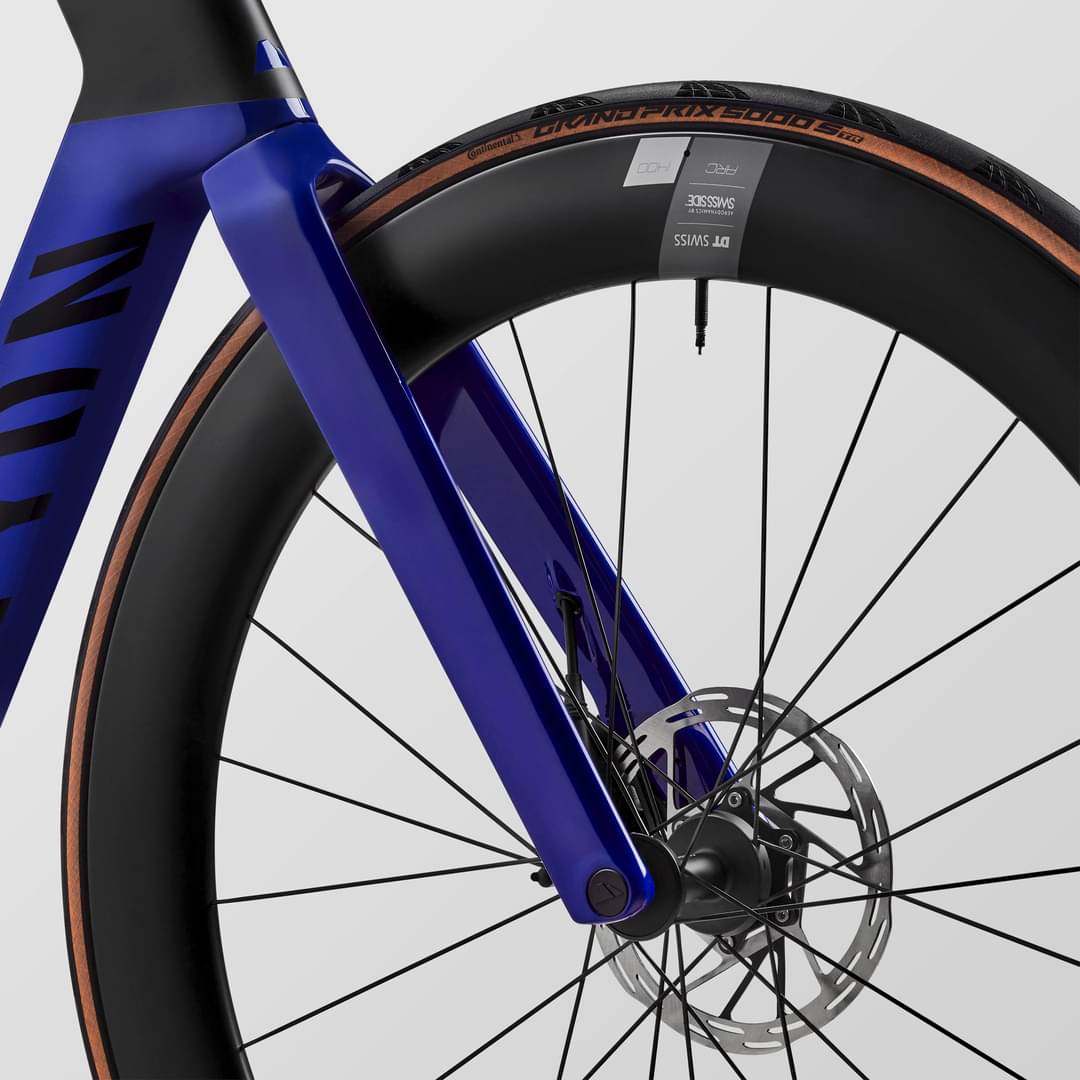

Canyon FK0060 CF Disc, Aero design shaped using advanced CFD technology. Disc flat-mount disc standard. CT scanner tested and approved., All-new design, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved. Weight: 425 g, Hub spacing: 12x100mm
Drivetrain
Rear Derailleur
SRAM Force eTap AXS, Weight: 0.66 lbs
Front Derailleur
SRAM Force eTap AXS, Weight: 0.36 lbs
Shift Levers
SRAM Force eTap AXS, 12-speed, Weight: 1.04 lbs | SRAM Force eTap AXS, 12-speed, Weight: 1.08 lbs
Cassette
SRAM Force XG-1270, 12-speed, 10-28, Number of sprockets: 12
Crank
SRAM Force AXS Powermeter, Number of chainrings: 2
Bottom Bracket
SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 0.17 lbs
Chain
SRAM Force D1 12s
Pedals
None included
Wheels
Rims
DT Swiss ARC 1400 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 62 mm, Weight: 1.80 lbs | DT Swiss ARC 1400 Dicut, Rim height: 62 mm, Weight: 2.04 lbs
Tires
Continental GP 5000 S TR, Width: 25mm, Weight: 0.55 lbs | Continental GP 5000 S TR, 28 mm, Width: 28mm, Weight: 0.61 lbs
Brakes
Brakes
SRAM Force eTap AXS, 12-speed, Weight: 1.04 lbs | SRAM Force eTap AXS, 12-speed, Weight: 1.08 lbs
Brake Levers
SRAM Force eTap AXS, 12-speed, Weight: 1.04 lbs | SRAM Force eTap AXS, 12-speed, Weight: 1.08 lbs
Seat
Saddle
Selle Italia SLR Boost Superflow S manganese, Width: 130 mm, Gender: Unisex, Weight: 0.46 lbs
Seatpost
Canyon SP0079 Aero Seatpost, Super-stiff, superlight carbon seatpost with unique blade form. Sculpted in the wind tunnel using advanced CFD technology., Material: Carbon (CF)
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.339 mm | 1.378 mm | 1.382 mm | 1.425 mm | 1.446 mm | 1.446 mm | 1.455 mm |
| Bottom Bracket Height | 279 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 569 mm | 578 mm | 584 mm | 589 mm | 602 mm | 625 mm | 638 mm |
| Rake | 36 mm | 43 mm | 42 mm | 43 mm | 42 mm | 41 mm | 42 mm |
| Trail | 81 mm | 67 mm | 60 mm | 56 mm | 57 mm | 57 mm | 54 mm |
| Stack | 498 mm | 521 mm | 539 mm | 560 mm | 580 mm | 606 mm | 624 mm |
| Reach | 372 mm | 378 mm | 390 mm | 393 mm | 401 mm | 419 mm | 429 mm |
| Top Tube Length | 520 mm | 533 mm | 549 mm | 559 mm | 572 mm | 598 mm | 613 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 443 mm | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72.75 ° | 73.25 ° | 73.25 ° | 73.5 ° | 73.75 ° |
| Head Tube Length | 121 mm | 109 mm | 126 mm | 147 mm | 167 mm | 193 mm | 211 mm |
| Chainstay Length | 405 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 967 mm | 977 mm | 984 mm | 989 mm | 1002 mm | 1025 mm | 1038 mm |
| Bottom Bracket Drop | 57 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 733 mm | 759 mm | 785 mm | 810 mm | 834 mm | 860 mm | 884 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
