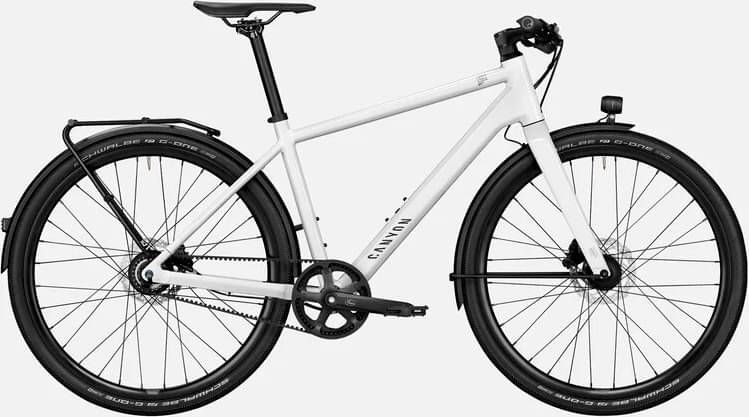

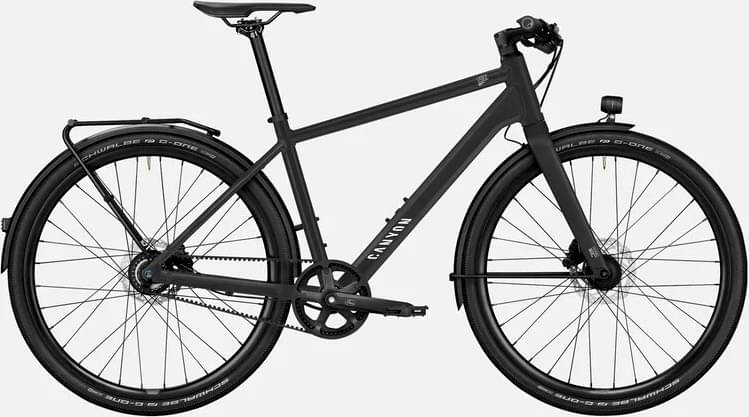

Canyon Commuter 7 2024
2024 Urban
Estimate price |
2,063$
Weight | 12.82 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Gates CDN, Alfine -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
167cm - 179cm
LG
177cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components

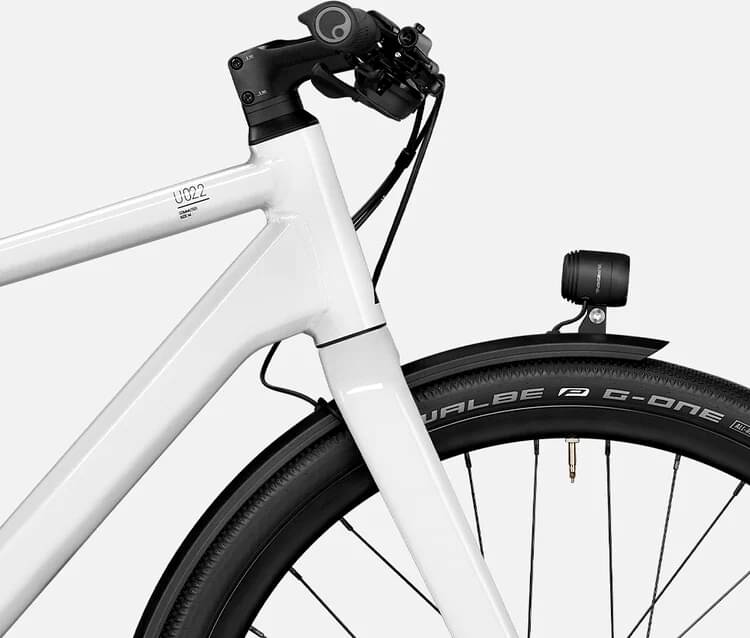

Frame
Frame

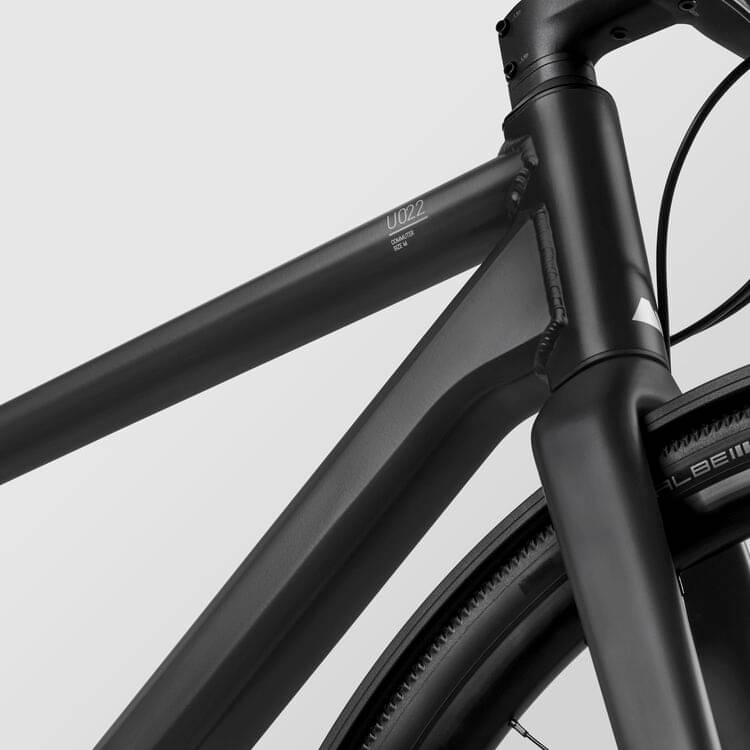

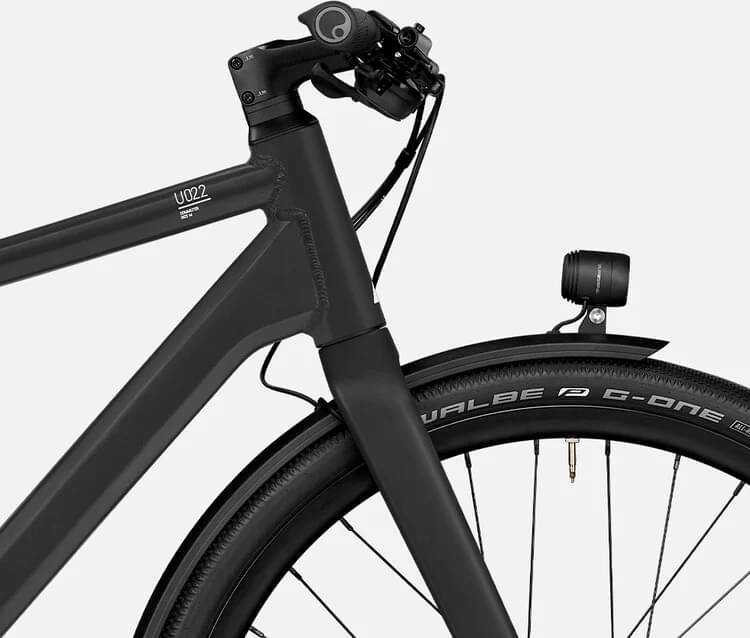

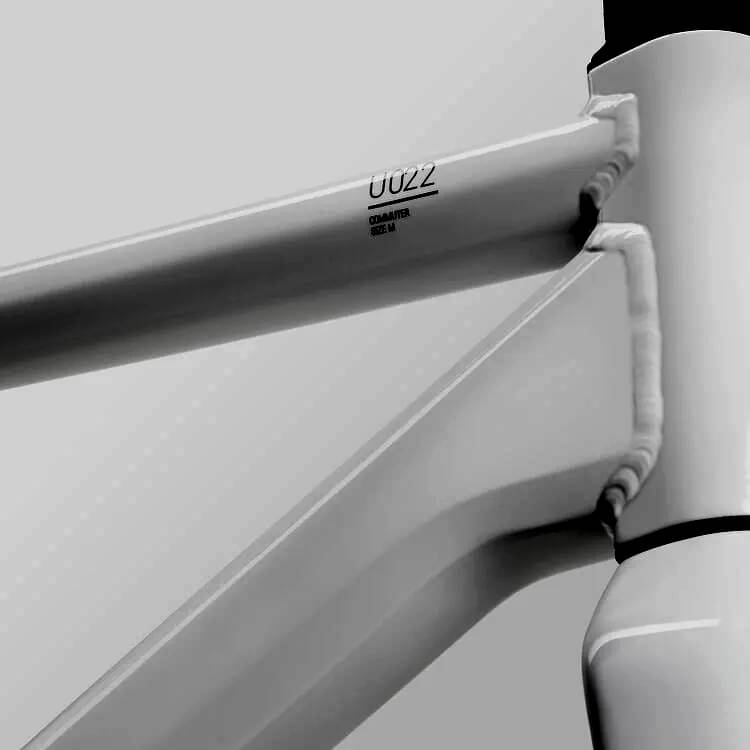

Canyon U022 Commuter, A versatile, reliable aluminium urban bike designed for daily commuting, equipped with features for comfort, efficiency, and practicality., Material: Aluminium (AL)
Suspension Fork

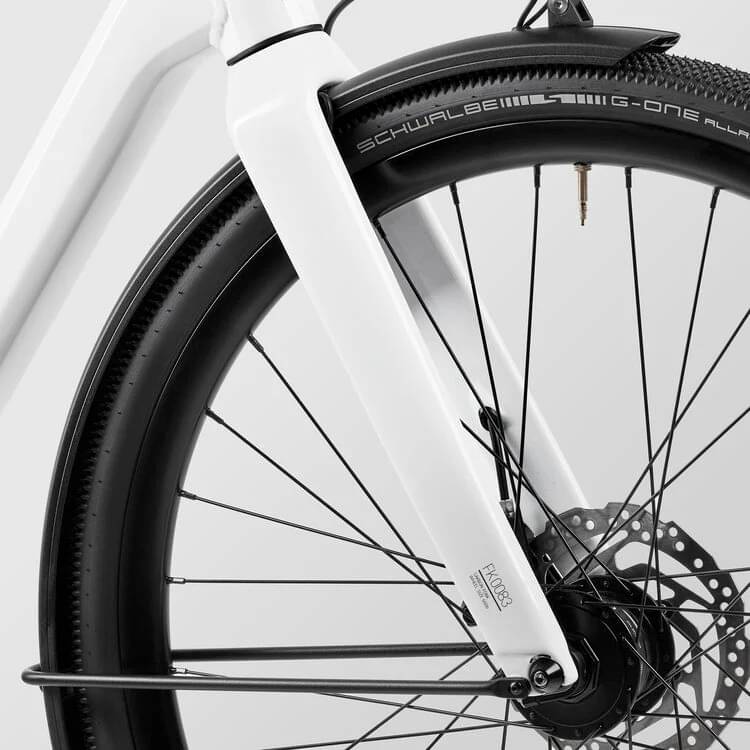

Canyon FK0083 CF Disc, Light, robust carbon fork., Fork steer tube diameter: 1 1/8", Material: Carbon (CF)
Drivetrain
Shift Levers
Shimano Alfine S700 11s
Cassette
Gates CDN 24T, Number of sprockets: 1
Crank

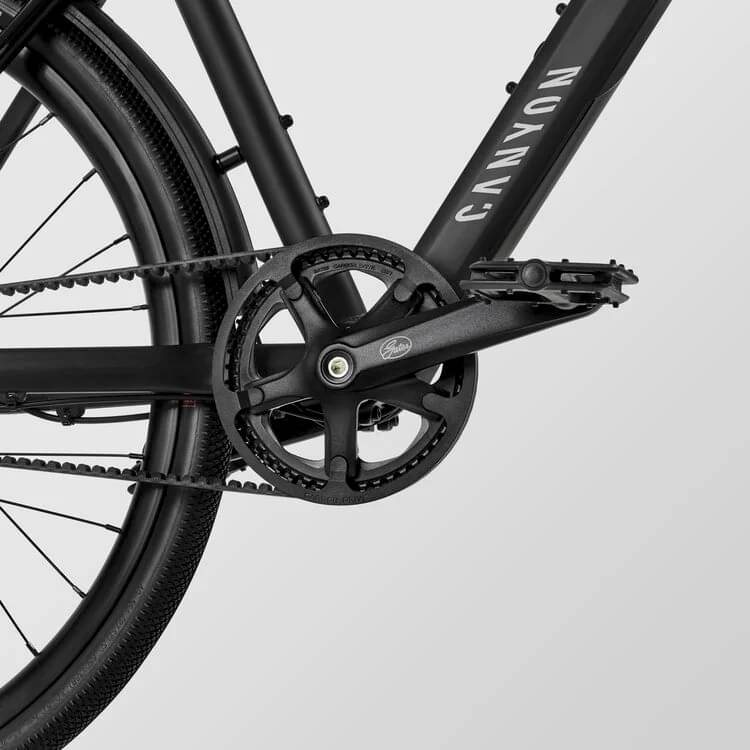

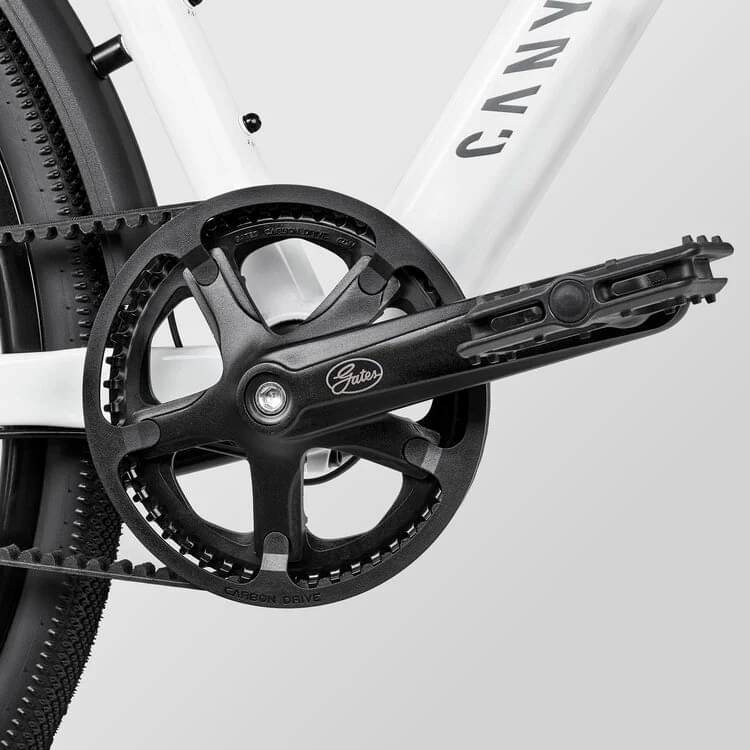

Gates CDN S150 50T, Number of chainrings: 1
Bottom Bracket
Thun BSA Zumba Jis
Chain
Gates CDN Belt
Wheels
Rims

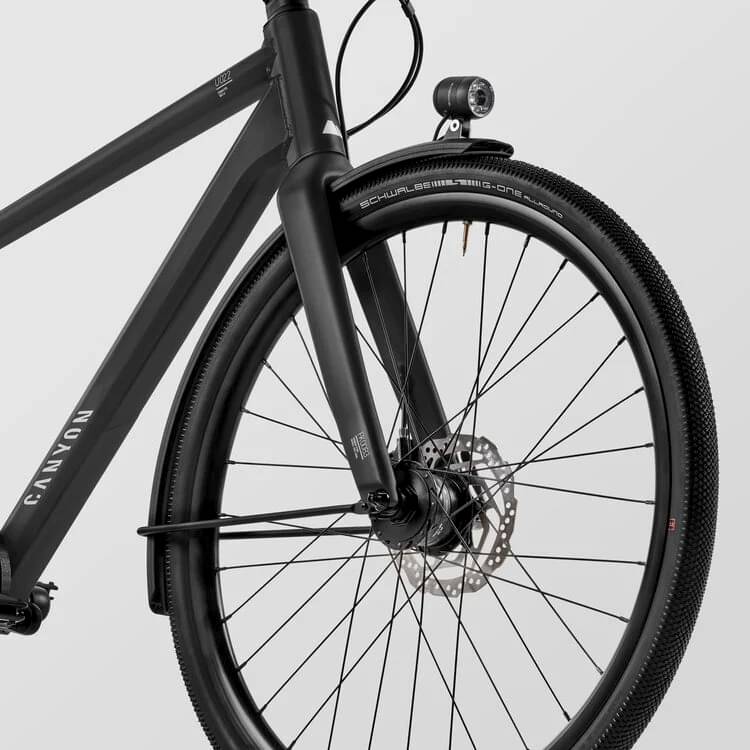

Alexrims GX26P | Shimano DH-3D37 dynamo, Rotor mount: Center Lock | Alexrims GX26P | Shimano Alfine S7001 11s, Rotor mount: Center Lock
Tires
Schwalbe G-One Allround 40mm, Width: 1.5", Weight: 400 g
Brakes
Brakes
Shimano MT200 | Shimano MT200 / UR300?, Number of pistons: 2
Cockpit
Grips
Ergon GA3
Seat

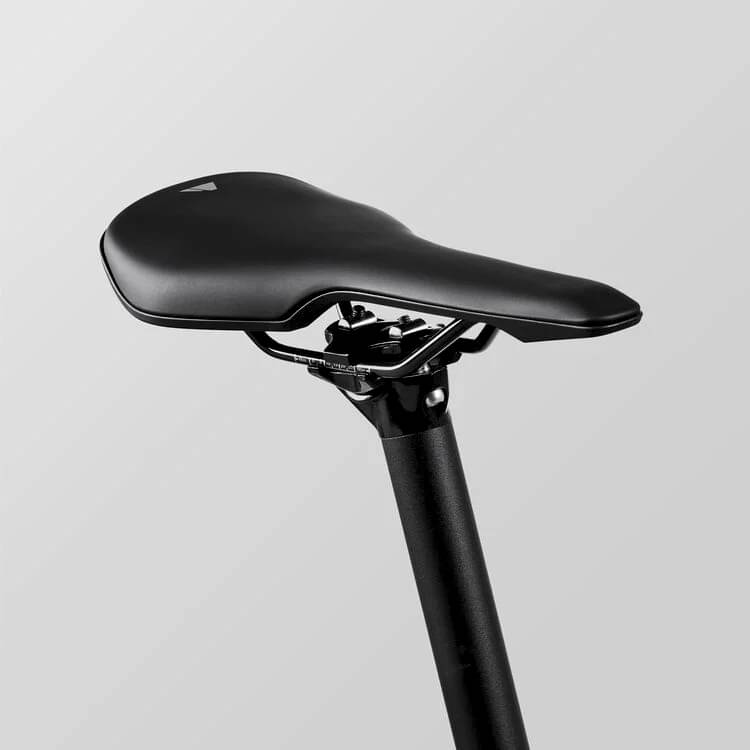

Saddle
Canyon Sport Saddle EP1249, Gender: Unisex, Weight: 287 g

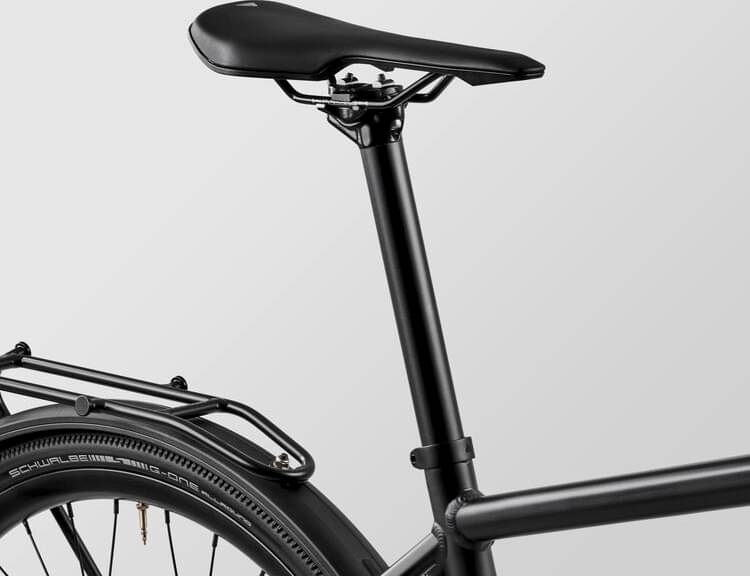

Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.319 mm | 1.317 mm | 1.331 mm | 1.327 mm |
| Front Center | 614 mm | 636 mm | 668 mm | 694 mm |
| Rake | 41 mm | 42 mm | 41 mm | 43 mm |
| Trail | 67 mm | 66 mm | 67 mm | 65 mm |
| Stack | 538 mm | 557 mm | 591 mm | 625 mm |
| Reach | 408 mm | 423 mm | 444 mm | 471 mm |
| Top Tube Length | 567 mm | 588 mm | 619 mm | 656 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 485 mm | 535 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 72.5 ° |
| Head Tube Length | 135 mm | 155 mm | 190 mm | 180 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 438 mm |
| Wheelbase | 1032 mm | 1054 mm | 1086 mm | 1122 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 73 mm |
| Standover Height | 720 mm | 740 mm | 770 mm | 820 mm |
| Wheels | 650 | 650 | 650 | 700 |
| Rider Max Height | 169 cm | 179 cm | 189 cm | cm |
