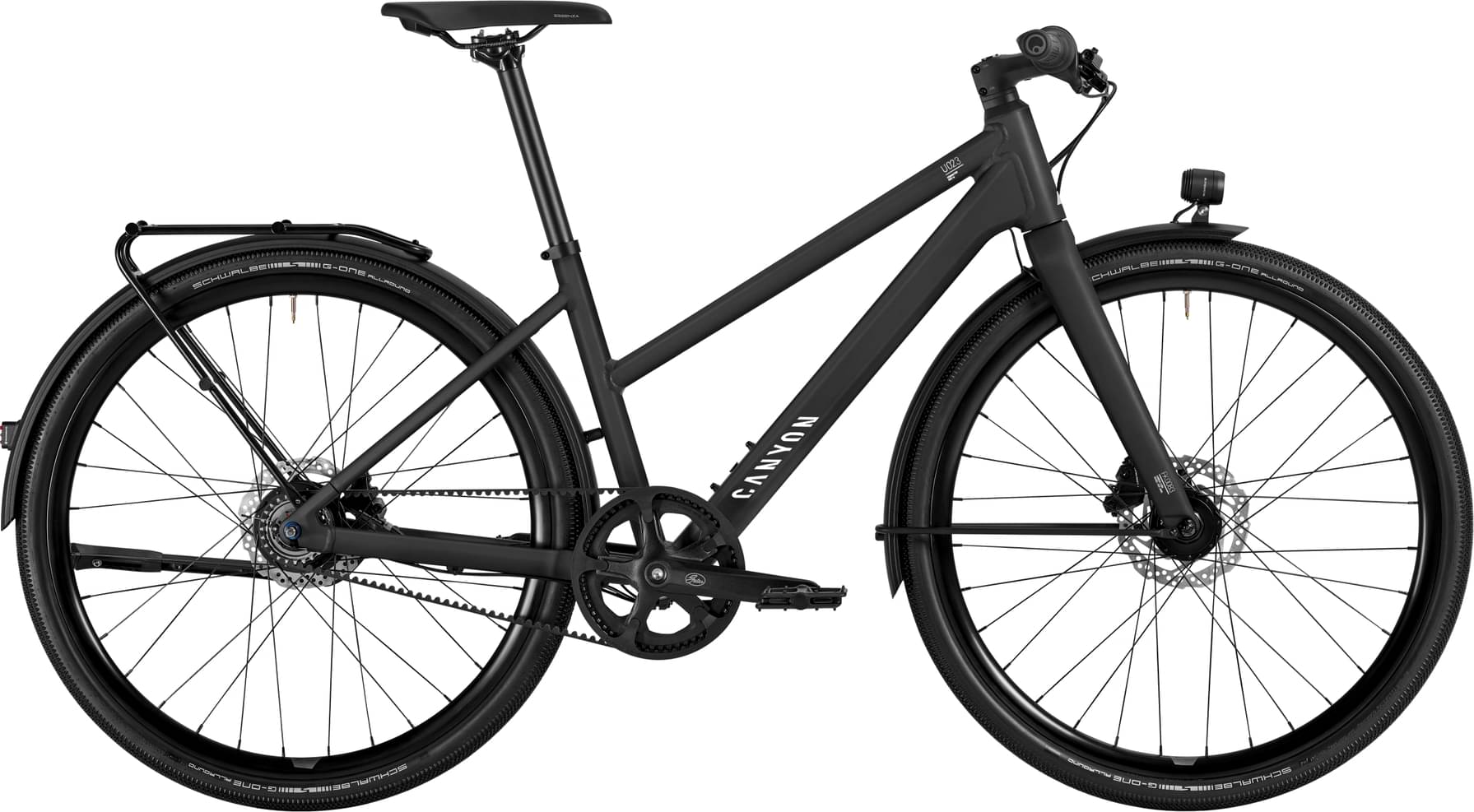

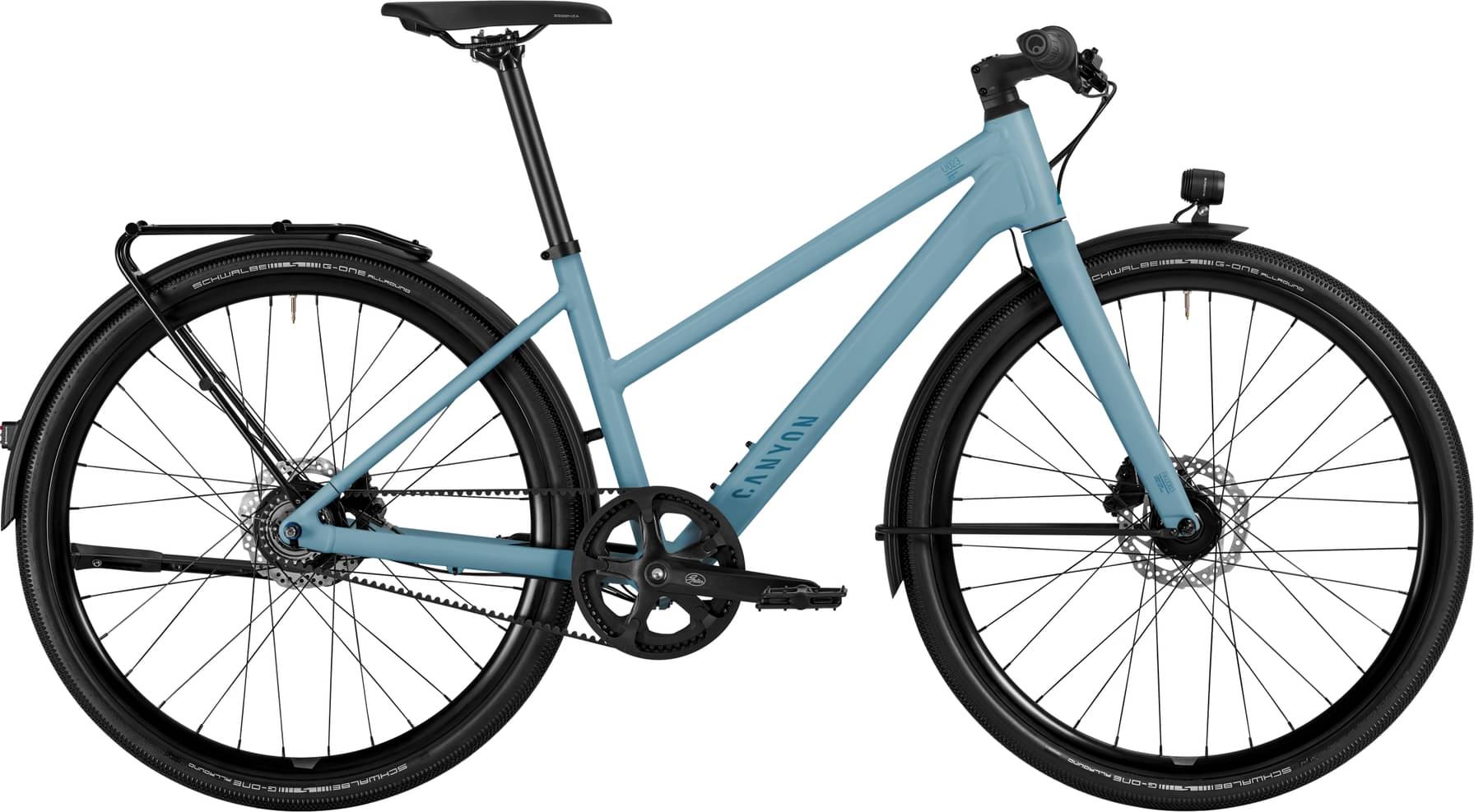

Canyon Commuter mid-step 2025
2025 Urban
Estimate price |
1,744$
Weight | 13.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Gates CDN, Nexus -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 169cm
MD
167cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon U023 Commuter Mid-step, A versatile and reliable urban bike designed for daily commuting. Equipped with features for comfort, efficiency, and practicality.
Suspension Fork
Canyon FK83 Carbon Fork, Light and robust carbon fork, Fork steer tube diameter: 1 1/8", Material: Carbon (CF), Weight: 460 g
Drivetrain
Shift Levers
Shimano Nexus Revoshift, Weight: 126 g
Crank

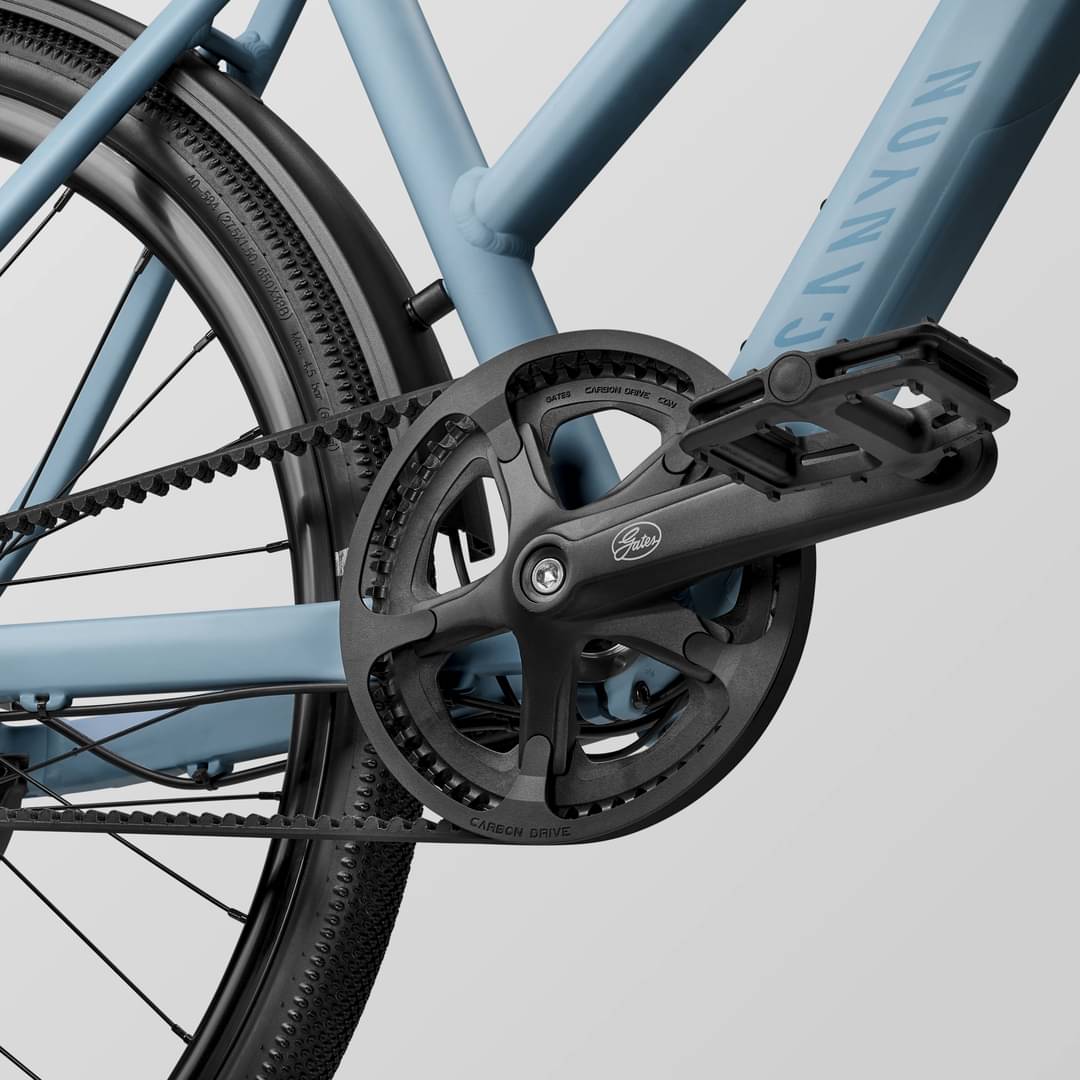

Gates CDN S150, Number of chainrings: 1
Bottom Bracket
Thun BSA Zumba JIS, Weight: 290 g
Chain
Gates CDN Belt
Pedals
FP-803
Wheels
Rims
Alexrims GX26P with Shimano DH-3D37 Dynmao Hub, Axle dimension: 9X100 mm, Rotor mount: Center Lock, Rim material: Aluminium, Weight: 1,400 g | Alexrims GX26P with Shimano Nexus SG-C6001 Gear Hub 8-Speed, Axle dimension: 10X135 mm, Rotor mount: IS 6-bolt, Inner width: 20 mm, Rim material: Aluminium, Weight: 2,200 g
Tires
Schwalbe G-One Allround Performance Race Guard TLE, Width: 40 mm, Weight: 450 g
Brakes
Brakes
Shimano MT200/UR300 front brake, Number of pistons: 2 | Shimano MT200/UR300 rear brake, Number of pistons: 2
Cockpit
Grips
Ergon GA3 Wing Twist
Seat
Saddle
Selle Royal Essenza, Weight: 342 g
Seatpost
Canyon Seatpost, Clamp diameter: 30,9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.319 mm | 1.317 mm |
| Front Center | 614 mm | 636 mm |
| Rake | 59 mm | 60 mm |
| Trail | 36 mm | 35 mm |
| Stack | 538 mm | 557 mm |
| Reach | 408 mm | 423 mm |
| Top Tube Length | 567 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 440 mm |
| Head Tube Angle | 73.5 ° | 73.5 ° |
| Head Tube Length | 135 mm | 155 mm |
| Chainstay Length | 425 mm | 425 mm |
| Wheelbase | 1032 mm | 1054 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Standover Height | 650 | 660 mm |
| Wheels | 650 | 650 |
| Rider Min Height | 158 cm | 167 cm |
| Rider Max Height | 169 cm | 180 cm |
