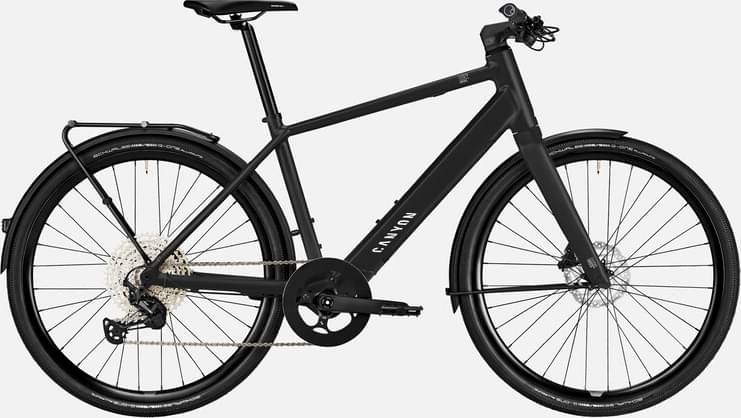

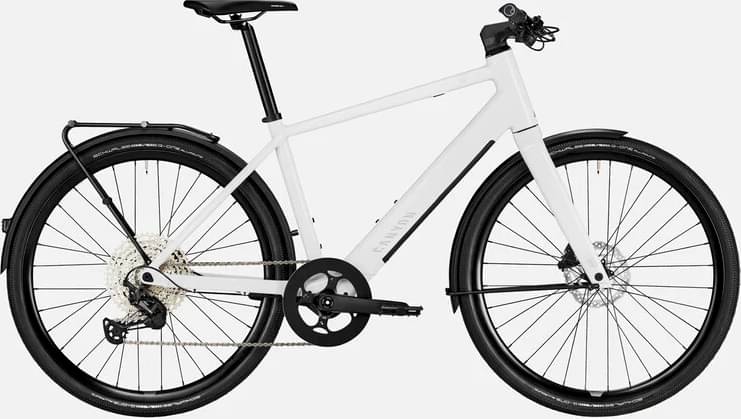

Canyon Commuter:ON 7 2024
2024 E-bike
Estimate price |
4,013$
Weight | 16.96 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT, Deore -
Suspension Rigid -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Energy 430 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

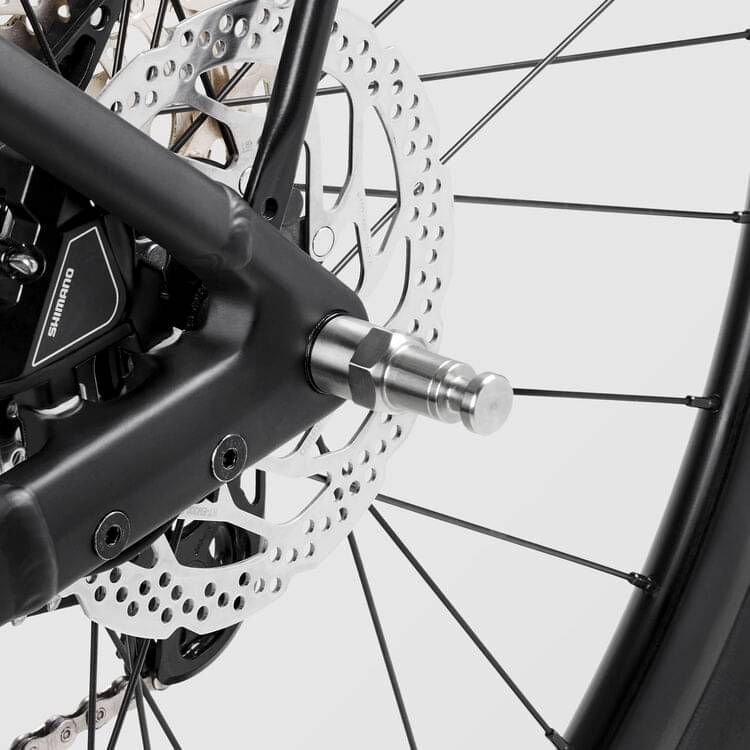

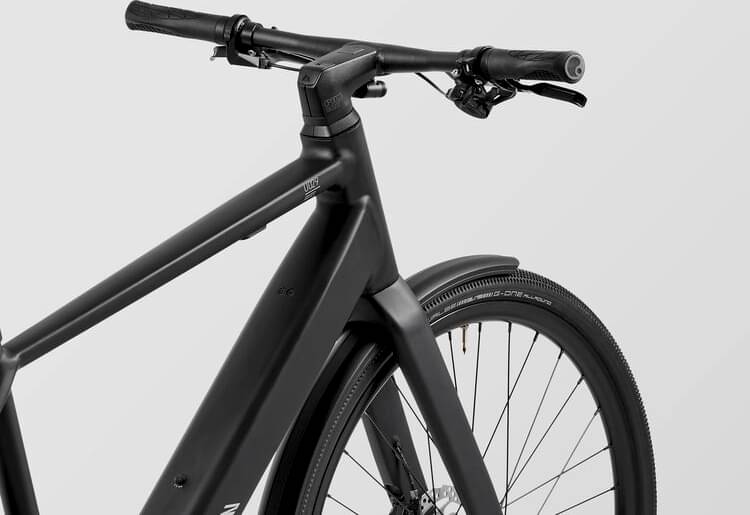

Canyon Commuter:ON, Comfortable, lightweight aluminium e-city frame with perfectly integrated motor and battery., Axle dimension: 12x142 mm, Material: Aluminium (AL)
Suspension Fork
Canyon FK0085 CF Disc, Lightweight, stiff carbon fork., Fork steer tube diameter: 1 1/8", Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s, Weight: 139 g
Cassette
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S
Crank
Samox EC37F, Number of chainrings: 1
Chain
Shimano CN-M6100
Wheels
Rims
Alexrims GX26P | Shimano MT400, Axle dimension: 15X100 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm, Weight: 979 g | Alexrims GX26P | Shimano MT410 SH12, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm
Tires

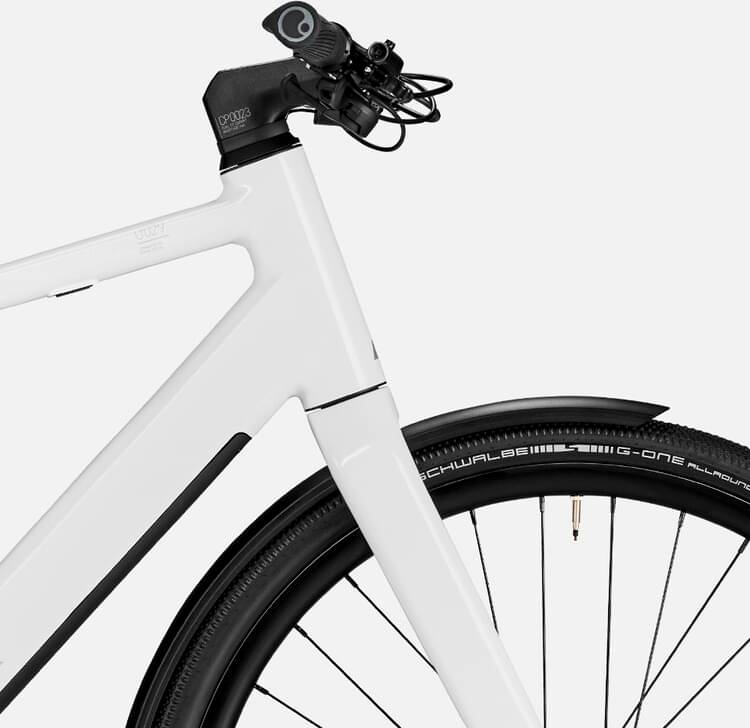

Schwalbe G-One Allround 40mm, Width: 1.5", Weight: 400 g
Brakes
Brakes

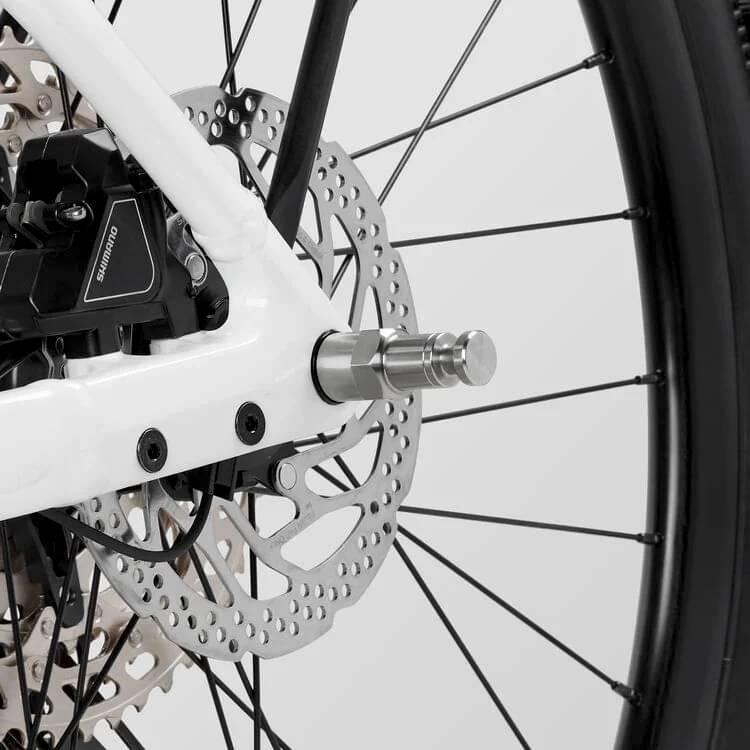

Shimano MT200 | Shimano MT200 / UR300?, Number of pistons: 2
Cockpit
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza, Weight: 288 g
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g
Motor & Battery
Motor
Fazua Ride 60 Drive Unit
Battery
Fazua Energy 430
Charger
FAZUA RIDE 60 Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.455 mm | 1.477 mm | 1.469 mm |
| Front Center | 637 mm | 656 mm | 690 mm |
| Rake | 41 mm | 42 mm | 43 mm |
| Trail | 73 mm | 66 mm | 71 mm |
| Stack | 588 mm | 622 mm | 655 mm |
| Reach | 404 mm | 421 mm | 446 mm |
| Top Tube Length | 578 mm | 606 mm | 640 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 456 mm | 504 mm | 553 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 193 mm | 226 mm | 228 mm |
| Chainstay Length | 425 mm | 425 mm | 433 mm |
| Wheelbase | 1055 mm | 1074 mm | 1113 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 73 mm |
| Standover Height | 757 mm | 785 mm | 833 mm |
| Wheels | 650 | 650 | 700 |
| Rider Max Height | 181 cm | 191 cm | cm |
