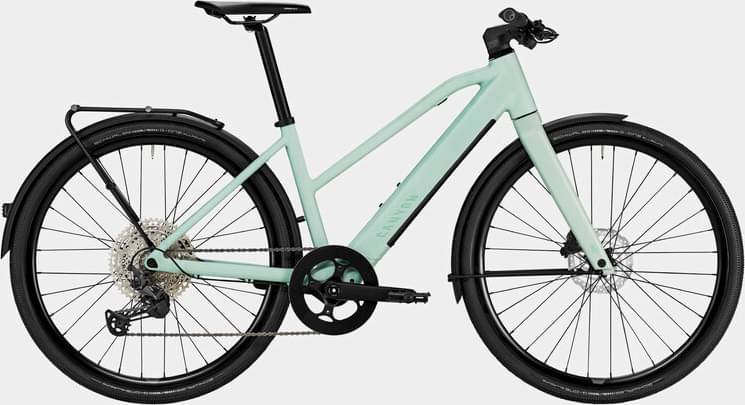

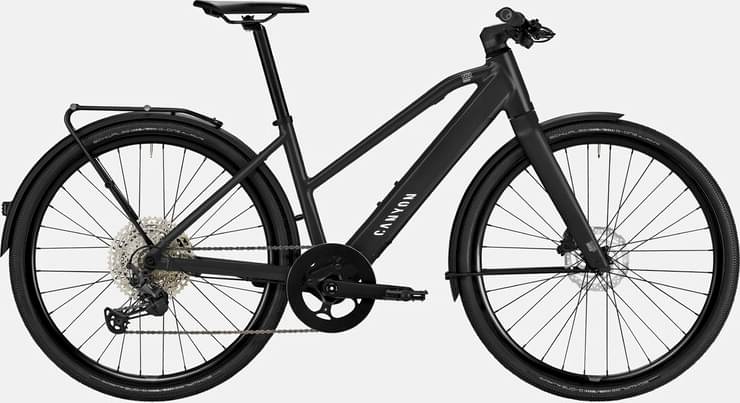

Canyon Commuter:ON 7 mid-step 2024
2024 E-bike
Estimate price |
4,013$
Weight | 17.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT, Deore -
Suspension Rigid -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Energy 430 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

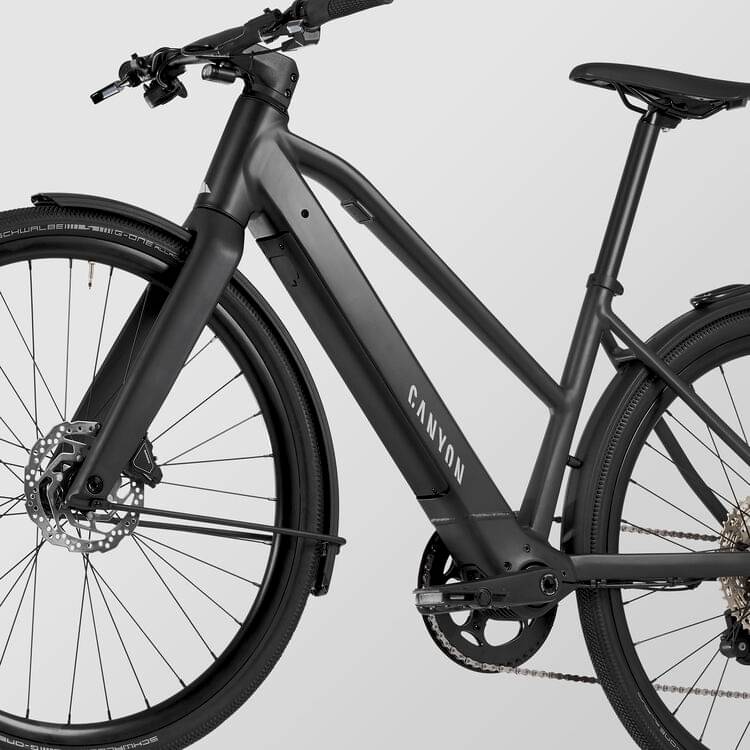

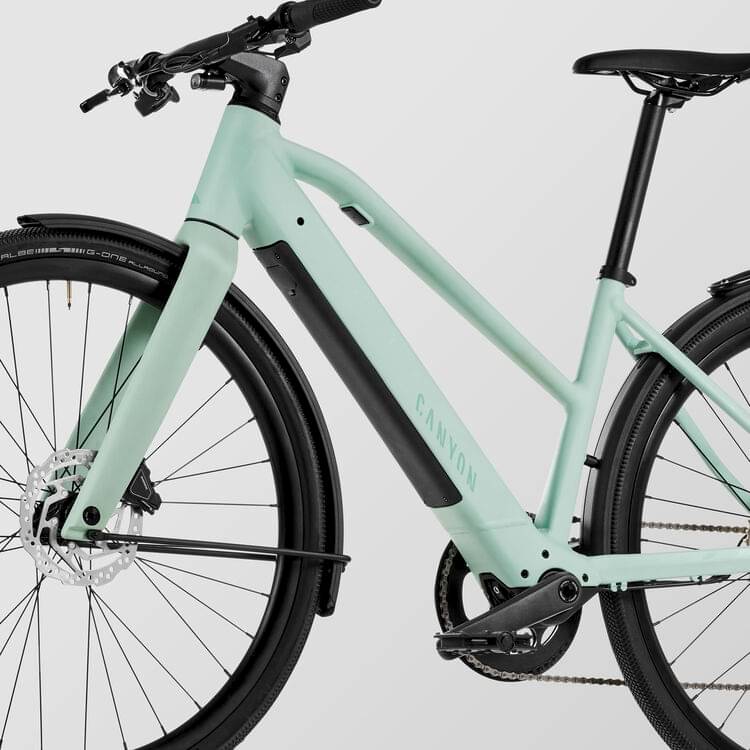

Canyon Commuter:ON, Comfortable, lightweight aluminium e-city frame with perfectly integrated motor and battery., Axle dimension: 12x142 mm, Material: Aluminium (AL)
Suspension Fork

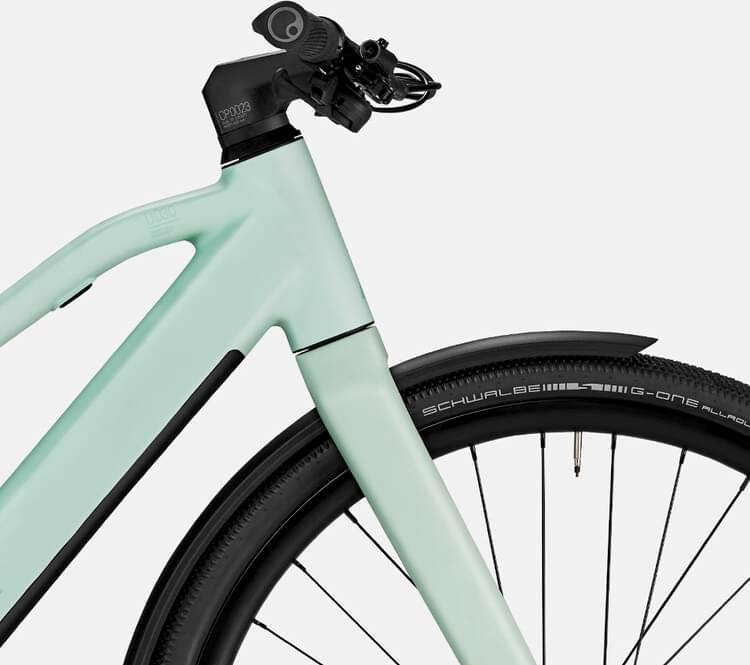

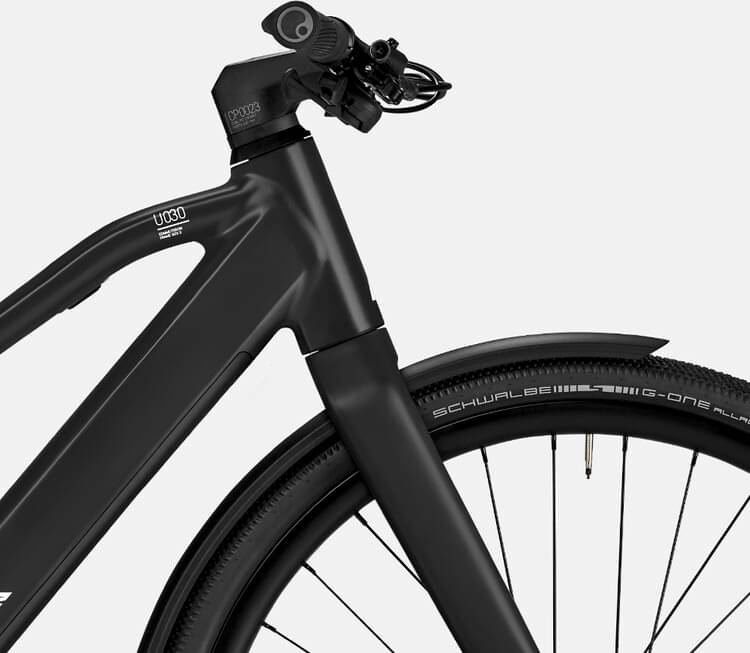

Canyon FK0085 CF Disc, Lightweight, stiff carbon fork., Fork steer tube diameter: 1 1/8", Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s, Weight: 139 g
Cassette
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S
Crank
Samox EC37F, Number of chainrings: 1
Chain
Shimano CN-M6100
Wheels
Rims

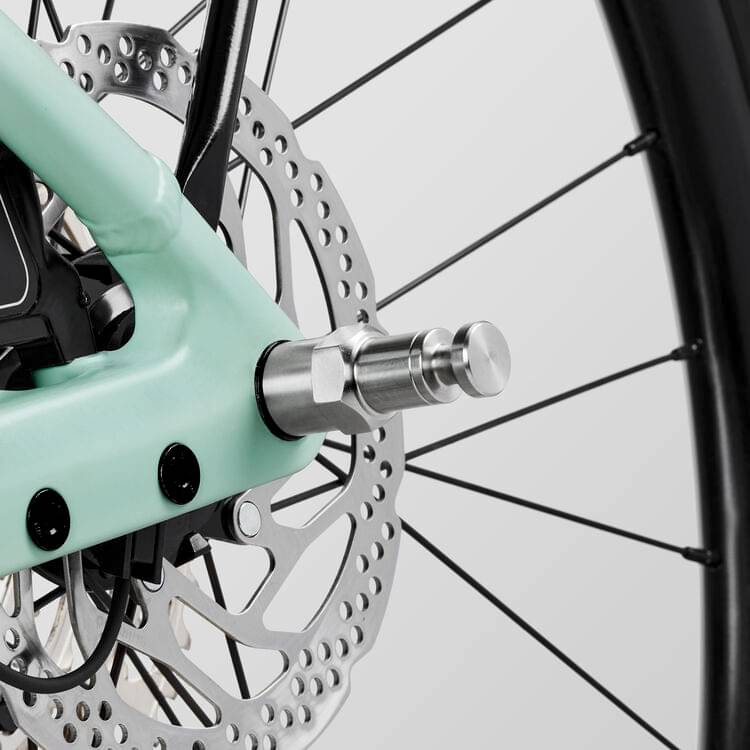

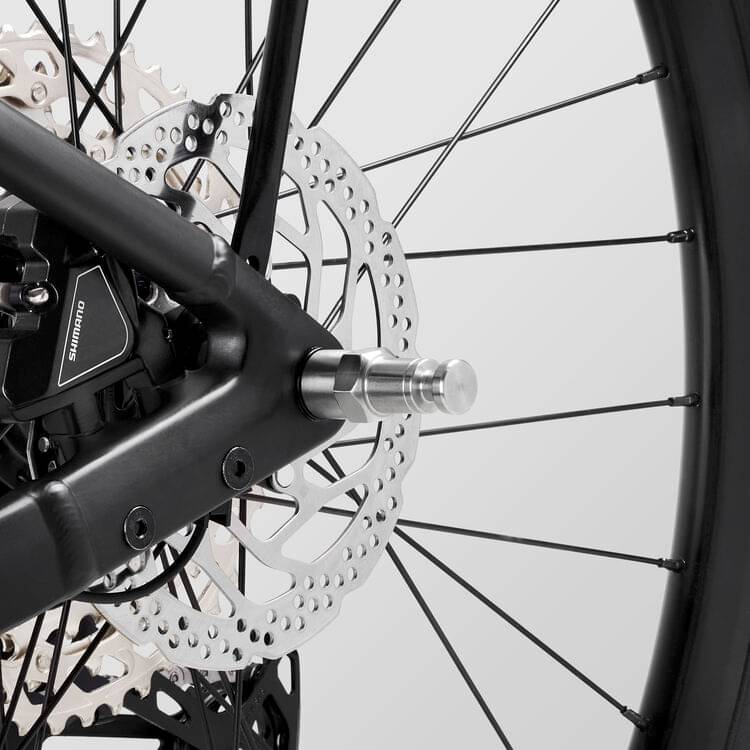

Alexrims GX26P | Shimano MT400, Axle dimension: 15X100 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm, Weight: 979 g | Alexrims GX26P | Shimano MT410 SH12, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm
Tires
Schwalbe G-One Allround 40mm, Width: 1.5", Weight: 400 g
Brakes
Brakes
Shimano MT200 | Shimano MT200 / UR300?, Number of pistons: 2
Cockpit
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza, Weight: 288 g
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g
Motor & Battery
Motor
Fazua Ride 60 Drive Unit
Battery
Fazua Energy 430
Charger
FAZUA RIDE 60 Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.375 mm | 1.455 mm | 1.472 mm |
| Front Center | 617 mm | 637 mm | 656 mm |
| Rake | 73 mm | 71 mm | 62 mm |
| Trail | 22 mm | 24 mm | 33 mm |
| Stack | 543 mm | 588 mm | 621 mm |
| Reach | 395 mm | 404 mm | 422 mm |
| Top Tube Length | 556 mm | 578 mm | 606 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 409 mm | 456 mm | 504 mm |
| Head Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 148 mm | 193 mm | 224 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1035 mm | 1055 mm | 1074 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 665 mm | 686 mm | 744 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 171 cm | 181 cm | cm |
