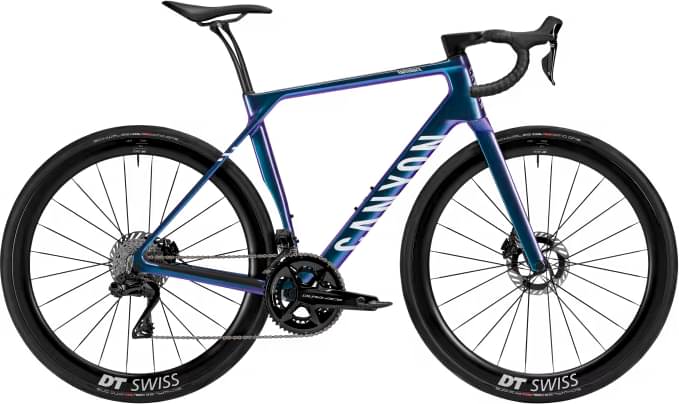

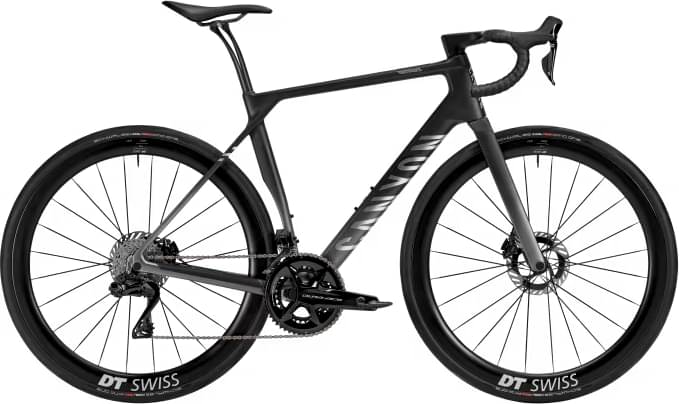

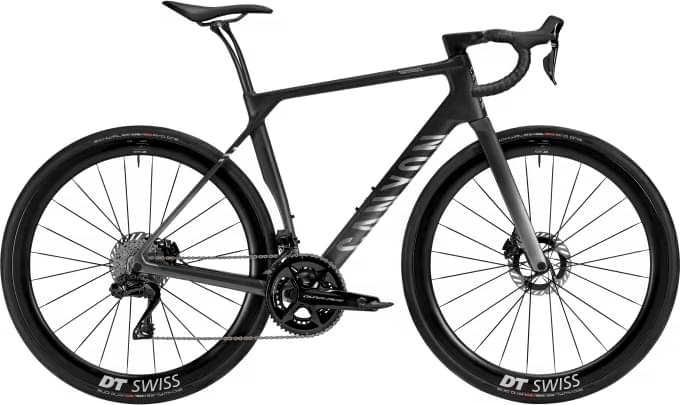

Canyon Endurace CFR Di2 2026
2026 Road
Estimate price |
10,469$
Weight | 7.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XXS
158cm - 166cm
XS
164cm - 172cm
SM
170cm - 179cm
MD
177cm - 186cm
LG
184cm - 193cm
XL
191cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

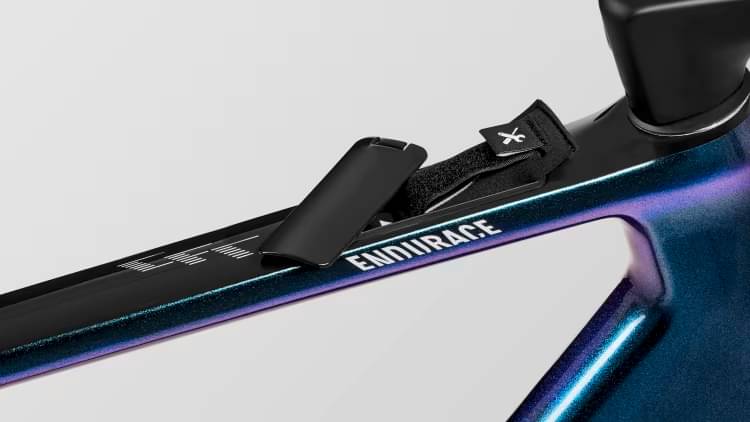

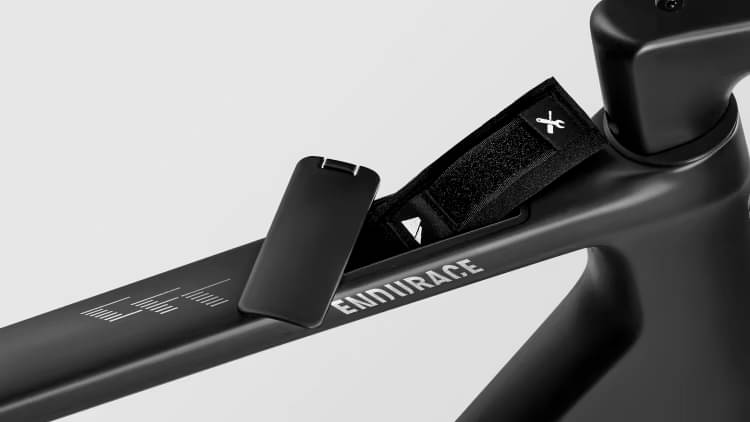

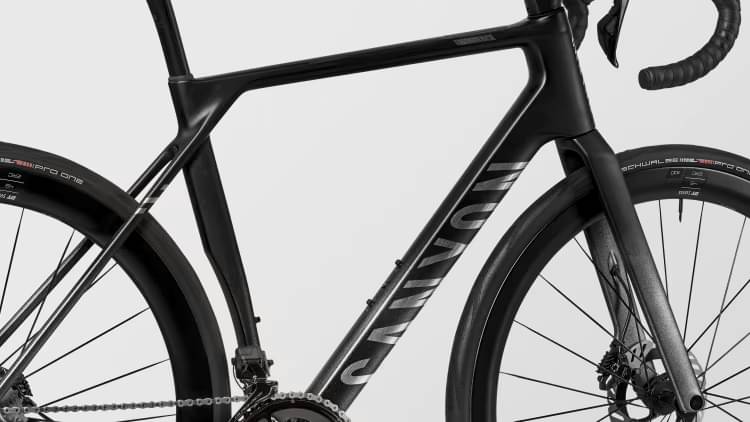

Canyon Endurace CFR, Canyon’s fastest, lightest endurance road bike, crafted using the highest grades of carbon to deliver class-leading stiffness-to-weight values. With integrated storage solutions and aero-optimised tube forms., Axle dimension: 12x142 mm, Tyre clearance: 35 mm, Material: Carbon (CF), Weight: 1,030 g
Suspension Fork

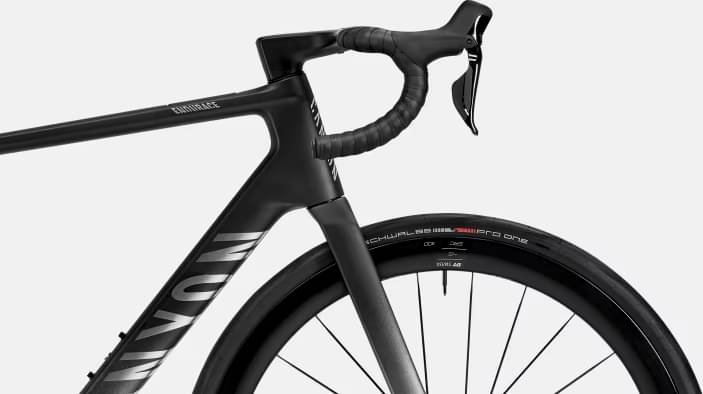

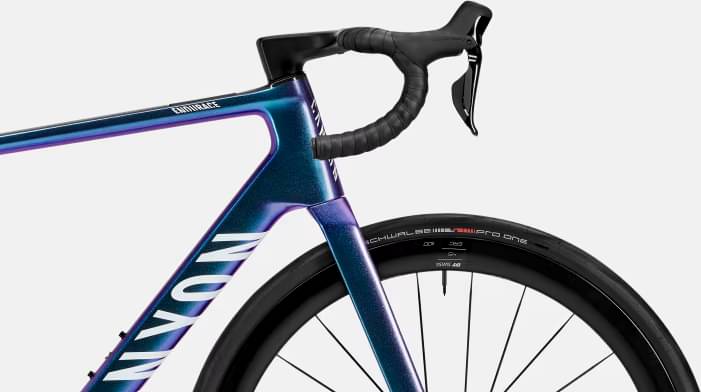

Canyon FK0149, Lightweight carbon fork, engineered for maximum stiffness-to-weight and compliance., Axle dimension: 12x100 mm, Tyre clearance: 35 mm, Material: Carbon (CF), Weight: 455 g
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 RD-R9250, 12-speed, Cage length: long, Weight: 217 g
Front Derailleur
Shimano Dura-Ace Di2 FD-R9250, Weight: 96 g
Shift Levers
Shimano R9270 Dura-Ace, Number of pistons: 2, Weight: 330 g | Shimano Dura-Ace Di2 R9270, 12-speed, Number of pistons: 2, Weight: 330 g
Cassette
Shimano Dura-Ace R9200, 12-speed, 11-34, Number of sprockets: 12, Range: 11-34
Crank
Shimano Dura Ace Frontcrank Powermeter, Number of chainrings: 2
Bottom Bracket
Shimano Pressfit BB92, Bottom bracket standard: PF 86,5, Weight: 55 g
Chain
Shimano XTR
Pedals
None included
Wheels
Rims
DT Swiss ERC 1100 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 45 mm, Inner width: 22 mm, Rim material: Carbon, Weight: 663 g | DT Swiss ERC1100, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 45 mm, Inner width: 22 mm, Rim material: Carbon, Weight: 786 g
Tires
Schwalbe Pro One Evo 32 mm, Width: 32 mm, Weight: 305 g
Brakes
Brakes
Shimano Flat Mount Adapter +20mm
Brake Levers
Shimano R9270 Dura-Ace, Number of pistons: 2, Weight: 330 g | Shimano Dura-Ace Di2 R9270, 12-speed, Number of pistons: 2, Weight: 330 g
Seat
Saddle
Fizik Tempo Aliante R1 145mm, Gender: Unisex, Weight: 183 g
Seatpost

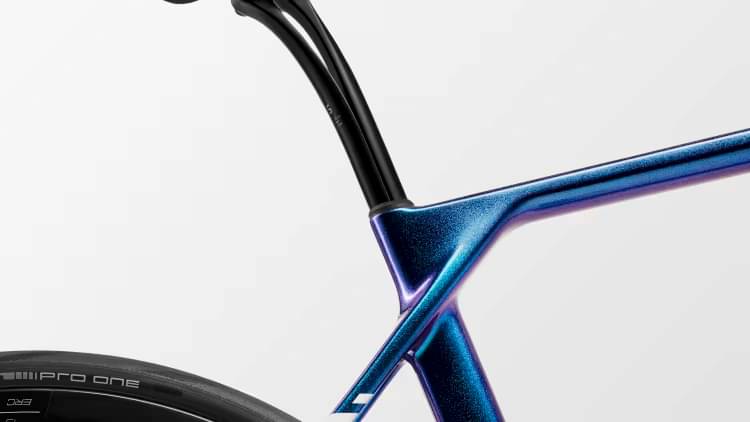

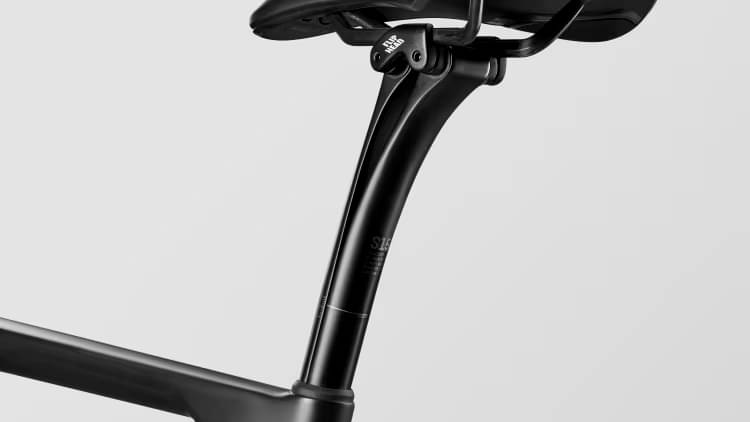

Canyon S15 VCLS 2.0 CF, Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package., Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.494 mm | 1.481 mm | 1.515 mm | 1.561 mm | 1.579 mm | 1.573 mm | 1.581 mm |
| Front Center | 562 mm | 561 mm | 587 mm | 589 mm | 589 mm | 602 mm | 625 mm | 640 mm |
| Rake | 45 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 61 mm | 71 mm | 65 mm | 59 mm | 58 mm | 56 mm | 56 mm |
| Stack | 510 mm | 529 mm | 548 mm | 568 mm | 590 mm | 611 mm | 637 mm | 656 mm |
| Reach | 350 mm | 354 mm | 370 mm | 375 mm | 378 mm | 387 mm | 405 mm | 415 mm |
| Top Tube Length | 501 mm | 511 mm | 532 mm | 543 mm | 553 mm | 568 mm | 594 mm | 609 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 402 mm | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.3 ° | 71.5 ° | 70.8 ° | 71.8 ° | 72.75 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 123 mm | 138 mm | 129 mm | 146 mm | 165 mm | 186 mm | 212 mm | 232 mm |
| Chainstay Length | 405 mm | 405 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 959 mm | 958 mm | 991 mm | 993 mm | 993 mm | 1006 mm | 1029 mm | 1044 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 708 mm | 734 mm | 763 mm | 788 mm | 815 mm | 840 mm | 867 mm | 891 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 160 cm | 166 cm | 172 cm | 179 cm | 186 cm | 193 cm | 199 cm | cm |
