Canyon Endurace CFR WRL 2024
2024 Road
Estimate price |
10,321$
Weight | 7.28 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Super Record Wireless -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 172cm
SM
170cm - 179cm
MD
177cm - 186cm
LG
184cm - 193cm
XL
191cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

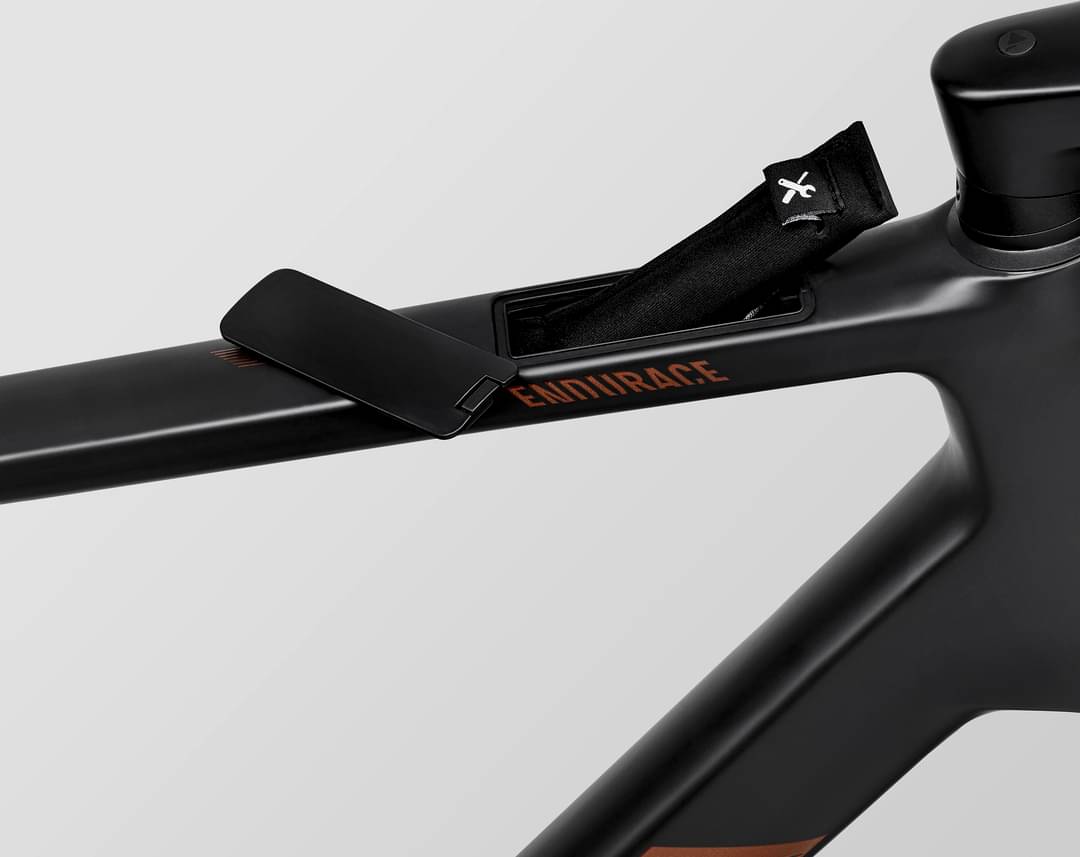

Canyon Endurace CFR, Canyon’s fastest, lightest endurance road bike, crafted using the highest grades of carbon to deliver class-leading stiffness-to-weight values. With integrated storage solutions and aero-optimised tube forms., Axle dimension: 12x142 mm, Tyre clearance: 35 mm, Material: Carbon (CFR)
Suspension Fork
Canyon Endurace CFR, Lightweight carbon fork with comfortable, vibration-damping design., Axle dimension: 12x100 mm, Tyre clearance: 35 mm, Material: Carbon (CF)
Drivetrain
Rear Derailleur
Campagnolo Super Record WRL, 12-speed, Cage length: medium, Weight: 295 g
Front Derailleur
Campagnolo Super Record WRL, 12-speed
Shift Levers
Campagnolo Super Record WRL, 2-speed | Campagnolo Super Record WRL, 12-speed
Cassette
Campagnolo Super Record, 12-speed, 10-29T, Number of sprockets: 12, Range: 10-29
Crank
Campangnolo Super Record, Number of chainrings: 2
Bottom Bracket
Campagnolo Pro-Tech Pressfit, Bottom bracket standard: PF 86,5, Weight: 50 g
Chain
Campagnolo Super Record 12s
Pedals
None included
Wheels
Rims
Campagnolo Bora Ultra, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 45 mm, Weight: 660 g | Campagnolo Bora Ultra, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 45 mm, Weight: 765 g
Tires
Schwalbe Pro One TLE, 30mm, Wheelsize: 28" | Schwalbe Pro One TLE, 32mm, Wheelsize: 28"
Brakes
Brakes
Campagnolo Super Record WRL, 2-speed | Campagnolo Super Record WRL, 12-speed
Brake Levers
Campagnolo Super Record WRL, 2-speed | Campagnolo Super Record WRL, 12-speed
Seat
Saddle
Fizik Tempo Aliante R1 145mm, Gender: Unisex, Weight: 175 g
Seatpost

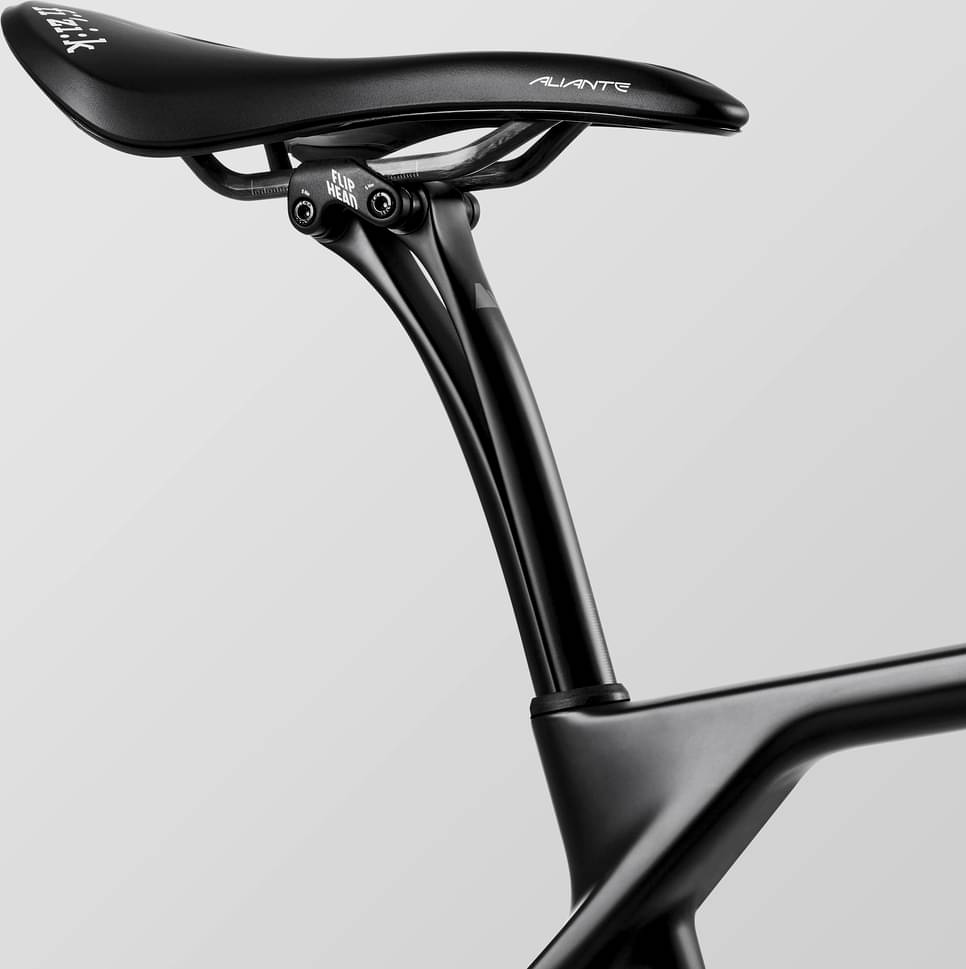

Canyon S15 VCLS 2.0 CF, Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package., Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.481 mm | 1.515 mm | 1.561 mm | 1.579 mm | 1.573 mm | 1.581 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 587 mm | 589 mm | 589 mm | 602 mm | 625 mm | 640 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 71 mm | 65 mm | 59 mm | 58 mm | 56 mm | 56 mm |
| Stack | 548 mm | 568 mm | 590 mm | 611 mm | 637 mm | 656 mm |
| Reach | 370 mm | 375 mm | 378 mm | 387 mm | 405 mm | 415 mm |
| Top Tube Length | 540 mm | 551 mm | 561 mm | 576 mm | 602 mm | 617 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.8 ° | 71.8 ° | 72.75 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 129 mm | 146 mm | 165 mm | 186 mm | 212 mm | 232 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 991 mm | 993 mm | 993 mm | 1006 mm | 1029 mm | 1044 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 763 mm | 788 mm | 815 mm | 840 mm | 867 mm | 891 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 177 cm | 184 cm | 191 cm | 197 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm | 199 cm | cm |
