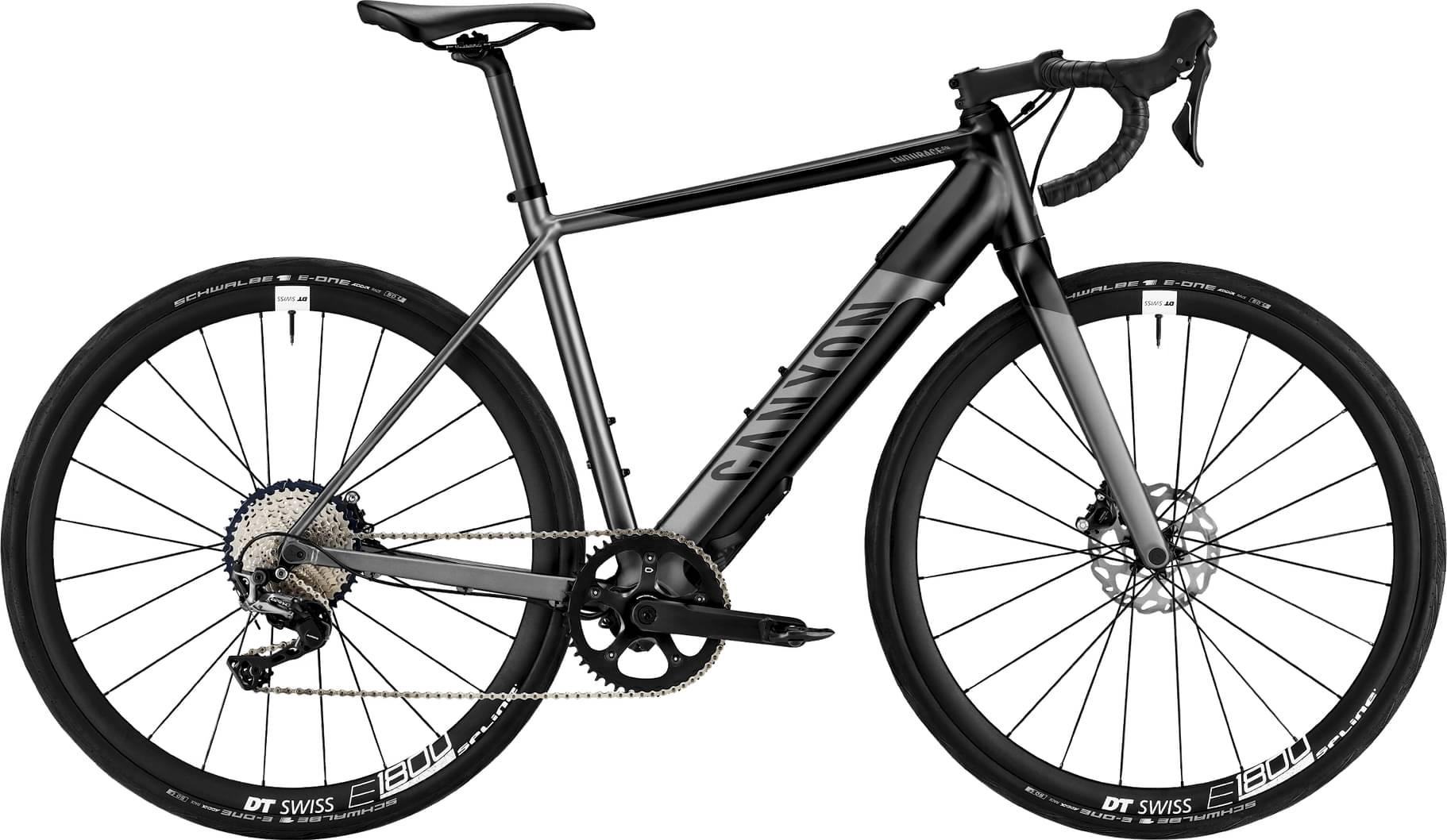

Canyon Endurace:ON 7 2023
2023 E-bike
Estimate price |
3,440$
Weight | 15.22 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Motor Fazua 350W 58Nm mid-drive -
Battery Fazua Evation X, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
173cm - 183cm
LG
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace:ON, Axle dimension: 12x142 mm, Tyre Clearance: 35 mm, Material: Aluminium (AL)
Suspension Fork
Canyon FK0074, Fork steer tube diameter: 1 1/8", Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano GRX RX812 GS, Cage length: long
Shift Levers
Shimano RX600 2s, Premium left-hand shift/brake unit with anti-slip brake lever for more control on mixed terrain. With ergonomic shifter design for incredible comfort. | Shimano GRX RX600 11s, High-quality shift/brake lever with gravel-specific ergonomics and outstanding control on rough terrain. With shifting lightness on par with road groupsets.
Cassette
Shimano SLX M7000 11-42 11s, 11-speed cassette. Gearing: 11-42T., Number of sprockets: 11 | Shimano SLX CS-M7000 11-speed Cassette 11-42
Crank
Samox EC38 48T, E-bike specific crank. Constructed from forged 6061 aluminium.
Chain
KMC X11-93, Durable 11-speed chain with nickel-plated outer links. The precision-manufactured KMC Double X Bridge, combined with specially chamfered inner and outer plates, keep the chain running super-smooth and guarantee fast, clean gear changes.
Wheels
Rims
DT Swiss HG 1800 Spline, Rotor mount: Center Lock, Wheelsize: 28" | DT Swiss HG 1800 Spline, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Wheelsize: 28"
Tires
Schwalbe E-One Evolution, Width: 32mm
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano RX600 2s, Premium left-hand shift/brake unit with anti-slip brake lever for more control on mixed terrain. With ergonomic shifter design for incredible comfort. | Shimano GRX RX600 11s, High-quality shift/brake lever with gravel-specific ergonomics and outstanding control on rough terrain. With shifting lightness on par with road groupsets.
Cockpit
Stem
Canyon V15, High-grade aluminium stem, Clamp diameter: 31.8 mm, Head tube diameter: 1 1/8”, Weight: 148 g
Handlebar
Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 128 mm
Seat
Saddle
Iridium Fitness, High-grade saddle developed for endurance riding. With aluminium rails.
Seatpost
Canyon SP-41 CF, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery
Motor
Fazua Evation DU, Smooth drivepack with new housing, lighter design & more torque., Max power: 350 W, Torque: 58 Nm, Weight: 1.8 kg
Battery
Fazua Evation X, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.56 mm | 1.58 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 593 mm | 600 mm | 613 mm | 631 mm |
| Rake | 43 mm | 38 mm | 37 mm | 35 mm |
| Trail | 62 mm | 67 mm | 68 mm | 70 mm |
| Stack | 568 mm | 590 mm | 612 mm | 638 mm |
| Reach | 381 mm | 386 mm | 393 mm | 405 mm |
| Top Tube Length | 551 mm | 562 mm | 575 mm | 596 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 520 mm | 540 mm | 565 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 138 mm | 159 mm | 182 mm | 208 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1002 mm | 1009 mm | 1022 mm | 1040 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 746 mm | 777 mm | 804 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Max Height | 175 cm | 183 cm | 191 cm | cm |
About this model
Endurace:ON 7 completes the Canyon E Enduraceon model. There are 5 e-bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance e-bikes
If you want to purchase a solid Endurance e-bike, it is important to know that the average cost is 3800$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3184$. In conclusion, this e-bike price is 19.35% lower than the price of the average Endurance e-bike.
Average weight for Endurance e-bikes
If we make a quick analysis of the average weight of an Endurance e-bike, we get 13.82 kg (30.47 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Endurace:ON 7 weighs 15.22 kg (33.55 lbs) and is considerably heavier than the average. In short, the average Endurance e-bike weight is 10.13% lower than this one.
Overview of components
Fork material
Endurace:ON 7 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Canyon Endurace:ON 7 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
