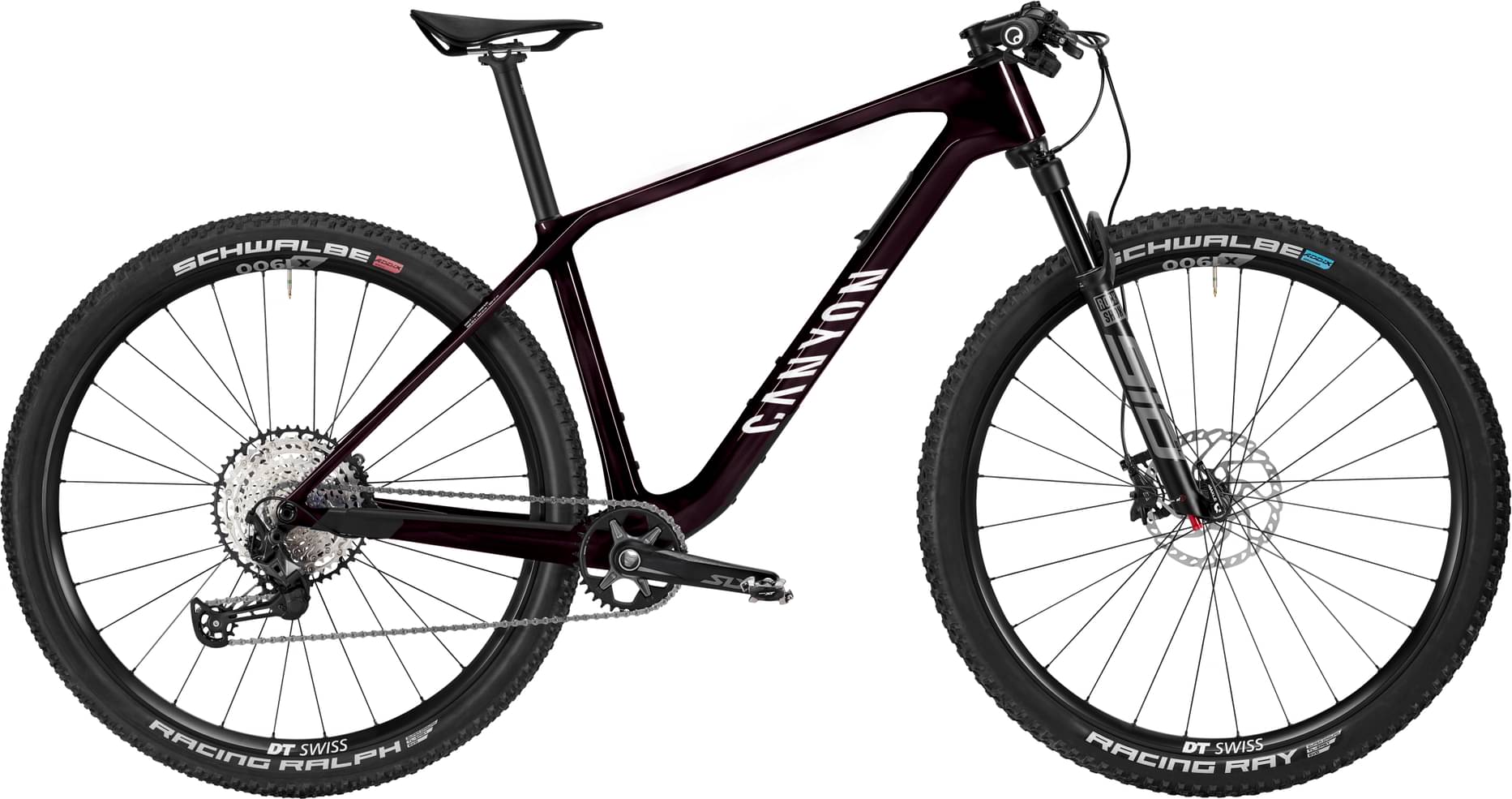

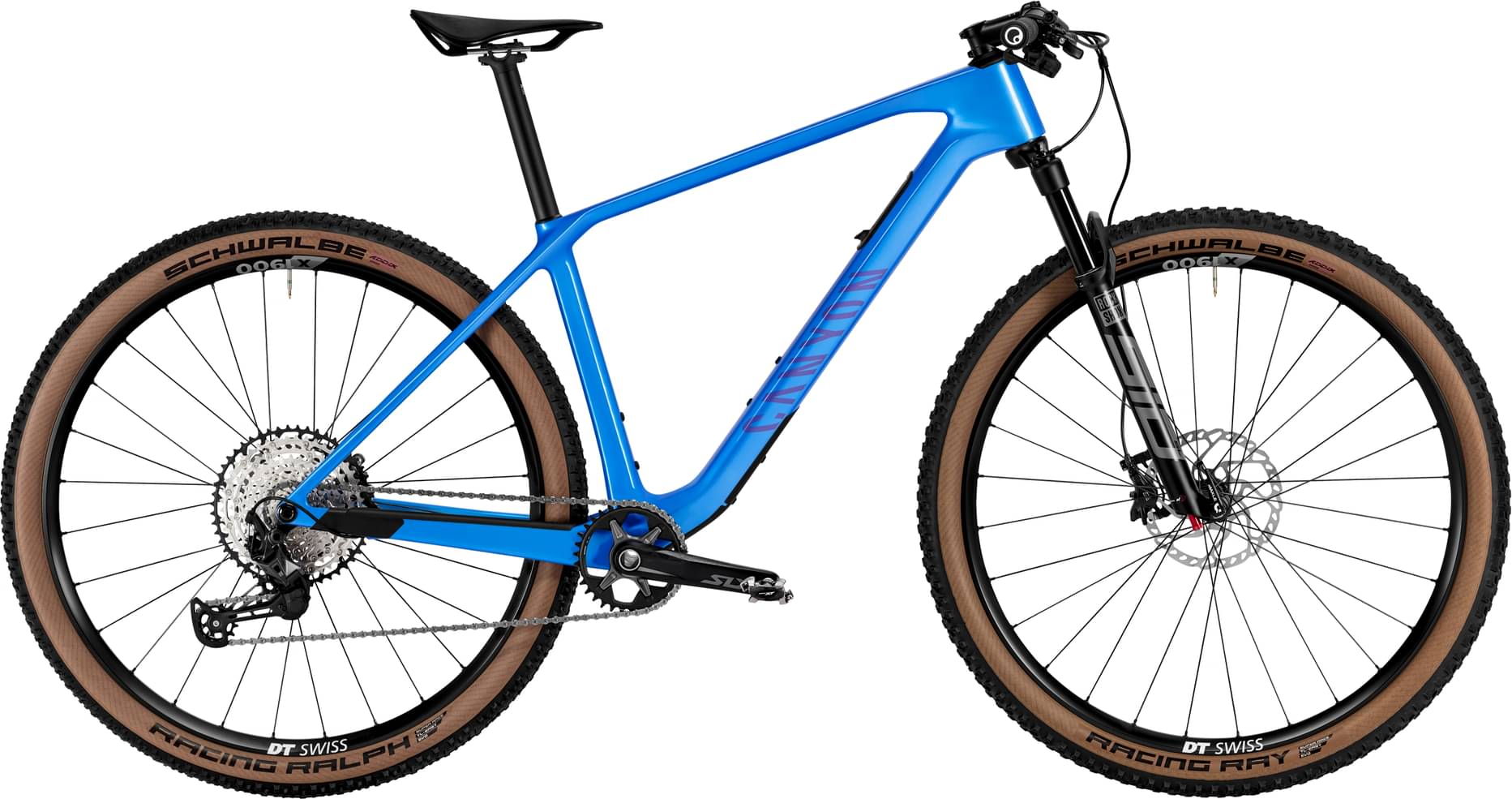

Canyon Exceed CF 6 2025
2025 Mountain
Estimate price |
2,907$
Weight | 11.32 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox SID
-
Groupset SLX -
Suspension Hardtail -
Brakes Shimano SLX Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components

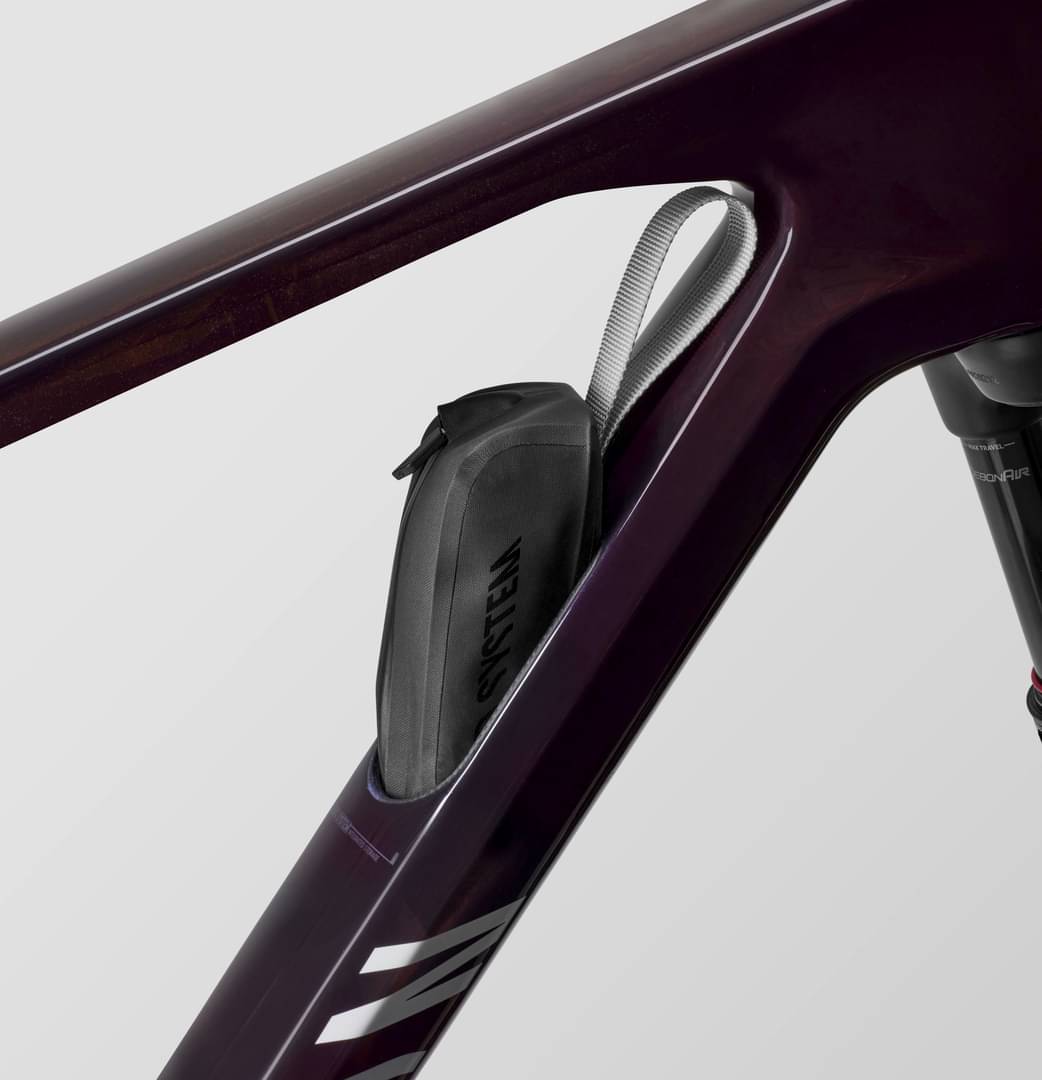

Frame
Frame
Canyon Exceed CF, Axle dimension: 12x148 mm, Material: Carbon (CF), Weight: 1,498 g

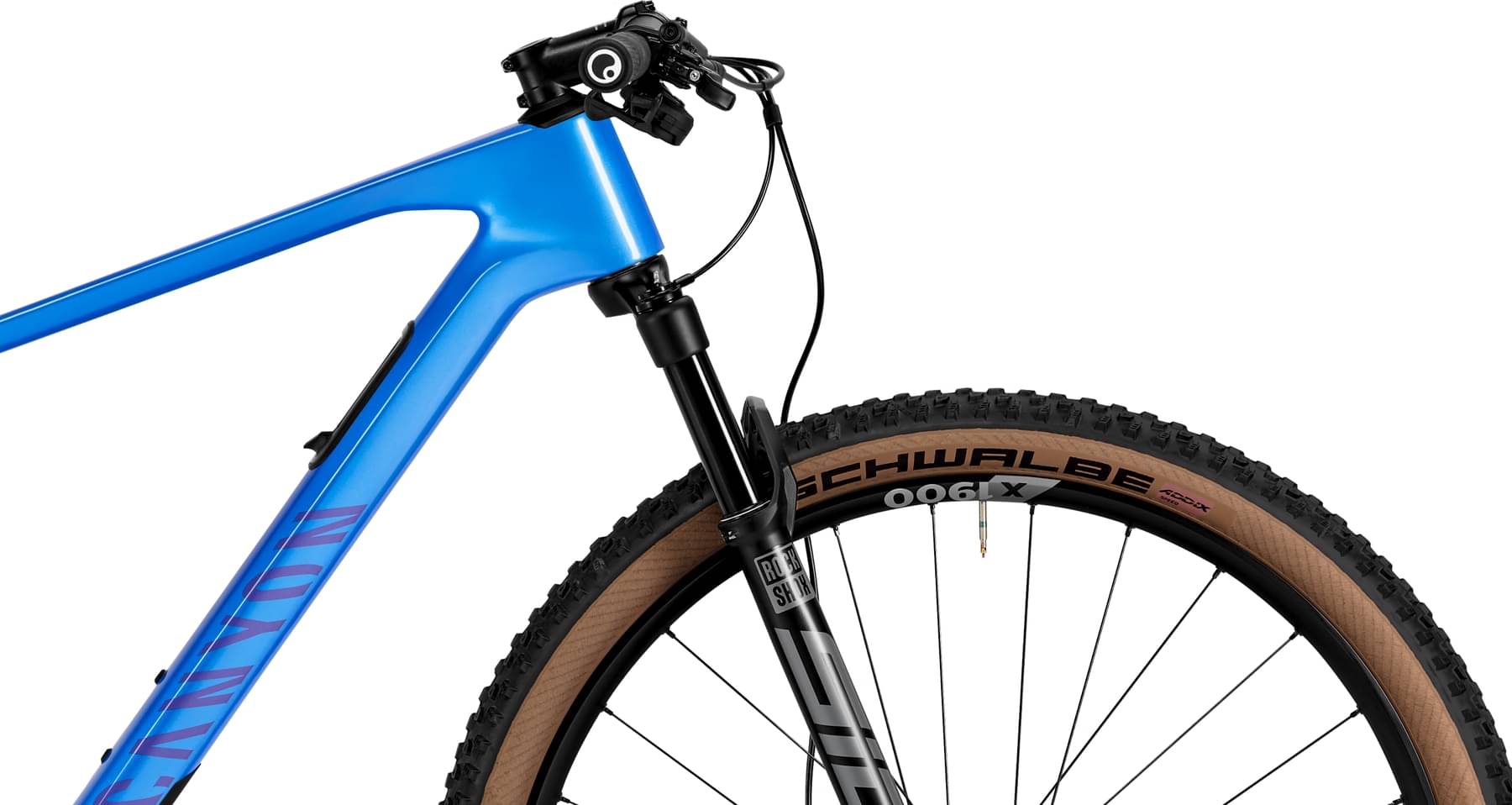

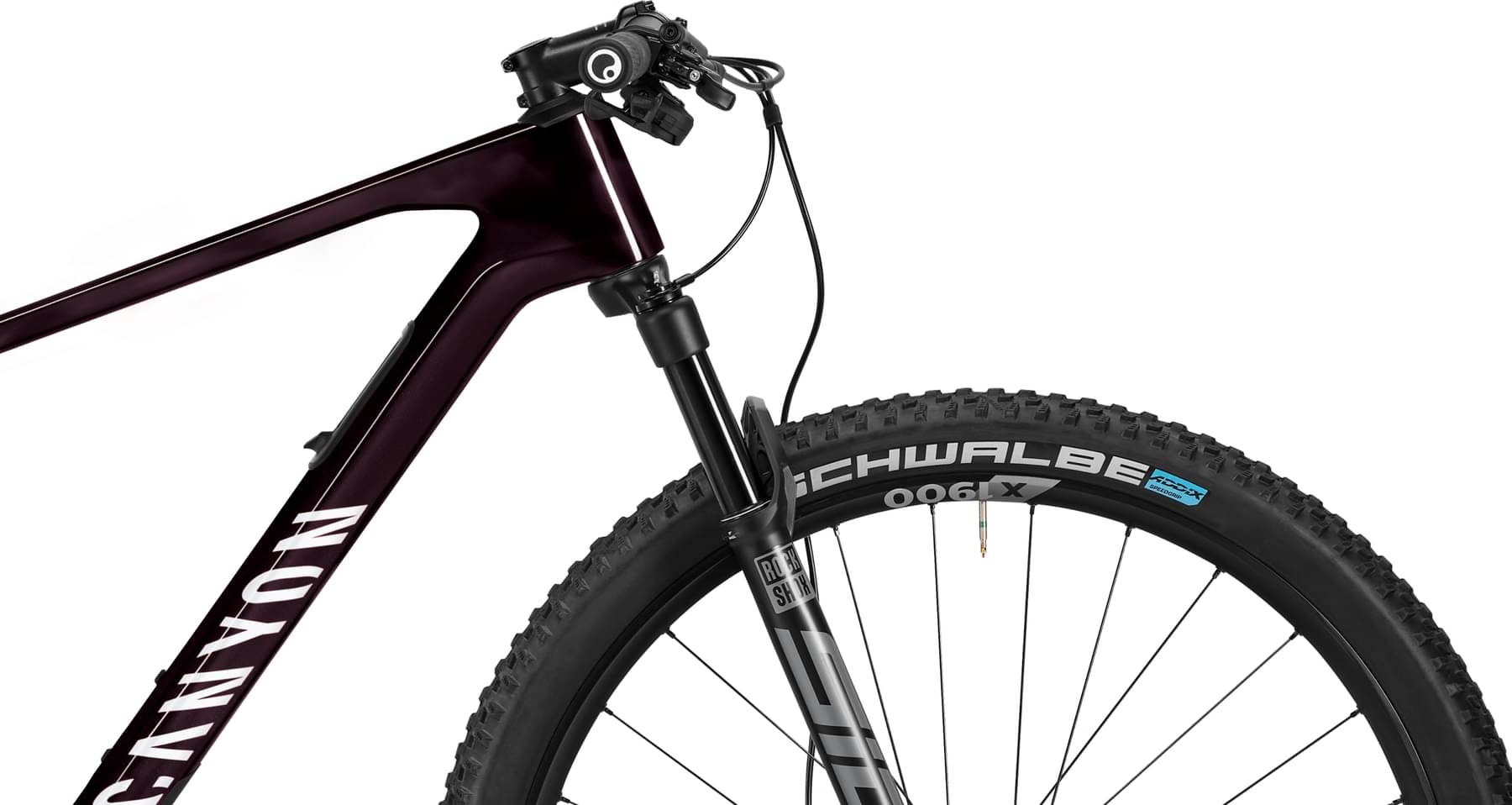

Suspension Fork
RockShox SID SL 2P, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1,5", Offset: 44 mm, Weight: 1,450 g
Drivetrain
Rear Derailleur
Shimano Deore SLX M7100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore SLX M7100, Weight: 143 g
Cassette
Shimano Deore SLX CS-M7100, Number of sprockets: 12, Range: 10-51

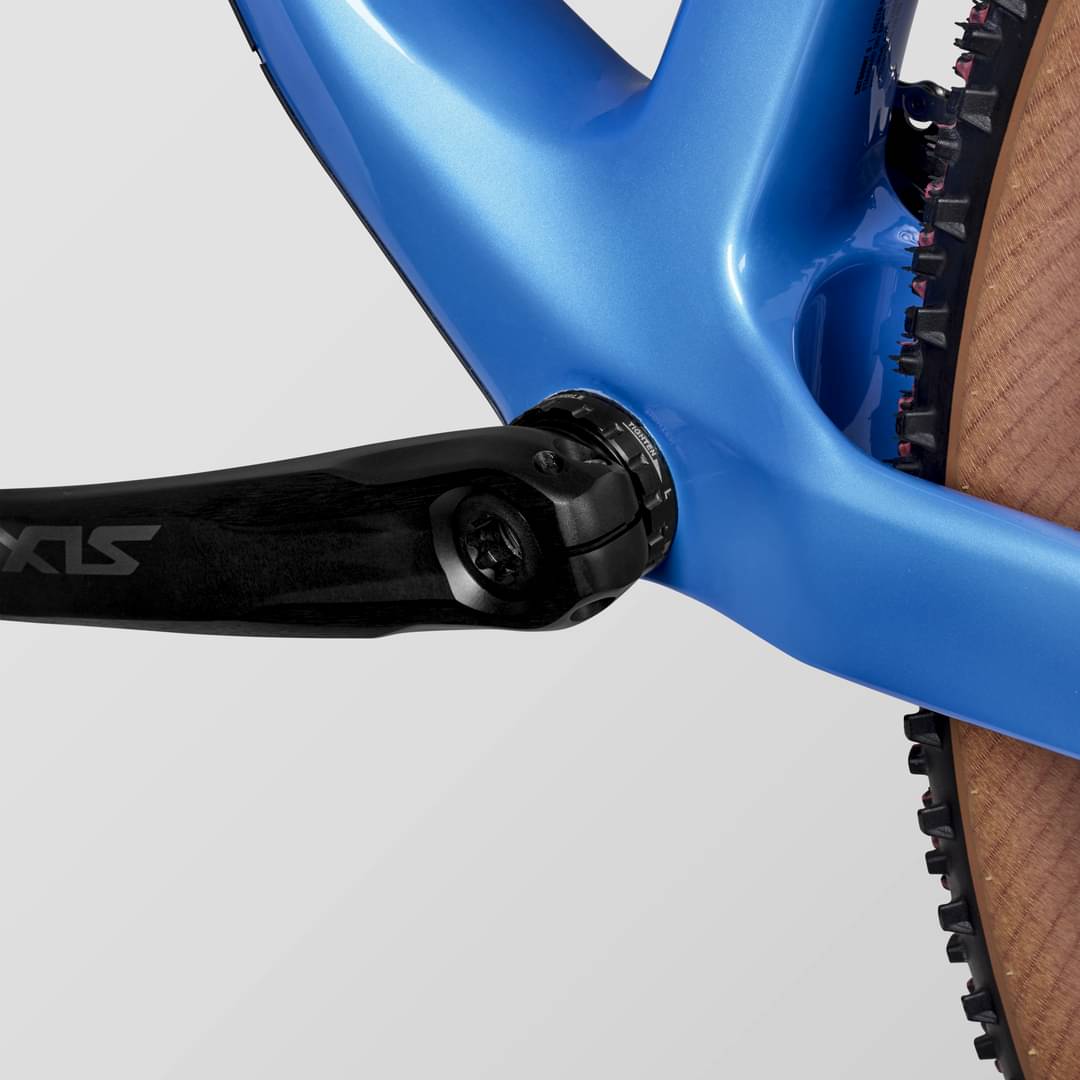

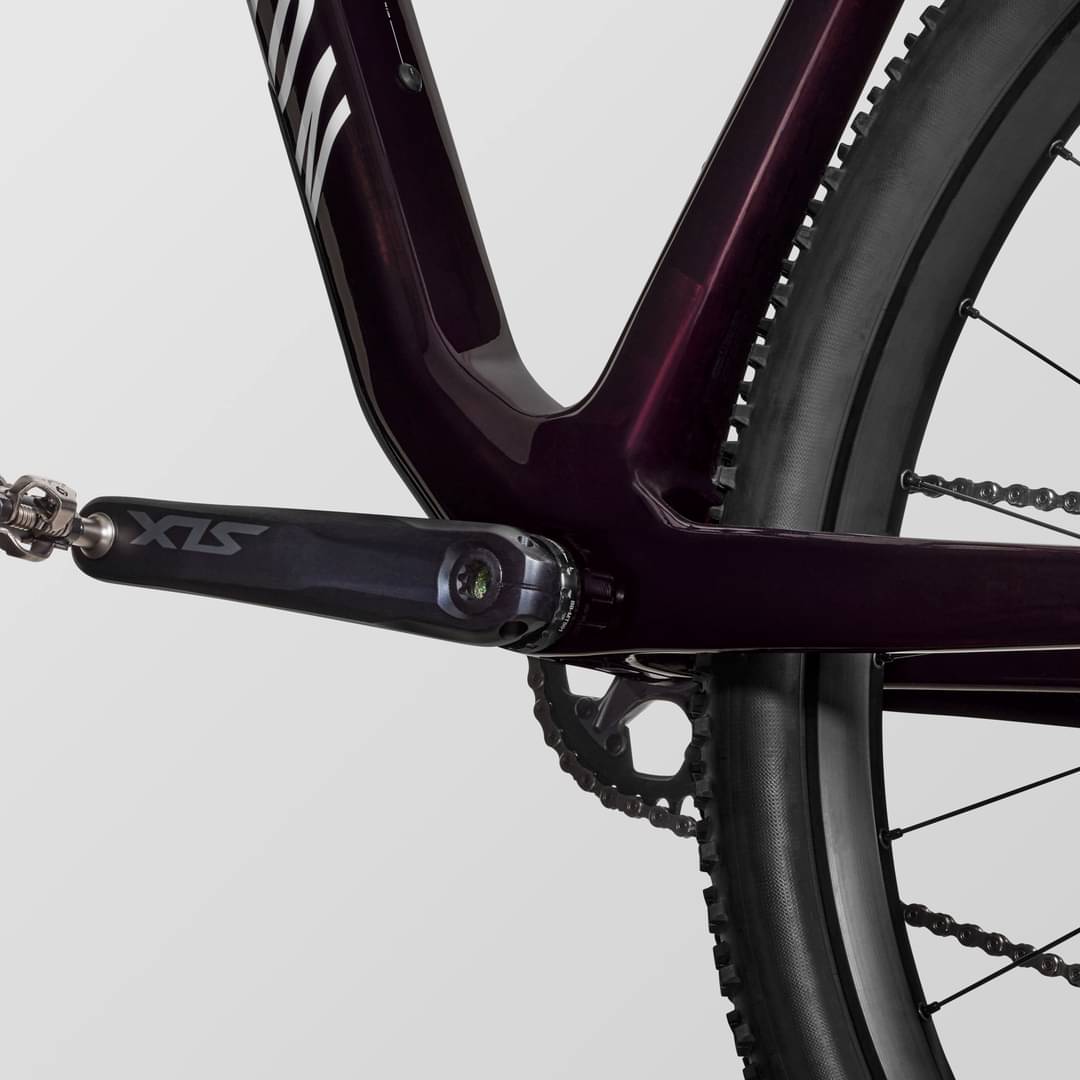

Crank
Shimano SLX M7120, Number of chainrings: 1
Bottom Bracket
Shimano BB-MT501, Bottom bracket standard: BSA HT2 68/73, Weight: 73 g
Chain
Shimano Deore M6100
Pedals
None included
Wheels
Rims
DT Swiss X 1900 Spline, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Inner width: 30 mm, Rim material: Aluminium, Weight: 960 g | DT Swiss X 1900 Spline, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Inner width: 30 mm, Rim material: Aluminium, Weight: 1,081 g
Tires
Schwalbe Racing Ralph SG TLE EVO 2.35", Width: 2.35", Weight: 750 g | Schwalbe Racing Ray, Width: 2,35", Weight: 801 g
Brakes
Brakes
Shimano SLX BR-M7110, Number of pistons: 2
Cockpit
Stem
CANYON ST0039, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
CANYON HB0072, Clamping diameter: 31,8 mm, Width: 740 mm
Grips
Ergon GXR
Seat
Saddle
Selle Italia Model X, Width: 145 mm, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 310 g
Seatpost
Canyon SP0083-01, Clamp diameter: 31,6 mm, Material: Aluminium (AL), Weight: 324 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.471 mm | 1.421 mm | 1.371 mm | 1.359 mm | 1.332 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 692 mm | 711 mm | 737 mm | 762 mm | 788 mm |
| Rake | 48 mm | 48 mm | 48 mm | 47 mm | 47 mm |
| Trail | 107 mm | 107 mm | 107 mm | 108 mm | 108 mm |
| Stack | 600 mm | 604 mm | 613 mm | 632 mm | 646 mm |
| Reach | 408 mm | 425 mm | 447 mm | 465 mm | 485 mm |
| Top Tube Length | 569 mm | 587 mm | 611 mm | 634 mm | 658 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 350 mm | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm | 125 mm | 140 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 430 mm | 435 mm |
| Wheelbase | 1111 mm | 1130 mm | 1156 mm | 1186 mm | 1217 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 769 mm | 794 mm | 820 mm | 850 mm | 877 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
