Canyon Exceed CF SLX 2024
2024 Mountain
Estimate price |
5,234$
Weight | 9.84 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset GX Eagle AXS -
Suspension Hardtail -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Exceed CF SLX, Superlight XC race hardtail, engineered for optimum stiffness-to-weight. 29 inch wheels, 100 mm forks, high-grade carbon for peak performance between the tapes or on the trails., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 32 Step-Cast Factory Remote, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 1.48 kg
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS, Weight: 340 g
Shift Levers
SRAM GX Eagle AXS, Weight: 68 g
Cassette
SRAM XG-1295, Number of sprockets: 12, Range: 10-52 12S
Crank
SRAM GX Eagle Carbon DUB 34T, Number of chainrings: 1
Bottom Bracket
SRAM Pressfit DUB, Bottom bracket standard: PF 92, Weight: 79 g
Chain
SRAM GX Eagle 12s
Pedals
None included
Wheels
Rims
DT Swiss XRC 1501 XD, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Inner width: 30 mm, Weight: 824 g | DT Swiss XRC 1501 Spline, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Inner width: 30 mm, Weight: 728 g
Tires
Maxxis Ikon Exo 2.35", Width: 2.35", Weight: 740 g
Brakes
Brakes
SRAM Level TLM
Cockpit

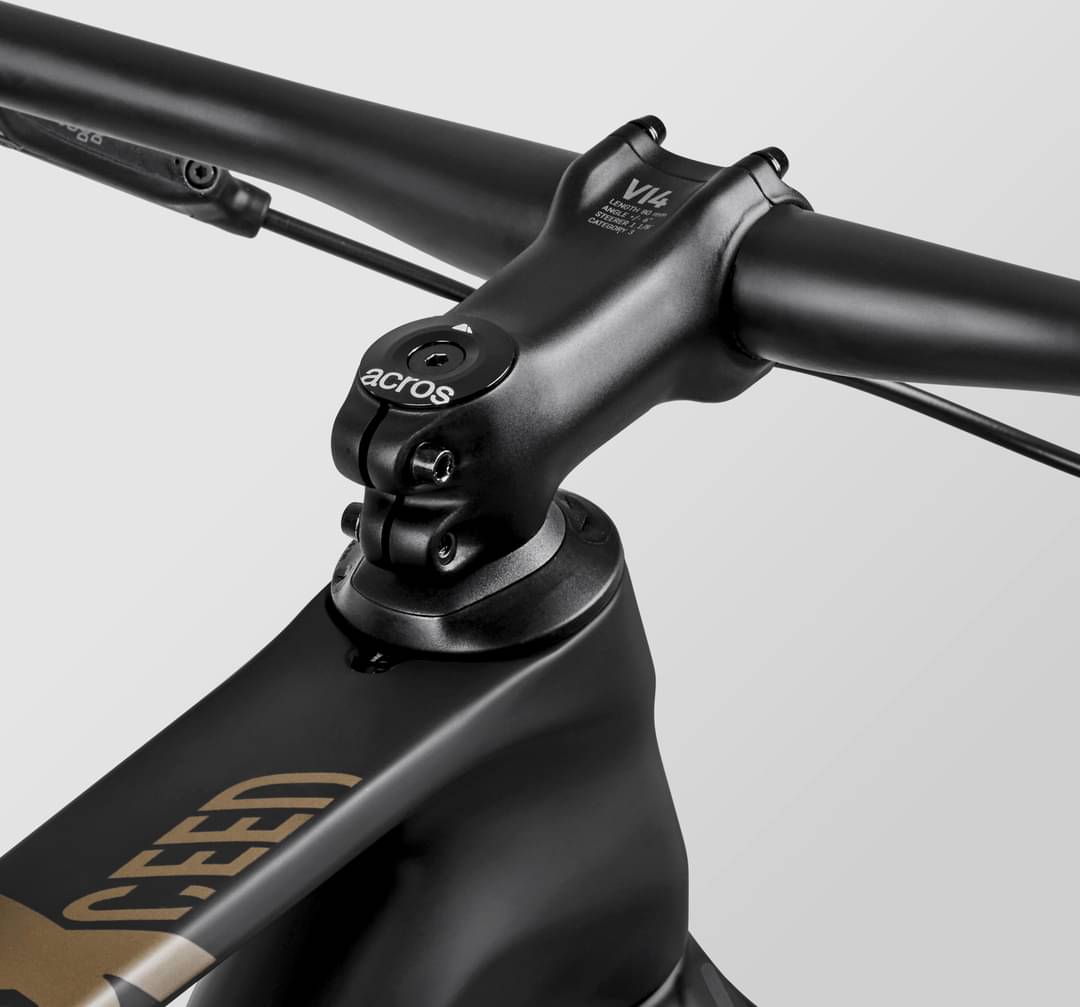

Stem
Canyon V14, Fork steer tube diameter: 1 1/8"
Handlebar
Canyon H21 Carbon Flatbar, Material: Carbon, Rise: 5 mm
Grips
Ergon GA20
Seat
Saddle
Selle Italia SLR Boost, Gender: Unisex, Weight: 198 g
Seatpost
Canyon VCLS 2.0, Our light and strong carbon seatpost. The revolutionary, adjustable floating seat clamp lets the saddle tilt so that it's always in contact, even when flexing., Clamp diameter: 30,9 mm, Material: Carbon (CF), Weight: 350 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.439 mm | 1.384 mm | 1.354 mm | 1.335 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 657 mm | 679 mm | 700 | 726 mm | 753 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 597 mm | 597 mm | 602 mm | 616 mm | 634 mm |
| Reach | 392 mm | 415 mm | 435 mm | 455 mm | 475 mm |
| Top Tube Length | 561 mm | 584 mm | 605 mm | 628 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 458 mm | 495 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 434 mm | 439 mm |
| Wheelbase | 1079 mm | 1102 mm | 1123 mm | 1154 mm | 1186 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 781 mm | 803 mm | 828 mm | 854 mm | 883 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
