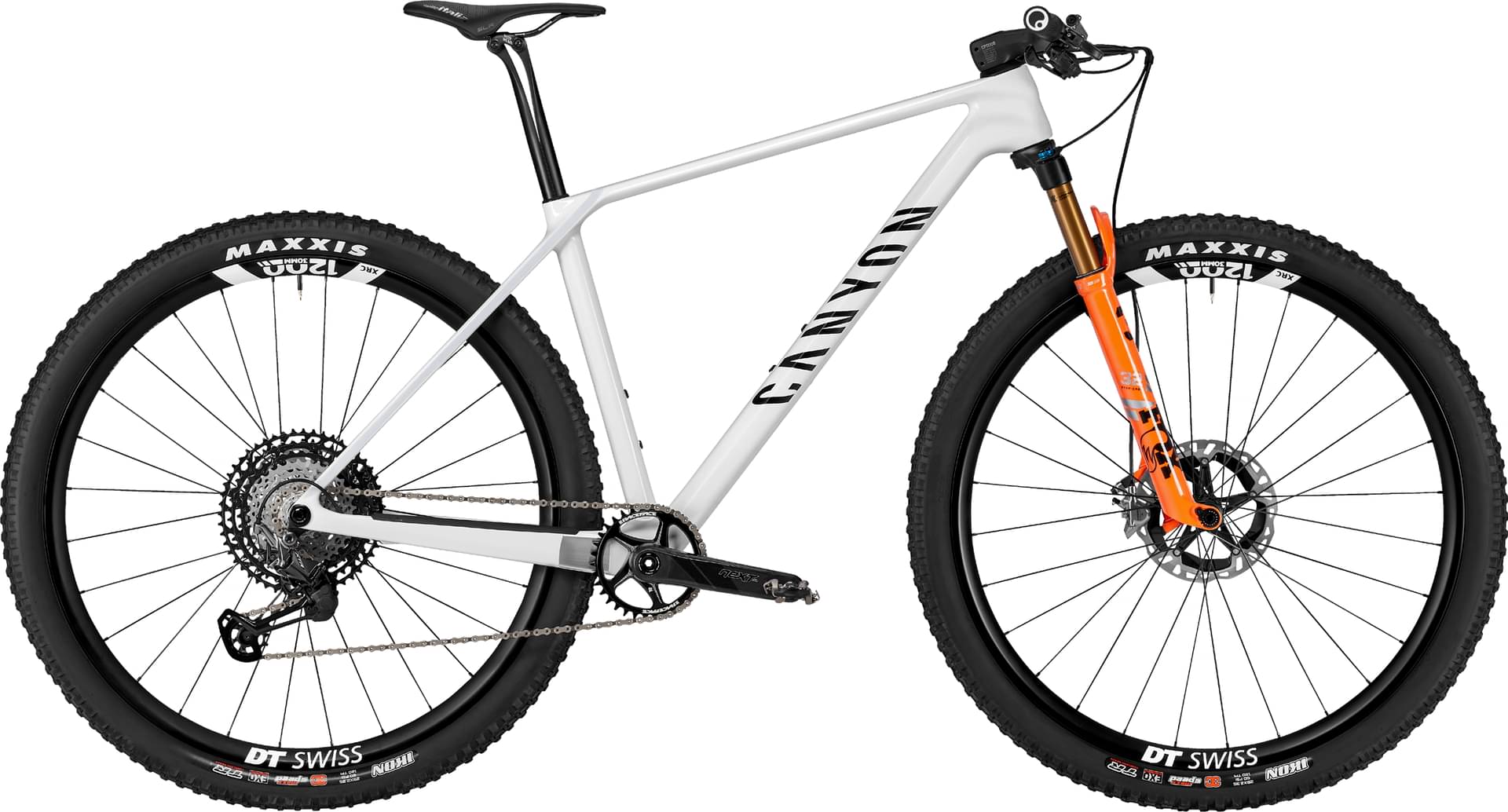

Canyon Exceed CF SLX MVDP 2024
2024 Mountain
Estimate price |
5,734$
Weight | 9.39 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XTR -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Exceed CF SLX, Superlight XC race hardtail, engineered for optimum stiffness-to-weight. 29 inch wheels, 100 mm forks, high-grade carbon for peak performance between the tapes or on the trails., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 32 Step-Cast Factory Remote, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 1.41 kg
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed, Cage length: long, Weight: 230 g
Shift Levers
Shimano XTR, 12-speed, Weight: 131 g
Cassette
Shimano XTR CS-M9101 12s 10-51, Number of sprockets: 12, Range: 10-51 12S
Crank
Race Face Next SL G5 Carbon 34T, Number of chainrings: 1
Bottom Bracket
Race Face Pressfit Cinch, Bottom bracket standard: PF 92, Weight: 69 g
Chain
Shimano CN-M9100 12s
Pedals
None included
Wheels
Rims
DT Swiss XRC 1200 Spline, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 799 g | DT Swiss XRC 1200 Spline, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 679 g
Tires
Maxxis Ikon EXO MaxxSpeed, Width: 2.35"
Brakes
Brakes
Shimano XTR M9100 | Shimano XTR M9110
Cockpit
Grips
Ergon GA20
Seat
Saddle
Selle Italia SLR KC Boost, Gender: Unisex, Weight: 136 g
Seatpost
Canyon VCLS 2.0, Our light and strong carbon seatpost. The revolutionary, adjustable floating seat clamp lets the saddle tilt so that it's always in contact, even when flexing., Clamp diameter: 30,9 mm, Material: Carbon (CF), Weight: 350 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.439 mm | 1.384 mm | 1.354 mm | 1.335 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 661 mm | 683 mm | 704 mm | 730 mm | 757 mm |
| Rake | 55 mm | 55 mm | 54 mm | 55 mm | 55 mm |
| Trail | 85 mm | 85 mm | 86 mm | 85 mm | 85 mm |
| Stack | 597 mm | 597 mm | 602 mm | 616 mm | 634 mm |
| Reach | 392 mm | 415 mm | 435 mm | 455 mm | 475 mm |
| Top Tube Length | 552 mm | 575 mm | 596 mm | 620 mm | 645 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 458 mm | 495 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 430 mm | 435 mm |
| Wheelbase | 1079 mm | 1102 mm | 1123 mm | 1154 mm | 1186 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 781 mm | 803 mm | 828 mm | 854 mm | 883 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
