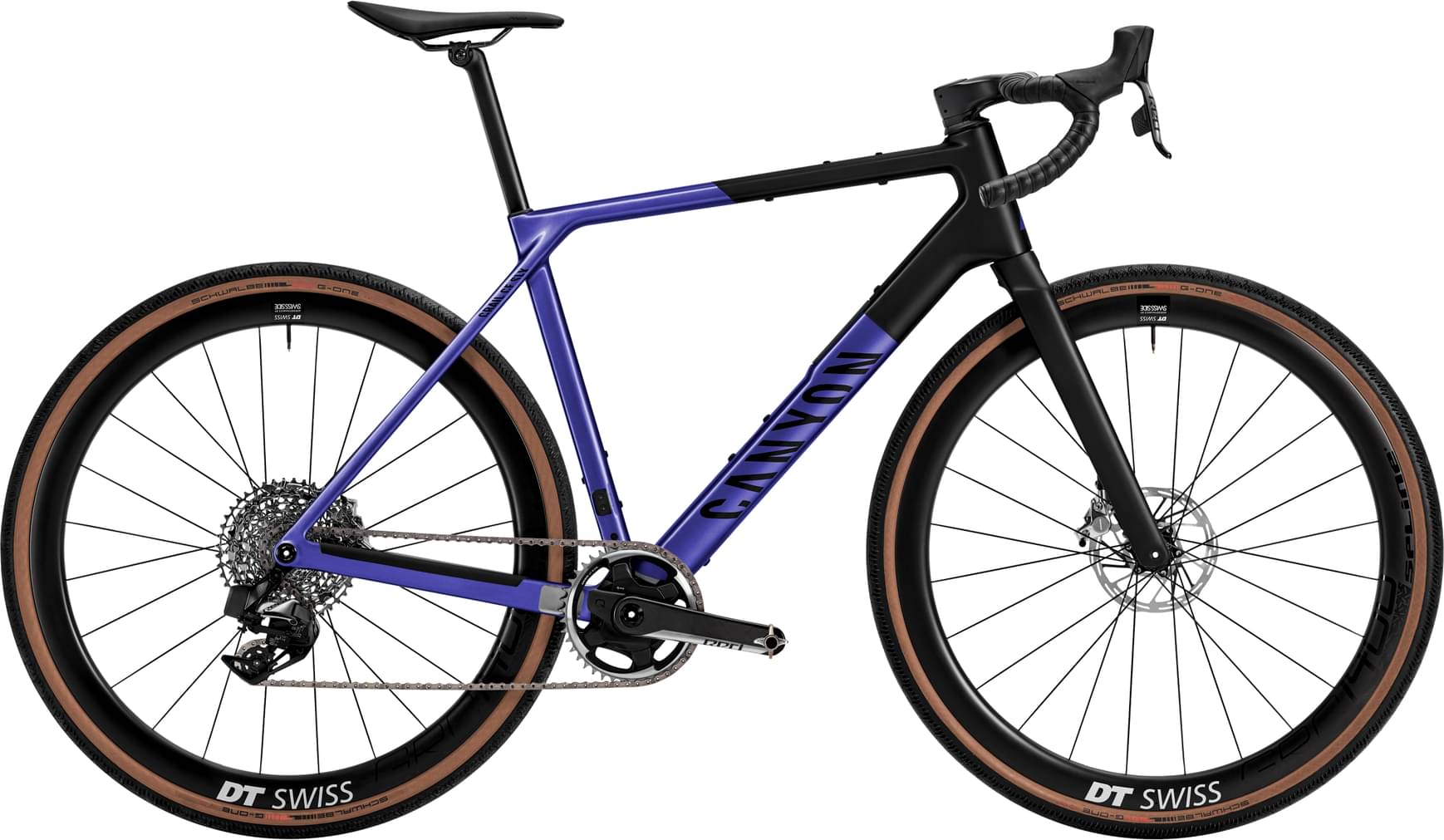

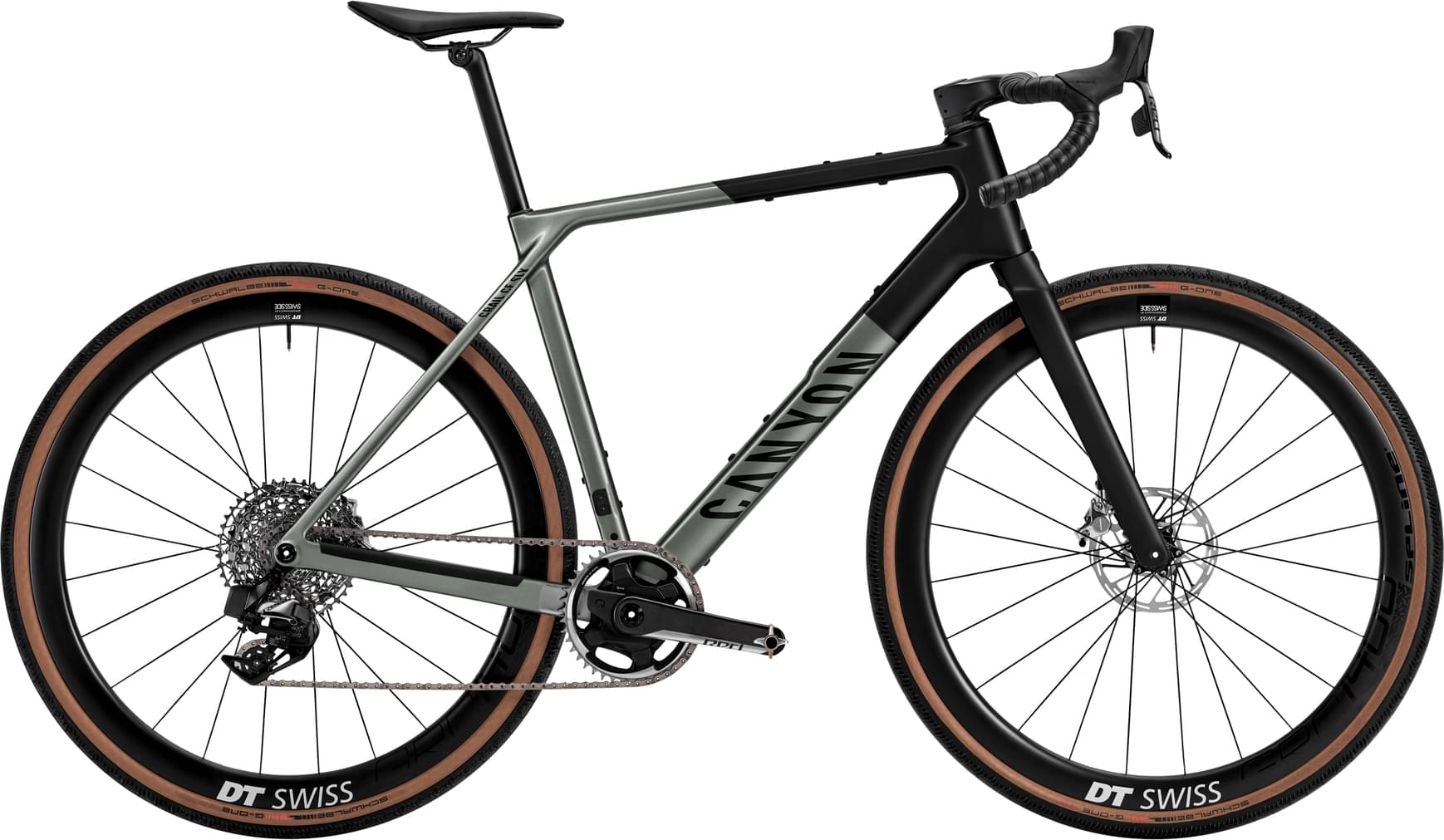

Canyon Grail CF SLX 9 AXS 2025
2025 Road
Estimate price |
8,142$
Weight | 8.14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED XPLR eTap, RED AXS -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes SRAM RED Hydraulic Disc
Sizing
Recommended size guide.
XS
167cm - 175cm
SM
172cm - 181cm
MD
179cm - 187cm
LG
185cm - 193cm
XL
190cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

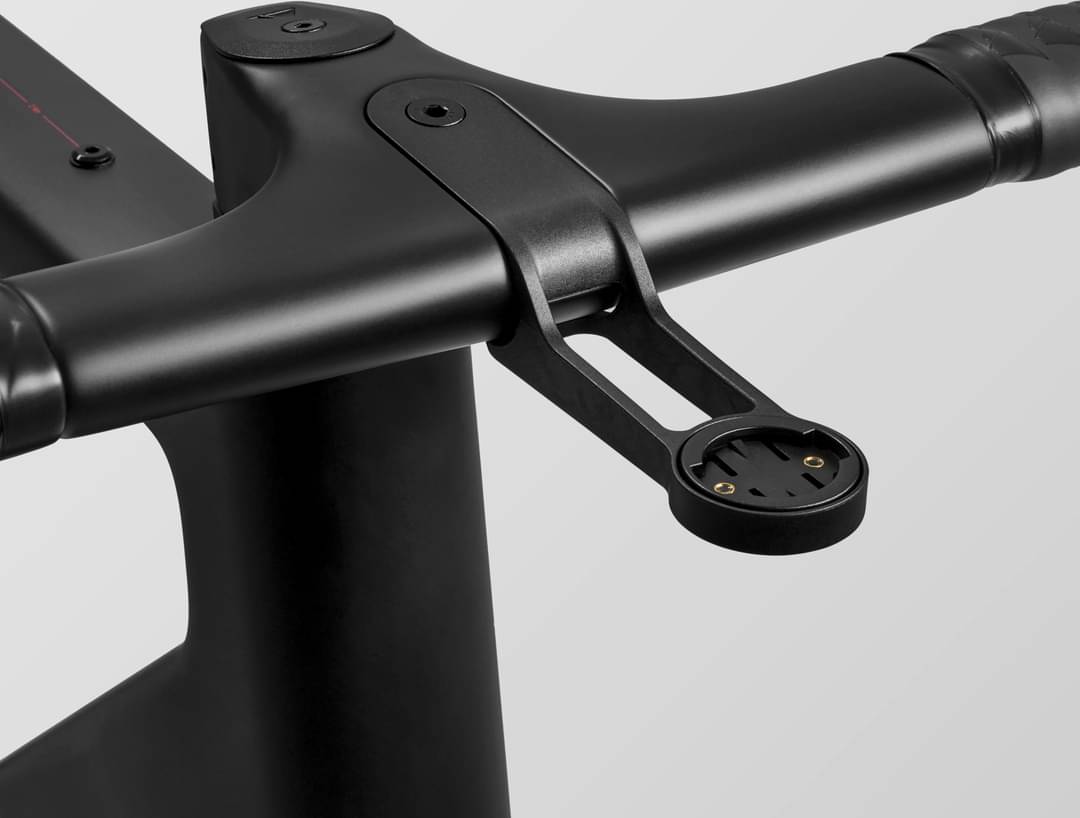

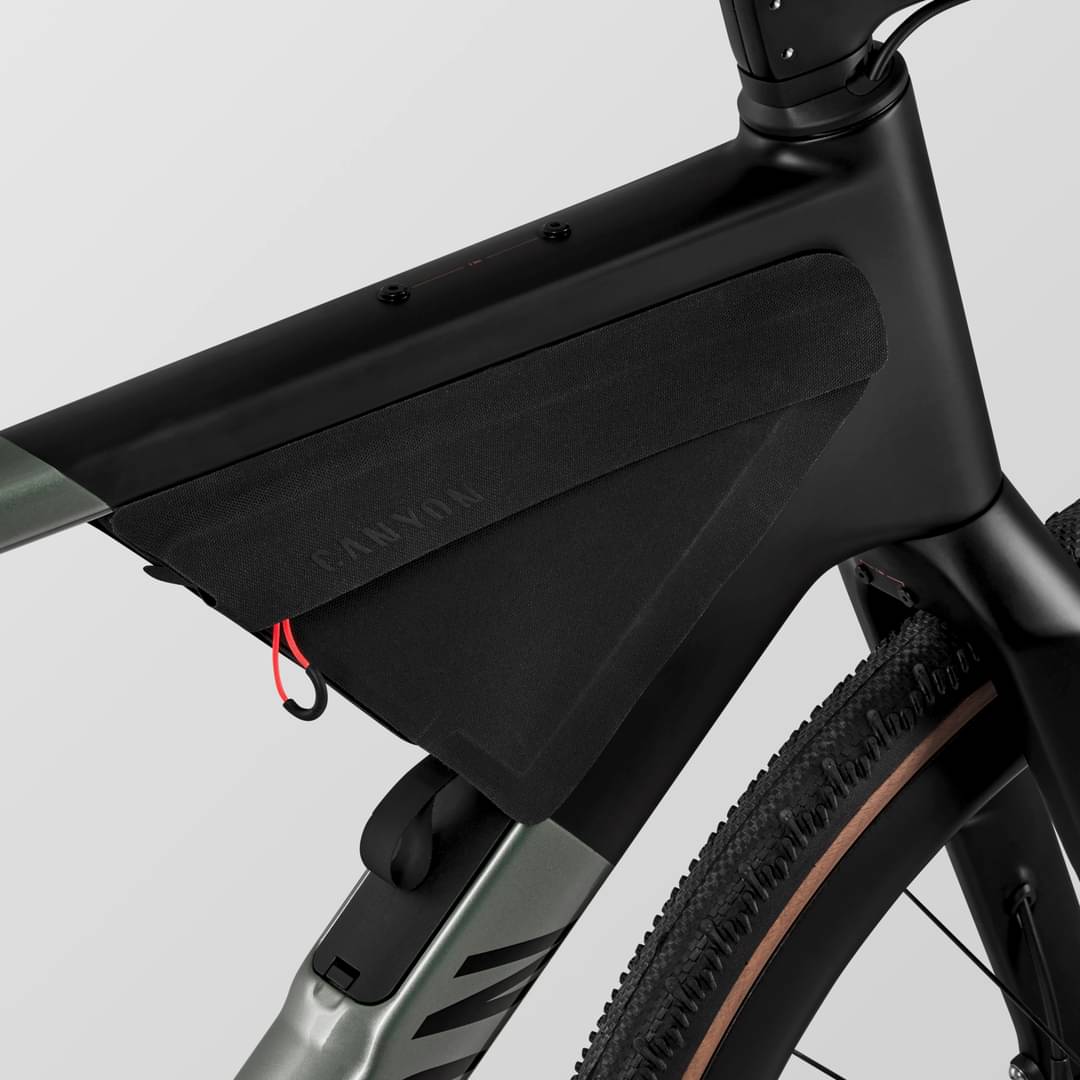

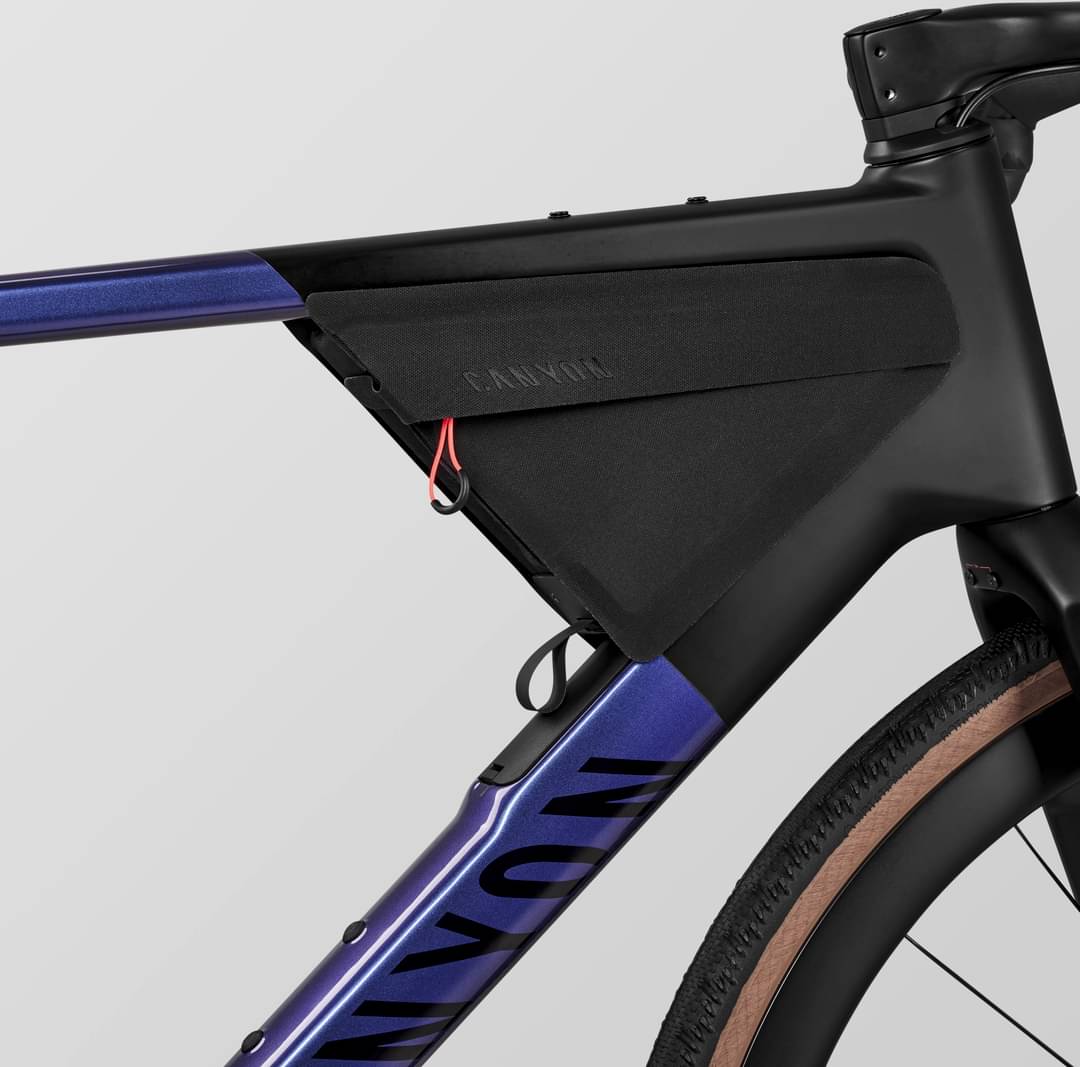

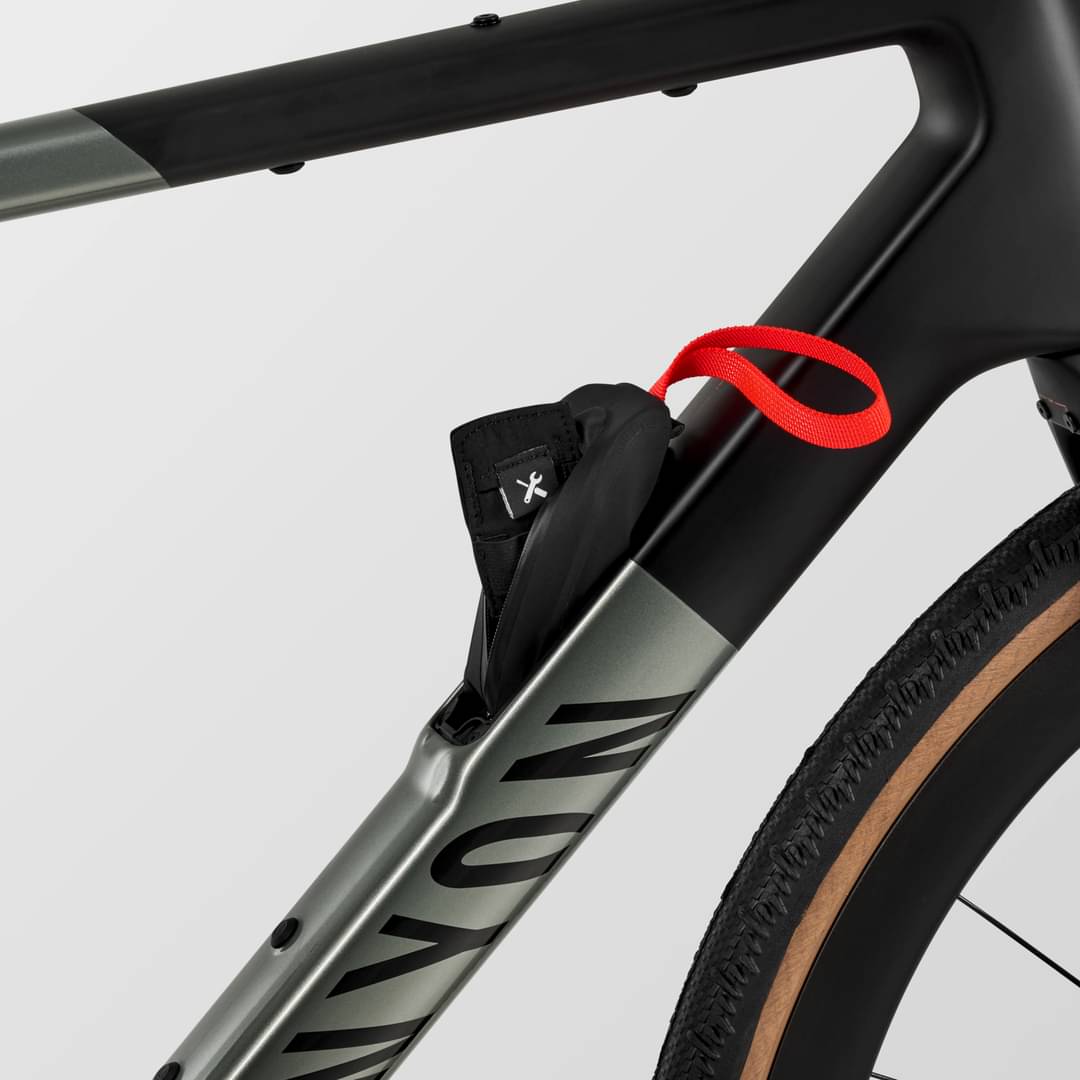

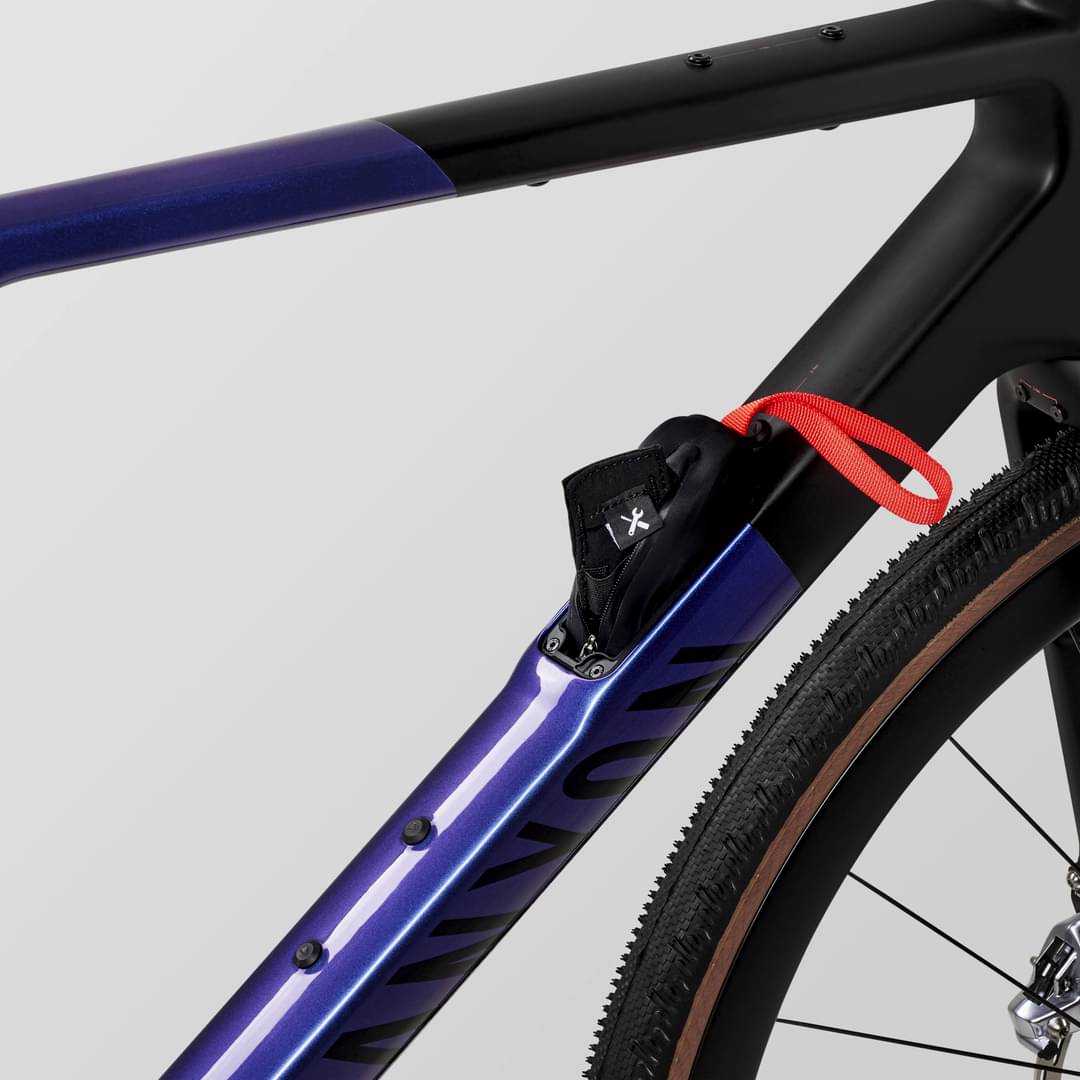

Canyon Grail CF SLX, Lightweight build of the latest-generation Grail gravel race bike. More capable geometry, aero tube forms, integrated LOAD down tube storage, top tube mounts and strapless bag compatibility., Axle dimension: 12x142 mm, Tyre clearance: 42 mm, Material: Carbon (CF), Weight: 1,135 g
Suspension Fork
Canyon FK0117 CF Disc, Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/4", Tyre clearance: 42 mm, Material: Carbon (CF), Weight: 472 g
Drivetrain
Rear Derailleur
SRAM Red XPLR eTap AXS D1, Weight: 296 g
Shift Levers
SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 605 g | SRAM RED eTap AXS HRD 12s, Number of pistons: 2, Weight: 450 g
Cassette
SRAM Rival XPLR XG-1251, 12-speed, 10-44T, Number of sprockets: 12, Range: 10-44 12S
Crank
SRAM RED AXS D1, Number of chainrings: 1
Bottom Bracket
SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 67 g
Chain
SRAM RED D1 12s, With signature flat-top design for quieter operation and increased strength and durability. And hard chrome plated inner link plates and rollers for reduced wear.
Pedals
None included
Wheels
Rims
DT Swiss GRC1400 Spline db, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 42 mm, Inner width: 24 mm, Rim material: Carbon, Weight: 750 g | DT Swiss GRC1400 Spline db XD-R, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 42 mm, Inner width: 24 mm, Rim material: Carbon, Weight: 750 g
Tires
Schwalbe G-One RS Evo, Width: 40 mm, Weight: 445 g
Brakes
Brakes
SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 605 g | SRAM RED eTap AXS HRD 12s, Number of pistons: 2, Weight: 450 g
Brake Levers
SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 605 g | SRAM RED eTap AXS HRD 12s, Number of pistons: 2, Weight: 450 g
Seat
Saddle
Fizik Vento Argo X3, Gender: Unisex, Weight: 213 g
Seatpost
Canyon SP0072, Material: Carbon (CF), Weight: 133 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.465 mm | 1.444 mm | 1.454 mm | 1.438 mm | 1.436 mm | 1.455 mm | 1.443 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 607 mm | 610 mm | 620 mm | 643 mm | 666 mm | 678 mm | 704 mm |
| Rake | 51 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 76 mm | 65 mm | 62 mm | 62 mm | 62 mm | 60 mm | 60 mm |
| Stack | 545 mm | 556 mm | 573 mm | 591 mm | 613 mm | 633 mm | 655 mm |
| Reach | 372 mm | 385 mm | 394 mm | 411 mm | 427 mm | 435 mm | 454 mm |
| Top Tube Length | 533 mm | 550 mm | 564 mm | 586 mm | 609 mm | 623 mm | 648 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.8 ° | 71.8 ° |
| Head Tube Length | 123 mm | 129 mm | 145 mm | 163 mm | 187 mm | 207 mm | 230 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1021 mm | 1024 mm | 1034 mm | 1057 mm | 1080 mm | 1092 mm | 1118 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 745 mm | 766 mm | 789 mm | 813 mm | 838 mm | 863 mm | 901 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 169 cm | 175 cm | 181 cm | 187 cm | 193 cm | 199 cm | cm |
