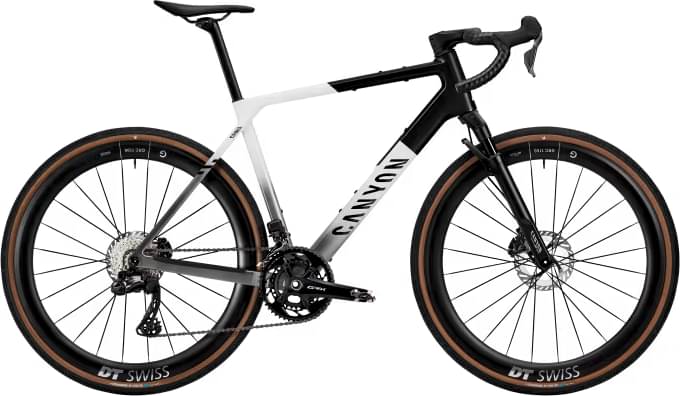

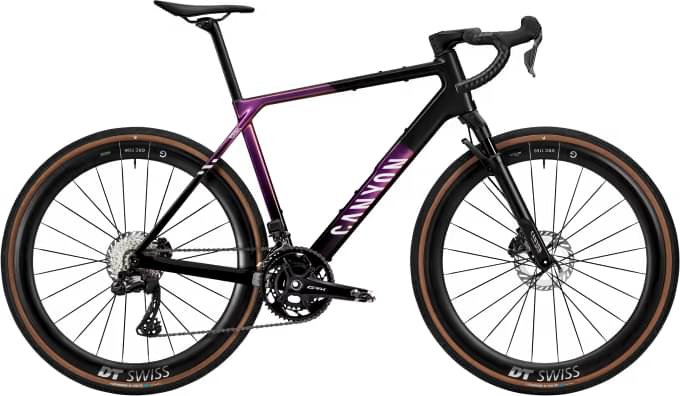

Canyon Grail CFR Di2 RIFT 2026

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- Road
- |
- Gravel
Frame Carbon
Travel Front 40mm
Fork DT Swiss
Groupset GRX 800, GRX Di2
Suspension Hardtail
Drivetrain 2 × 12 Electronic
Brakes Shimano GRX 800 Hydraulic Disc

Sizing

Recommended size guide.

XS
167cm - 175cm
SM
172cm - 181cm
MD
179cm - 187cm
LG
185cm - 193cm
XL
190cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

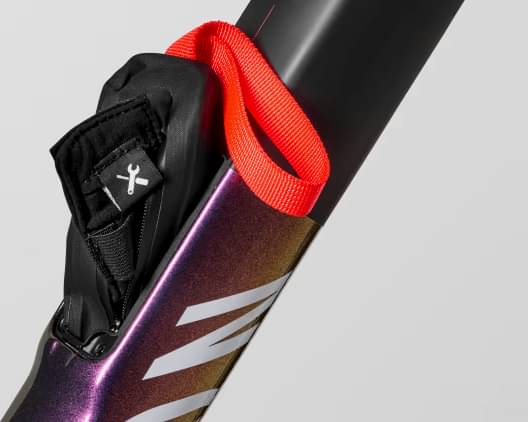

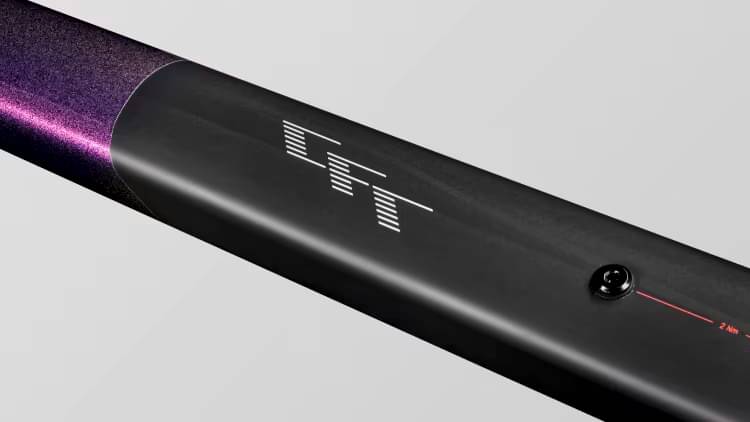

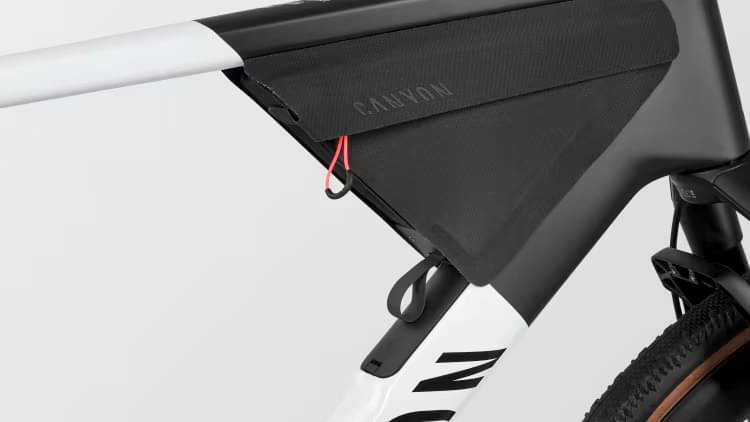

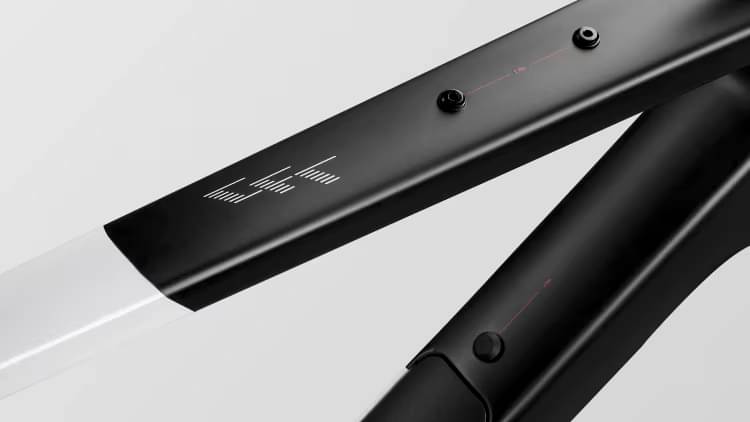

Canyon Grail CFR, Superlight pro-level build of the latest-generation Grail gravel race bike. Benchmark stiffness-to-weight, more capable geometry, aero tube forms, integrated LOAD down tube storage, top tube mounts and strapless bag compatibility., Axle dimension: 12x142 mm, Tyre clearance: 42 mm, Material: Carbon (CFR), Weight: 992 g

Suspension Fork

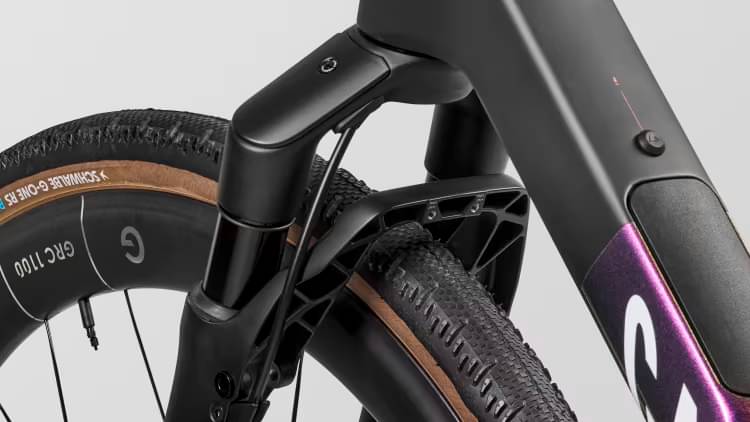

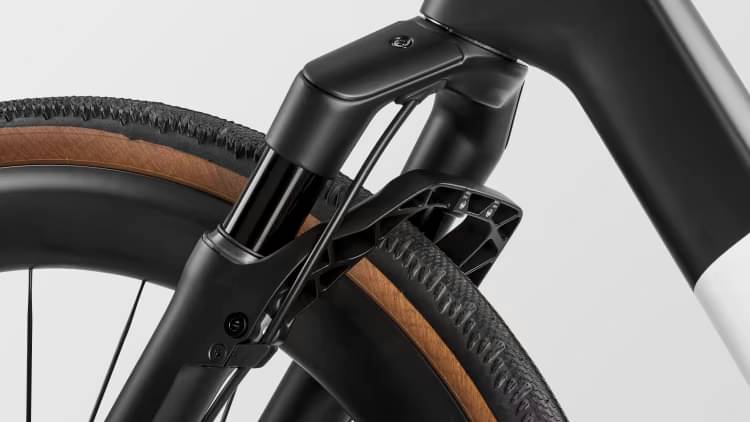

DT Swiss F132 One, Axle dimension: 12x100 mm, Stanchion Diameter: 32 mm, Travel: 40 mm, Fork steer tube diameter: 1 1/8", Tyre clearance: 50 mm, Weight: 1,396 g

Drivetrain

Rear Derailleur

Shimano GRX Di2 RD-RX825, Weight: 290 g

Front Derailleur

Shimano GRX Di2 FD-RX825, Weight: 130 g

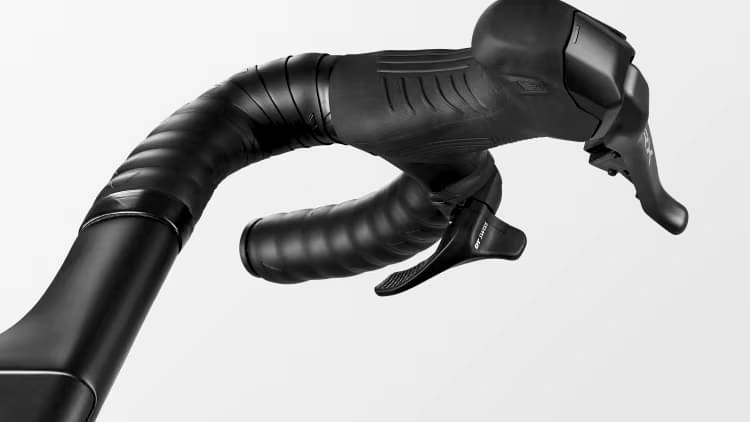

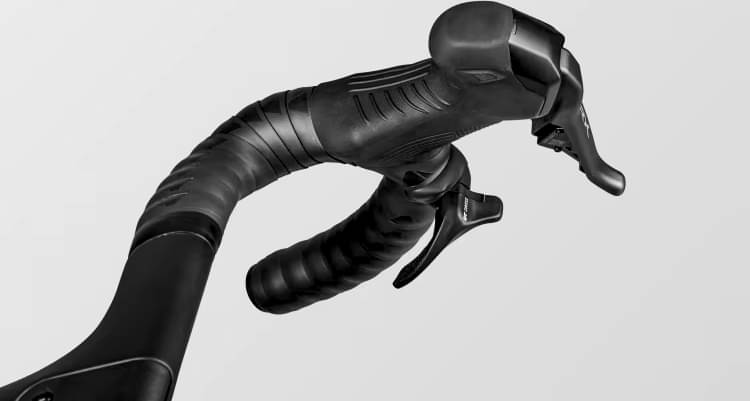

Shift Levers

Shimano GRX Di2 Dual Control ST-RX825, Number of pistons: 2, Weight: 389 g

Cassette

Shimano Ultegra CS-R8100, Number of sprockets: 12, Range: 11-34

Crank

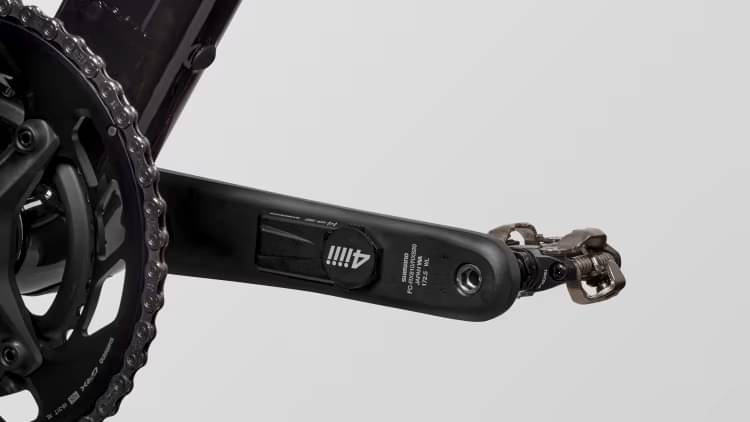

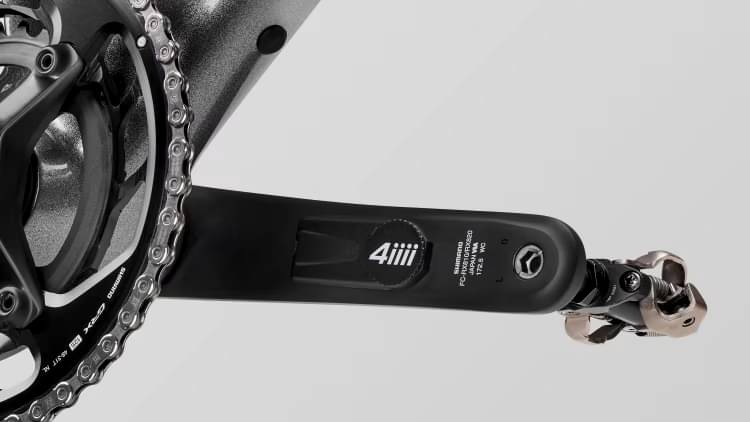

Shimano RX820 FC-RX820 4iiii PRECISION 3+ Powermeter, Number of chainrings: 2

Bottom Bracket

Shimano Pressfit BB72, Bottom bracket standard: PF 86,5, Weight: 65 g

Pedals

None included

Wheels

Rims

DT Swiss GRC 1100, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 50 mm, Inner width: 24 mm, Rim material: Carbon, Weight: 747 g | DT Swiss GRC 1100, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 50 mm, Inner width: 24 mm, Rim material: Carbon, Weight: 904 g

Tires

Schwalbe G-One RS PRO EVO, Width: 40 mm, Weight: 437 g

Brakes

Shimano GRX Di2 Dual Control ST-RX825, Number of pistons: 2, Weight: 389 g

Brake Levers

Shimano GRX Di2 Dual Control ST-RX825, Number of pistons: 2, Weight: 389 g

Seat

Saddle

Fizik Vento Argo X1, Width: 140 mm, Gender: Unisex, Weight: 179 g

Seatpost

Canyon SP0096-01, Setback: 10 mm, Material: Carbon (CF), Weight: 173 g

Fit data

Geometry

Numbers for sizing and ride feel.

Size	XXS	XS	SM	MD	LG	XL	XXL
Stack Reach Ratio	1.465 mm	1.444 mm	1.454 mm	1.438 mm	1.436 mm	1.455 mm	1.443 mm
Bottom Bracket Height	274 mm	274 mm	274 mm	274 mm	274 mm	274 mm	274 mm
Front Center	607 mm	610 mm	620 mm	643 mm	666 mm	678 mm	704 mm
Rake	51 mm	52 mm	52 mm	52 mm	52 mm	52 mm	52 mm
Trail	76 mm	65 mm	62 mm	62 mm	62 mm	60 mm	60 mm
Stack	545 mm	556 mm	573 mm	591 mm	613 mm	633 mm	655 mm
Reach	372 mm	385 mm	394 mm	411 mm	427 mm	435 mm	454 mm
Top Tube Length	533 mm	550 mm	564 mm	586 mm	609 mm	623 mm	648 mm
Seat Tube Angle	73.5 °	73.5 °	73.5 °	73.5 °	73.5 °	73.5 °	73.5 °
Seat Tube Length	420 mm	450 mm	480 mm	510 mm	540 mm	570 mm	600 mm
Head Tube Angle	69.5 °	71 °	71.5 °	71.5 °	71.5 °	71.8 °	71.8 °
Head Tube Length	123 mm	129 mm	145 mm	163 mm	187 mm	207 mm	230 mm
Chainstay Length	425 mm	425 mm	425 mm	425 mm	425 mm	425 mm	425 mm
Wheelbase	1021 mm	1024 mm	1034 mm	1057 mm	1080 mm	1092 mm	1118 mm
Bottom Bracket Drop	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm
Standover Height	745 mm	766 mm	789 mm	813 mm	838 mm	863 mm	901 mm
Front Travel	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm
Wheels	700	700	700	700	700	700	700
Rider Max Height	169 cm	175 cm	181 cm	187 cm	193 cm	199 cm	cm
