Canyon Grand Young Hero 27.5″ 2025
2025 Youth
Estimate price |
813$
Weight | 13.36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour X1
-
Groupset CUES Di2 -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

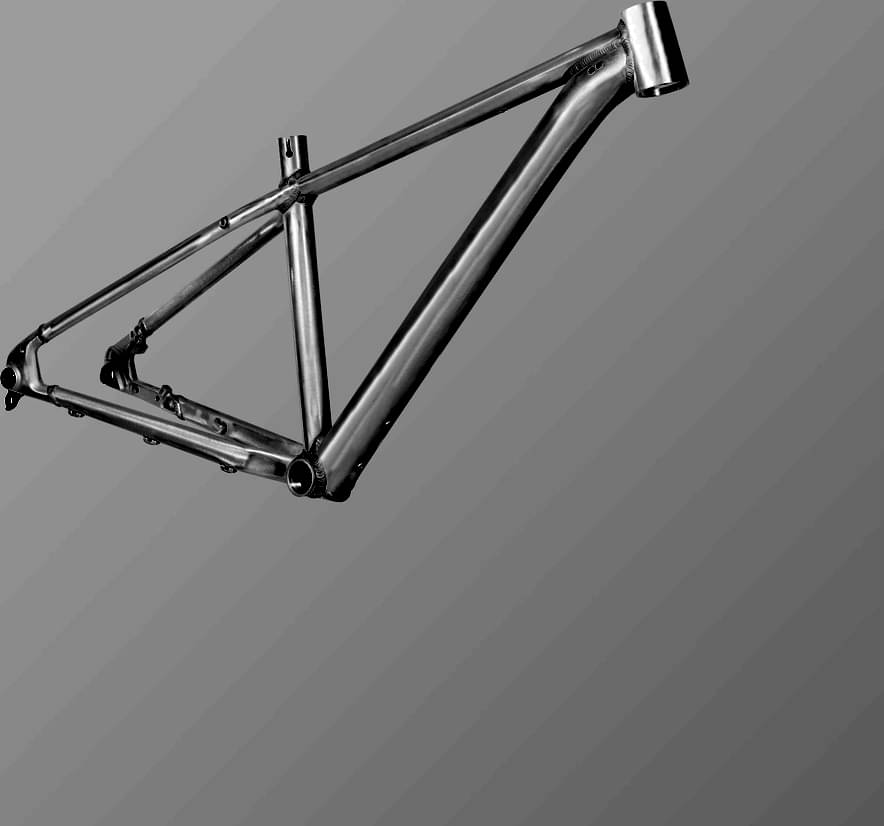

Canyon Grand Canyon AL YH, Aluminium hardtail frame specially designed for younger, smaller riders., Axle dimension: 12x148 mm, Material: Aluminium (AL), Weight: 1,989 g
Suspension Fork

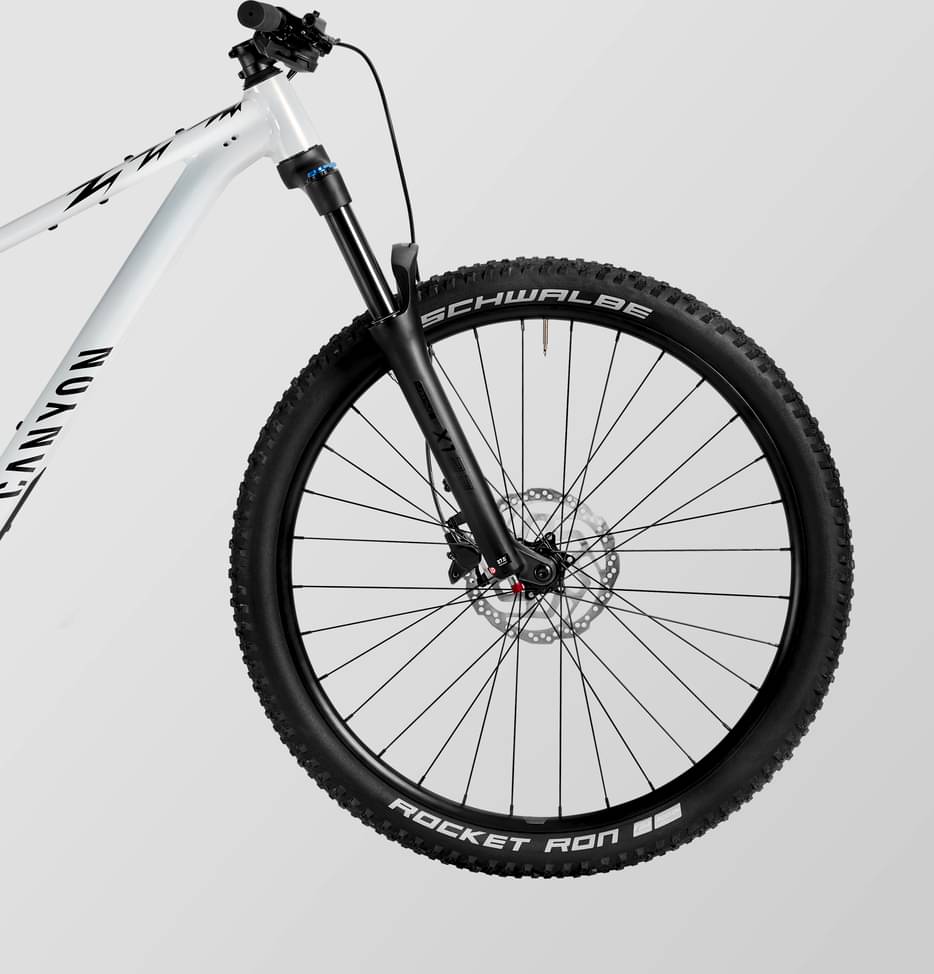

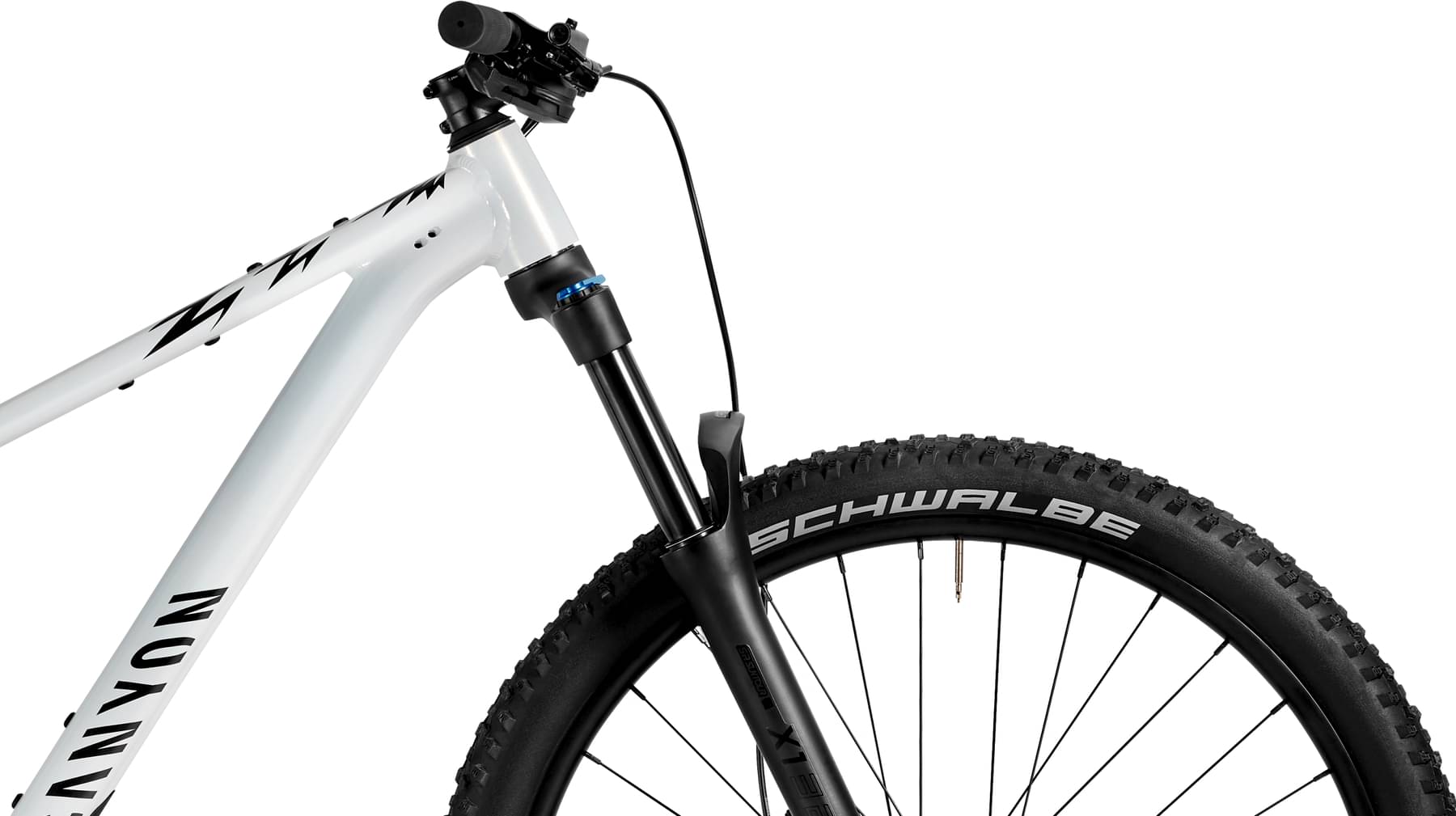

SR Suntour X1 AIR, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2,370 g
Drivetrain
Rear Derailleur
Shimano CUES 10-speed, Cage length: short, Weight: 348 g
Shift Levers
Shimano CUES SL-U6050 10s, Weight: 131 g
Cassette
Shimano CUES LG300-10, Number of sprockets: 10, Range: 11-48
Crank
Samox YH, Number of chainrings: 1
Bottom Bracket
Samox BSA, Bottom bracket standard: BSA 68/73
Chain
Shimano LG500
Pedals
None included
Wheels
Rims
Canyon XC 25 AL, Axle dimension: 15X100 mm, Rotor mount: Center Lock, Rim material: Aluminium, Weight: 937 g | Canyon XC 25 AL, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim material: Aluminium, Weight: 1,069 g
Tires
Schwalbe Rocket Ron Performance ADDIX, Width: 2.25", Weight: 645 g
Brakes
Brakes
Shimano MT200
Cockpit
Stem
ST0039, Robust aluminium stem., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
HB0072, Stiff, robust, ergonomic aluminium MTB handlebar., Clamping diameter: 31,8 mm, Width: 760 mm, Rise: 18 mm
Grips
Iridium
Headset
Acros AZX-214
Seat
Saddle
VELO VL-5120
Seatpost
SP2019, Clamp diameter: 31,6 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS |
|---|---|---|
| Stack Reach Ratio | 1.469 mm | 1.432 mm |
| Front Center | 676 mm | 702 mm |
| Rake | 46 mm | 46 mm |
| Stack | 573 mm | 587 mm |
| Reach | 390 mm | 410 mm |
| Top Tube Length | 543 mm | 567 mm |
| Seat Tube Angle | 75 ° | 75 ° |
| Seat Tube Length | 387 mm | 387 mm |
| Head Tube Angle | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm |
| Chainstay Length | 425 mm | 425 mm |
| Wheelbase | 1096 mm | 1122 mm |
| Bottom Bracket Drop | 49 mm | 49 mm |
| Standover Height | 741 mm | 746 mm |
| Front Travel | 120 mm | 120 mm |
| Wheels | 27" | 27" |
| Rider Max Height | 159 cm | cm |
