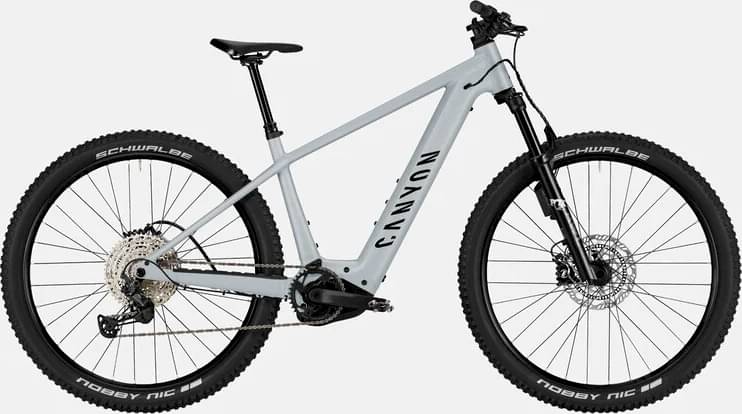

Canyon Grand :ON 9 2024
2024 E-bike
Estimate price |
4,931$
Weight | 24.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Fox AWL
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 182cm
LG
180cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon:ON AL, Axle dimension: 12x148 mm, Material: Aluminium (AL)

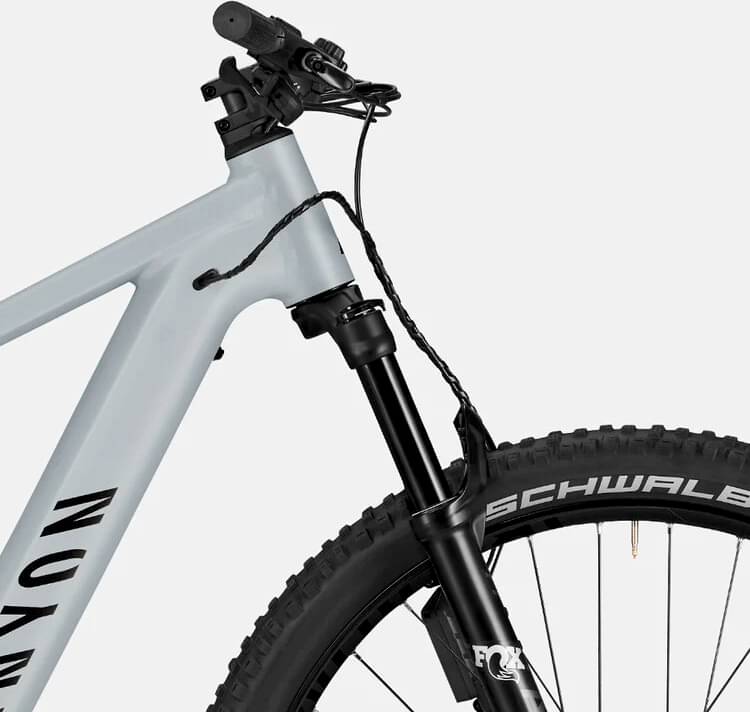

Suspension Fork
FOX 34 AWL, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 51 mm, Weight: 1.56 kg
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s, Weight: 139 g
Cassette
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S
Crank
FSA 745 E-Bike Crank for Bosch Gen4
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100
Chain Guide
Canyon GP0432-01 Chain Guide
Wheels
Rims
Rodi Tryp 30 12x148, Rotor mount: IS 6-bolt, Weight: 1.16 kg | Rodi Tryp 30 15x110, Rotor mount: IS 6-bolt, Weight: 1.09 kg
Tires
Schwalbe Nobby Nic Performance, 2.6, Width: 2.6"

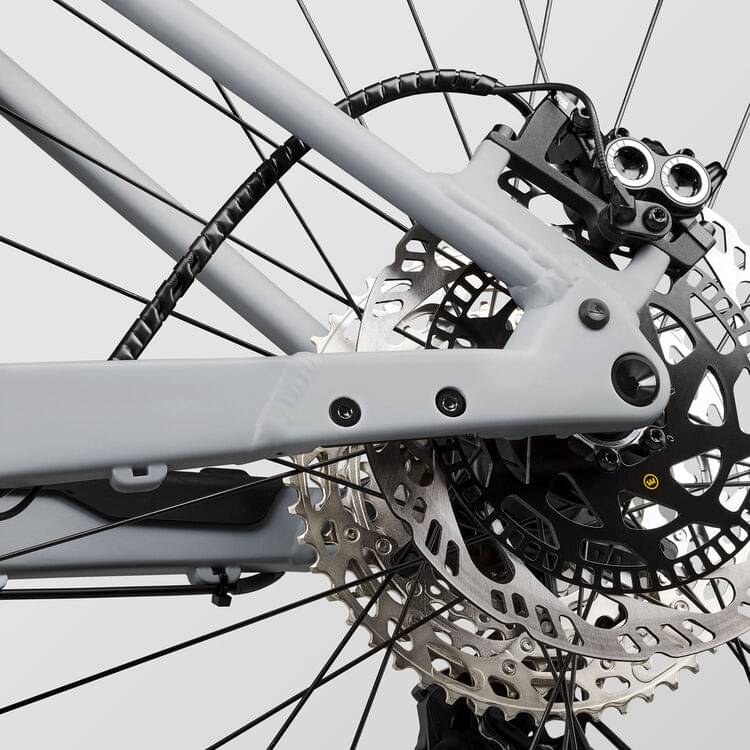

Brakes
Brakes

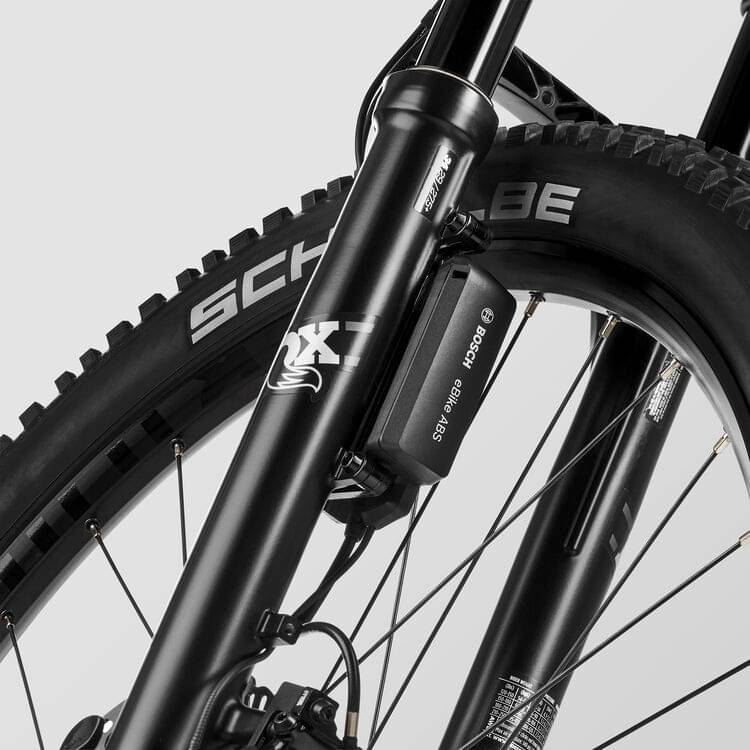

Magura CTE ABS, Number of pistons: 4
Cockpit
Stem
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum., Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 20 mm
Grips
Canyon Lock-On Grips
Seat
Saddle
Fizik Terra Alpaca X5, Weight: 230 g
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g
Motor & Battery
Motor

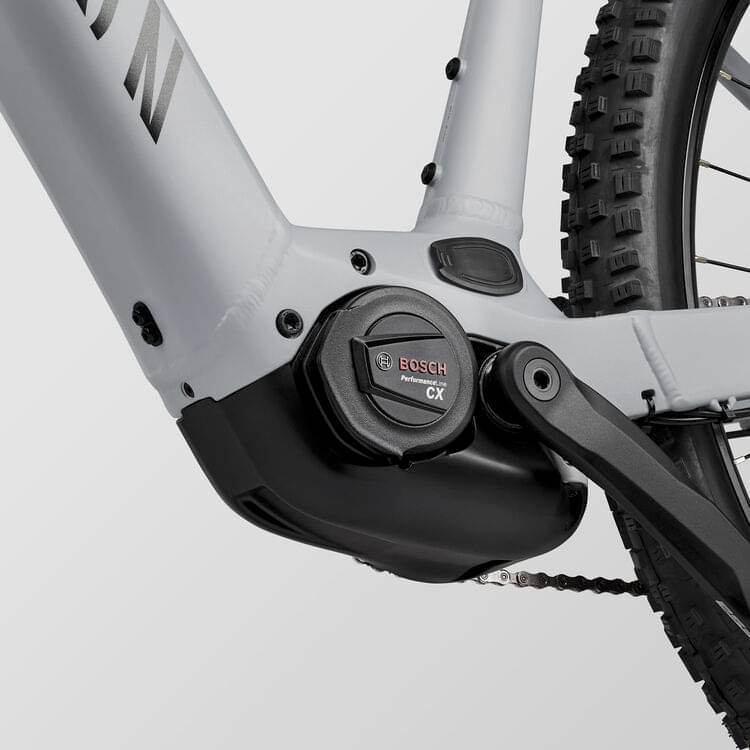

Bosch Performance Line CX
Battery
Bosch PowerTube 750Wh
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.522 mm | 1.469 mm | 1.421 mm | 1.376 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 723 mm | 753 mm | 783 mm | 814 mm |
| Rake | 55 mm | 55 mm | 55 mm | 56 mm |
| Trail | 92 mm | 92 mm | 92 mm | 91 mm |
| Stack | 647 mm | 661 mm | 675 mm | 688 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 598 mm | 627 mm | 656 mm | 685 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 395 mm | 440 mm | 485 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1175 mm | 1206 mm | 1236 mm | 1267 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 782 mm | 792 mm | 823 mm | 837 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 171 cm | 182 cm | 192 cm | cm |
