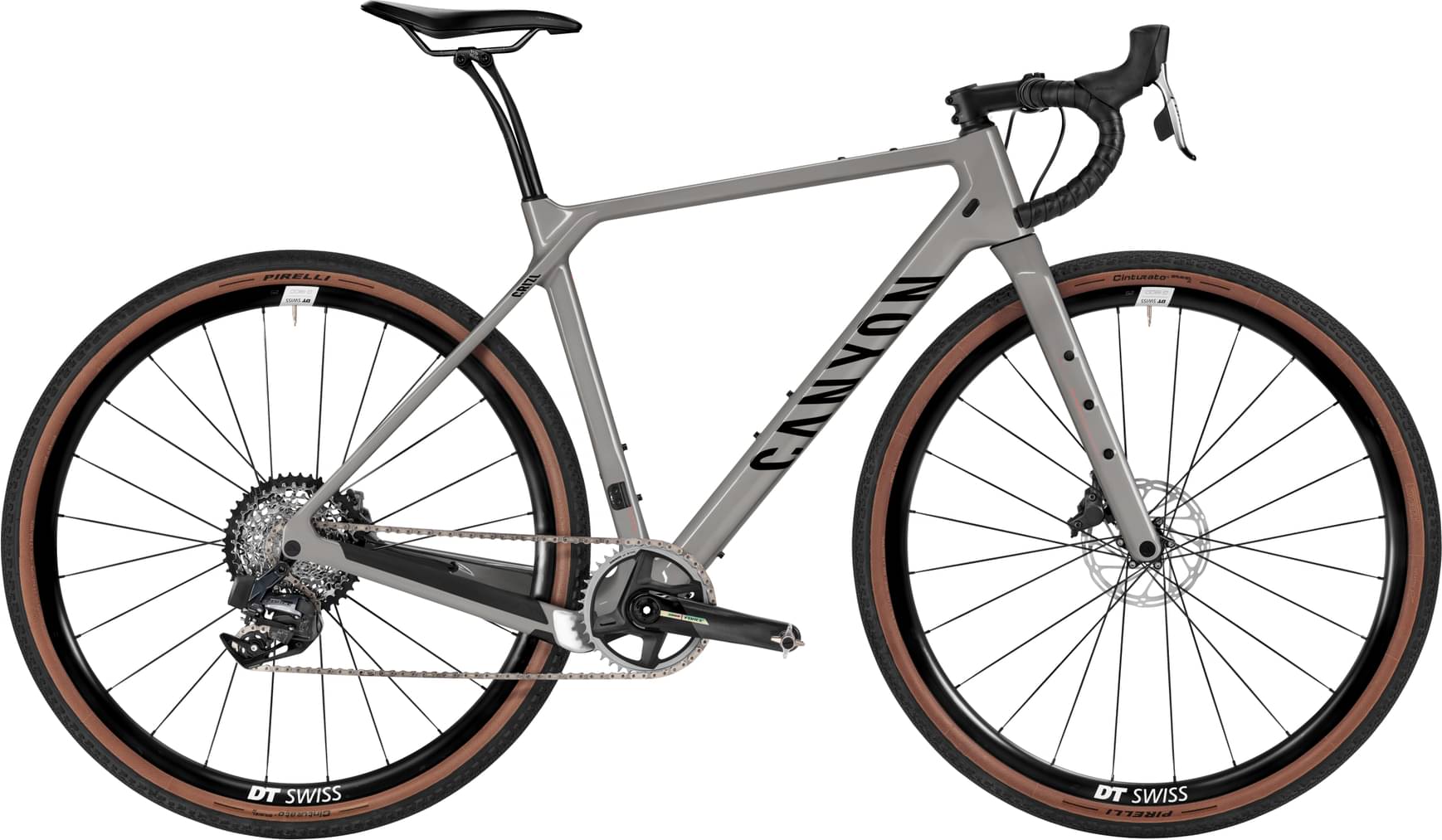

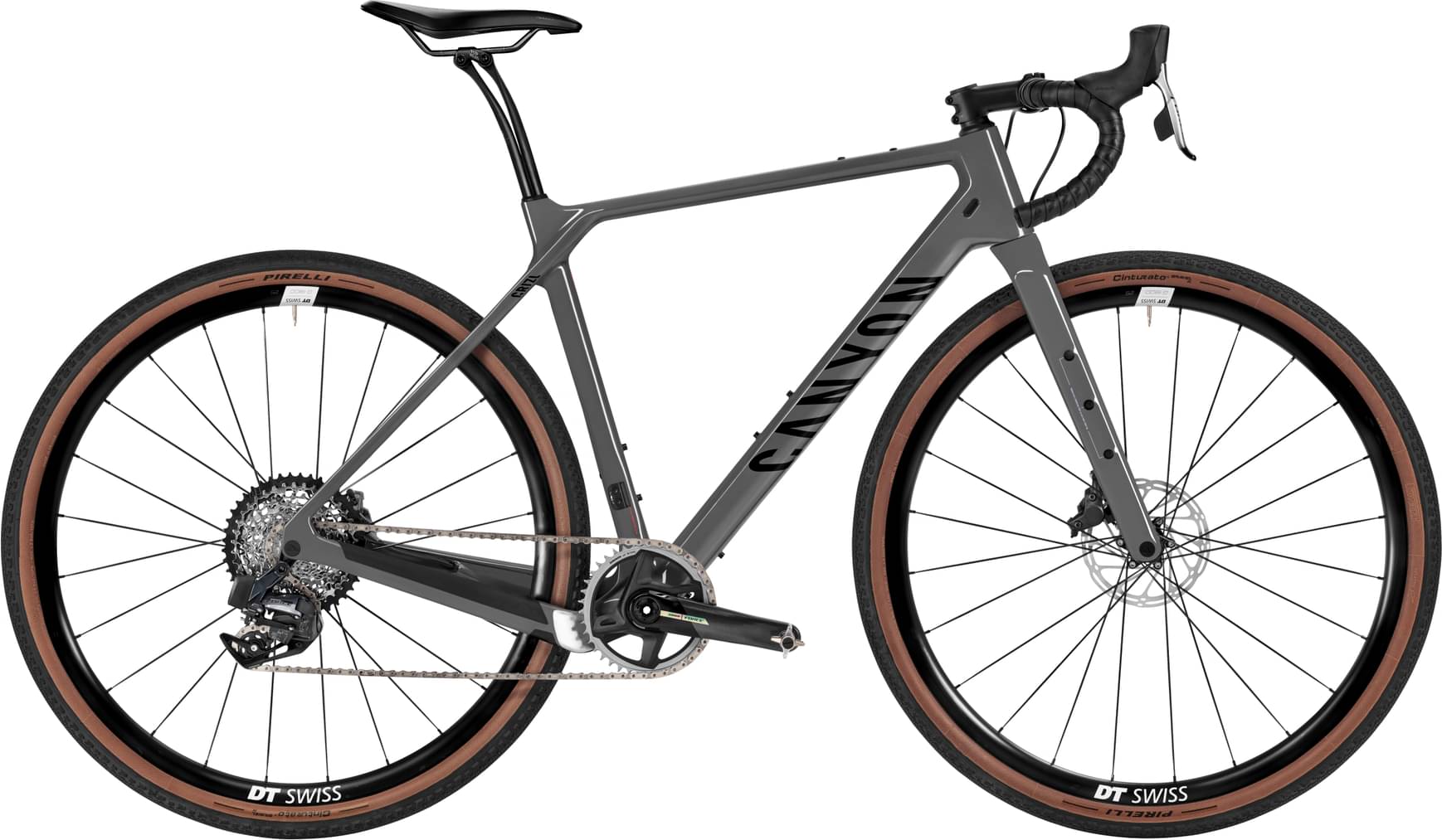

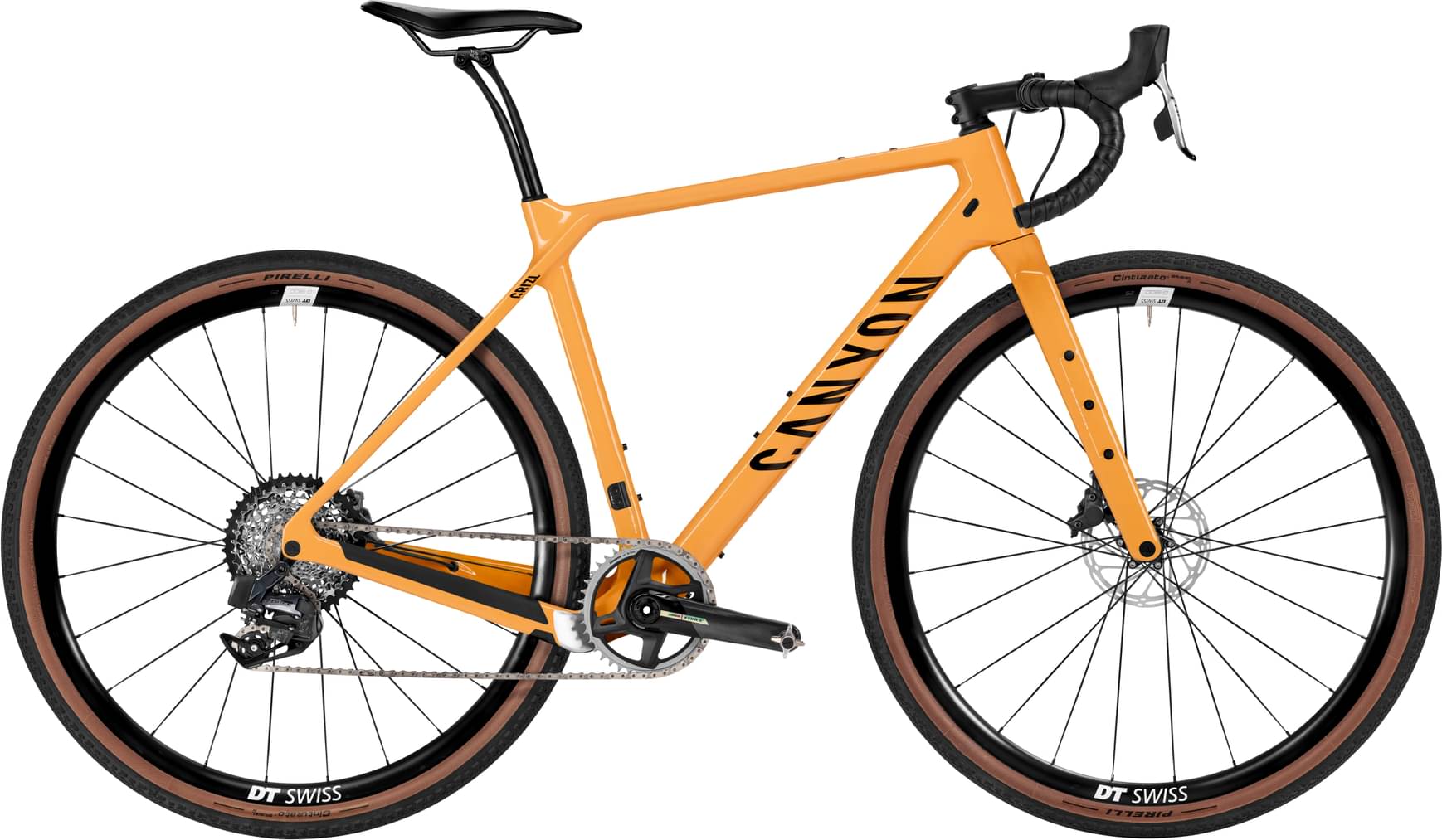

Canyon Grizl CF SL 8 AXS 2025
2025 Road
Estimate price |
4,587$
Weight | 9.08 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force XPLR eTap -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Force Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

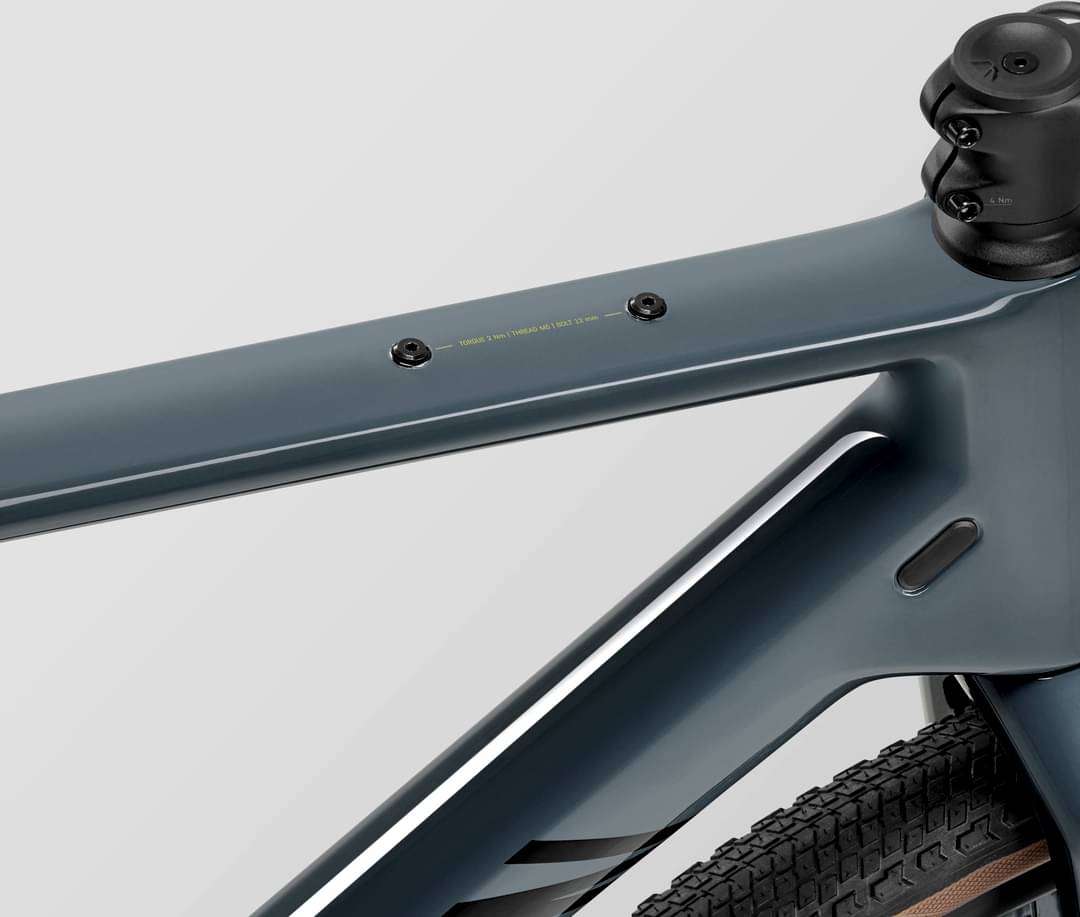

Canyon Grizl CF SL, Light robust carbon frame with Gravel Pro geometry, 50 mm tyre clearance, and extended wheelbase for extra off-road stability., Axle dimension: 12x142 mm, Tyre clearance: 50 mm, Material: Carbon (CF), Weight: 1,030 g
Suspension Fork

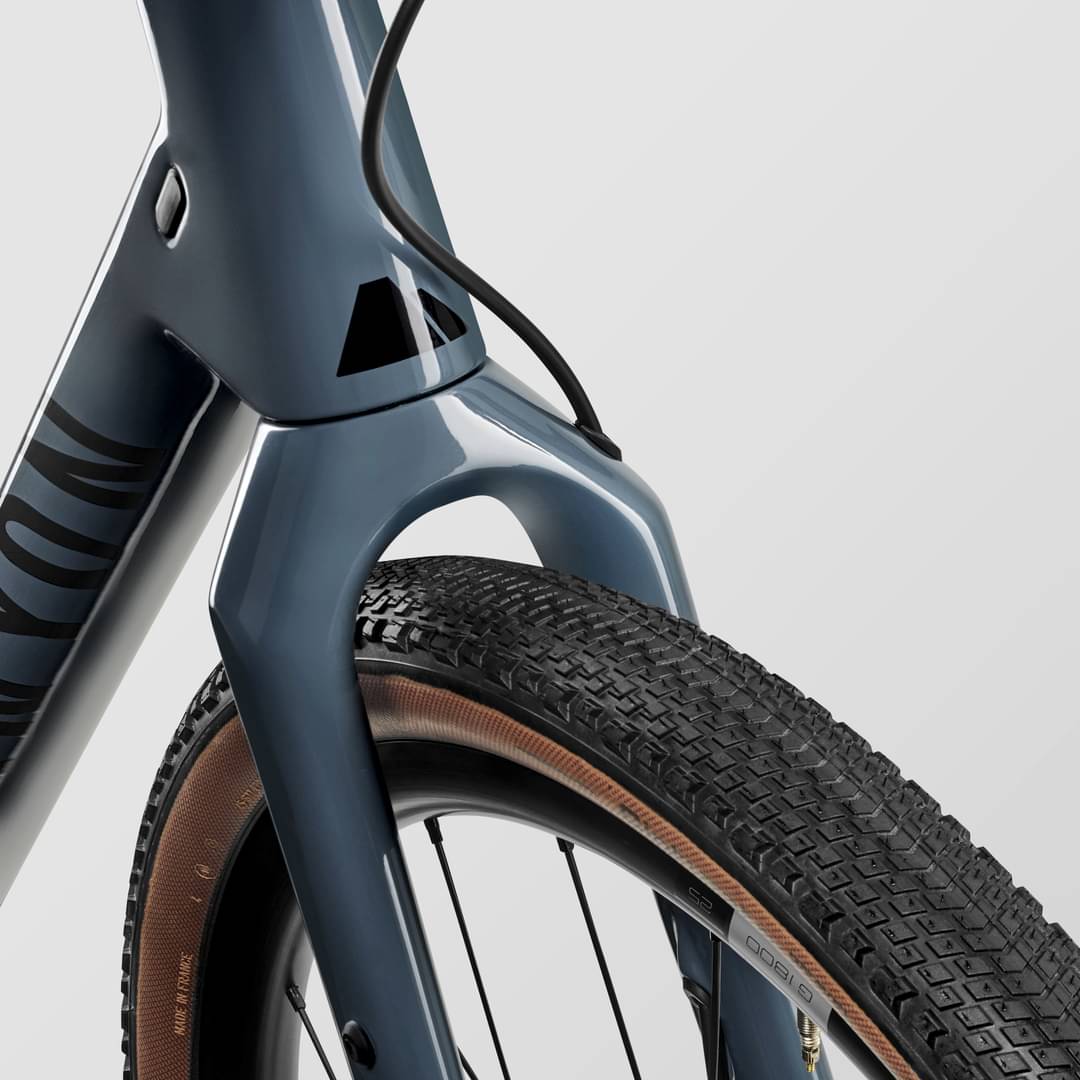

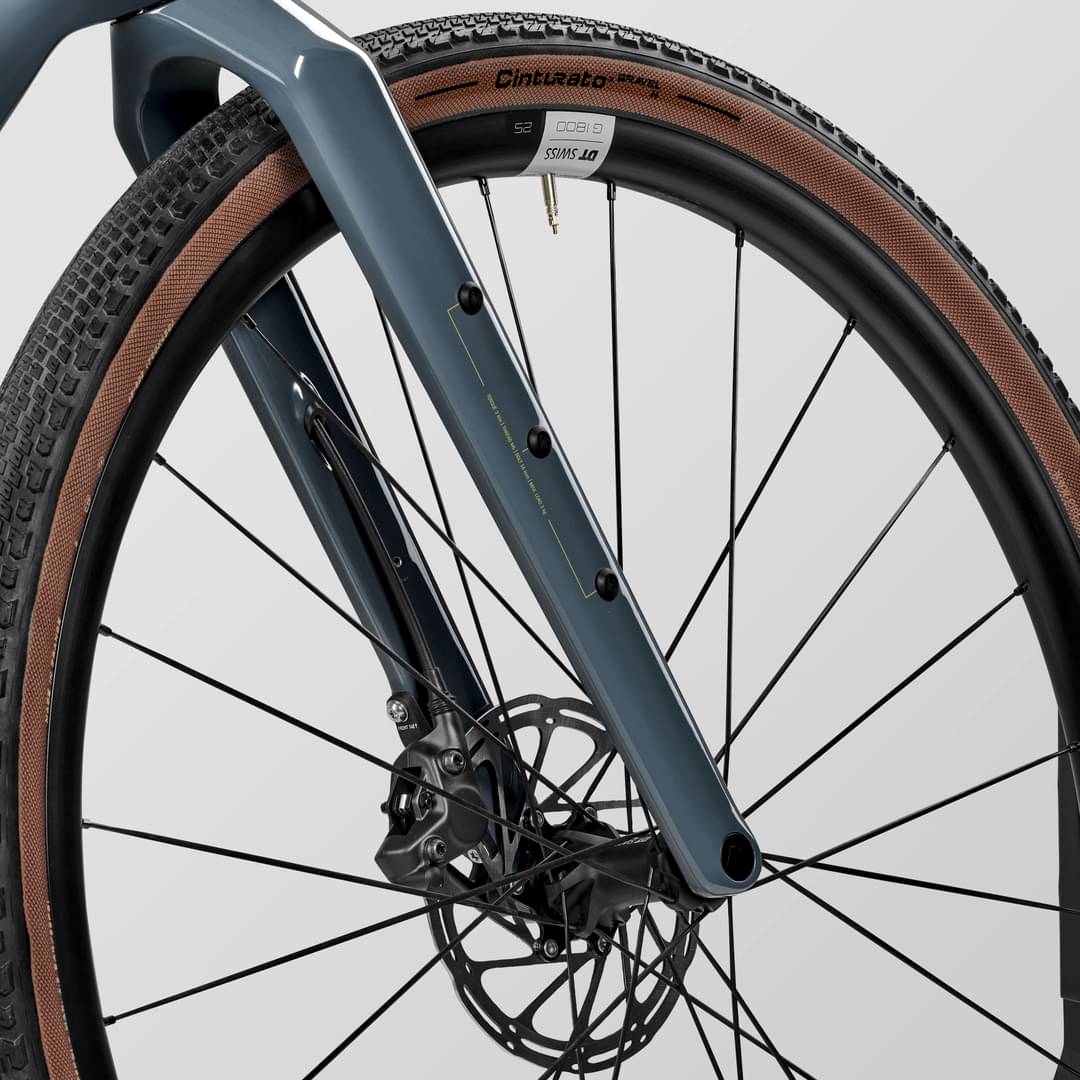

Canyon FK0087 CF Disc, Light, robust carbon fork with 3-screw mounting points on each side for attaching bottle cages and Anything Cages., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/4", Tyre clearance: 54 mm, Material: Carbon (CF), Weight: 518 g
Drivetrain
Rear Derailleur
SRAM Force XPLR eTap AXS, Weight: 340 g
Shift Levers
SRAM Force eTap AXS, 12-speed, Weight: 472 g | SRAM Force eTap AXS, 12-speed, Weight: 489 g
Cassette
SRAM Force XPLR XG-1271, 12-speed, 10-44, Number of sprockets: 12, Range: 10-44 12S
Crank
SRAM Force Wide, Number of chainrings: 1
Bottom Bracket
SRAM Pressfit DUB Wide, Bottom bracket standard: PF 86,5, Weight: 65 g
Chain
SRAM Force D1 12s
Pedals
None included
Wheels
Rims
DT Swiss G1800 Spline, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 25 mm, Inner width: 24 mm, Rim material: Aluminium, Weight: 880 g | DT Swiss G1800 Spline XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 25 mm, Free hub: SRAM XDR, Inner width: 24 mm, Rim material: Aluminium, Weight: 999 g
Tires
Pirelli Cinturato Gravel H, 45 mm, Area of Use: Gravel, Width: 45 mm, Weight: 590 g
Brakes
Brakes
SRAM Force eTap AXS, 12-speed, Weight: 472 g | SRAM Force eTap AXS, 12-speed, Weight: 489 g
Brake Levers
SRAM Force eTap AXS, 12-speed, Weight: 472 g | SRAM Force eTap AXS, 12-speed, Weight: 489 g
Cockpit
Stem
Canyon ST0035, A lightweight and durable aluminium stem for use on gravel and road bikes., Fork steer tube diameter: 1 1/4", Clamping diameter: 31,8 mm
Handlebar

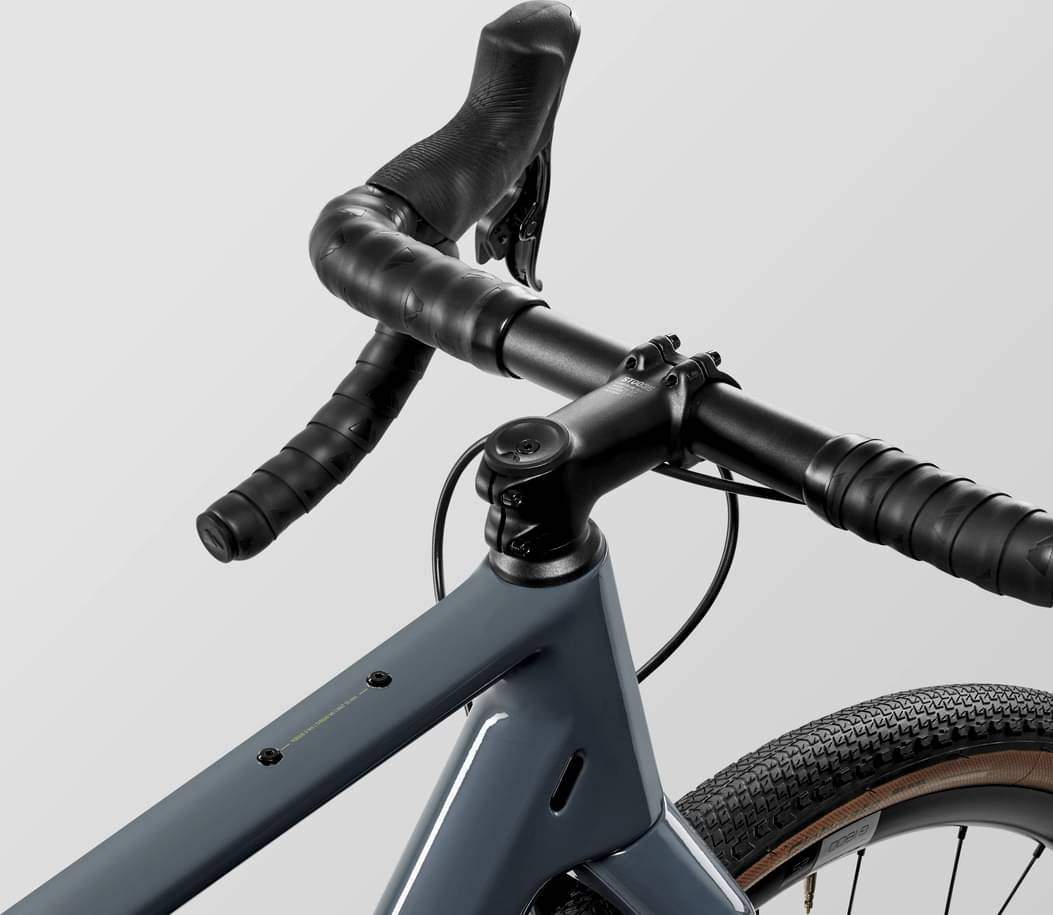

Canyon HB 0050 Ergobar AL, Aluminium handlebar with comfortable, ergonomically optimised design., Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Fizik Argo Terra X5, Gender: Unisex, Weight: 271 g
Seatpost
Canyon S15 VCLS 2.0 CF, Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package., Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.406 mm | 1.401 mm | 1.44 mm | 1.479 mm | 1.466 mm | 1.477 mm |
| Front Center | 594 mm | 594 mm | 612 mm | 613 mm | 626 mm | 648 mm | 662 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 74 mm | 68 mm | 76 mm | 67 mm | 65 mm | 63 mm | 63 mm |
| Stack | 522 mm | 537 mm | 556 mm | 579 mm | 605 mm | 626 mm | 644 mm |
| Reach | 377 mm | 382 mm | 397 mm | 402 mm | 409 mm | 427 mm | 436 mm |
| Top Tube Length | 522 mm | 531 mm | 552 mm | 564 mm | 578 mm | 602 mm | 617 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72.25 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 121 mm | 133 mm | 118 mm | 138 mm | 164 mm | 185 mm | 204 mm |
| Chainstay Length | 420 mm | 420 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1007 mm | 1007 mm | 1036 mm | 1037 mm | 1050 mm | 1072 mm | 1086 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 737 mm | 761 mm | 789 mm | 816 mm | 845 mm | 870 mm | 892 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
