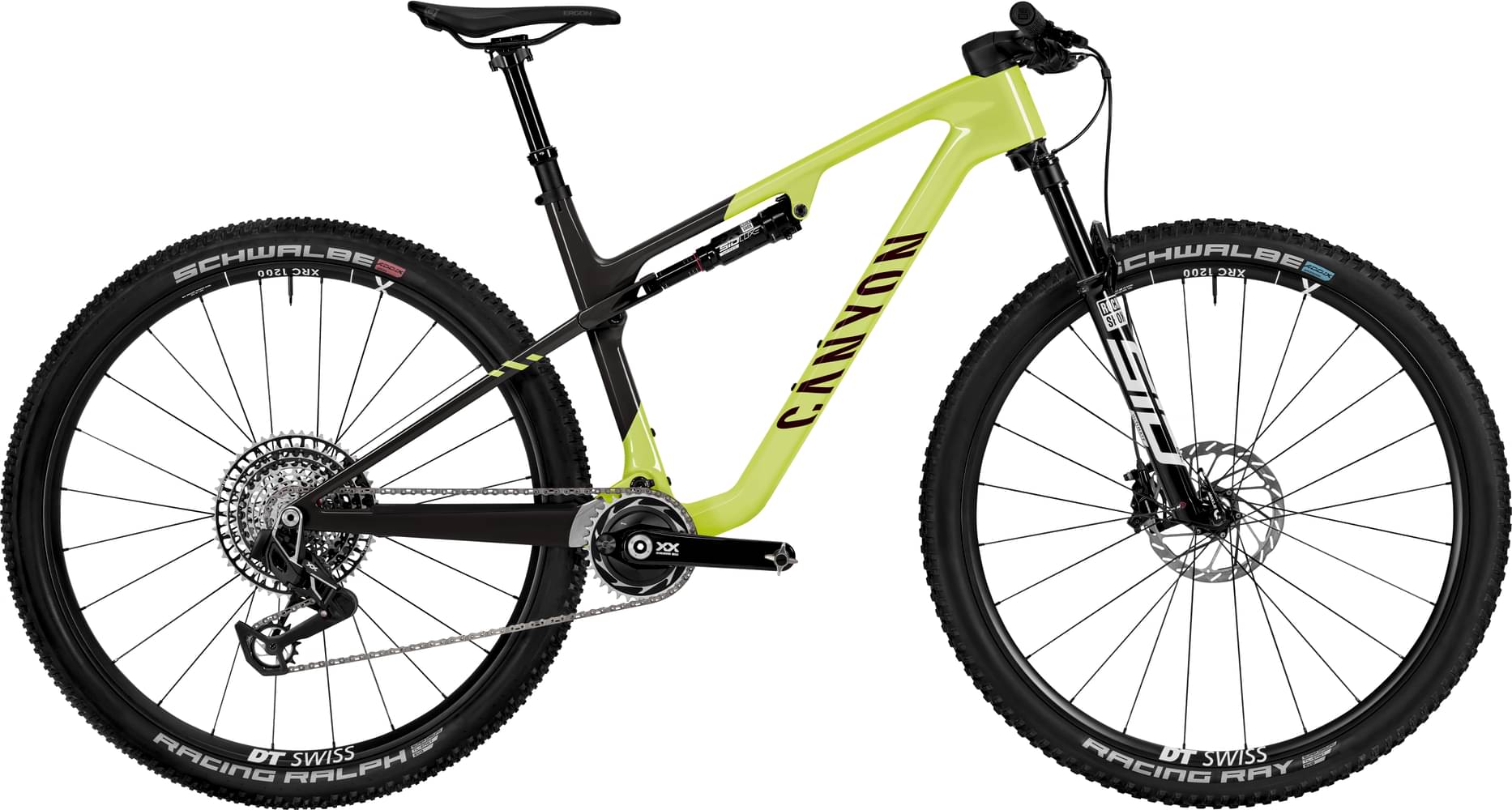

Canyon Lux World Cup CFR AXS 2025
2025 Mountain
Estimate price |
9,748$
Weight | 10.56 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Travel Rear 100mm -
Fork RockShox SID SL Ultimate
-
Groupset XX SL Eagle Transmission, Eagle AXS -
Suspension Full -
Battery SRAM Powerpack -
Drivetrain Electronic -
Brakes SRAM Level Ultimate Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components

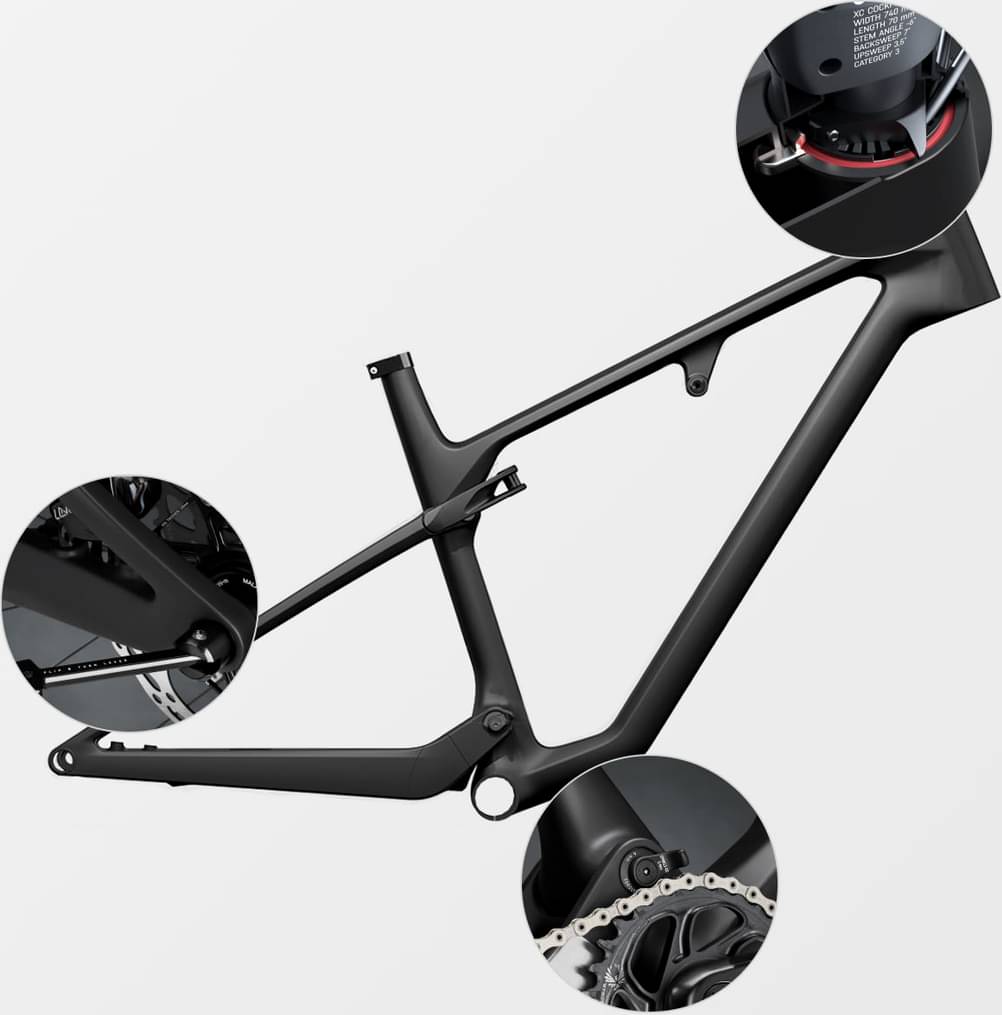

Frame
Frame
Canyon Lux WC CFR, One of the lightest full-suspension frames in the world., Axle dimension: 12x148 mm, Material: Carbon (CFR), Weight: 2.82 lbs

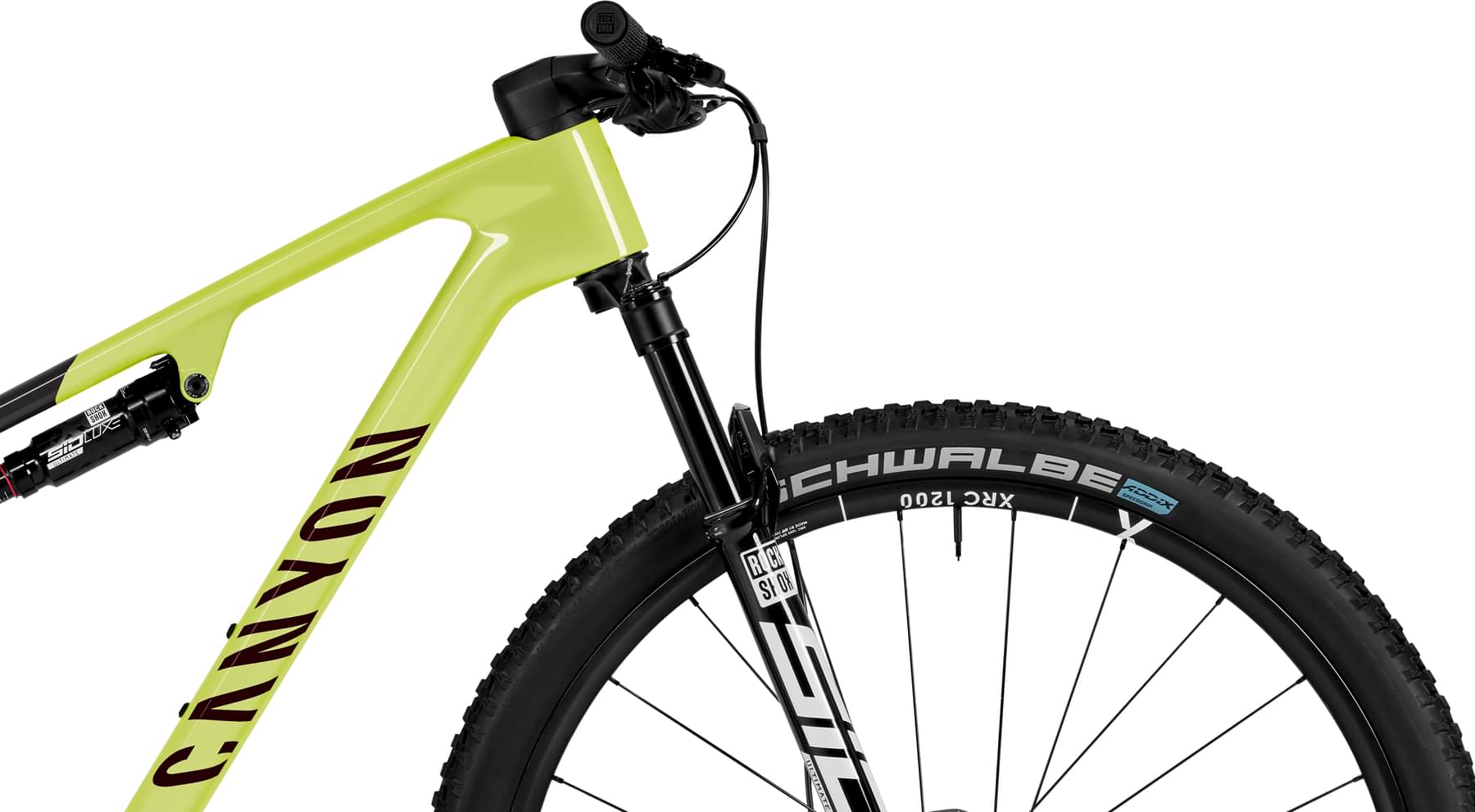

Suspension Fork
RockShox SID SL Ultimate 3P Remote, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 110 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 1,350 g
Rear Shock
RockShox SIDLuxe Ultimate 3P Remote, Weight: 247 g
Drivetrain
Rear Derailleur
SRAM XX SL Eagle AXS Transmission, Cage length: long, Weight: 440 g
Shift Levers
SRAM AXS POD Rocker, Weight: 79 g
Cassette
SRAM XS-1299 Eagle Transmission, Number of sprockets: 12, Range: 10-52
Crank
34

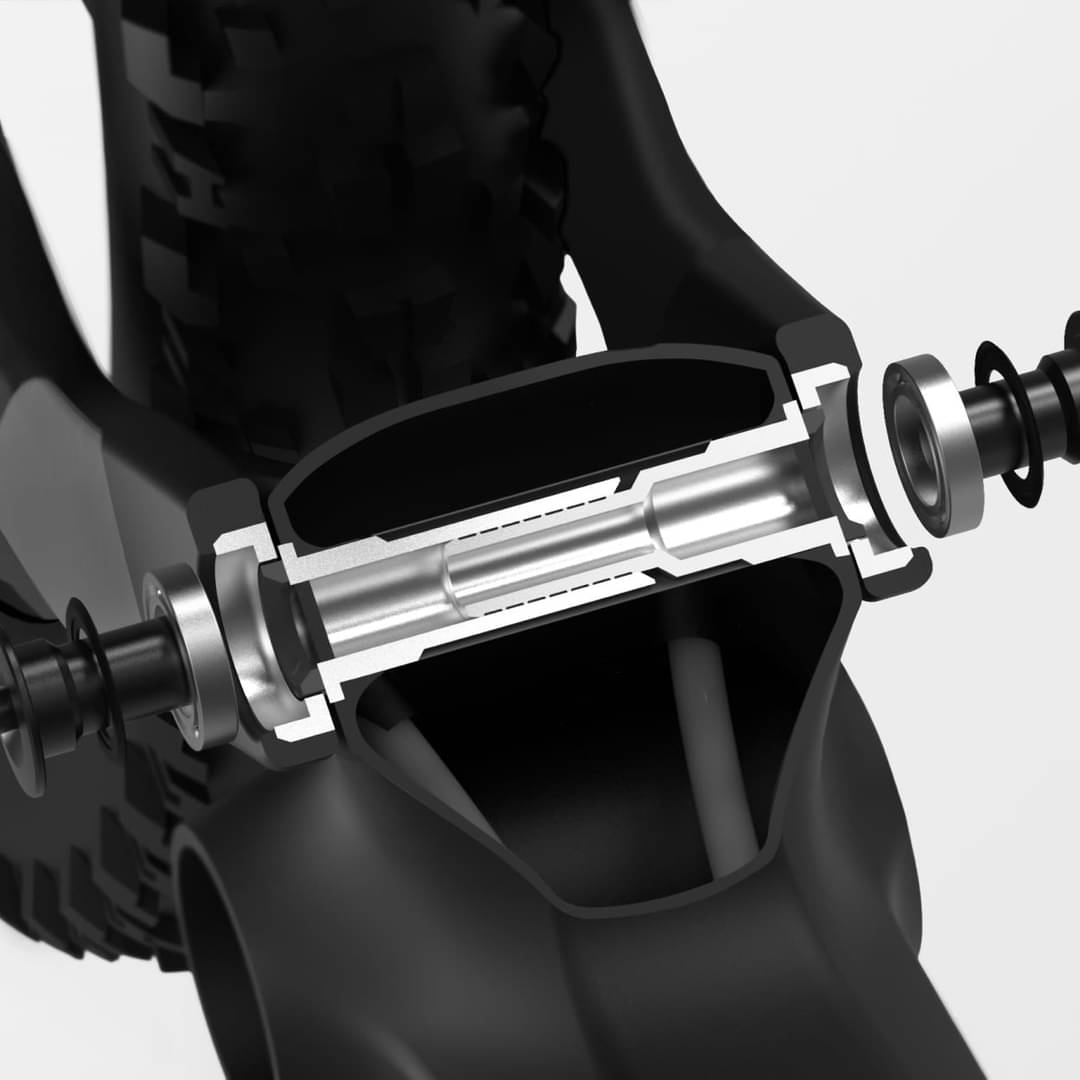

Bottom Bracket

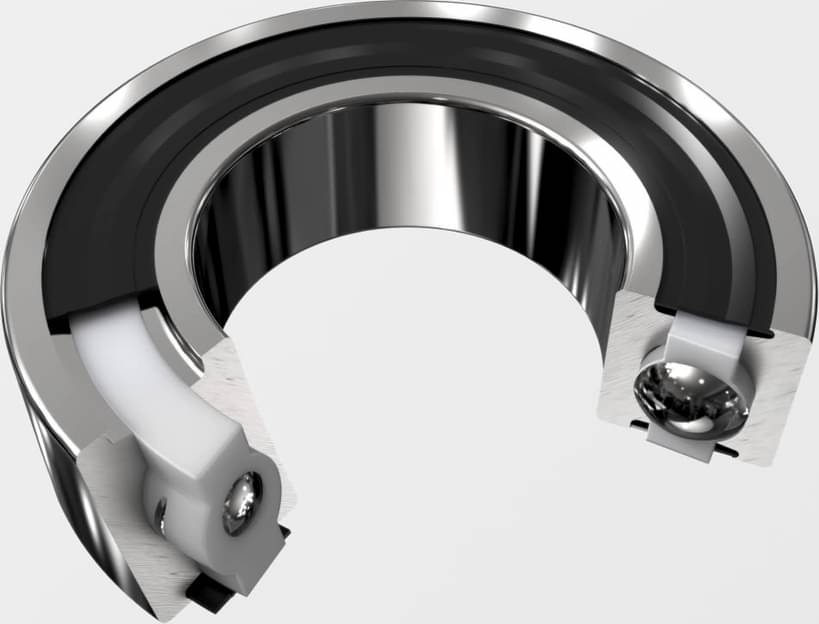

Ceramicspeed Coated BB (SRAM), Bottom bracket standard: PF 86,5, Weight: 77 g
Chain
SRAM XX SL T-Type | SRAM PowerLock
Pedals
None included
Wheels
Rims
DT Swiss XRC 1200, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Inner width: 30 mm, Rim material: Carbon, Weight: 816 g | DT Swiss XRC 1200, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 30 mm, Rim material: Carbon, Weight: 597 g
Tires
Schwalbe Racing Ralph SG TLE EVO 2.35", Width: 2.35", Weight: 750 g | Schwalbe Racing Ray, Width: 2,35", Weight: 801 g
Brakes
Brakes
SRAM Level Ultimate Stealth, Number of pistons: 2 | SRAM Level Ultimate Stealth

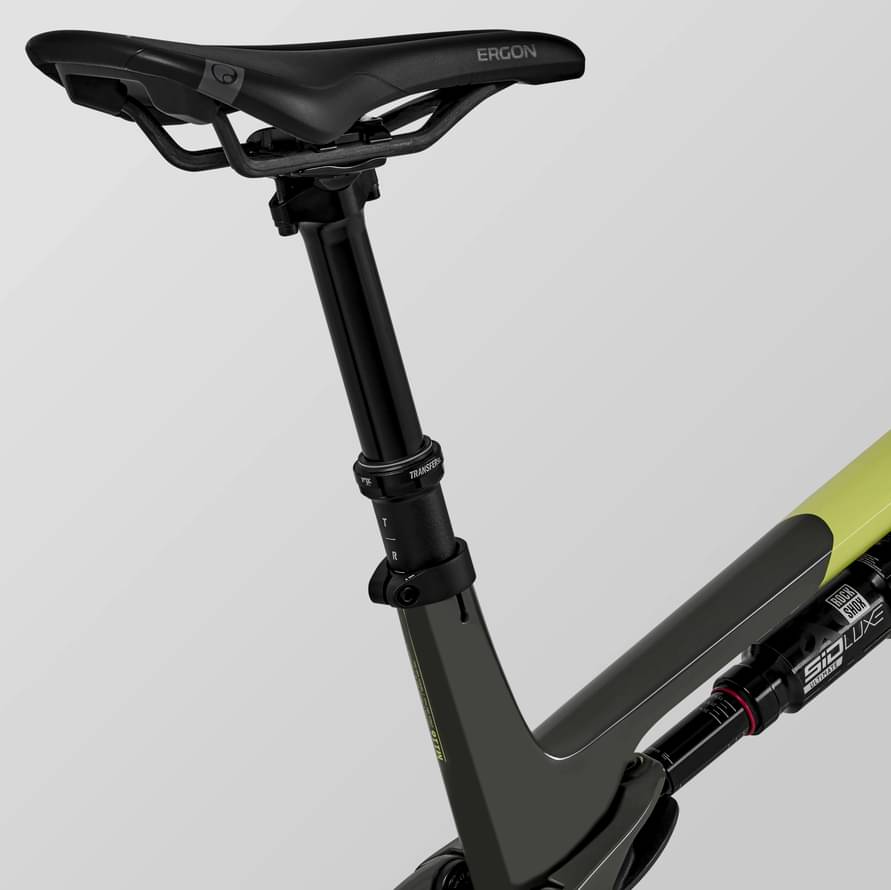

Seat
Saddle
Ergon SR10 Pro Carbon, Gender: Unisex, Weight: 195 g
Seatpost
FOX Transfer SL Performance Elite, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 409 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.342 mm | 1.293 mm | 1.268 mm | 1.245 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 673 mm | 693 mm | 715 mm | 740 mm | 766 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 98 mm | 98 mm | 98 mm | 99 mm | 98 mm |
| Stack | 577 mm | 577 mm | 582 mm | 596 mm | 610 mm |
| Reach | 410 mm | 430 mm | 450 mm | 470 mm | 490 mm |
| Top Tube Length | 565 mm | 585 mm | 606 mm | 630 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1100 mm | 1120 mm | 1142 mm | 1167 mm | 1193 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 777 mm | 777 mm | 780 mm | 784 mm | 793 mm |
| Front Travel | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
