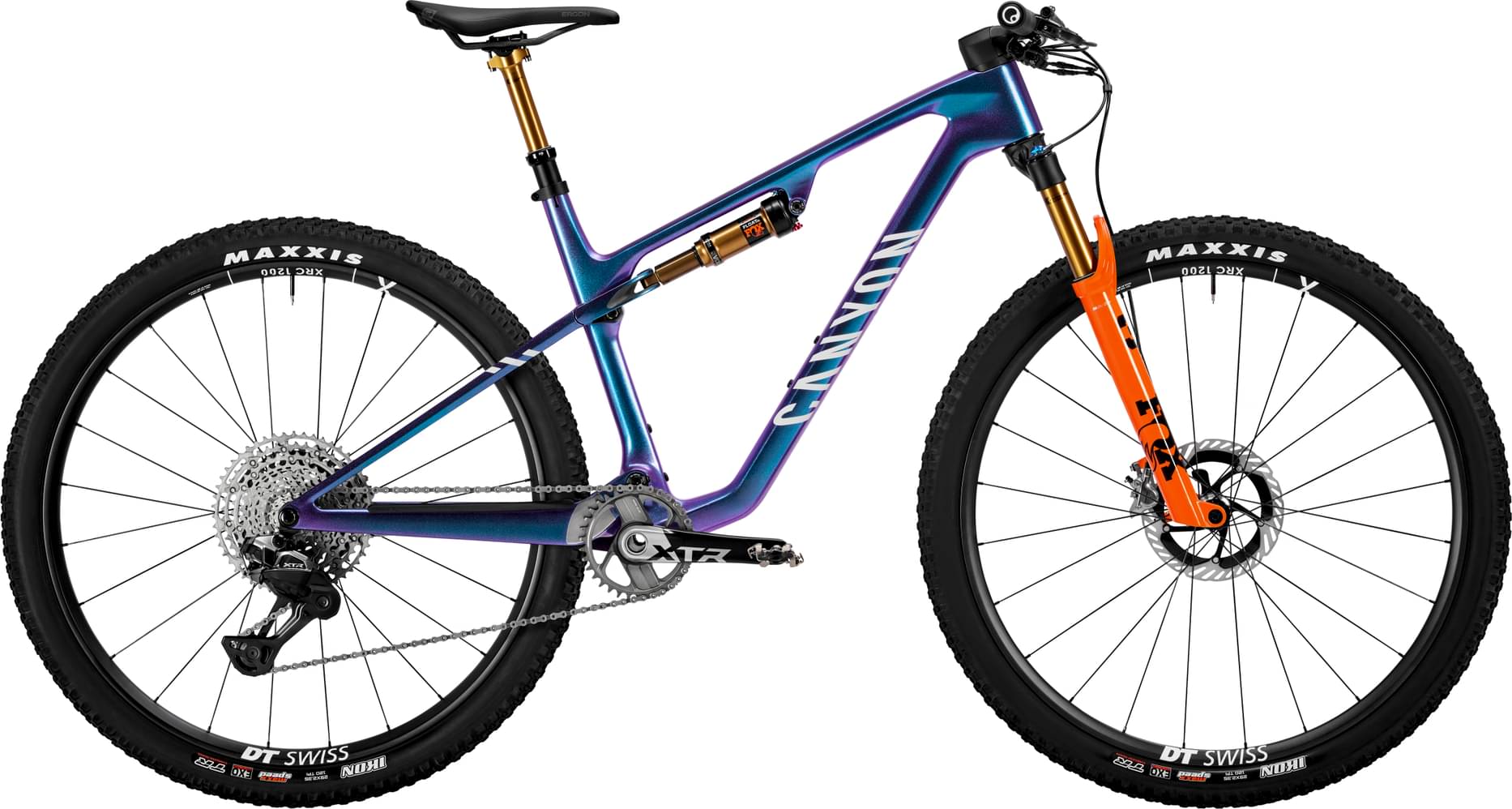

Canyon Lux World Cup CFR Di2 2025
2025 Mountain
Estimate price |
8,724$
Weight | 10.66 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XTR Di2 -
Suspension Full -
Battery Shimano BT-DN320 -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

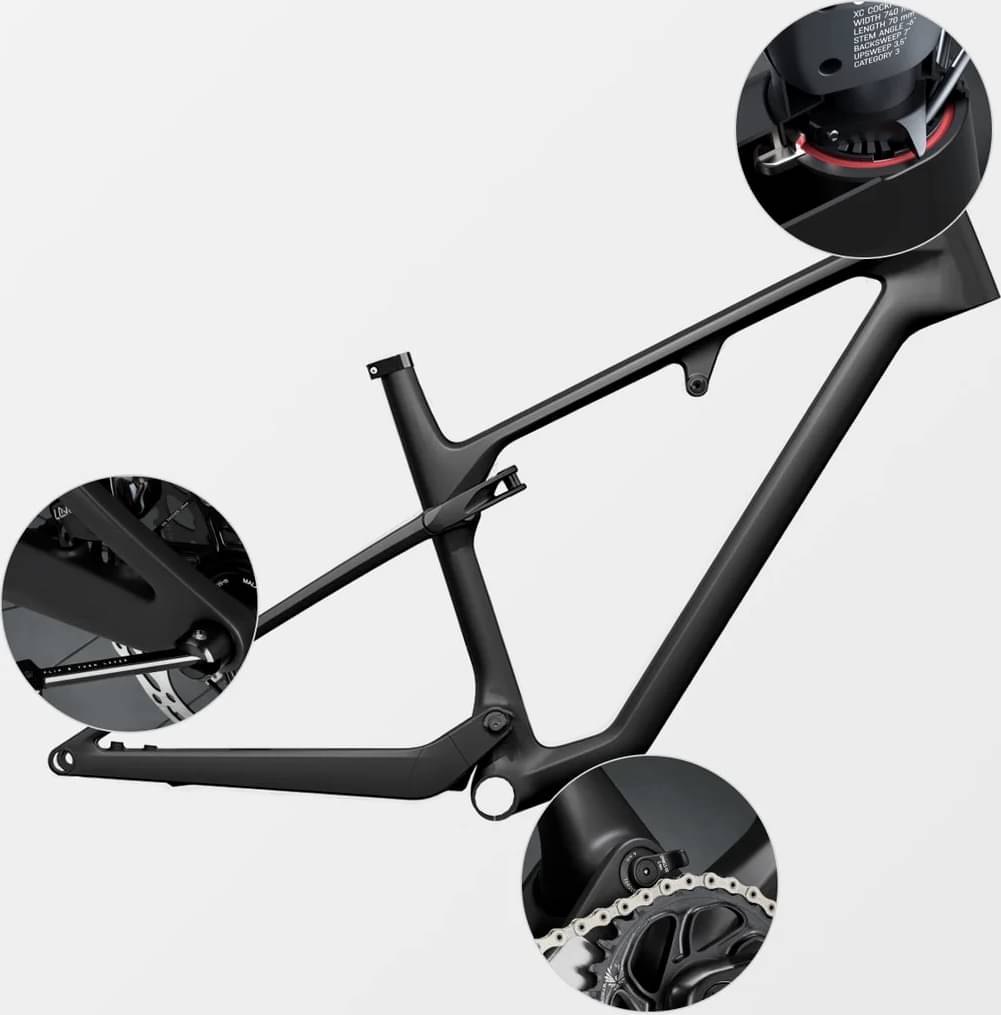

Canyon Lux World Cup CFR, One of the lightest full-suspension frames in the world., Axle dimension: 12x148 mm, Material: Carbon (CFR), Weight: 1,620 g
Suspension Fork

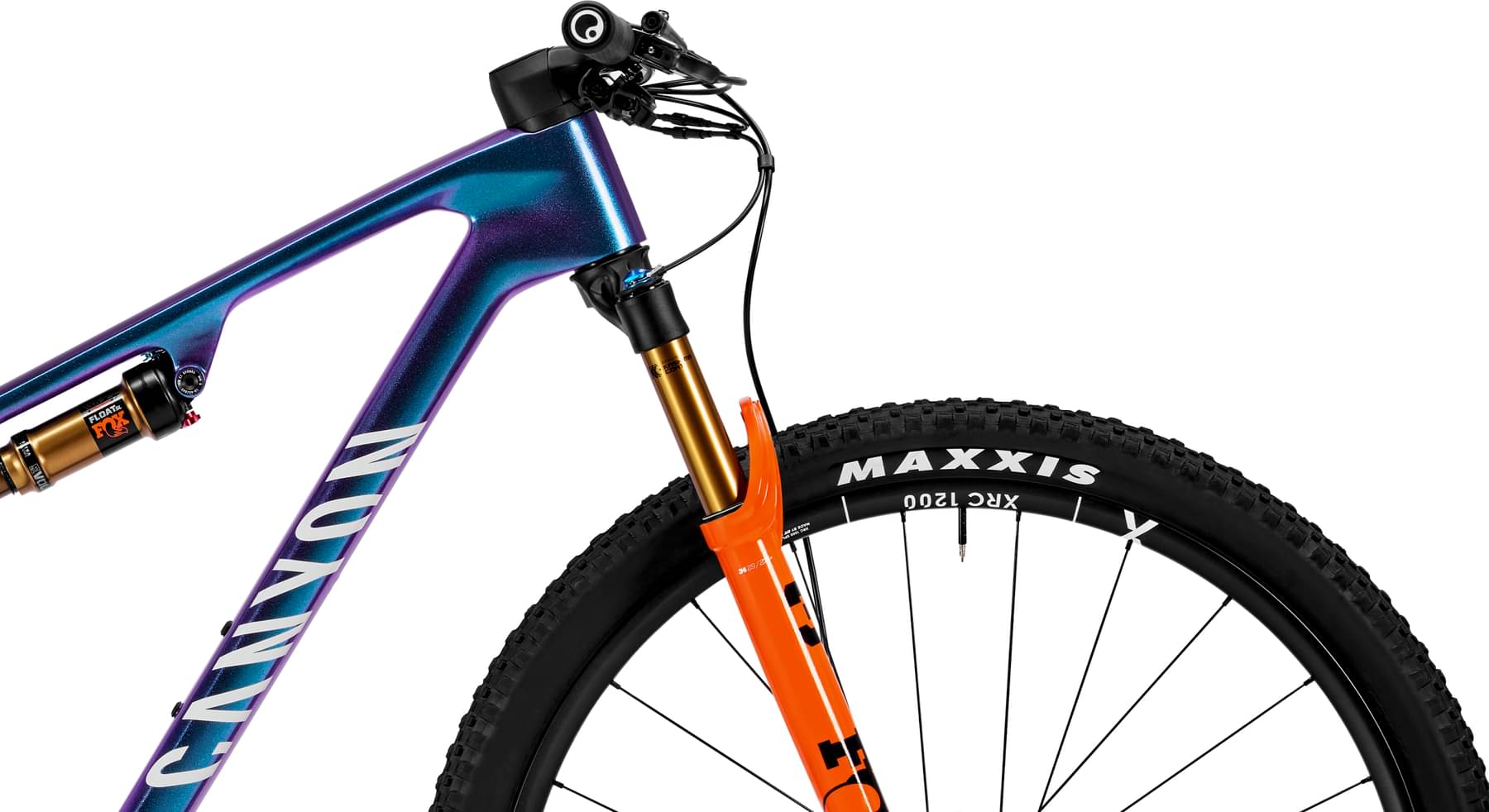

FOX 34 SL Factory, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 110 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 1,604 g
Rear Shock

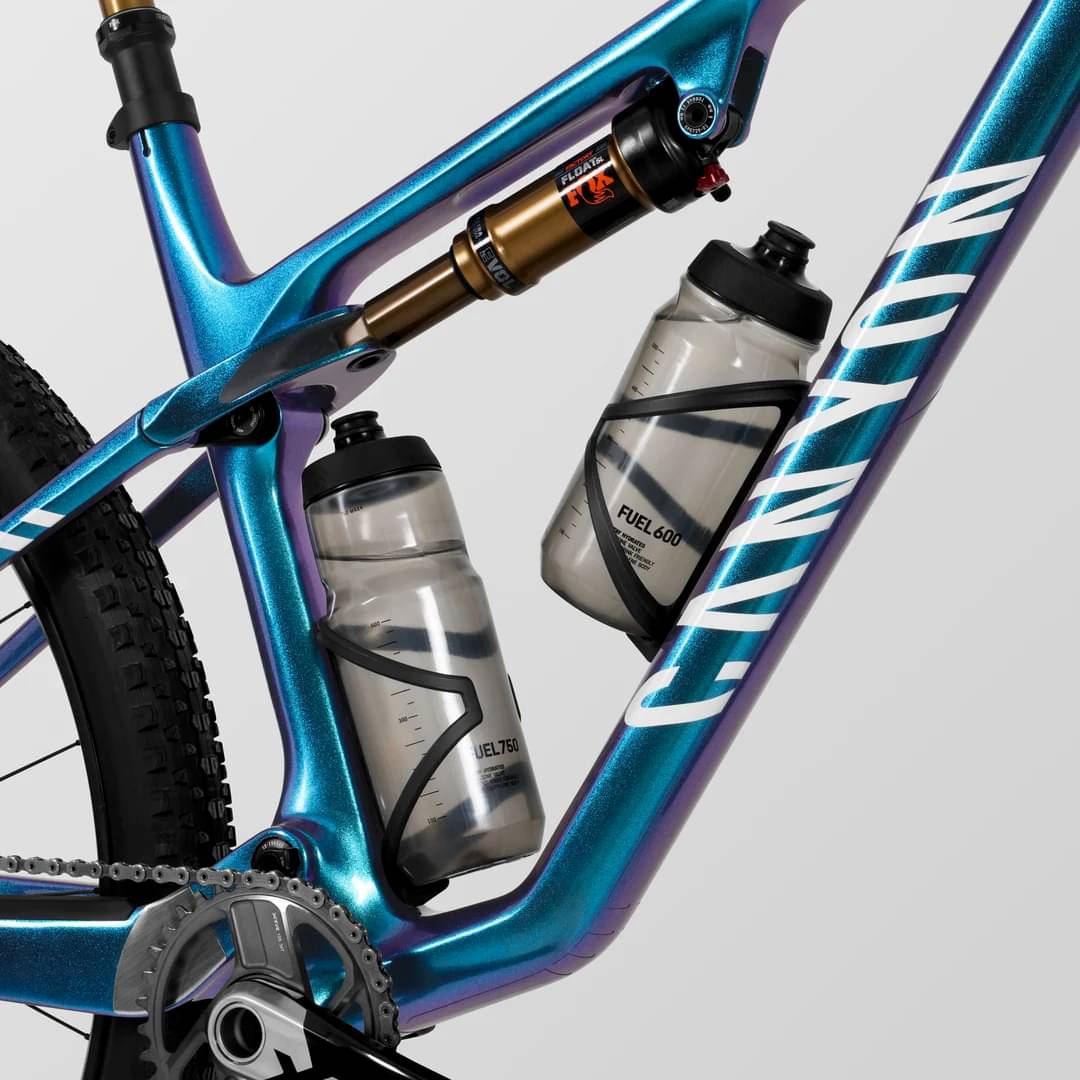

FOX Float SL Factory 3-Pos Remote
Drivetrain
Rear Derailleur
Shimano XTR Di2, Weight: 389 g
Shift Levers
Shimano XTR Di2, Weight: 100 g
Cassette
Shimano XTR, Number of sprockets: 12
Crank
Shimano XTR, Number of chainrings: 1
Bottom Bracket

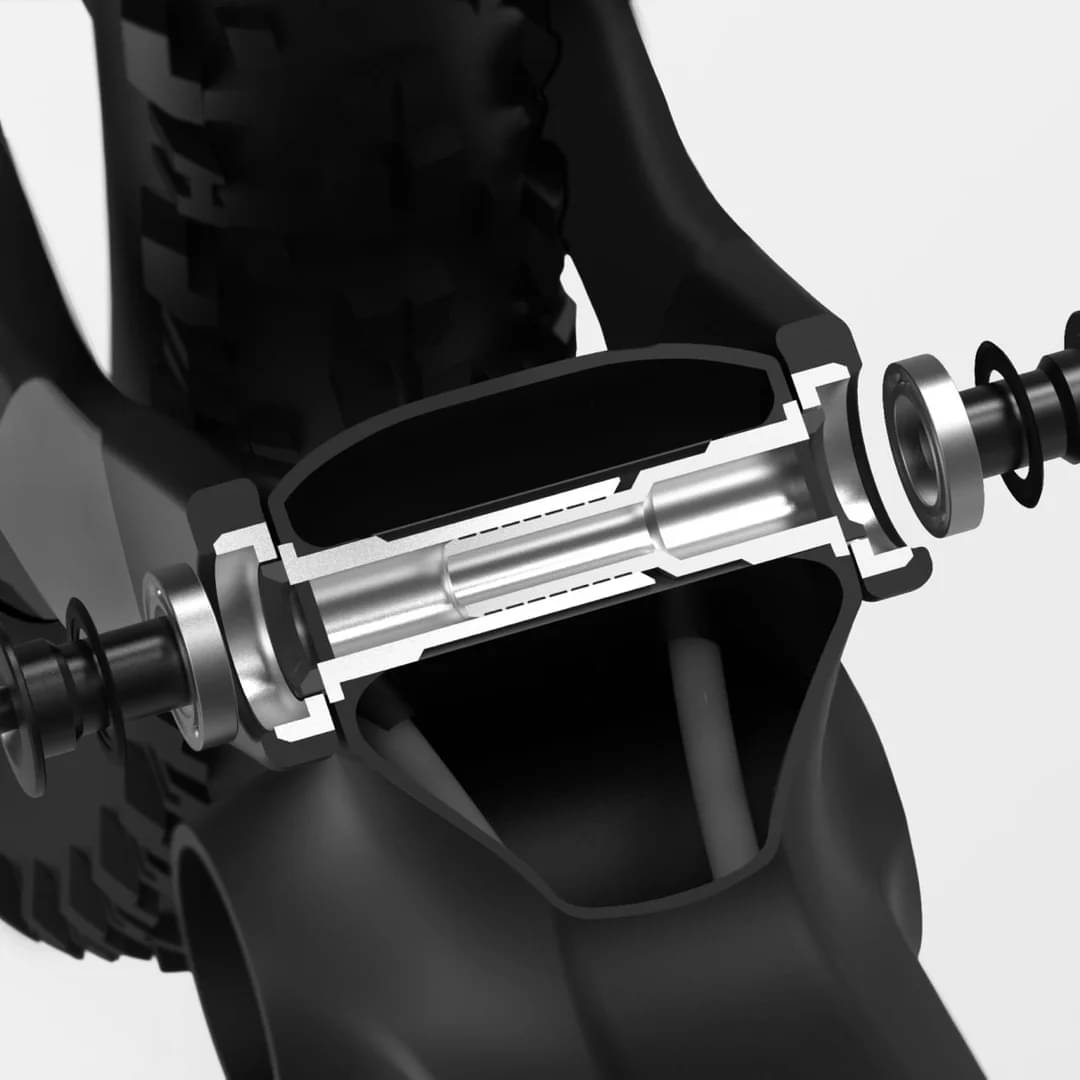

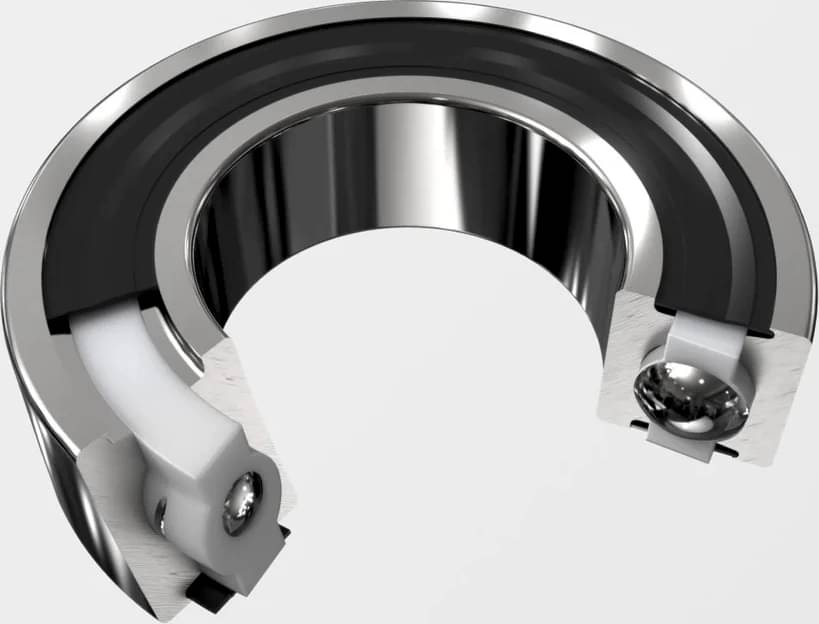

Ceramicspeed BB86 Coated, Bottom bracket standard: PF 86,5, Weight: 80 g
Chain
Shimano XTR
Pedals
None included
Wheels
Rims
DT Swiss XRC 1200, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 30 mm, Rim material: Carbon, Weight: 597 g | DT Swiss XRC 1200, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 30 mm, Rim material: Carbon, Weight: 714 g
Tires
Maxxis Ikon EXO MaxxSpeed, Width: 2.35", Weight: 835 g
Brakes
Brakes
Shimano XTR M9100 | Shimano XTR M9110
Cockpit
Grips
Ergon GXR
Seat
Saddle
Ergon SR10 Pro Carbon, Gender: Unisex, Weight: 195 g
Seatpost
FOX Transfer SL Factory, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 358 g
Motor & Battery
Battery
Shimano BT-DN320
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.342 mm | 1.293 mm | 1.268 mm | 1.245 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 673 mm | 693 mm | 715 mm | 740 mm | 766 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 98 mm | 98 mm | 98 mm | 99 mm | 98 mm |
| Stack | 577 mm | 577 mm | 582 mm | 596 mm | 610 mm |
| Reach | 410 mm | 430 mm | 450 mm | 470 mm | 490 mm |
| Top Tube Length | 565 mm | 585 mm | 606 mm | 630 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1100 mm | 1120 mm | 1142 mm | 1167 mm | 1193 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 777 mm | 777 mm | 780 mm | 784 mm | 793 mm |
| Front Travel | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
