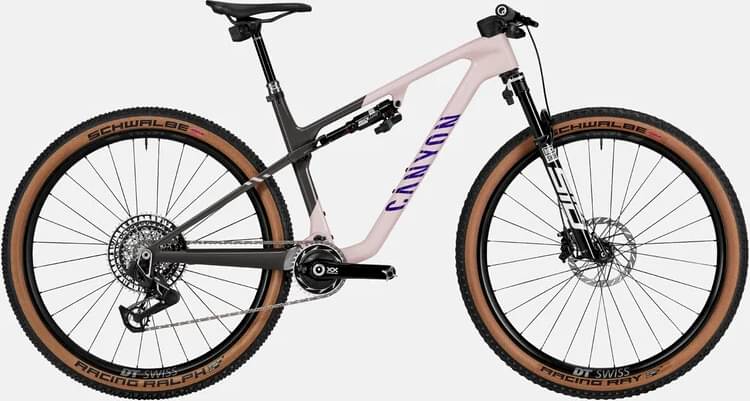

Canyon Lux World Cup CFR Loana Lecomte 2024
2024 Mountain
Estimate price |
10,895$
Weight | 10.94 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Travel Rear 100mm -
Fork RockShox SID SL Ultimate
-
Groupset XX SL Eagle Transmission, X01 Eagle AXS -
Suspension Full, Electronic -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux WC CFR, One of the lightest full-suspension frames in the world. As raced by Canyon's pro riders, including Loana Lecomte., Axle dimension: 12x148 mm, Material: Carbon (CFR)

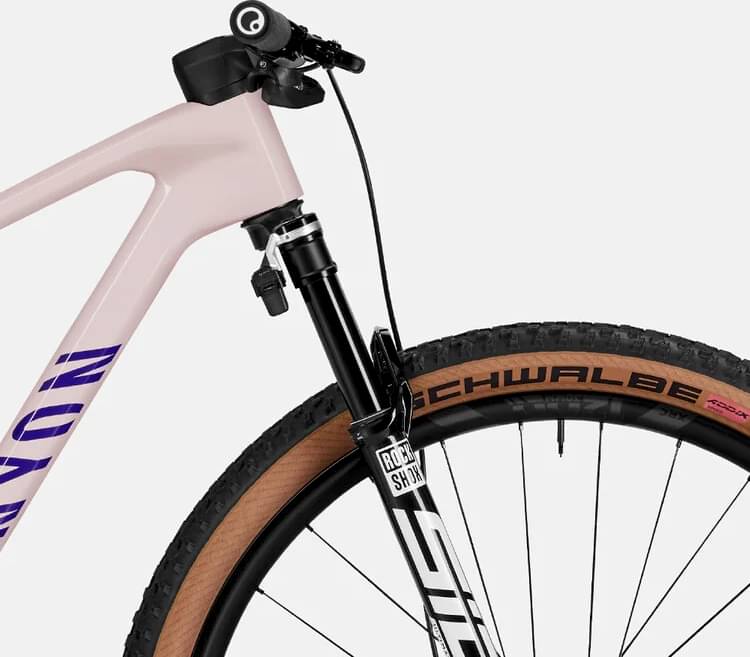

Suspension Fork
RockShox SID SL Ultimate Flight Attendant, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 110 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 1.48 kg

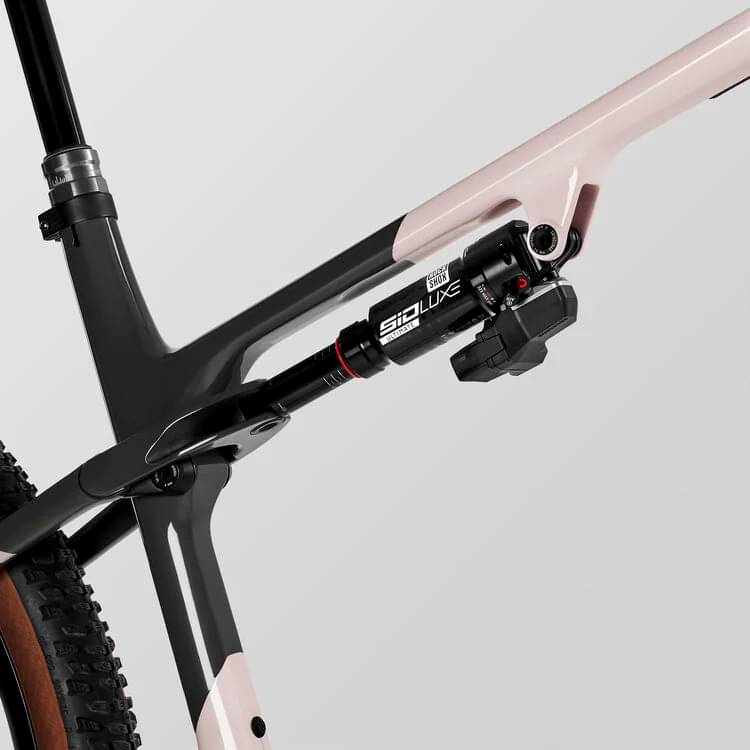

Rear Shock
RockShox SIDLuxe Ultimate Flight Attendant, Weight: 349 g
Drivetrain
Rear Derailleur
SRAM XX SL Eagle AXS Transmission, Cage length: long, Weight: 440 g
Shift Levers
SRAM Eagle AXS Controller, Weight: 70 g
Cassette
SRAM XS 1299 SL, Number of sprockets: 12
Crank
SRAM XX SL Eagle DUB, Number of chainrings: 1

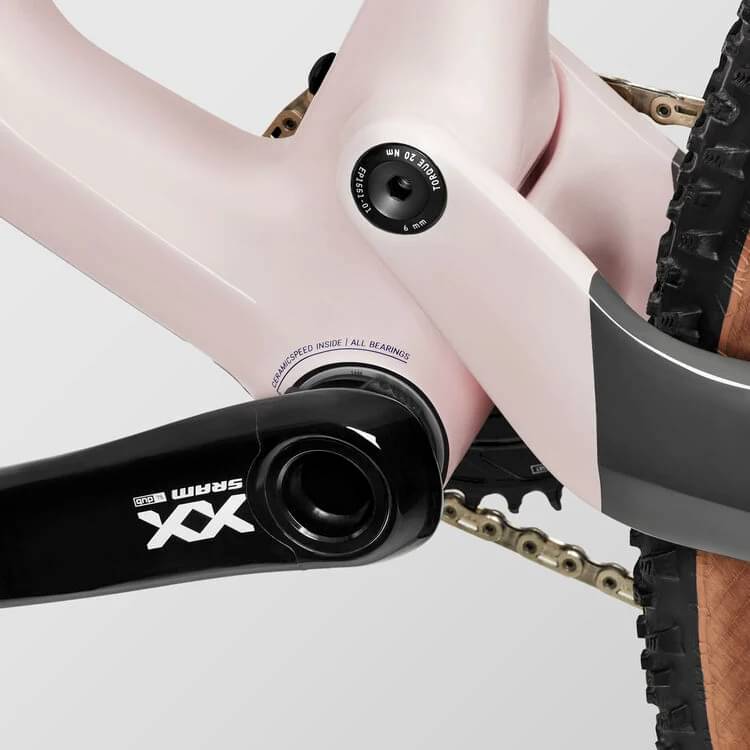

Bottom Bracket
Ceramicspeed Coated BB (SRAM), Bottom bracket standard: PF 86,5, Weight: 77 g
Chain
SRAM XX SL T-Type
Pedals
None included
Wheels
Rims
DT Swiss XRC1200, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Inner width: 30 mm, Rim material: Carbon, Weight: 684 g | DT Swiss XRC1200, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Inner width: 30 mm, Rim material: Carbon, Weight: 791 g
Tires
Schwalbe Racing Ray SR TLE, Width: 2.25" | Schwalbe Racing Ralph SR TLE EVO 2.35", Width: 2.35"
Brakes
Brakes
SRAM Level Ultimate Stealth | SRAM Level Ultimate Stealth, Number of pistons: 2
Cockpit
Grips
Ergon GXR
Seat
Saddle
Ergon SR10 Pro Carbon, Gender: Unisex, Weight: 195 g
Seatpost
RockShox Reverb AXS, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 586 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.342 mm | 1.293 mm | 1.268 mm | 1.245 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 671 mm | 691 mm | 713 mm | 738 mm | 764 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 577 mm | 577 mm | 582 mm | 596 mm | 610 mm |
| Reach | 410 mm | 430 mm | 450 mm | 470 mm | 490 mm |
| Top Tube Length | 564 mm | 581 mm | 602 mm | 625 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1100 mm | 1120 mm | 1142 mm | 1167 mm | 1193 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 777 mm | 777 mm | 780 mm | 784 mm | 793 mm |
| Front Travel | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
