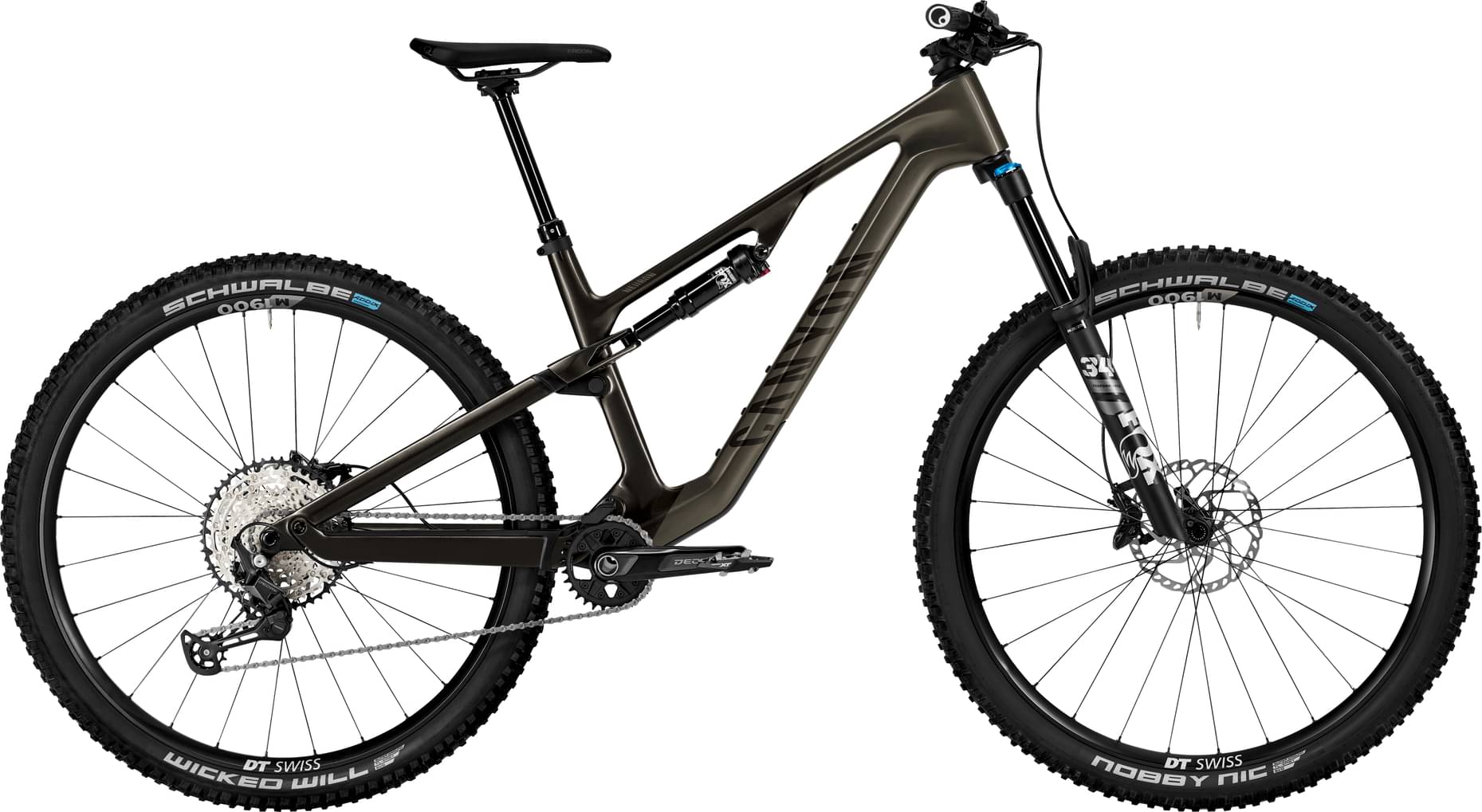

Canyon Neuron CF 7 2025
2025 Mountain
Estimate price |
3,605$
Weight | 14.04 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 177cm
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components

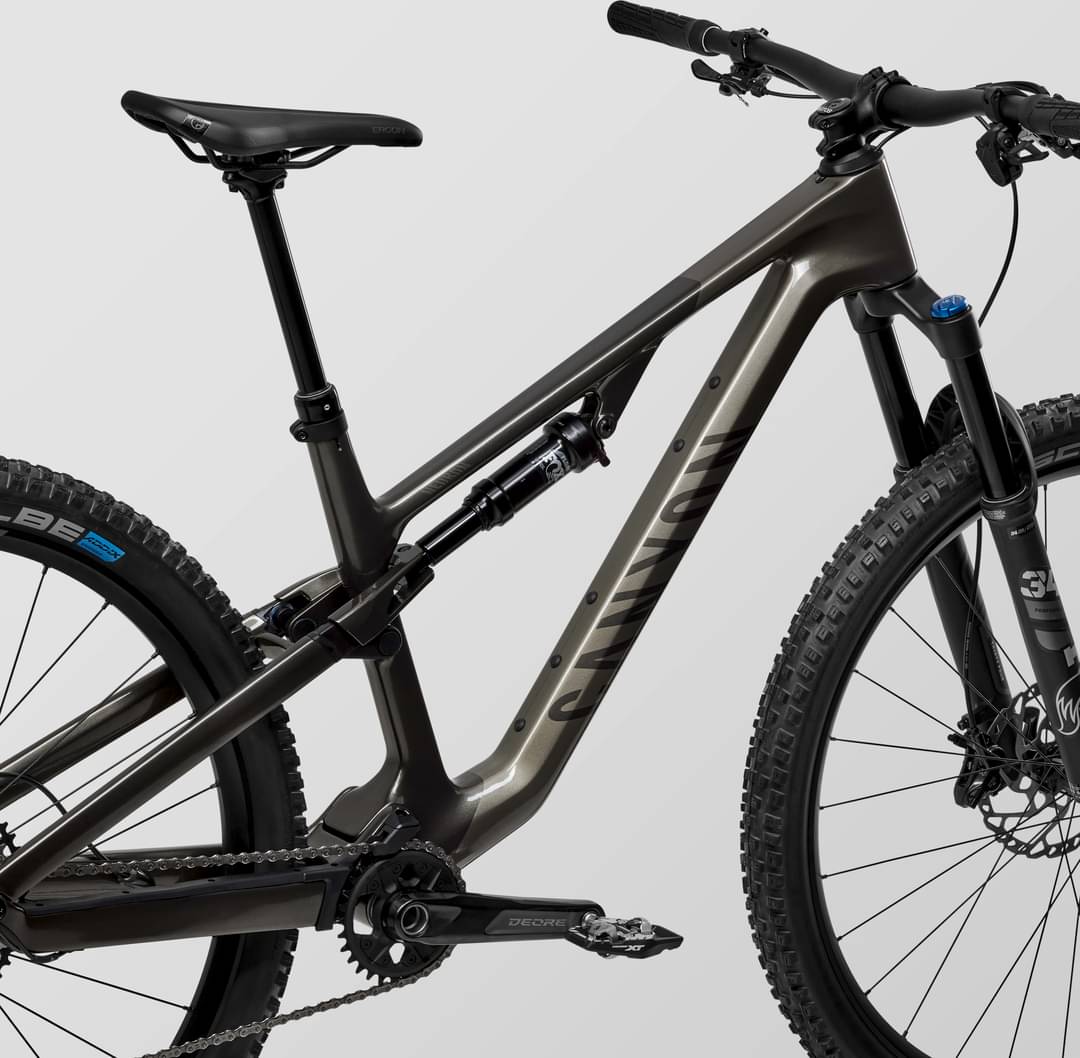

Frame
Frame
Canyon Neuron, Superlight carbon full-suspension MTB frame featuring a balanced geometry which combines trail capability with all-day comfort., Axle dimension: 12x148 mm, Material: Carbon (CF), Weight: 5.42 lbs

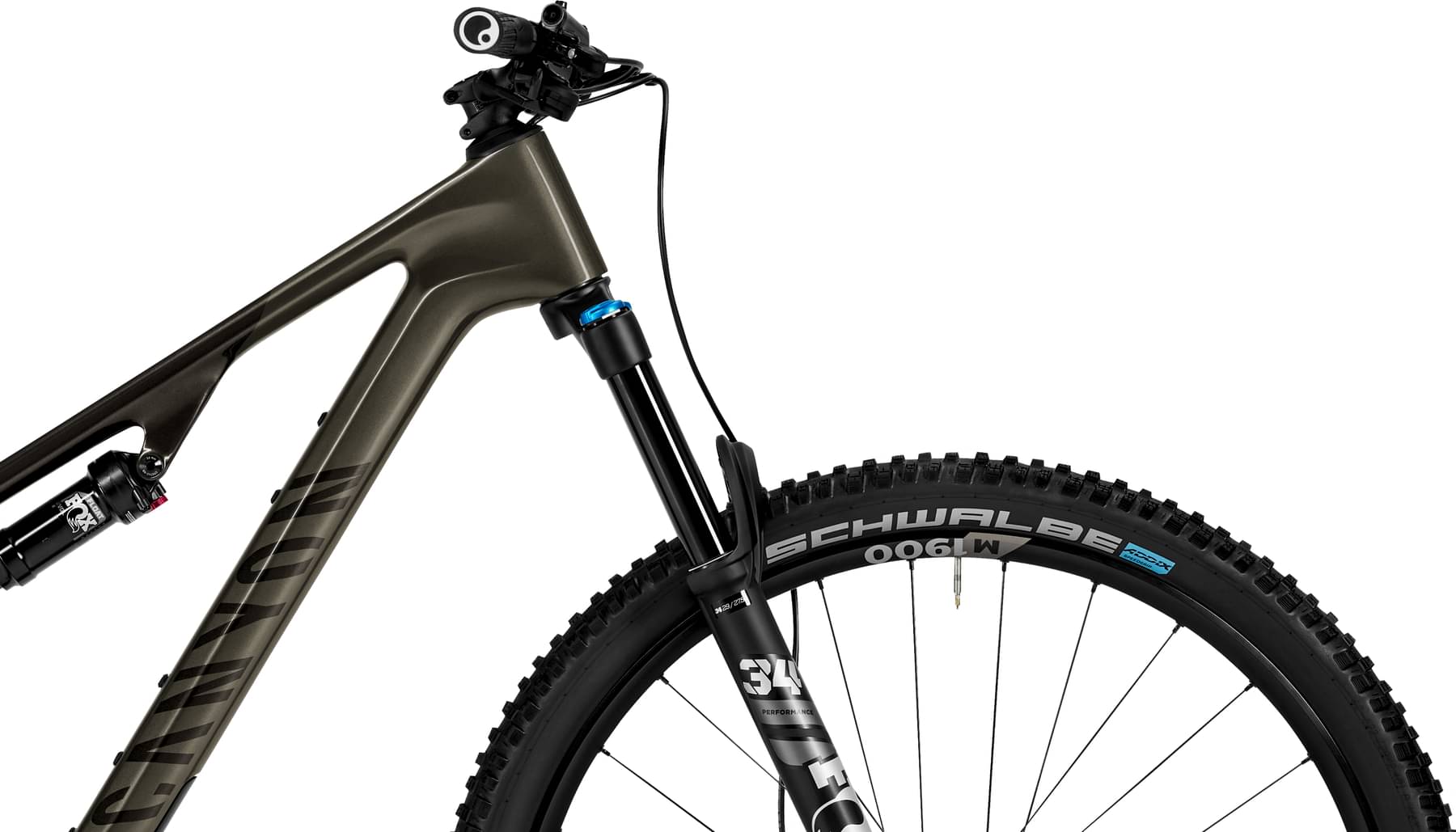

Suspension Fork
Fox 34 Performance, Stanchion Diameter: 34 mm, Travel: 140 mm, Offset: 44 mm
Rear Shock
Fox Float Rhythm
Drivetrain
Rear Derailleur
Shimano Deore M6100, Cage length: long, Weight: 0.78 lbs
Shift Levers
Shimano Deore M6100, Weight: 0.30 lbs
Cassette
Shimano Deore XT M8100, Number of sprockets: 12, Range: 10-51 12S
Crank
Shimano Deore FC-M6120, Number of chainrings: 1
Chain
Shimano Deore M6100
Chain Guide
Canyon EP1538-01 Chain Guide
Pedals
None included
Wheels
Rims
DT Swiss M1900, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 2.12 lbs | DT Swiss M1900, Rotor mount: IS 6-bolt, Weight: 2.47 lbs
Tires
Schwalbe Nobby Nic 29x2.4 black skin, Width: 2.4", Weight: 1.84 lbs | Schwalbe Wicked Will 29"x2.4", Width: 2.4", Weight: 1.96 lbs
Brakes
Brakes
Shimano Deore BR-M6120 | Shimano Deore
Cockpit

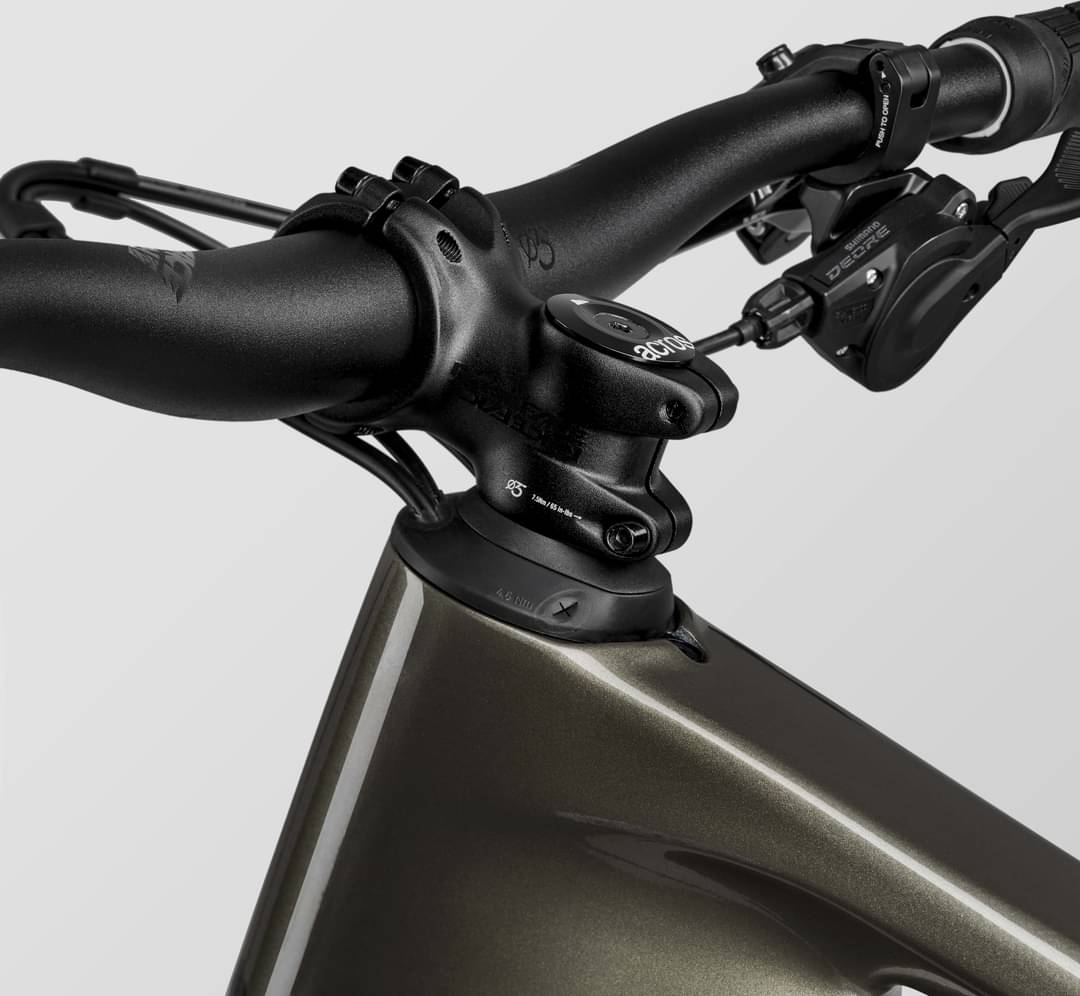

Stem
Race Face Ride, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
Race Face Ride 35, Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 20 mm
Grips
Ergon GE10 Evo Slim
Seat
Saddle
Ergon SM10 Enduro, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain., On certain models, this saddle may be substituted for an alternate, equivalent Selle San Marco model., Potentially affected models include:, Spectral 6 27 (Model #3184), Spectral 6 29 (Model #3185)
Seatpost
Canyon SP0081, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.37 lbs
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.432 mm | 1.386 mm | 1.376 mm | 1.331 mm | 1.286 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 710 mm | 735 mm | 766 mm | 797 mm | 834 mm |
| Rake | 42 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 112 mm | 111 mm | 119 mm | 119 mm | 120 mm |
| Stack | 587 mm | 596 mm | 626 mm | 639 mm | 656 mm |
| Reach | 410 mm | 430 mm | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 556 mm | 579 mm | 611 mm | 639 mm | 674 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 390 mm | 425 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm | 143 mm |
| Chainstay Length | 430 mm | 430 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1139 mm | 1164 mm | 1203 mm | 1234 mm | 1271 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 756 mm | 759 mm | 777 mm | 783 mm | 790 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 168 cm | 177 cm | 185 cm | 194 cm | cm |
