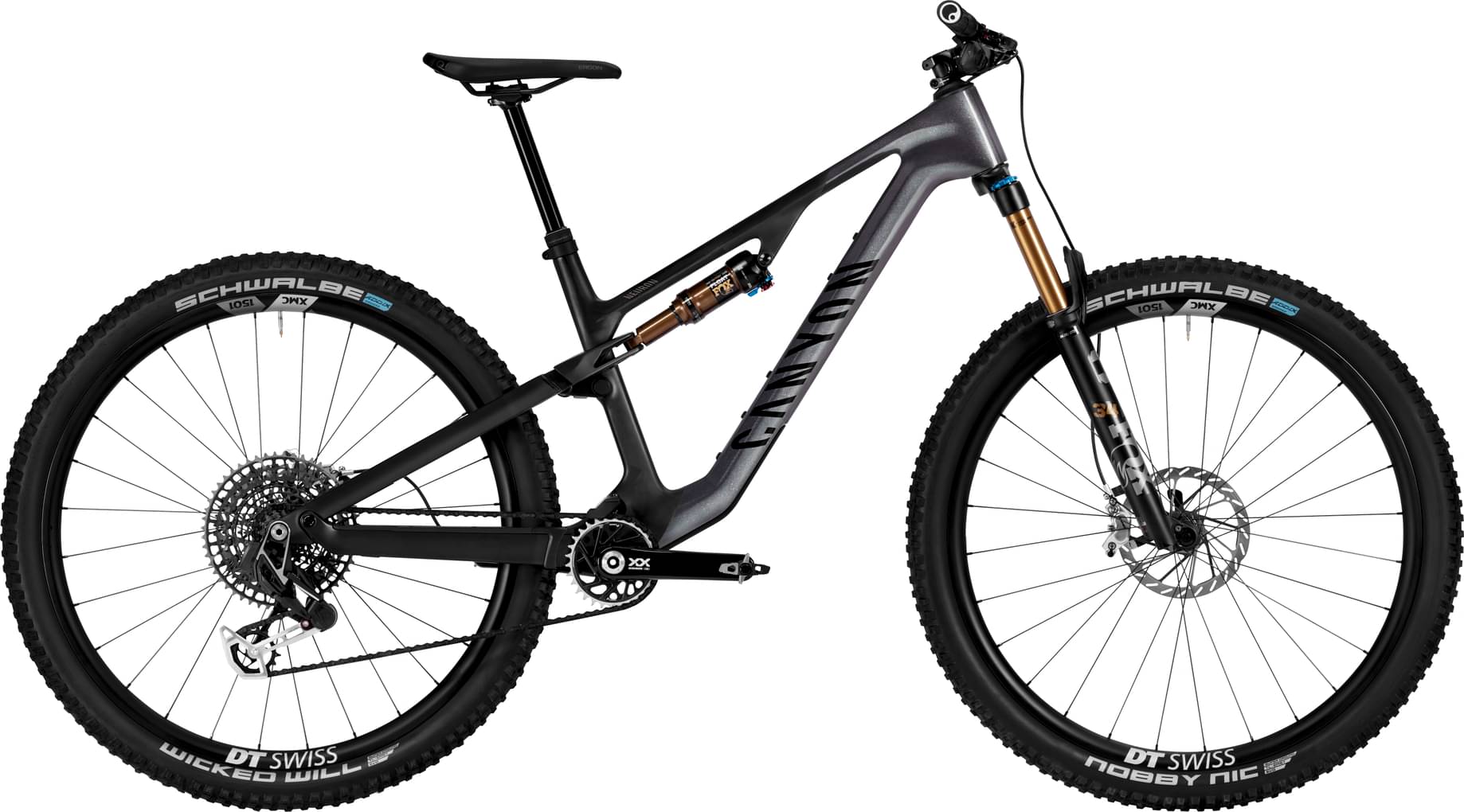

Canyon Neuron CF LTD 2025
2025 Mountain
Estimate price |
7,328$
Weight | 12.92 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset XX Eagle Transmission, Eagle AXS -
Suspension Full -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Code Ultimate Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 177cm
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron CF, Superlight carbon full-suspension MTB frame featuring a balanced geometry which combines trail capability with all-day comfort., Axle dimension: 12x148 mm, Material: Carbon (CF), Weight: 2,460 g

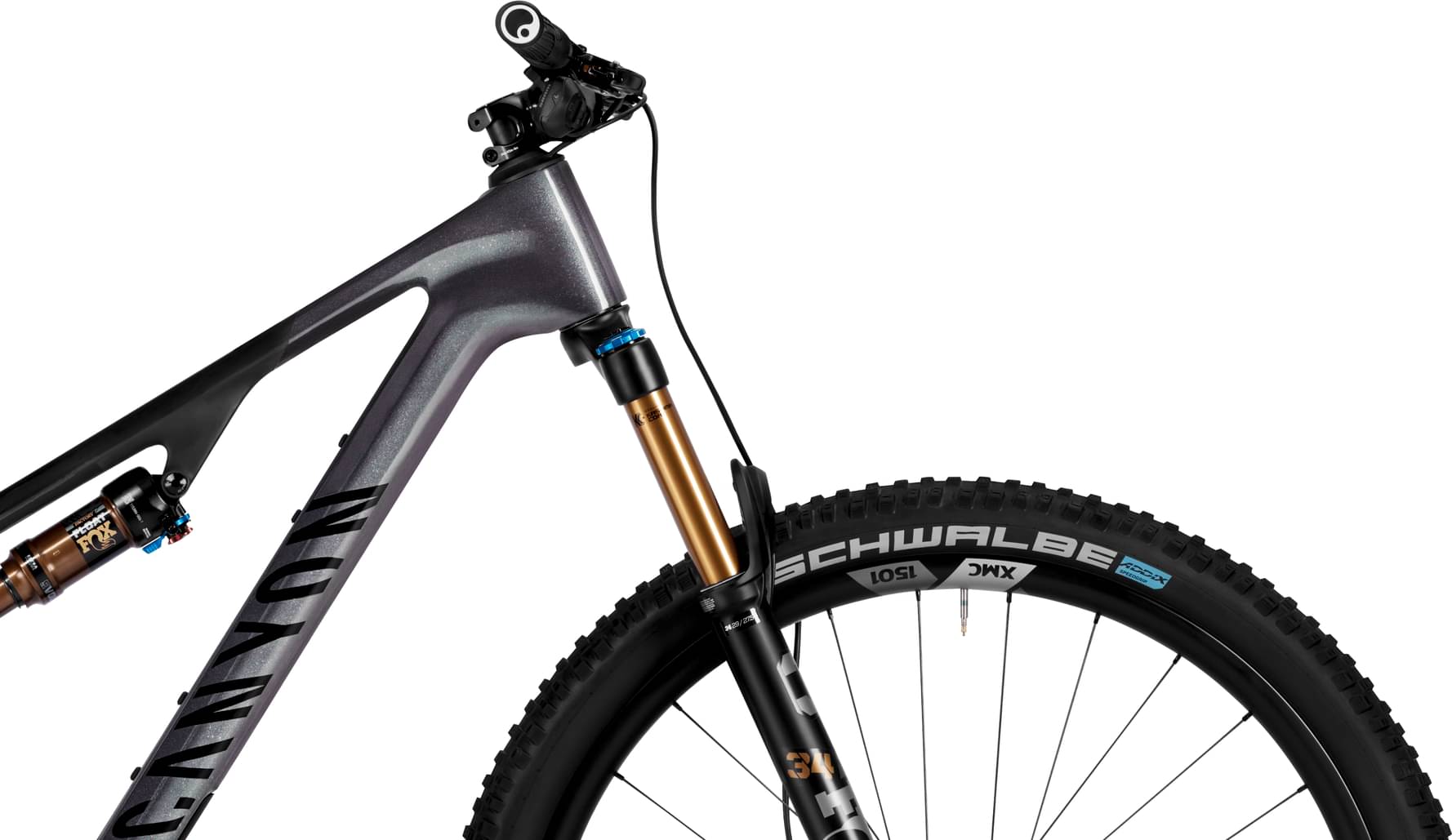

Suspension Fork
Fox 34 Factory, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Rear Shock
Fox Float Factory
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS Transmission, Weight: 450 g
Shift Levers
SRAM AXS POD Ultimate, Weight: 71 g
Cassette
SRAM X0 Eagle XS 1295, Number of sprockets: 12, Range: 10-52
Crank
SRAM XX Eagle AXS, Number of chainrings: 1
Bottom Bracket
SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 78 g
Chain
SRAM X0 Eagle Transmission
Chain Guide
Canyon EP1538-01 Chain Guide
Pedals
None included
Wheels
Rims
DT Swiss XMC 1501, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Rim height: 25 mm, Inner width: 30 mm, Weight: 864 g | DT Swiss XMC 1501, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Rim height: 25 mm, Inner width: 30 mm, Weight: 940 g
Tires
Schwalbe Nobby Nic 29x2.4 black skin, Width: 2.4", Weight: 836 g | Schwalbe Wicked Will 29"x2.4", Width: 2.4", Weight: 890 g
Brakes
Brakes
SRAM Code Ultimate Stealth | SRAM Code Ultimate, Number of pistons: 4
Cockpit

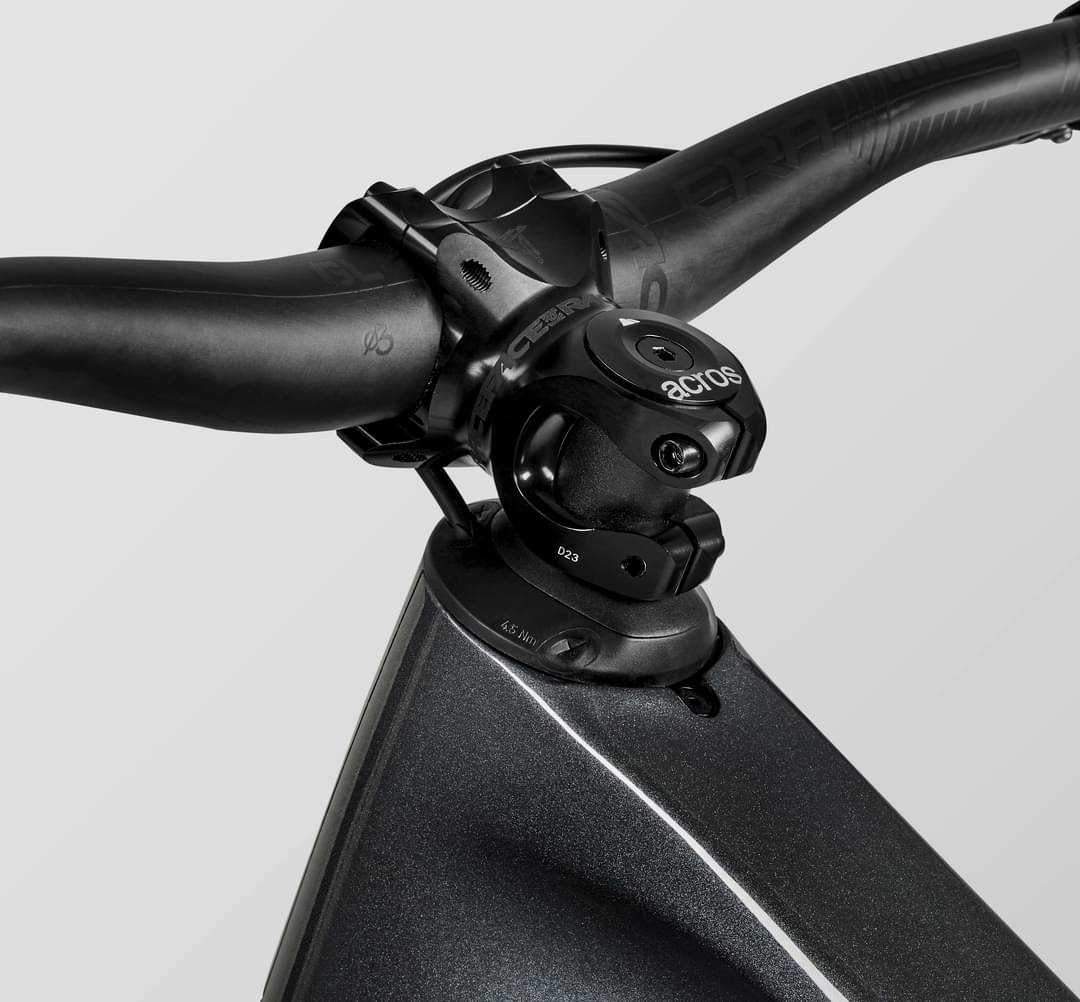

Stem
Race Face Turbine R, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
Race Face Era, Clamping diameter: 35,0 mm, Width: 760 mm
Grips
Ergon GE10 Evo Slim
Seat
Saddle
Ergon SM10 Enduro, Gender: Unisex, Weight: 314 g
Seatpost
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 548 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.432 mm | 1.386 mm | 1.376 mm | 1.331 mm | 1.286 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 710 mm | 735 mm | 766 mm | 797 mm | 834 mm |
| Rake | 42 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 112 mm | 111 mm | 119 mm | 119 mm | 120 mm |
| Stack | 587 mm | 596 mm | 626 mm | 639 mm | 656 mm |
| Reach | 410 mm | 430 mm | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 556 mm | 579 mm | 611 mm | 639 mm | 674 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 390 mm | 425 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm | 143 mm |
| Chainstay Length | 430 mm | 430 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1139 mm | 1164 mm | 1203 mm | 1234 mm | 1271 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 756 mm | 759 mm | 777 mm | 783 mm | 790 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 168 cm | 177 cm | 185 cm | 194 cm | cm |
