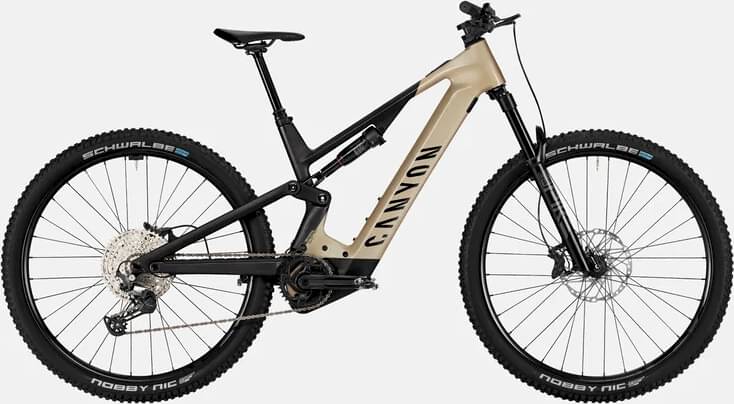

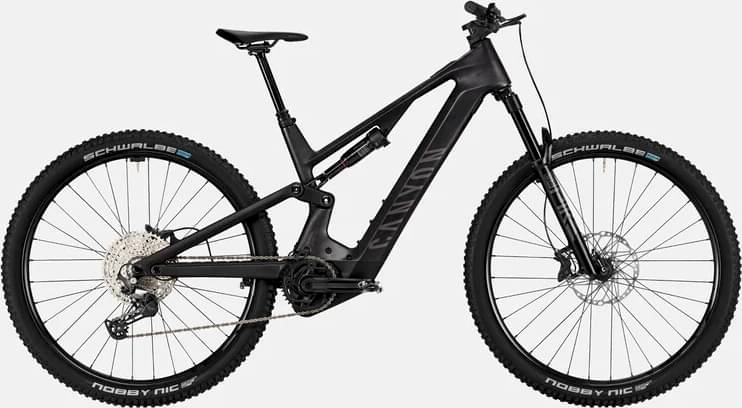

Canyon Neuron:ON CF 7 2024
2024 E-bike
Estimate price |
5,816$
Weight | 23.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Pike
-
Groupset Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

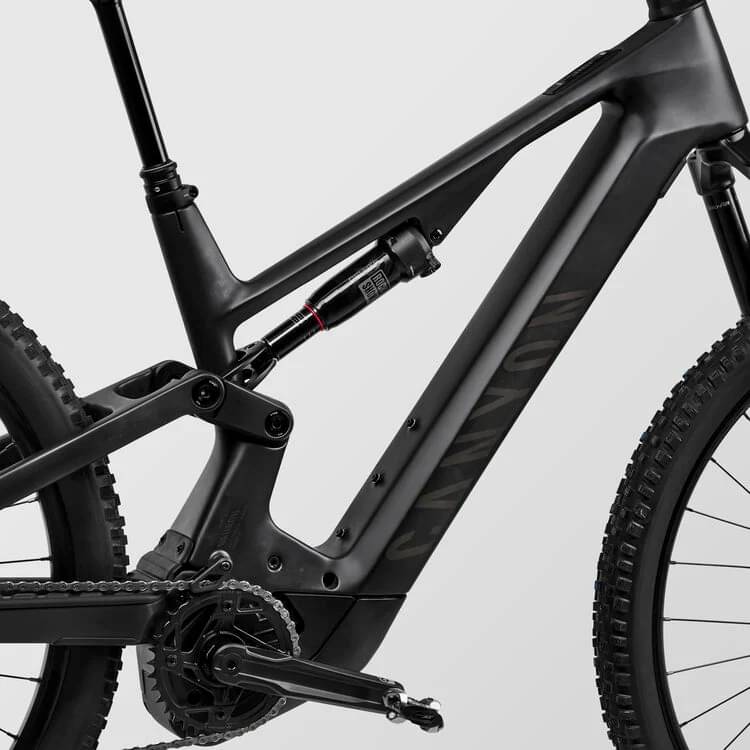

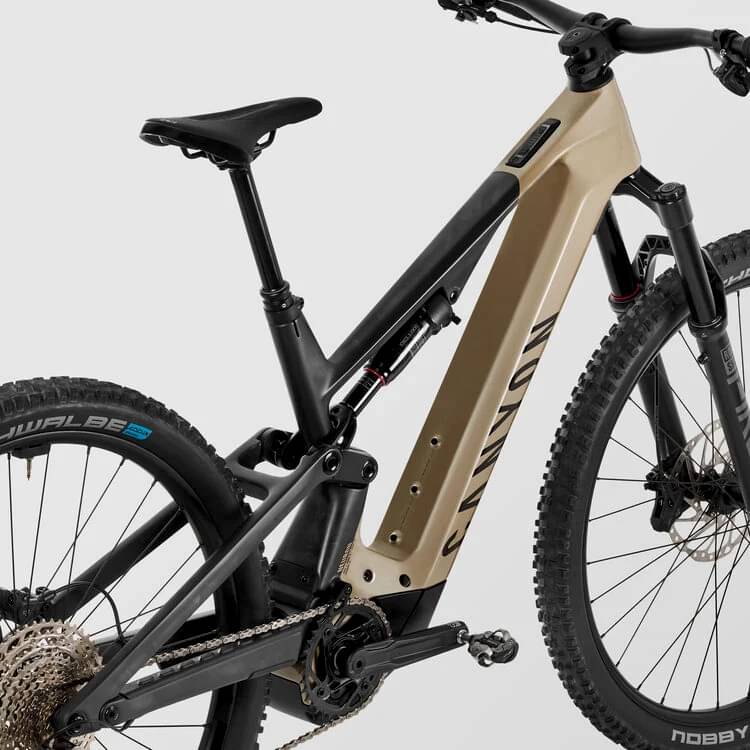

Canyon Neuron:ON CF, Elegant, compliant, light Canyon Neuron:ON carbon frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12x148 mm, Material: Carbon (CF)

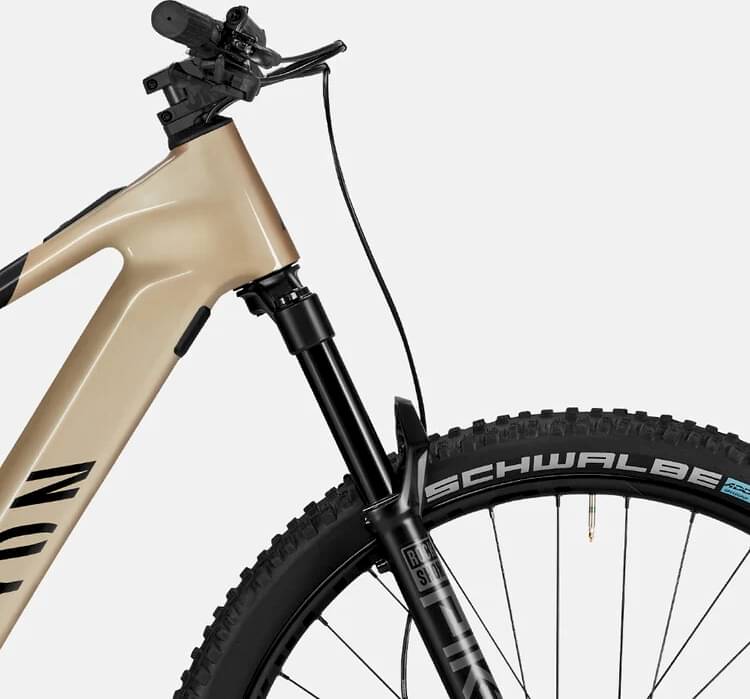

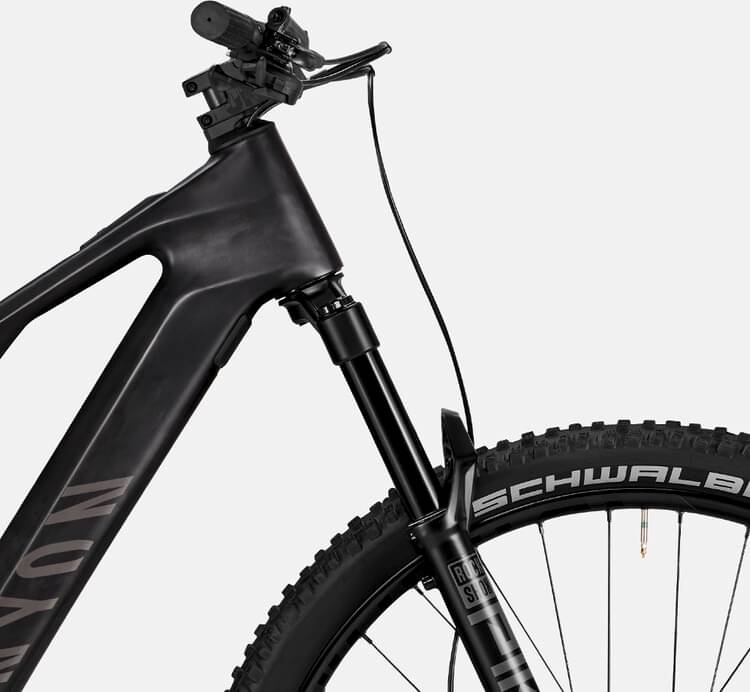

Suspension Fork

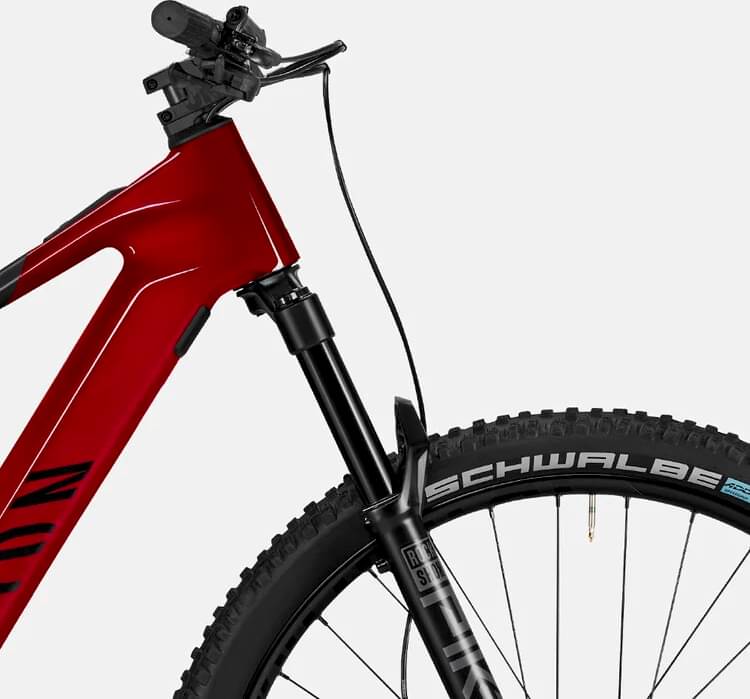

RockShox Pike, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.34 kg

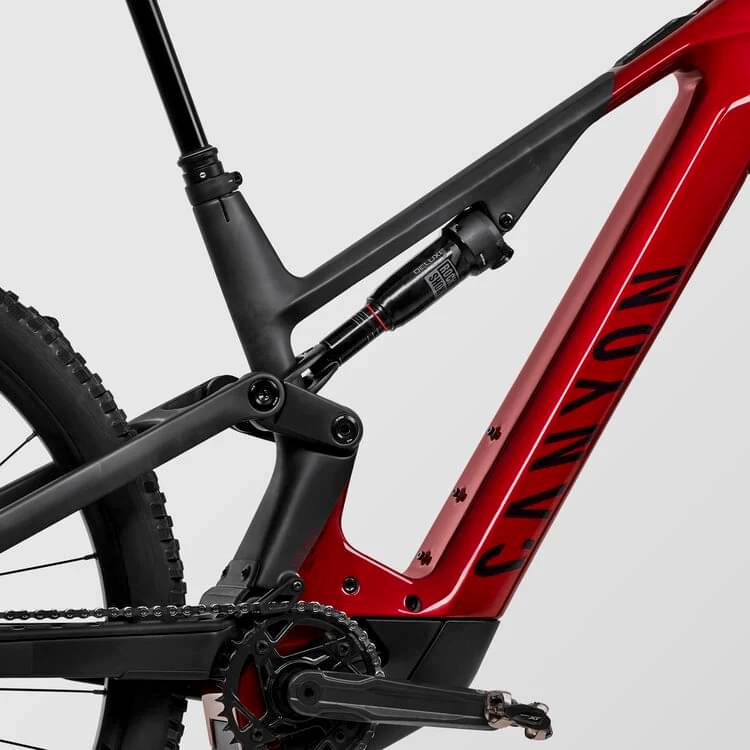

Rear Shock
RockShox Deluxe Select R, Weight: 375 g
Drivetrain
Rear Derailleur
Shimano Deore M6100, Cage length: long, Weight: 317 g
Shift Levers
Shimano Deore M6100 12s, Weight: 139 g
Cassette
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S
Crank
FSA 762 Forged Crank Bosch gen4
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100
Chain Guide
Canyon Chainguide M091/M129
Wheels
Rims
RODI TRYP30 EVO, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Weight: 1.09 kg | RODI TRYP30 EVO, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Weight: 1.19 kg
Tires
Schwalbe Nobby Nic 29x2.4 black skin, Width: 2.4"
Brakes
Brakes
Shimano M6120 | Shimano Deore M6100
Cockpit
Stem
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Fizik Terra Alpaca X5, Weight: 230 g
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g
Motor & Battery
Motor

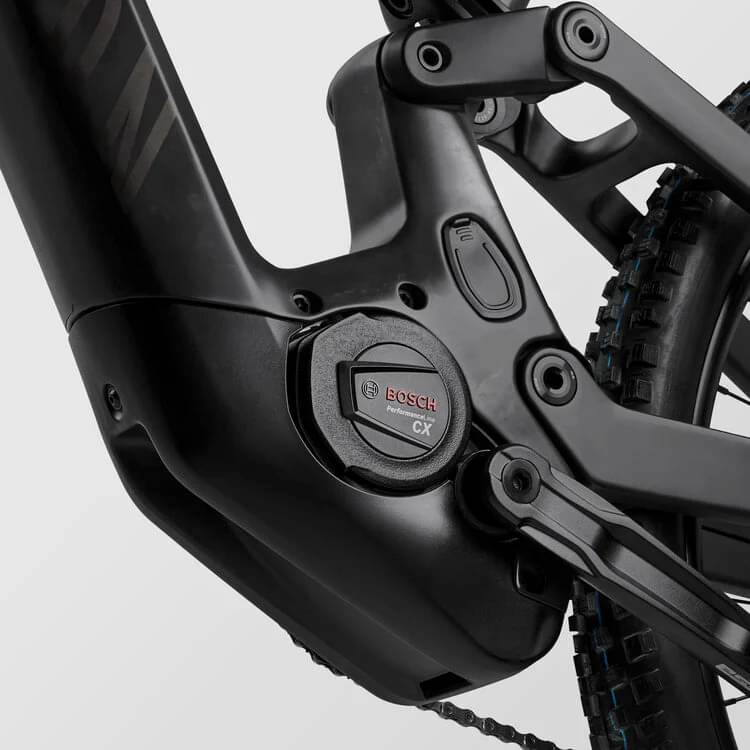

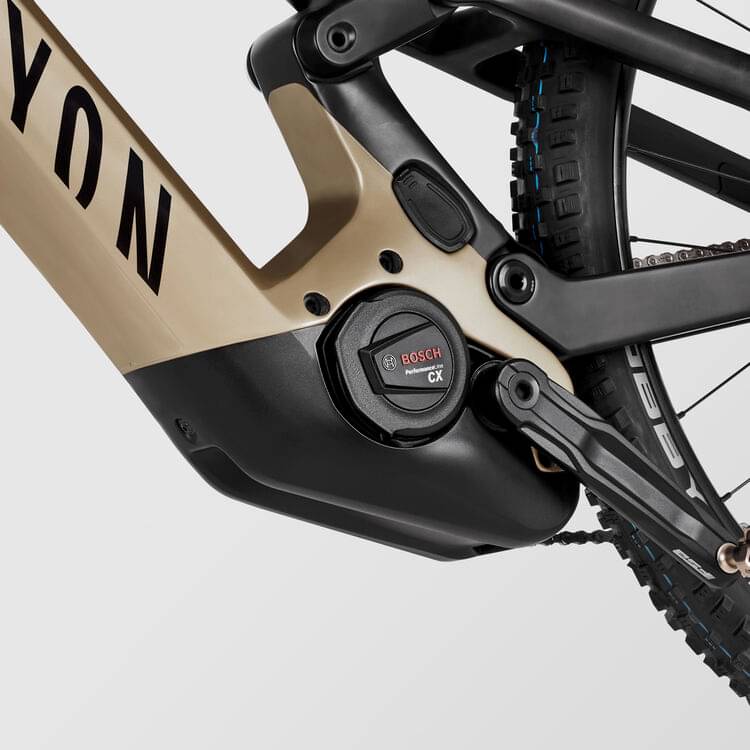

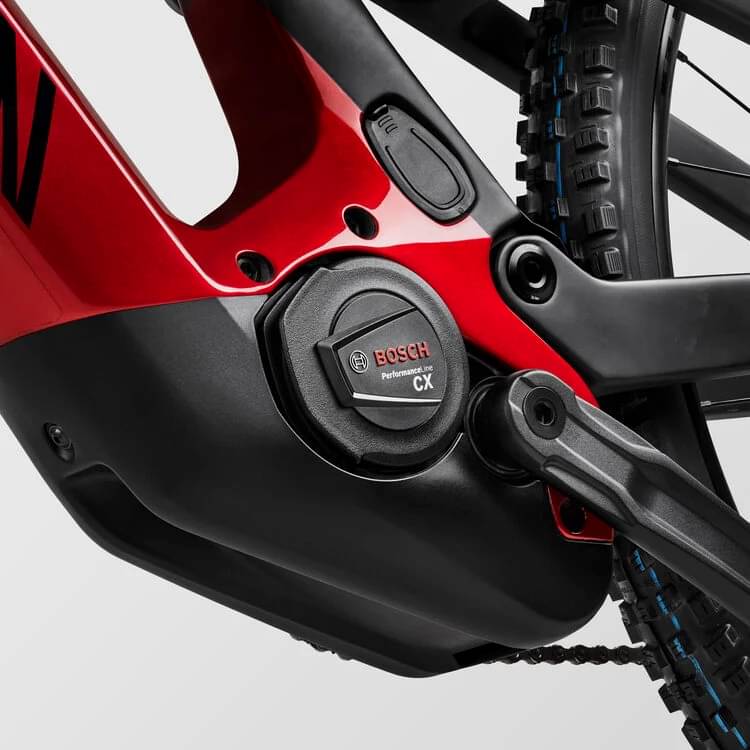

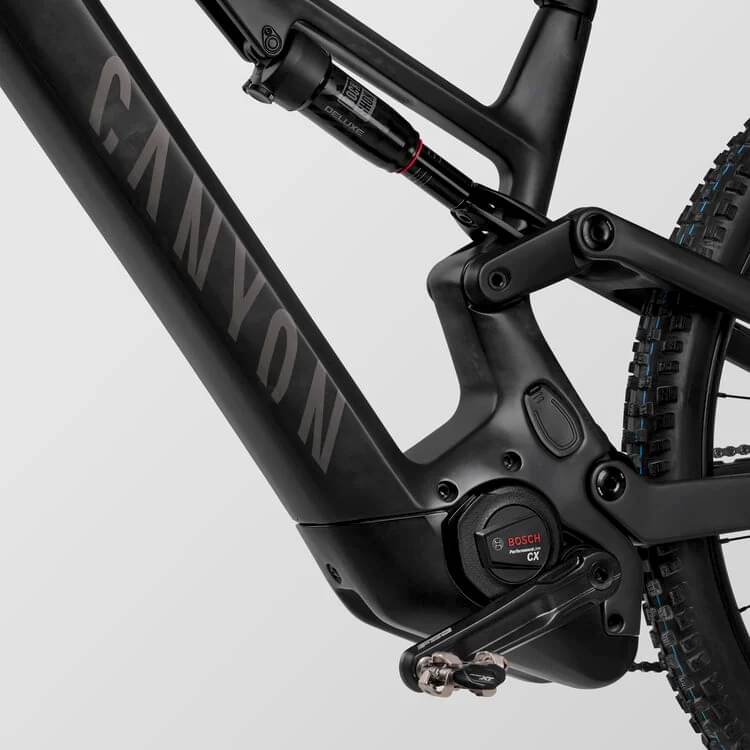

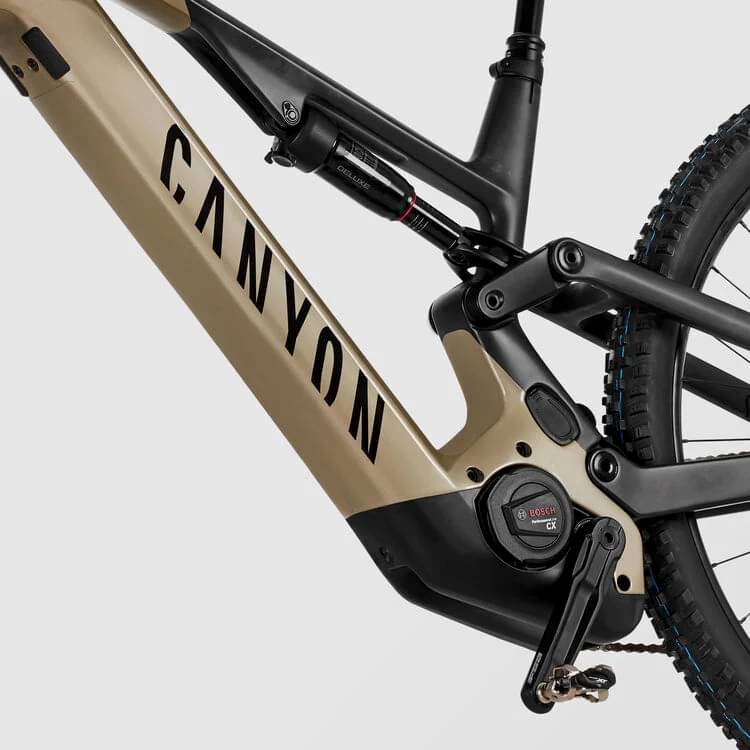

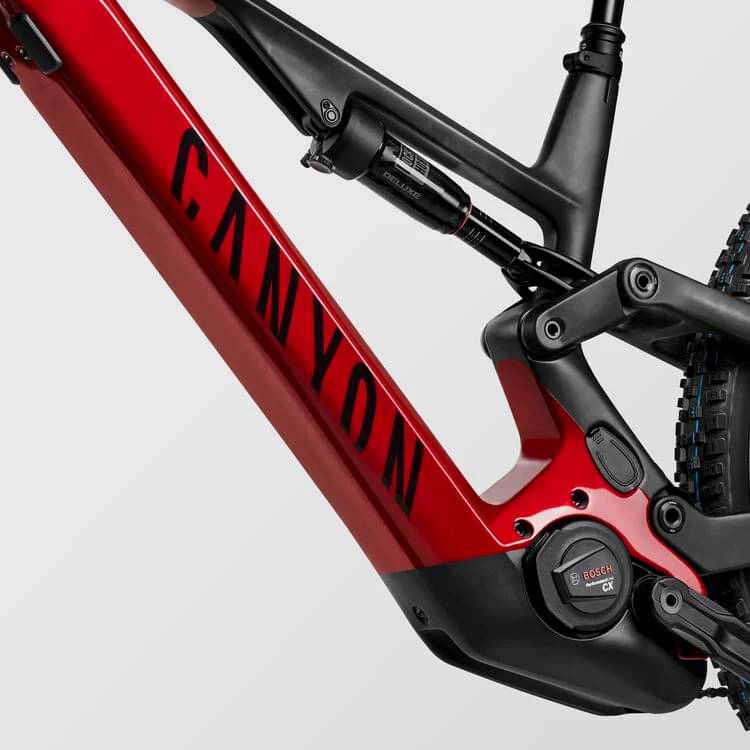

Bosch Performance Line CX
Battery
Bosch PowerTube 750Wh
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.393 mm | 1.34 mm | 1.292 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 755 mm | 784 mm | 808 mm | 837 mm |
| Rake | 44 mm | 43 mm | 39 mm | 39 mm |
| Trail | 122 mm | 123 mm | 128 mm | 128 mm |
| Stack | 631 mm | 641 mm | 650 | 659 mm |
| Reach | 435 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 587 mm | 614 mm | 641 mm | 668 mm |
| Seat Tube Angle | 68.6 ° | 69.3 ° | 69.9 ° | 70.2 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1203 mm | 1232 mm | 1256 mm | 1285 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 773 mm | 779 mm | 785 mm | 790 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
