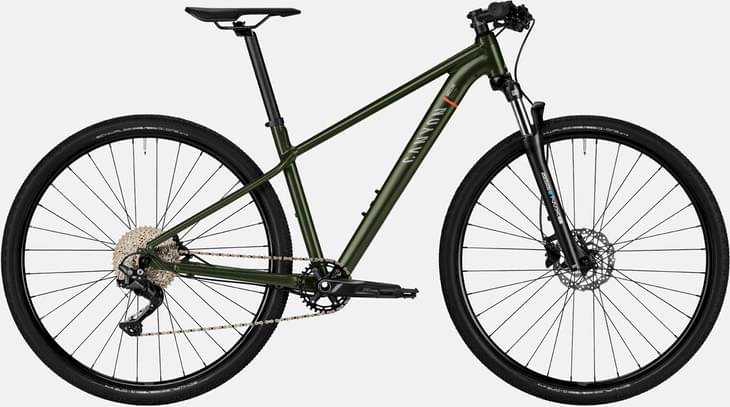

Canyon Pathlite 4 mid-step 2024
2024 Urban
Estimate price |
916$
Weight | 13.36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NVX
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components

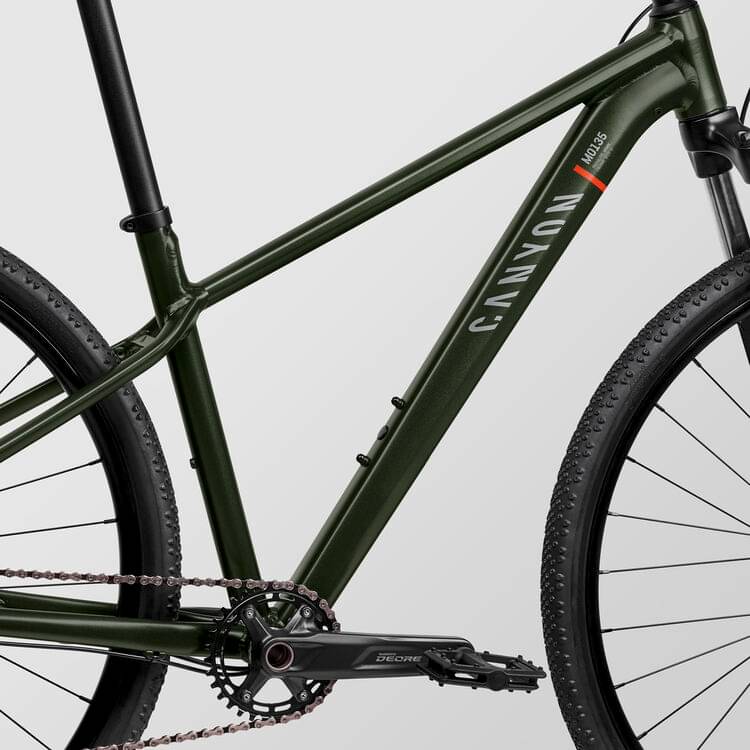

Frame
Frame
Canyon Pathlite WMN AL, Comfortable, capable robust aluminium touring bike with female-specific geometry., Axle dimension: 9X135 mm, Material: Aluminium (AL)

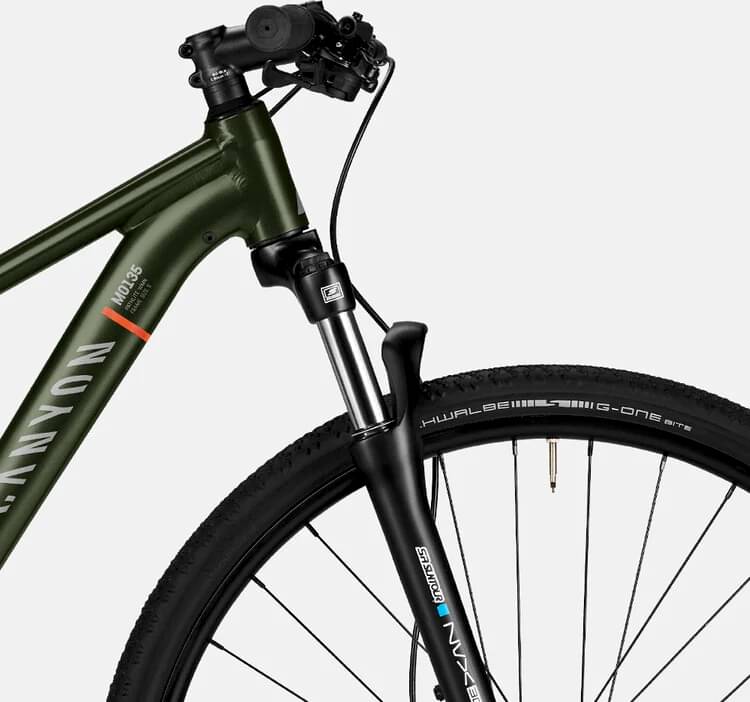

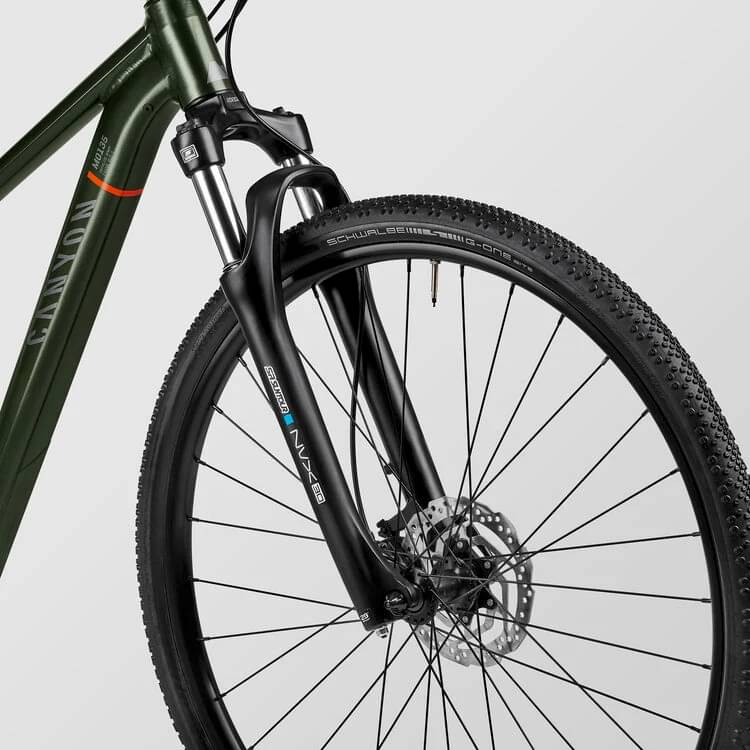

Suspension Fork
SR Suntour NVX30, Axle dimension: 9X100 mm, Stanchion Diameter: 30 mm, Travel: 75 mm, Fork steer tube diameter: 1 1/8", Offset: 42 mm, Weight: 2.57 kg
Drivetrain

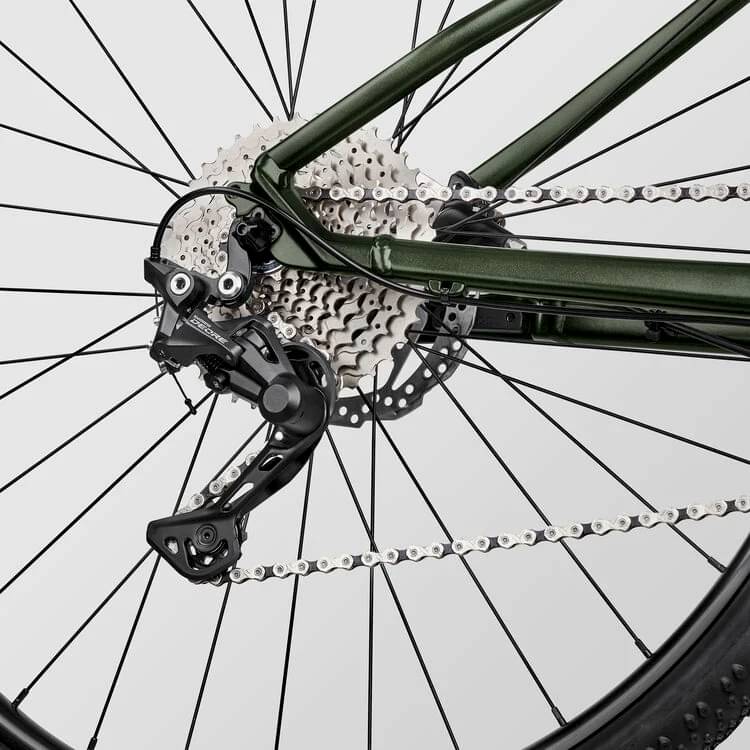

Rear Derailleur
Shimano Deore M4120, 10/11-speed, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M4100, 10-speed, Weight: 142 g
Cassette
Shimano Deore M4100 10-S, Number of sprockets: 10, Range: 11-42 11S
Crank
Shimano Deore M5100 32T, Number of chainrings: 1
Bottom Bracket
Shimano BB-MT501, Bottom bracket standard: BSA HT2 68/73, Weight: 73 g
Chain
KMC X10-93 10s
Wheels
Rims
Alexrims DP23 | Shimano TX505, Axle dimension: 9X100 mm, Rotor mount: Center Lock | Alexrims DP23 | Shimano TX505 S11, Axle dimension: 9X135 mm, Rotor mount: Center Lock
Tires
Schwalbe G-One Bite 45mm, Width: 45 mm, Weight: 540 g
Brakes

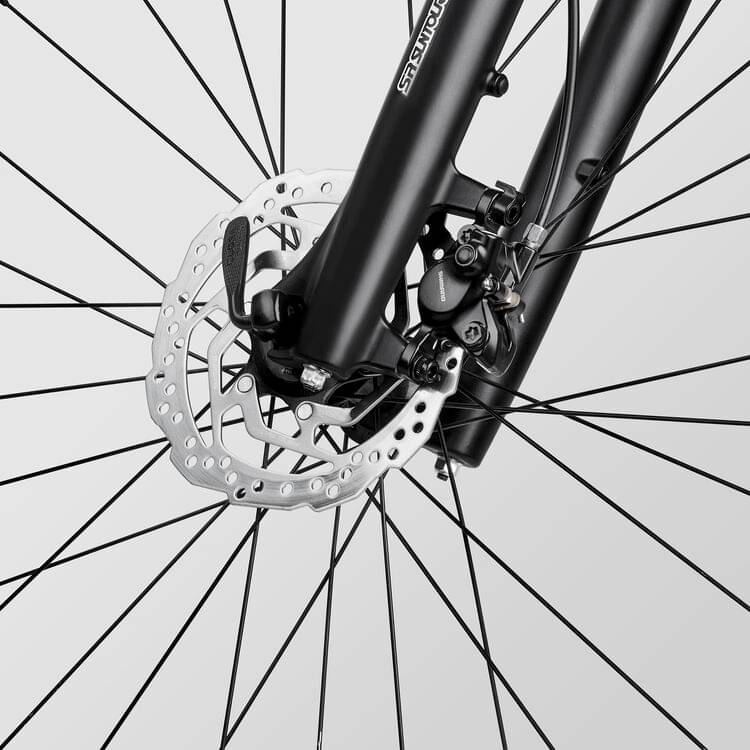

Brakes
Shimano MT200
Cockpit
Stem
Iridium Stem, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Iridium Grips
Seat
Saddle
Canyon Sport Saddle EP1249, Gender: Unisex, Weight: 287 g
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.567 mm | 1.566 mm | 1.566 mm |
| Front Center | 619 mm | 623 mm | 623 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 71 mm | 72 mm | 72 mm |
| Stack | 583 mm | 603 mm | 603 mm |
| Reach | 372 mm | 385 mm | 385 mm |
| Top Tube Length | 548 mm | 566 mm | 566 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 385 mm | 425 mm | 425 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 96 mm | 94 mm | 94 mm |
| Chainstay Length | 420 mm | 425 mm | 425 mm |
| Wheelbase | 1035 mm | 1040 mm | 1040 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm |
| Standover Height | 697 mm | 751 mm | 751 mm |
| Front Travel | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 700 | 700 |
| Rider Max Height | 165 cm | 175 cm | cm |
