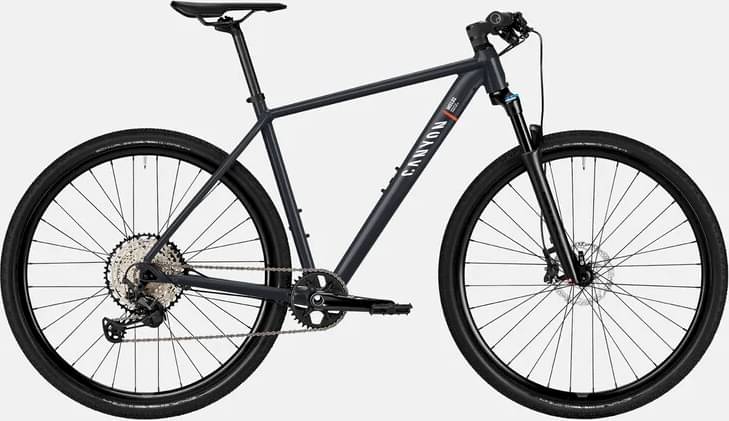

Canyon Pathlite 7 2024
2024 Urban
Estimate price |
1,744$
Weight | 11.94 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NRX E
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components

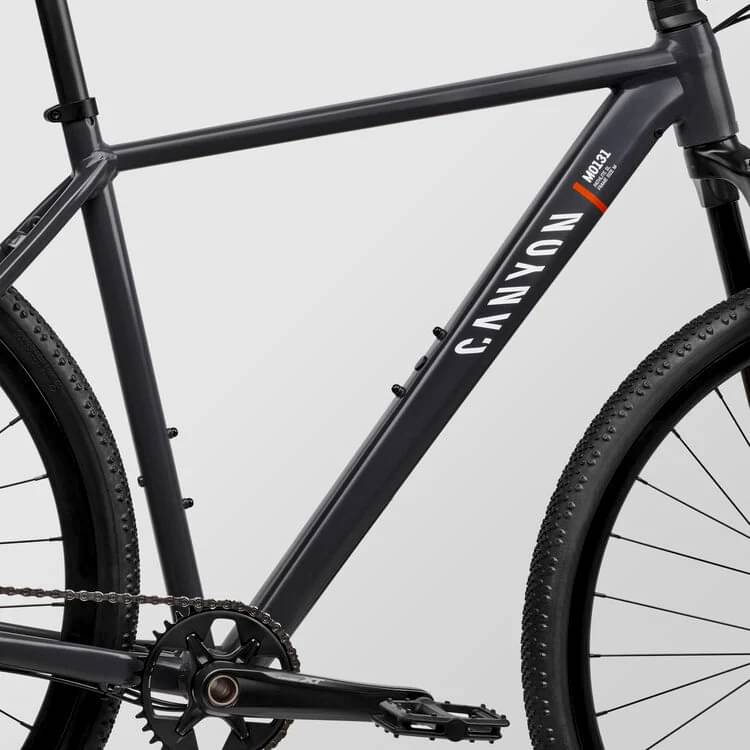

Frame
Frame
Canyon Pathlite AL SL, Comfortable, capable, light and robust aluminium touring bike., Axle dimension: 12x142 mm, Material: Aluminium (AL)

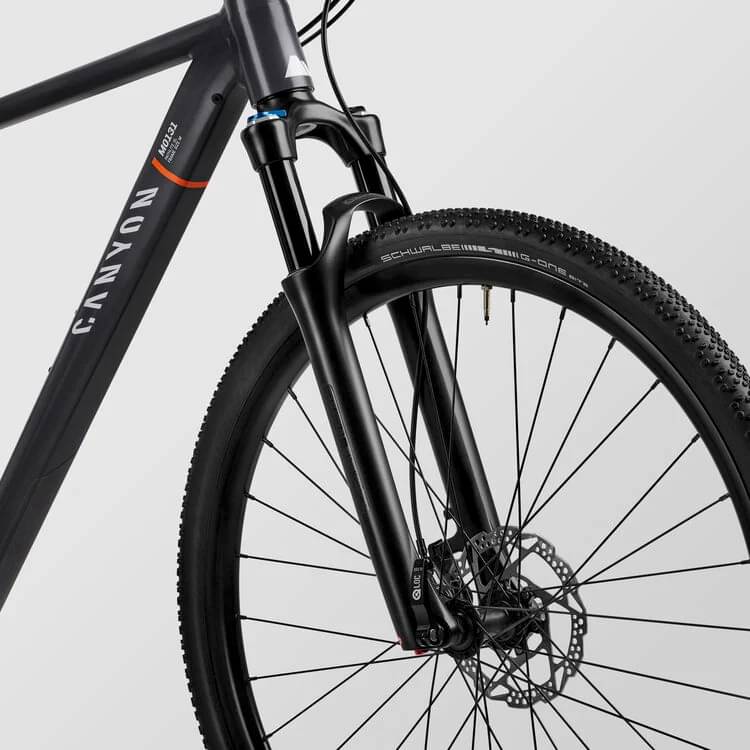

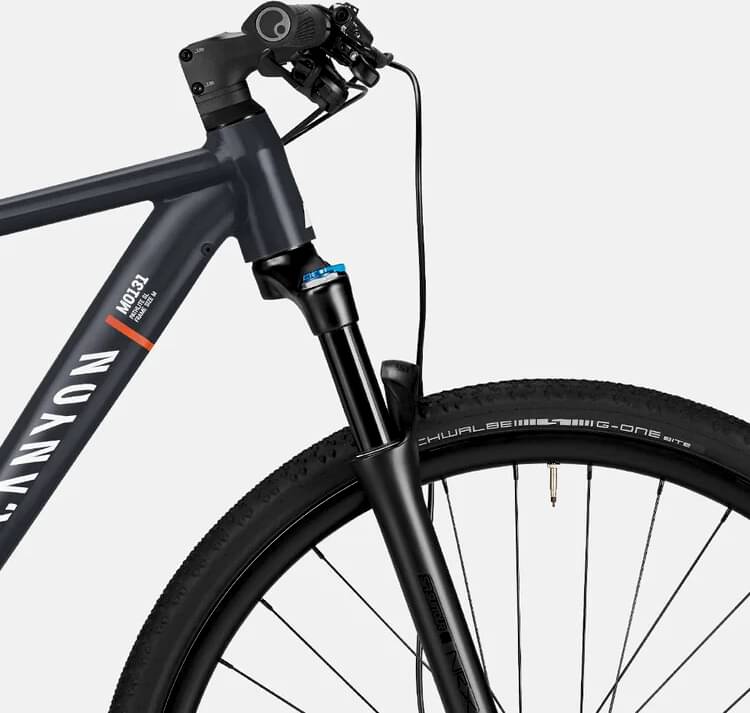

Suspension Fork
SR Suntour NRX-E Air, Axle dimension: 15x110 mm, Stanchion Diameter: 30 mm, Travel: 75 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.20 kg
Drivetrain

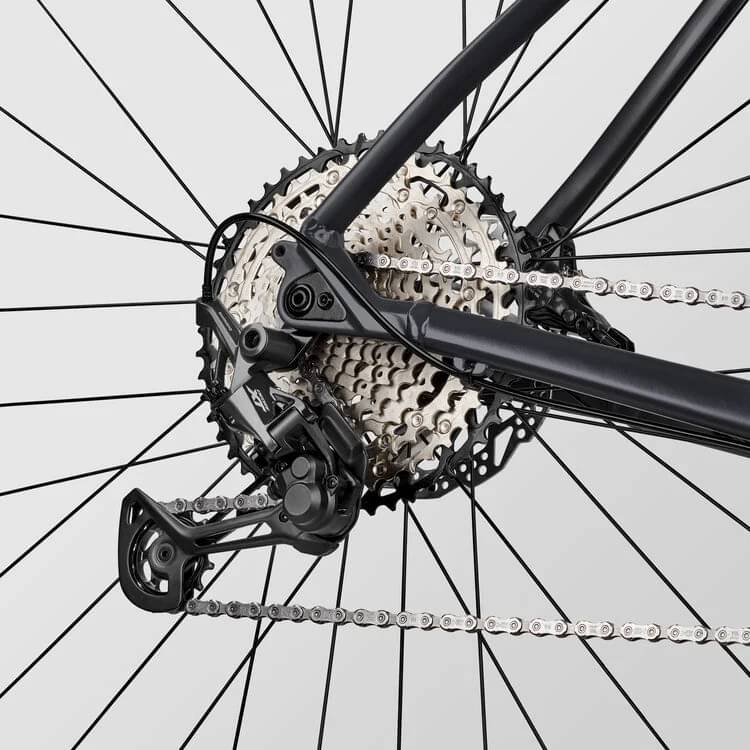

Rear Derailleur
Shimano Deore XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano SLX M7100, Weight: 143 g
Cassette
Shimano SLX M7100, Number of sprockets: 12, Range: 10-51 12S
Crank
Shimano XT M8100 36, Number of chainrings: 1
Bottom Bracket
Shimano Pressfit BB-MT500, Bottom bracket standard: PF 89,5/92, Weight: 200 g
Chain
Shimano CN-M6100
Wheels
Rims
Alexrims GX26P, Axle dimension: 15X100 mm, Rotor mount: Center Lock, Rim height: 26 mm | Alexrims GX26P, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm
Tires
Schwalbe G-One Bite 45mm, Width: 45 mm, Weight: 540 g
Brakes
Brakes
Shimano Deore XT M8100

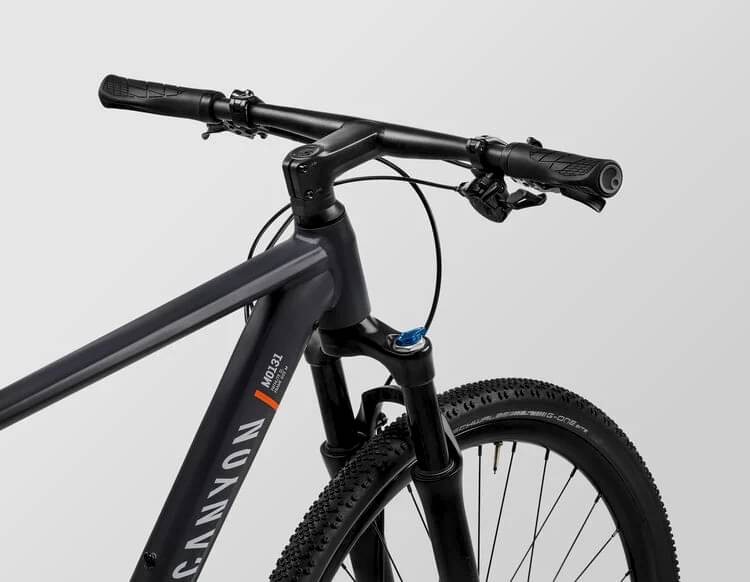

Cockpit
Grips
Ergon GA3
Seat
Saddle
Canyon Sport Saddle EP1249, Gender: Unisex, Weight: 287 g
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.499 mm | 1.505 mm | 1.527 mm | 1.533 mm | 1.561 mm | 1.555 mm |
| Front Center | 633 mm | 639 mm | 647 mm | 664 mm | 674 mm | 699 mm |
| Rake | 46 mm | 47 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 71 mm | 70 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 580 mm | 602 mm | 617 mm | 636 mm | 654 mm | 678 mm |
| Reach | 387 mm | 400 mm | 404 mm | 415 mm | 419 mm | 436 mm |
| Top Tube Length | 562 mm | 582 mm | 590 mm | 607 mm | 616 mm | 640 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 420 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1049 mm | 1056 mm | 1064 mm | 1082 mm | 1092 mm | 1117 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 778 mm | 804 mm | 826 mm | 851 mm | 875 mm | 901 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 191 cm | 197 cm | cm |
