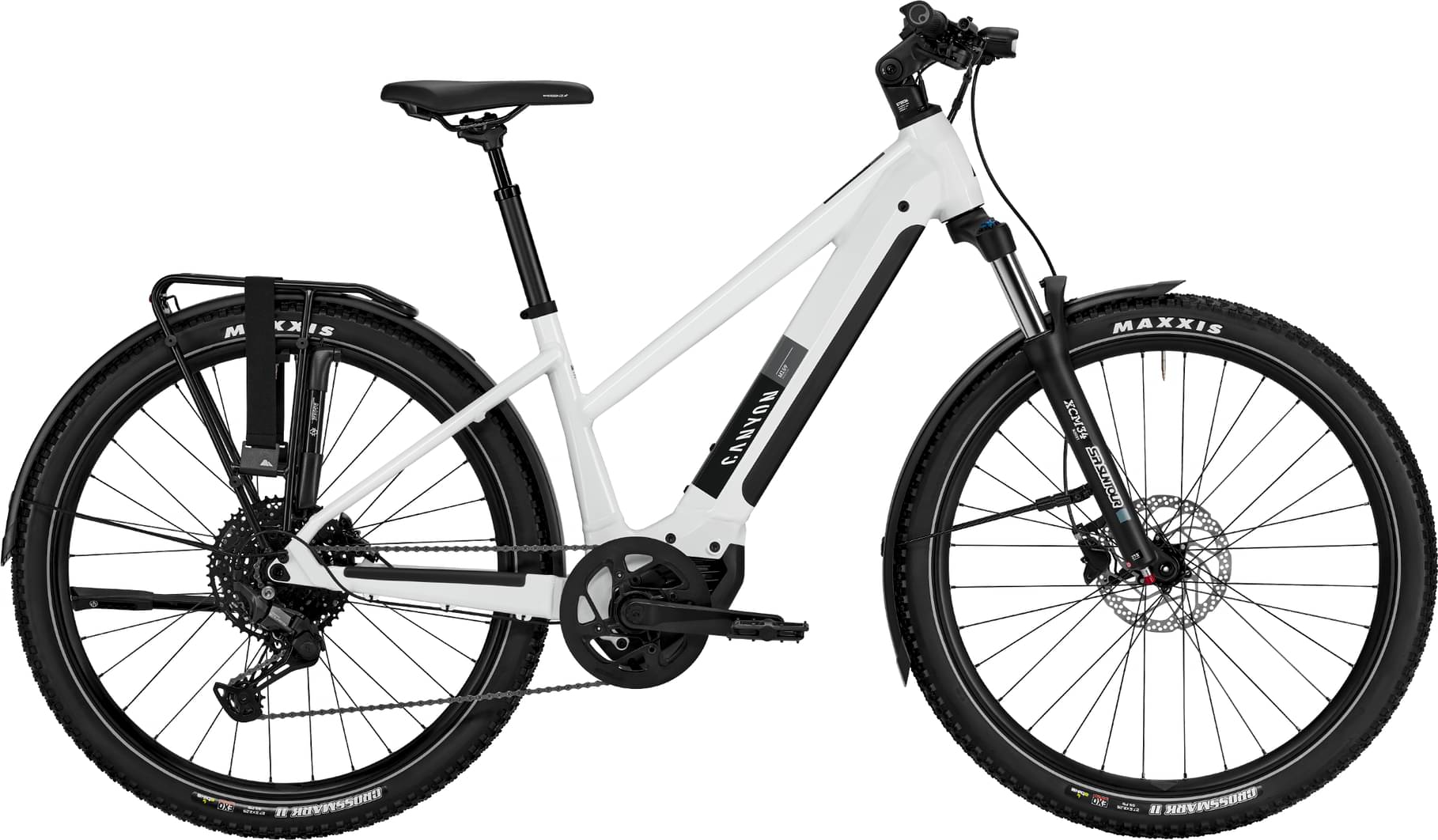

Canyon Pathlite:ON 4 SUV mid-step 2024
2024 E-bike
Estimate price |
3,489$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset CUES, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Depending on your selected configuration. -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a comfortable riding position., Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
Suntour XCM34 Coil, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8", Offset: 47 mm, Weight: 3.42 kg
Drivetrain
Rear Derailleur
Shimano CUES 11speed, Weight: 348 g
Shift Levers
Shimano CUES U6000, Weight: 30 g
Cassette
Shimano CUES LG300-10, Number of sprockets: 10 | Shimano CUES LG300 10-speed Cassette 11-48
Crank
FSA CK-220, Number of chainrings: 1
Chain
Shimano LG500 | Shimano 11-speed Quick-Link Chain Connector | Shimano CN-LG500 11-speed Chain 138L
Wheels
Rims
Alexrims MD25 | Promax DR850, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 905 g | Alexrims MD25 | Promax DR850 SH11, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 1.14 kg
Tires
Maxxis Crossmark II Reflexstrip Clincher, Weight: 750 g | Maxxis Crossmark II TR EXO 27.5" x 2.25" MTB Tyre
Brakes
Brakes
Shimano MT200 | Shimano MT200 hydraulic disc brake
Cockpit
Stem

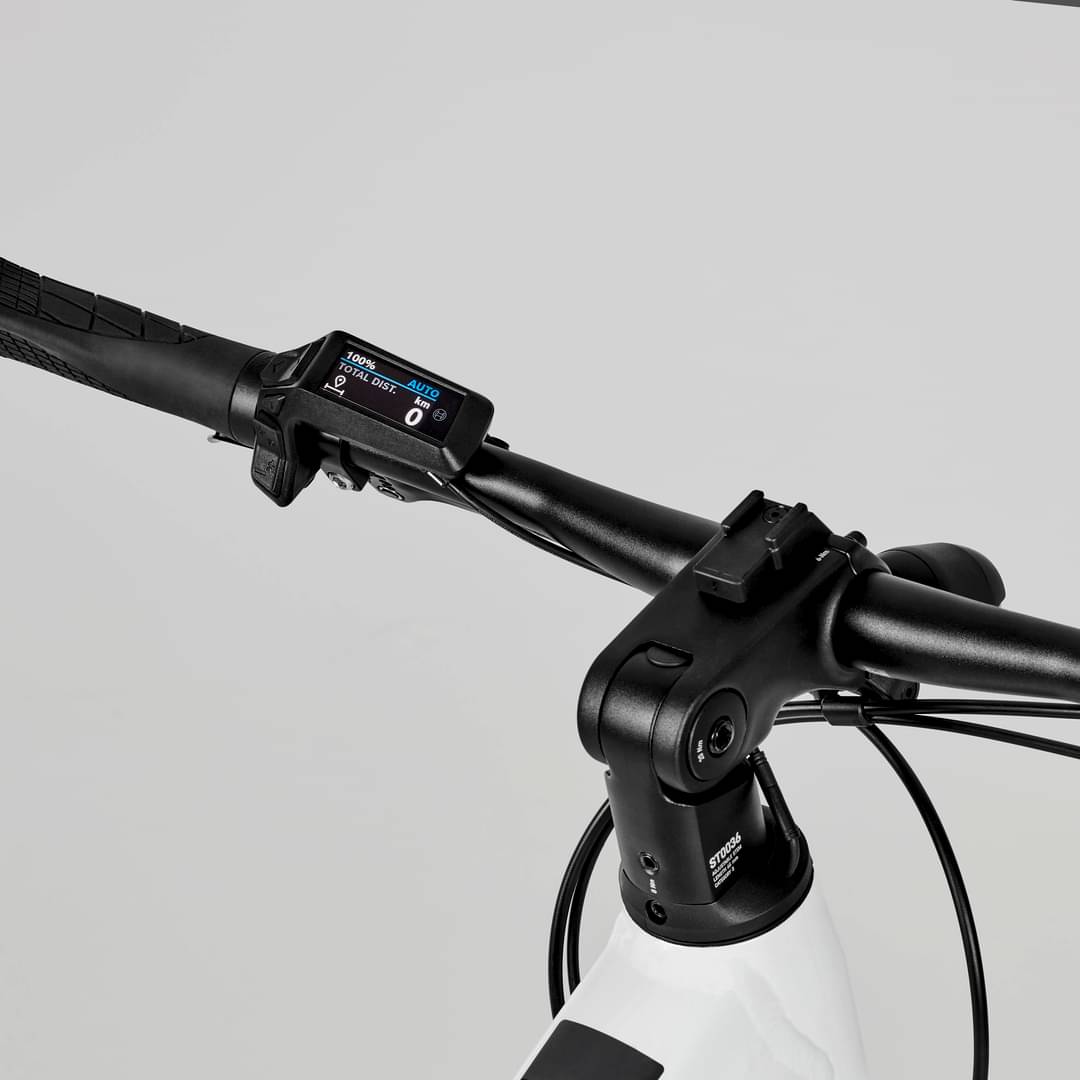

Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza+, Weight: 561 g
Seatpost
Iridium Suspension Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery
Motor

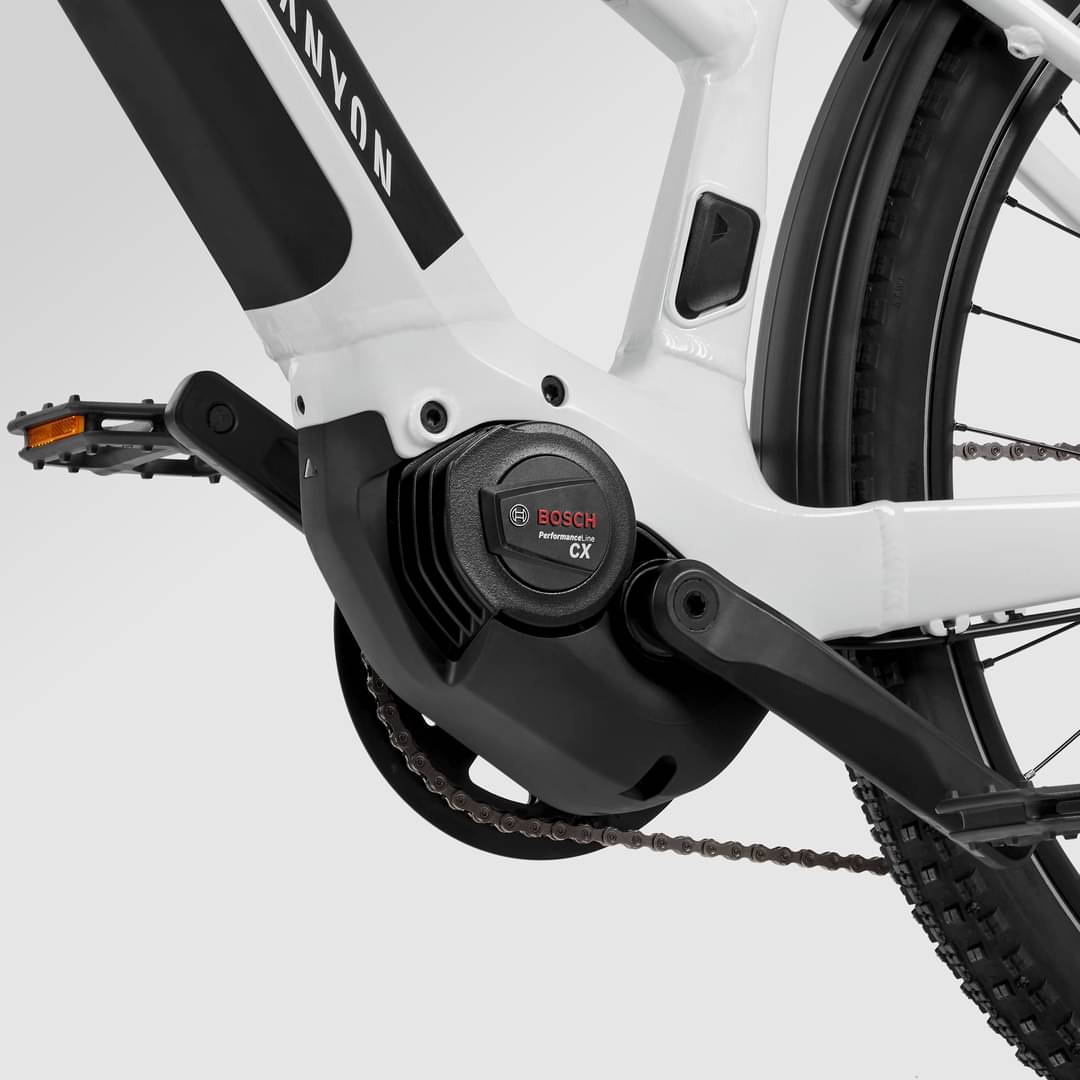

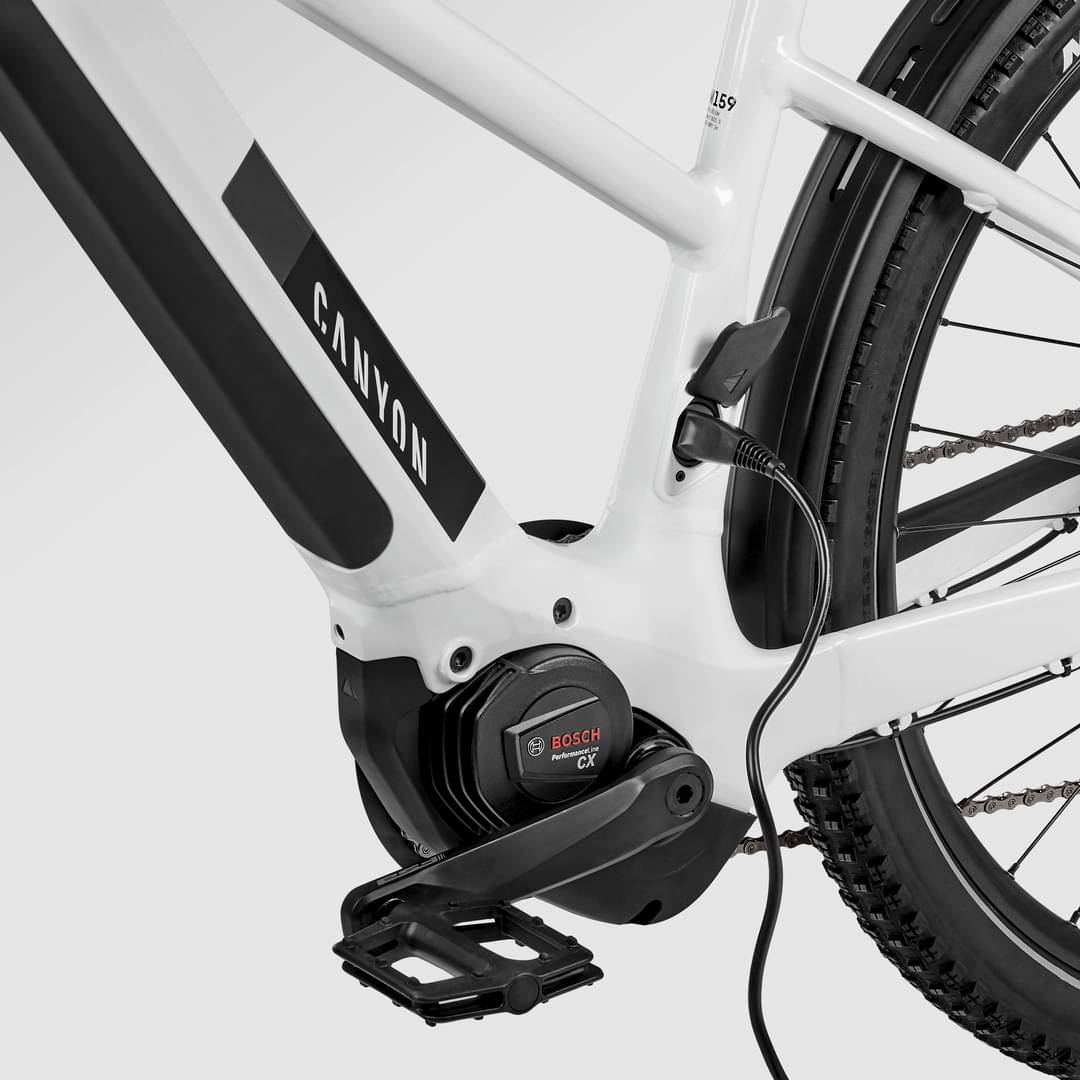

Bosch Performance Line CX
Battery
Depending on your selected configuration.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.621 mm | 1.626 mm | 1.603 mm |
| Front Center | 664 mm | 678 mm | 721 mm |
| Rake | 44 mm | 44 mm | 45 mm |
| Trail | 89 mm | 83 mm | 82 mm |
| Stack | 621 mm | 647 mm | 683 mm |
| Reach | 383 mm | 398 mm | 426 mm |
| Top Tube Length | 565 mm | 589 mm | 628 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 460 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 130 mm | 153 mm | 191 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1116 mm | 1130 mm | 1173 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 700 | 720 mm | 780 mm |
| Front Travel | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 171 cm | 181 cm | cm |
